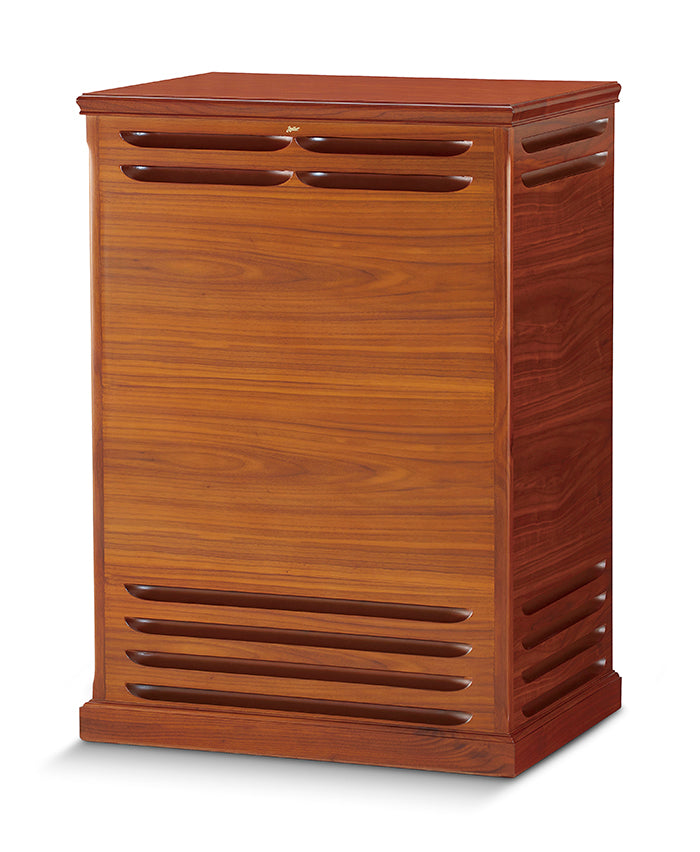

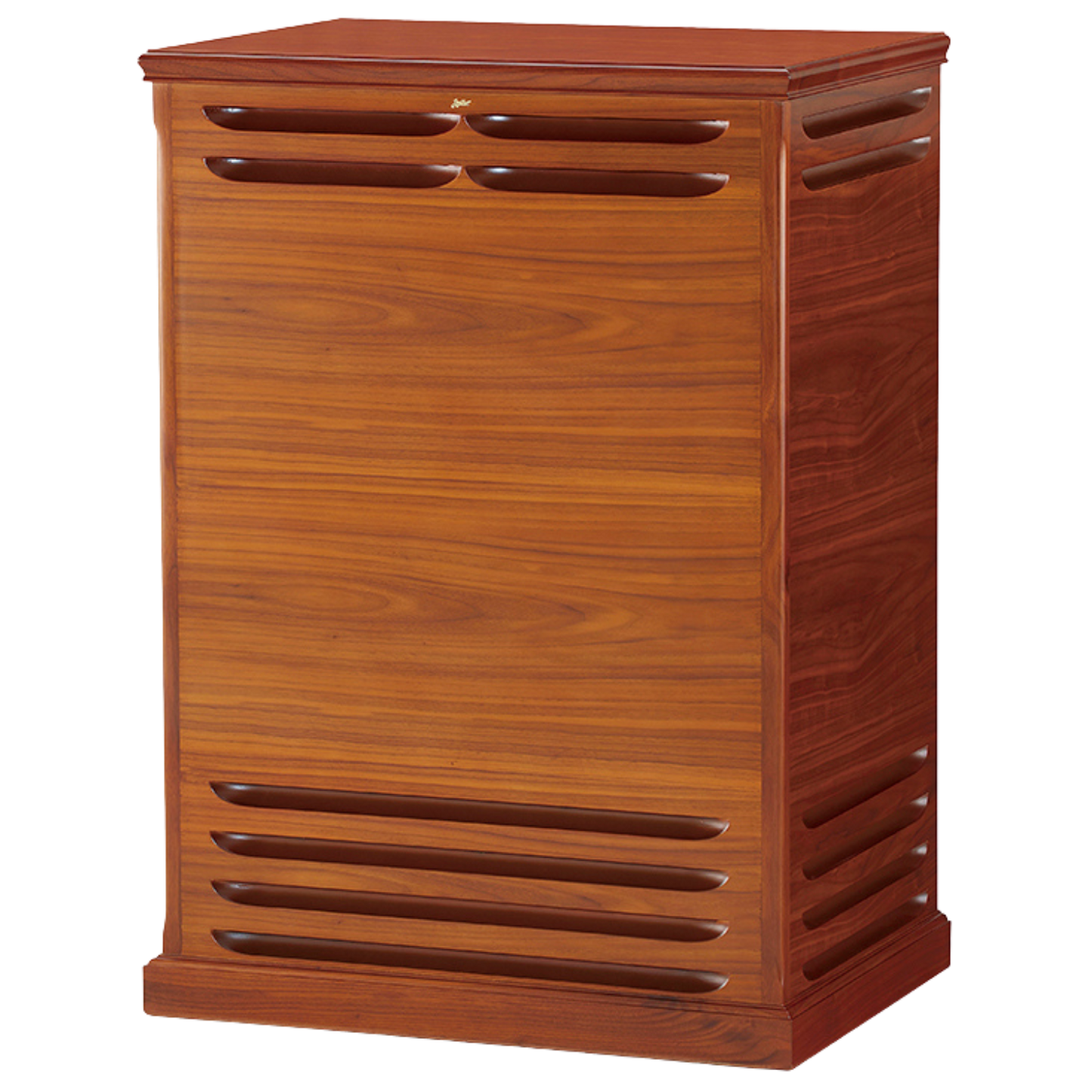

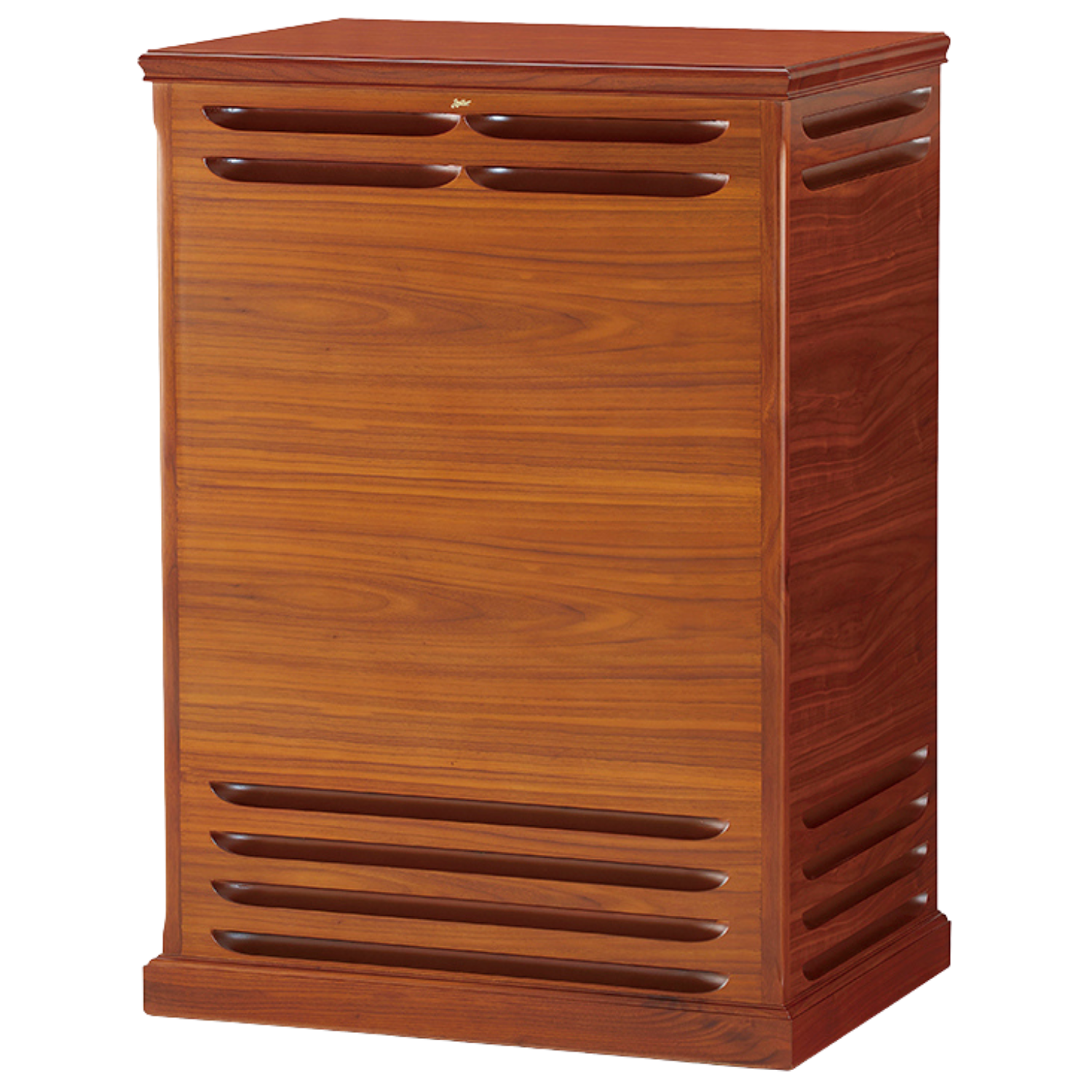

The 122H is a full-size traditional Leslie, and the 142H is a traditional “low-boy” cabinet, not available in many years. The components are identical in each cabinet. In order to reproduce the classic design, we have selected fine lumber core for the cabinets, as used in the antiques. A new high-compression horn driver and new massive 15” woofer are installed; both reviving qualities found in elder versions. The bass rotor is constructed of wood, in the classic shape, and the horn rotor has been created in the original’s specification. Both of these rotor components are being produced in very limited numbers, and are exclusive to the Heritage series only.
As one might imagine, these premium speakers, while holding to classic construction still provide modern conveniences. The motors driving the moving elements are brushless DC servo. They are not affected by power frequency or voltage fluctuations. The rise, fall and rotor speeds are freely adjustable. The connections include a modern 11-pin and 1/4” line input jacks. A 6-pin input allows vintage Hammonds with 5 or 6 pin terminals easy access. A 1/4” jack for foot pedal speed control is also provided. Please consult the product specification for further features.
Specifications:
-
Control: Master volume, power switch, foot switch type, 11-pin power remote, 6-pin control type
-
Speaker: Horn driver: High compression driver/Woofer: 38 cm (Massive 15˝)
-
Output: 40W
-
Connection terminal: 11pin socket, 6 pin socket, Line input, Foot switch
-
Preamp: Vacuum tube: 12BH7 x 1 (Power Amplifier), Vacuum tube: 12AU7 x 1, 6550 x 2
-
System: 1 Channel Real 2 rotor
-
Motor: Brushless DC servo motor x 2
-
Rotor adjust: Horn: Rise time, fall time, slow speed, fast speed. Lower: Rise time, fall time, slow speed, fast speed
-
Rated power consumption: 160W
-
Terminal: 11pin Leslie socket, 6 pin Leslie socket, Line in, Foot switch1 (Slow/Fast/Stop),
-
Dimensions: W29.25 x D29.66 x H40.94 in (122H), W29.25 x D29.66 x H33.14 in (142H)
-
Weight: 142 Lbs (122H) / 131Lbs (142H)
-
Accessory: AC cord
