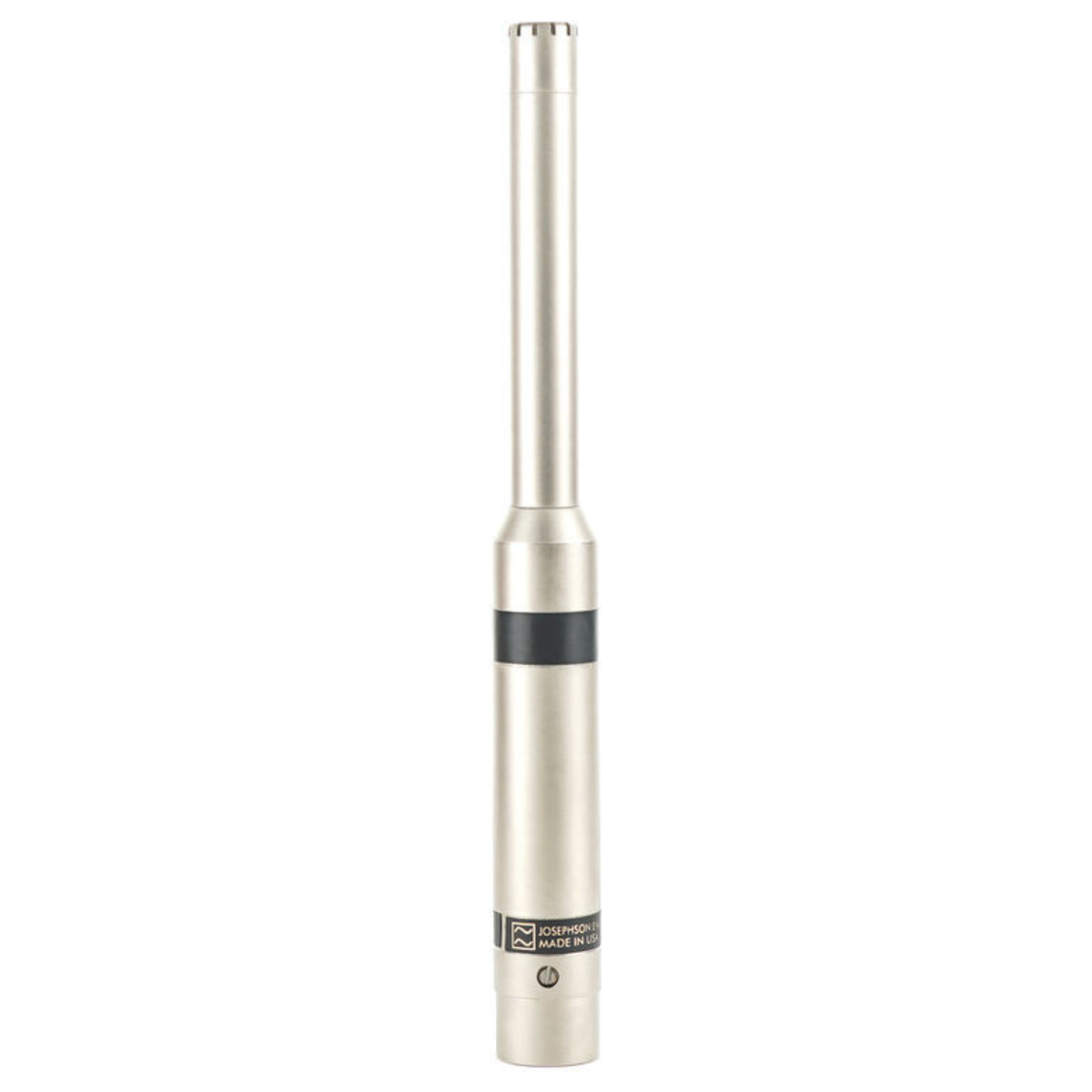

Josephson Engineering C550H
Josephson Engineering C550H
As far as measurement microphones go, the Josephson Engineering C550H stands out from the crowd. This small-diaphragm omnidirectional microphone comes loaded with a 6mm condenser capsule. Every internal component is selected for low-noise characteristics and fine-tuned at the Josephson Engineering factory for consistent performance from mic to mic. The performance is so consistent that the frequency response for on-axis sound is perfectly flat from 20Hz-20kHZ. What’s more, the C550H offers high SPL handling up to 135Hz. Finally, each C550H mic is built like a tank to ensure decades of use. Add a C550H to your mic tool kit, and reap the benefits of more accurate measurements.
Each C550H microphone is individually calibrated at the Josephson Engineering factory. By taking this extra step, the people at Josephson ensure every mic that rolls off the production line behaves identically to the rest. In turn, this ensures that the end user benefits from a consistent frequency response they can trust — no matter how many C550H microphones they own.
Specifications
| Microphone Type: | Condenser |
|---|---|
| Polar Pattern: | Omnidirectional |
| Diaphragm Size: | 0.52" Capsule (13.2mm), 0.23" Diaphragm (6mm) |
| Frequency Response: | 20Hz-20kHz |
| Output Impedance: | 50 ohms |
| Self Noise: | 30dB (A weighted) |
| Sensitivity: | 10mV/Pa |
| Connector: | XLR |
| Power Source: | 48V phantom power |
| Dimensions: | 7.5" x 0.82" |
| Weight: | 0.3 lbs. |
| Included Accessories: | Mic Clip, Carrying Pouch |
| Manufacturer Part Number: | C550H |
