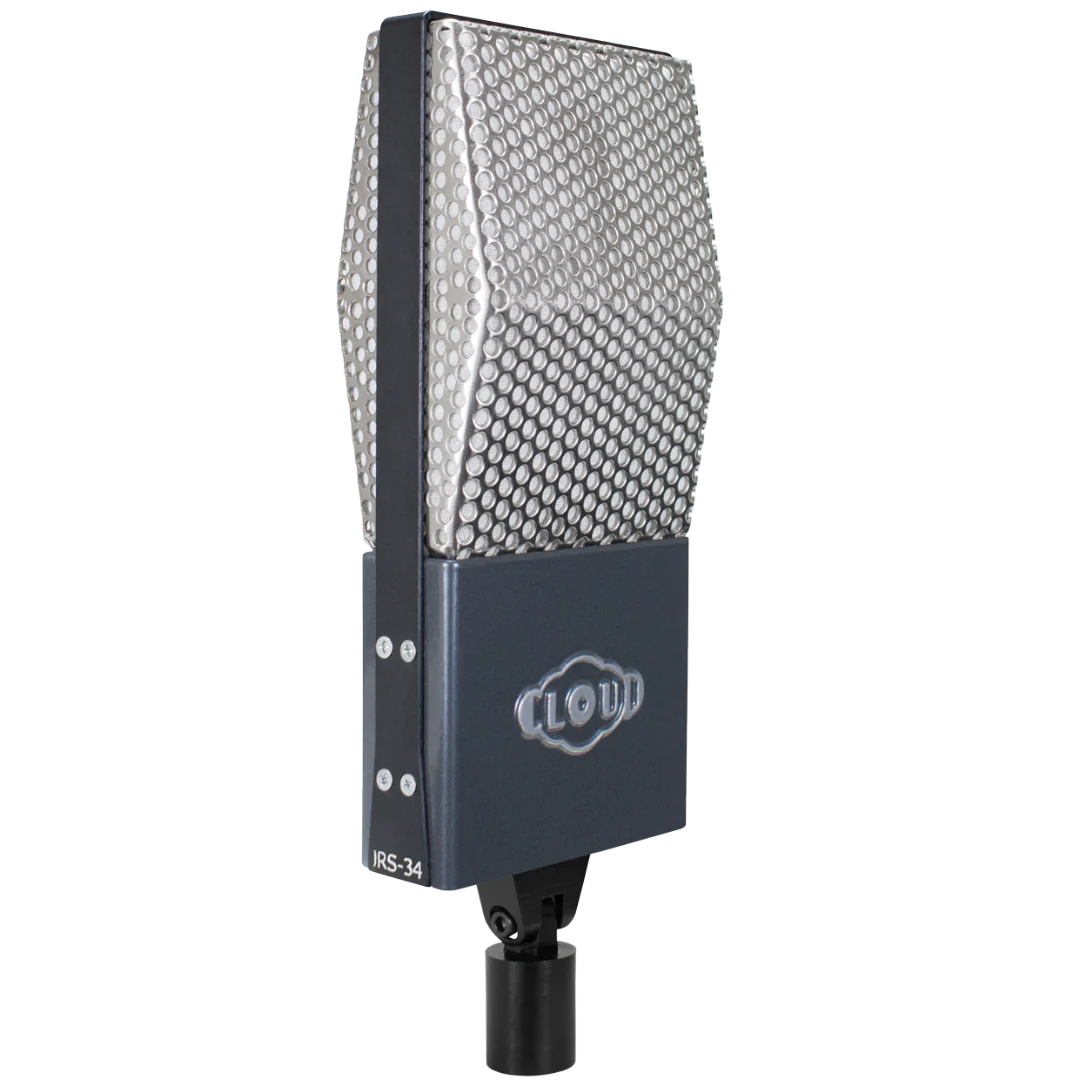

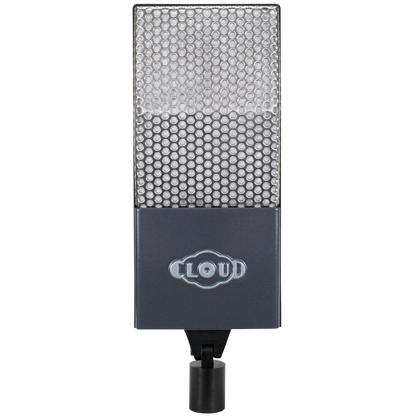

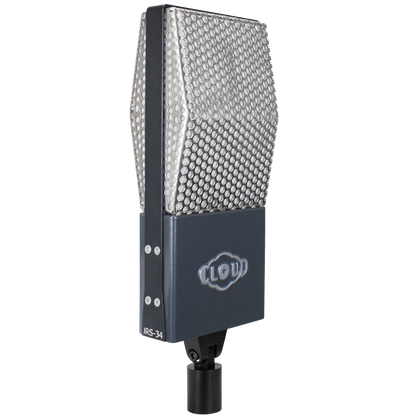

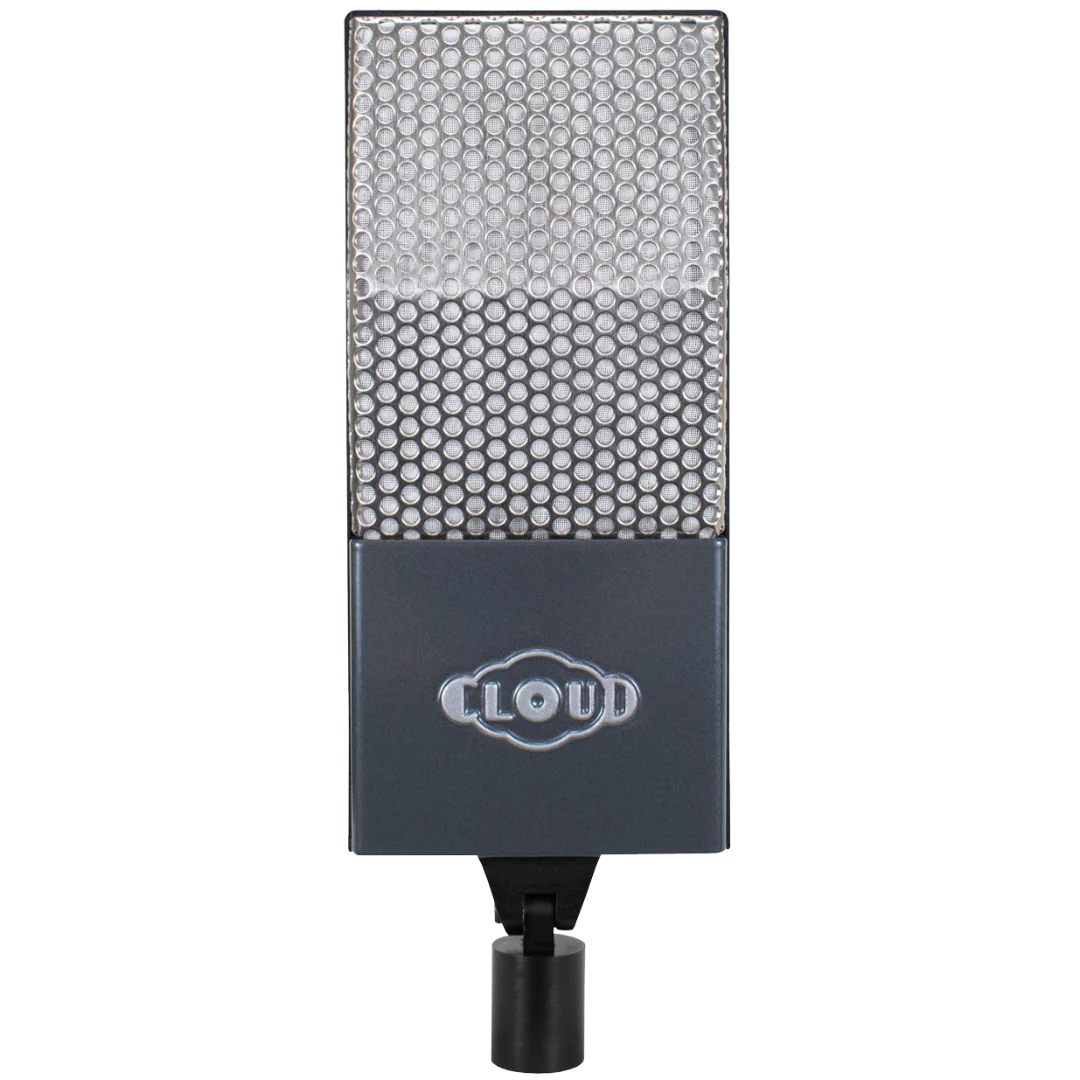

Cloud Microphones Cloud JRS-34P Ribbon Microphone

The Cloud Microphones JRS-34-P is a passive ribbon microphone with bi-directional polarity. It combines all the best features of vintage ribbon microphones of the RCA44a and RCA BK-11a.

The Cloud Microphones JRS-34-P is designed by Stephen Sank, son of legendary RCA microphone designer Jon R. Sank. The JRS-34 brings this RCA heritage into the 21st century with modern technology. A brand new suspended shock-mounting system use a suspended ribbon mounted on springs. Two of the nickel plated springs carry the signal to the output circuit through output cables.

Specifications:

• Figure 8 polar pattern, excellent side null rejection
• Patented Rounded Magnet technology
• Frequency Response: 20 Hz to above 20 kHz
• Maximum SPL: 138 + dB SPL above 1 kHz
• Output Impedance: 150 ohms nominal
• Output Sensitivity: -49 dBv/Pa
• Ribbon element dimensions: .19 inches wide, 2.35 inches long, 1.8 microns thick
• New mount offers 180 degree range of motion
• Internally shock mounted
• Built in XLR connector
