Lauten Audio

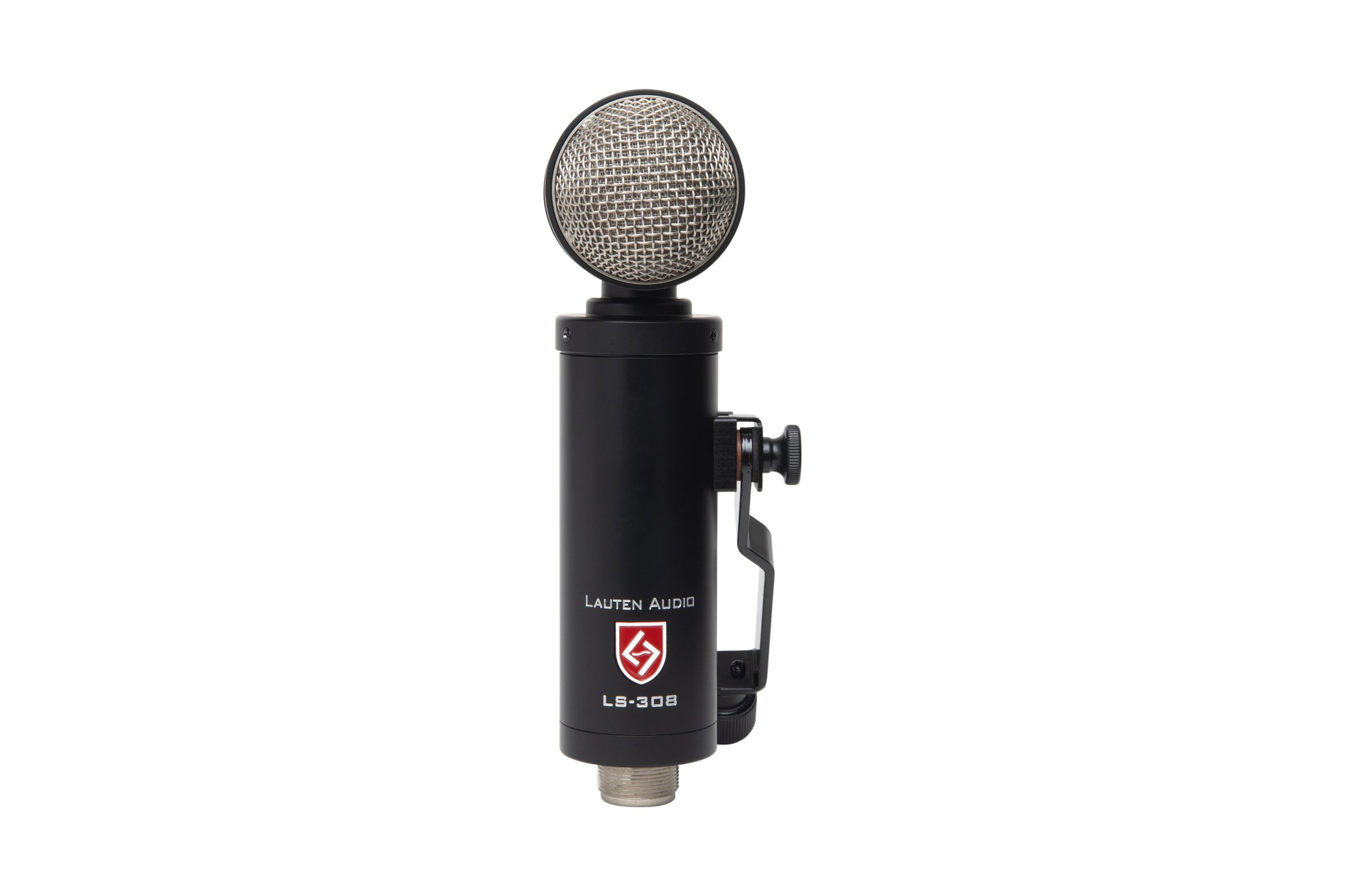

Lauten Audio LS-308

  • Sale
  • Regular price R 8,850.00


RECORD WHERE ISOLATION IS NEEDED, BUT HARD TO ACHIEVE ELECTRIC GUITAR // PERCUSSION

Capable of withstanding a staggering 135dB of SPL without internal padding, the LS-308 is nearly impossible to overload. Capture the loudest sound sources reserved for dynamic microphones with ease.

PREMIUM COMPONENTS

The LS-308 signal path is finalized with high resolution, low distortion polypropylene capacitors and resistors, a US made low-noise FET, and a custom wound output transformer. The result is a massively impactful sound with unmatched isolation and SPL handling.

ANALOG SOUND SHAPING

Two dedicated filters allow for immediate sound-shaping right at the source, removing the need to change out microphones in order to get the sound you want. Record a tight and bright snare drum or a dark and sultry vocal at the flip of a switch.

IN THE BOX

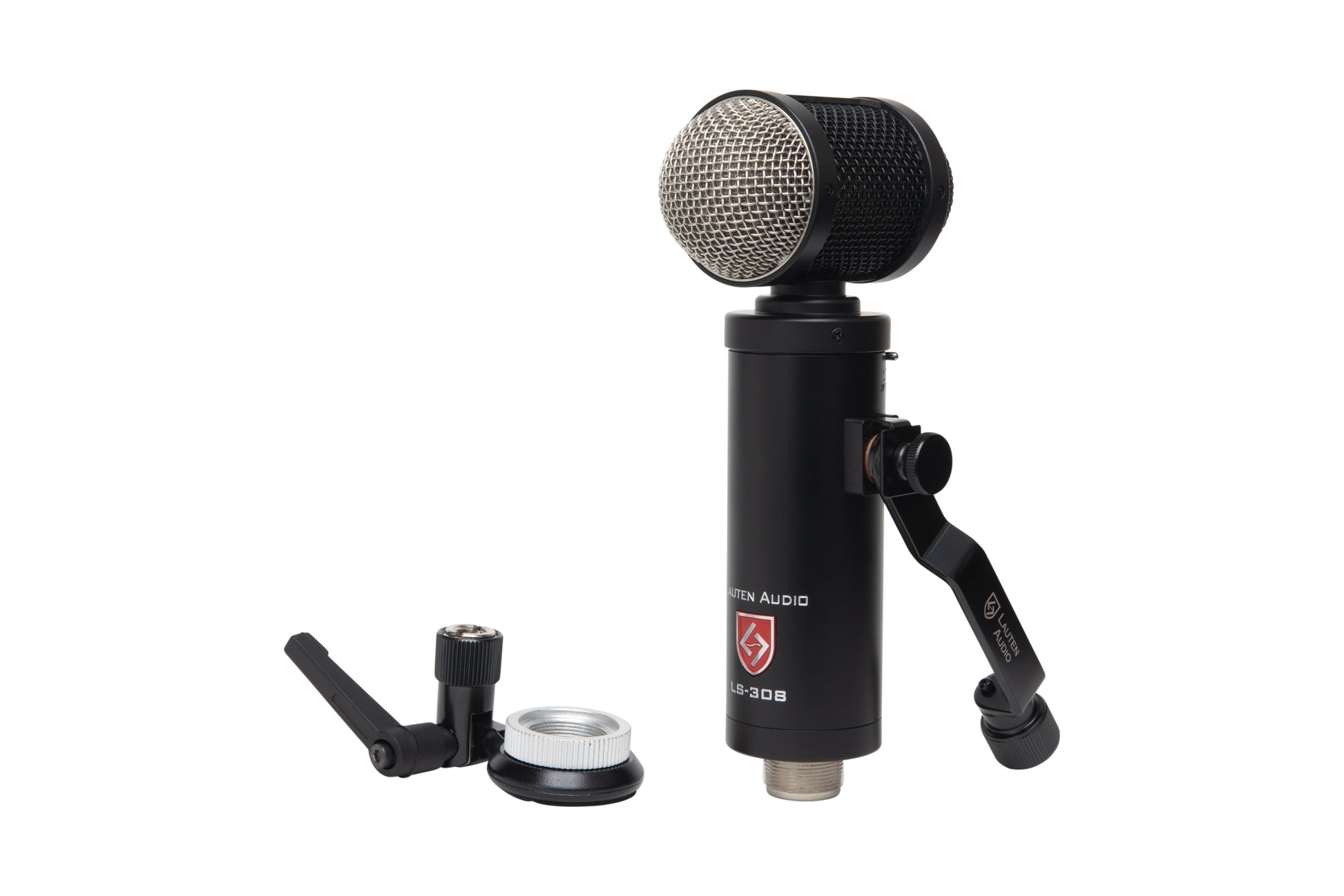

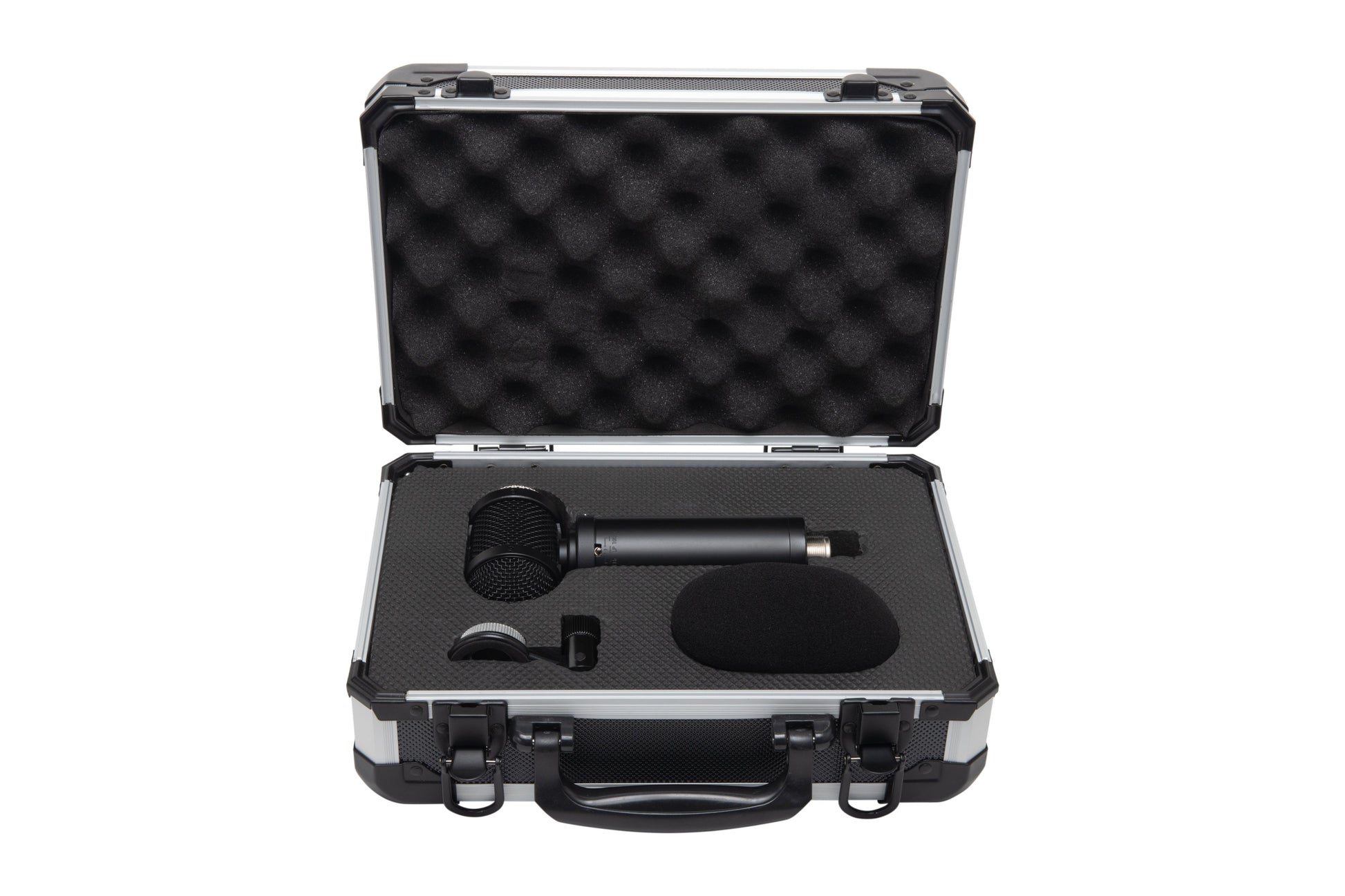

LS-308 / FLIGHT CASE / ADJUSTABLE HARD MOUNT / FOAM WINDSCREEN

SPECIFICATIONS

TYPE: SIDE-ADDRESS PRESSURE GRADIENT FET CONDENSER
CAPSULE: 32MM
POLAR PATTERNS: SECOND-ORDER CARDIOID
FREQ. RESPONSE: 20HZ - 20KHZ (ROLL OFF BEGINS AT 7KHZ DUE TO REJECTION
DYNAMIC RANGE: 135DB MINIMUM MAX. SPL >135DB (0.5%THD@1000HZ)
IMPEDANCE: >150 OHMS
SELF-NOISE LEVEL: < 15DB-A
SENSITIVITY: 10.5M/PA -46DBV (0DB=1V/PA 1KHZ)
CONNECTOR: 3-PIN XLR
POWER: REQUIRES 48V PHANTOM POWER

Lauten Audio LS-308 Polar Pattern

Lauten Audio LS-308 Frequency Chart
