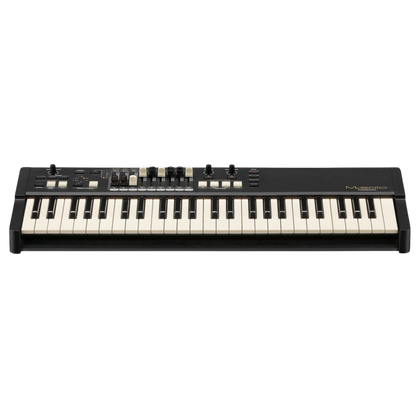

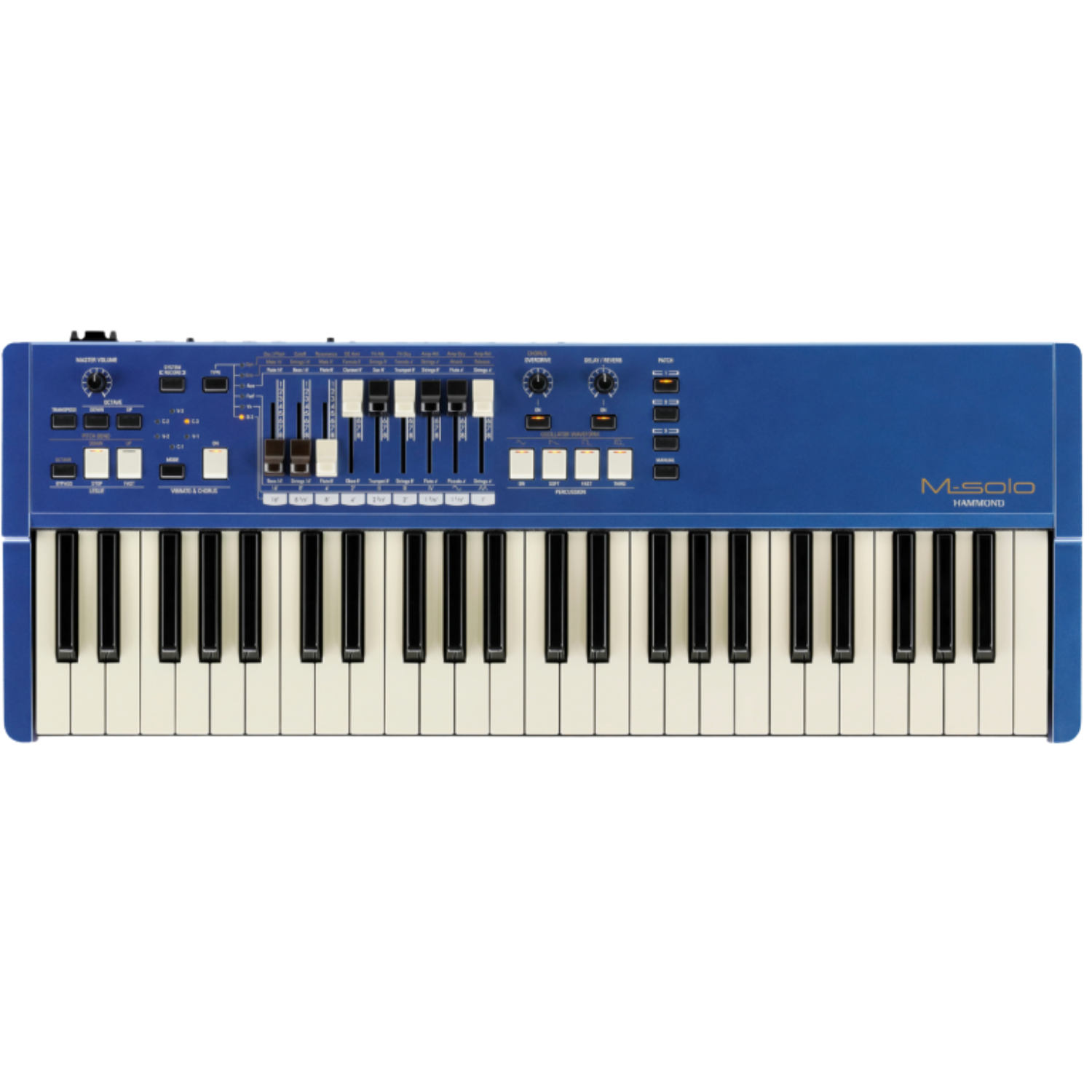

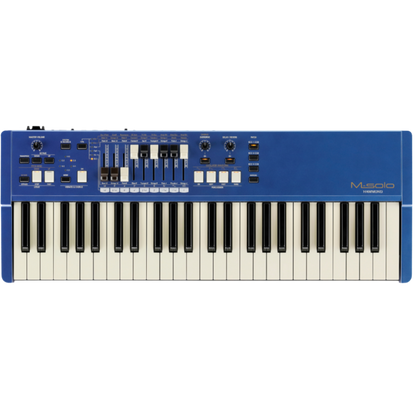

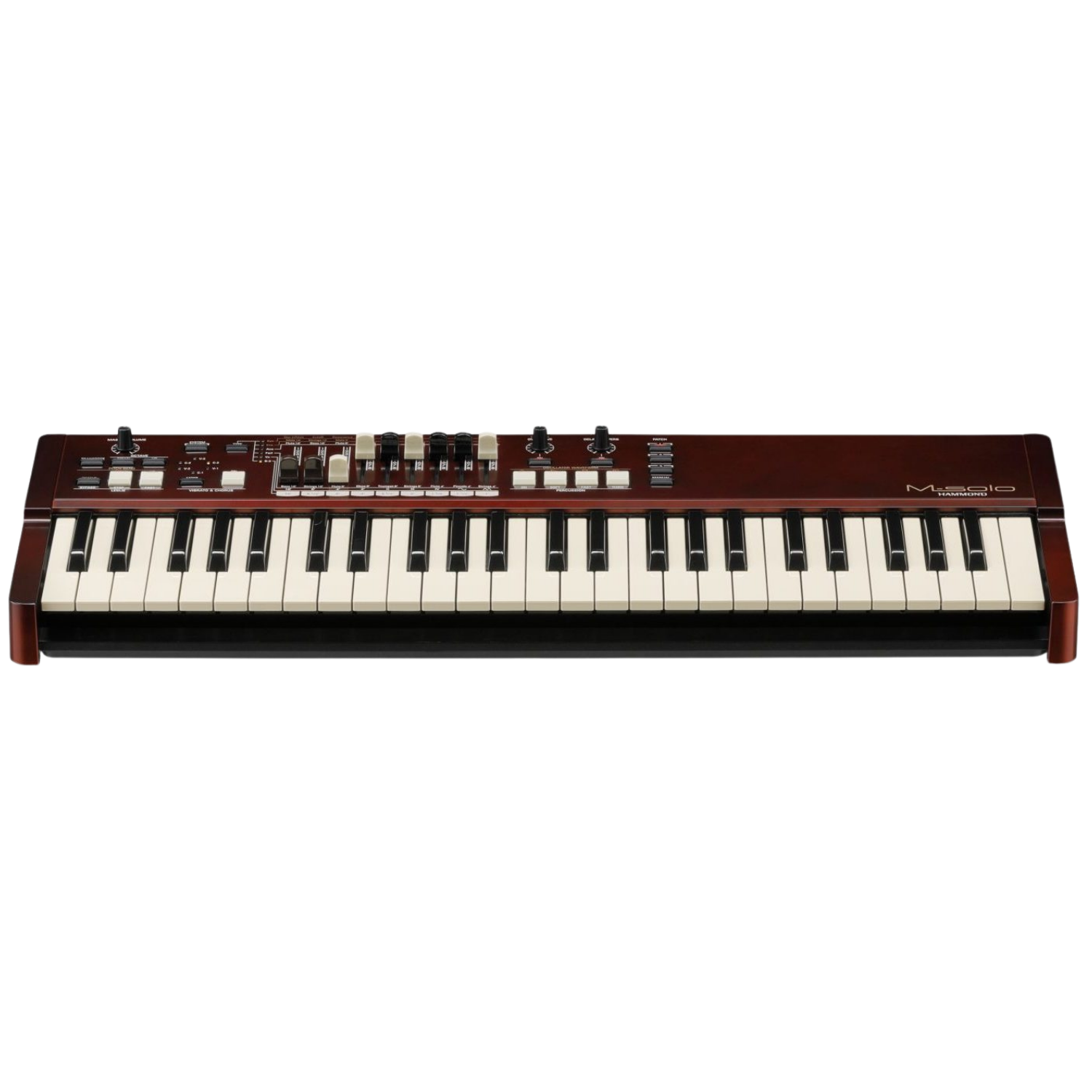

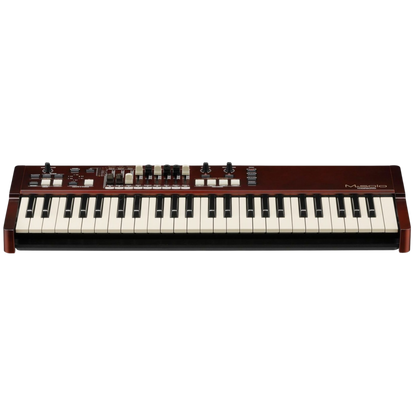

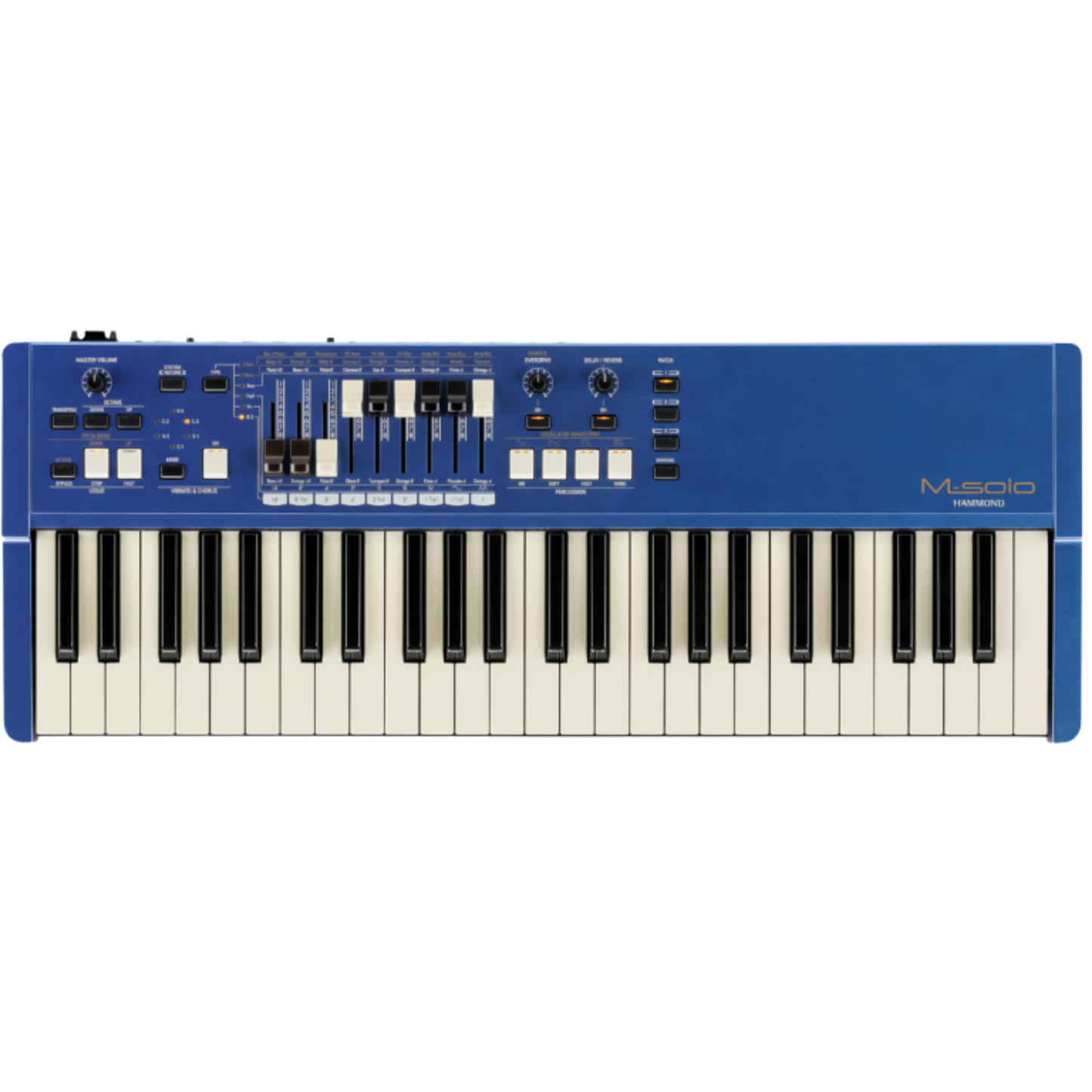

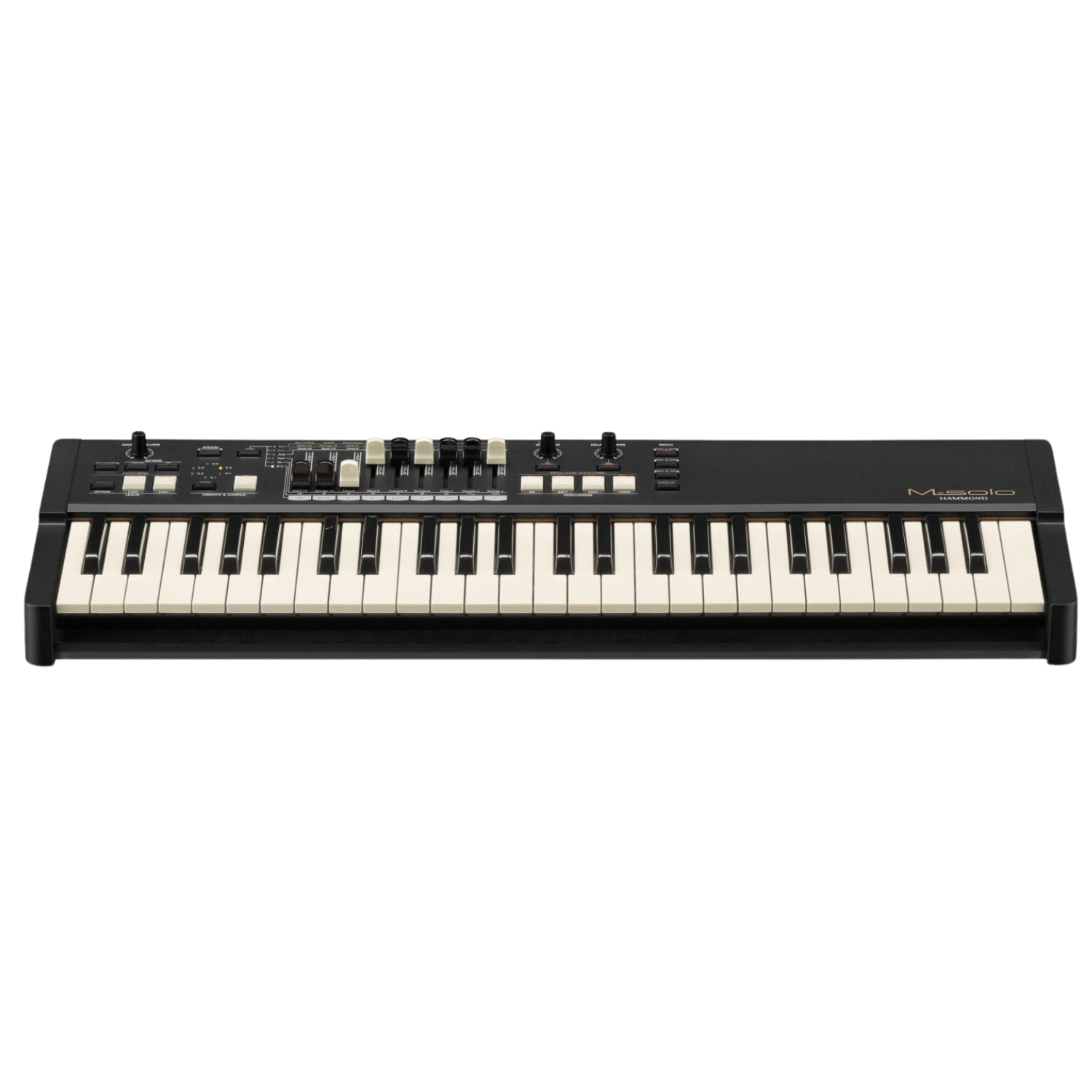

The 8-pound (less than a Fender Strat™) M-solo features 49 keys, driving our “MTW II” Drawbar engine as found in our XK-4 Organ. All the essential HAMMOND ingredients are aboard, like traditional Drawbars, Vibrato-Chorus (C1,C2,C3 etc.) and Touch-response percussion. Our virtual “Multi-Touch” keybed provides the “real-deal” B-3 playing feel. Convenient transpose and octave shift controls along with 3 user-programmable preset tabs make any performance easy. Our high-definition digital LESLIE™ is on hand, completing the tone which has thrilled musicians and audiences since 1940.
Specifications:
Sound engine
· Tone-wheel organ (B-3)
MTWII (Modeled Tone Wheel II) sound engine, Polyphony: 61
Transistor organs (Vx, Farf, Ace)
Sampling sound engine, Polyphony: 96
· String/vocal ensemble (Ens)
Sampling sound engine, Polyphony: 96
. Polyphonic synthesizer (Syn)
Analog modeling sound engine, Polyphony: 8
Keyboard
49-note lightweight keyboard (with velocity)
Organs
· Drawbars: 9 pitches
· Organ types: 4 (B-3, Vx, Farf, Ace)
· Percussion: buttons (ON. SOFT, FAST, THIRD)
String/vocal ensemble
· Volces: 7 (Male 16', Strings 16', Male 8' Female 8', Strings 8', Female
4', Strings 4')
· Envelope: Attack, Release
Polyphonic synthesizer
· Oscillator: Waveform (triangle, sawtooth, square, pulse), Sub-
oscillator
· Filter: LPF 24dB/oct
· Modulator: LFO 1 (Delay Vibrato & Wah-Wah/PWM), EG 2 (filer,
amplitude)
Effects
· Tone wheel organ (B-3): Leslie, Vibrato & Chorus, Overdrive
· Transistor organs (Vx, Farf, Ace): Leslie, Vibrato, Overdrive
· Strings ensemble (Ens): Vibrato, Chorus
· Polyphonic synthesizer (Syn): Delay Vibrato & Wah-wah/PWM,
Chorus
· Master: Delay/Reverb
Key map
· Octave, Transpose
Controllers
· Leslie: Bypass, Stop, Fast
· Pitch bend: Octave, Down, Up
Connection jacks
· MIDI: MIDI IN, MIDI OUT
. USB: TO HOST
· AUDIO: LINE OUT(L/R), PHONES, AUX IN (with Input level control)
· CONTROL: EXPRESSION IN (with polarity switch), LESLIE FAST
