The SPL Madison offers the pure SPL analog sound for every MADI equipped digital console, audio router and PC MADI card.

With 16 input and 16 output channels in a single rack space, the Madison combines state of the art signal conversion with highly reliable clock and MADI processing. And as a true SPL unit it is simple to operate, easy to expand and, of course, an awesome sounding conversion system.

  • 16 AD and 16 DA converters in 1U
  • Superb sounding converters with a sophisticated analog section on 36V audio rails
  • +24dBu professional output level
  • Best price/performance value
  • Up to 64 I/Os on 1 MADI port (4 units)
  • Latency-neutral MADI chaining
  • 44.1 to 192kHz, ±10% vari-speed
  • SPL clock-shop for jitter-free operation
  • Ultra-compatible, always operational MADI IO with ultra low conversion latencies
  • Four directly selectable reference levels: 15/18/22/24

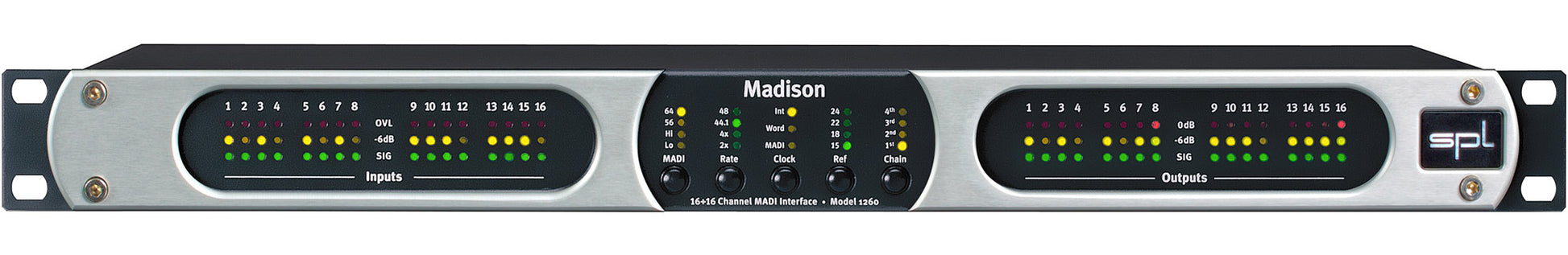

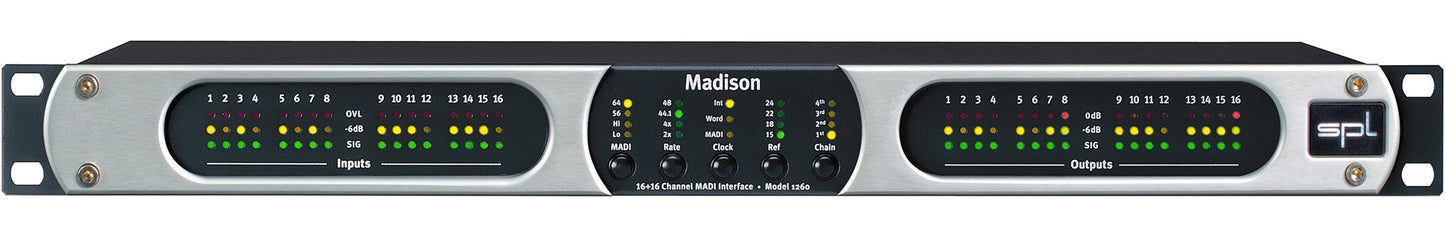

  • Simple operation and setup right from the front panel controls
  • Ergonomic, distance-readable meters for clear level status indication of any I/O channel
  • Fanless, absolutely silent low-power design (max. 30W)
  • Redundant power supply optionally

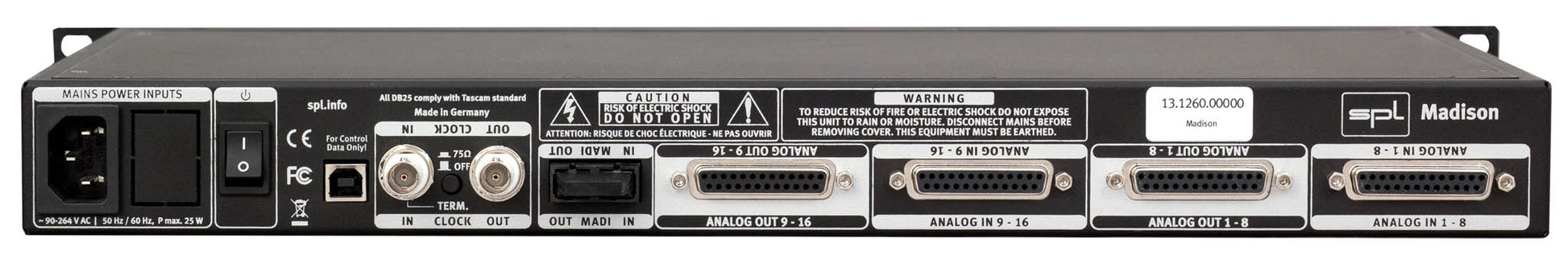

  • Four analog, 8-channel multicore DB25 sockets (TASCAM industry standard)
  • Made in Germany

Specifications:

Analoge Input & Outputs; DB25 (balanced)

Maximum input & output gain: 24 dBu
Input impedance: 20 kΩ
Output impedance: 75 Ω
Common mode rejection (1 kHz): 82 dB
Crosstalk (1 kHz, 48 kHz SR): -110 dB
Dynamic Range (A-weighted, 48 kHz SR): 115 dB

Digital I/O; MADI-Port

MADI optical, Type SC: 44.1/48/88.2/96/176.4/192 kHz
Varispeed: ±12.5% in 56 CH mode, -12.5% in 64 CH mode
Reference Levels: 15dBu, 18dBu, 22dBu, 24 dBu
Wordclock input, BNC, terminated impedance: 75 Ω
Wordclock Level (Input TTL/CMOS5/CMOS3): 3.3 V
S/N (A-bewertet, 48kHz SR): -115 dBFS
S/(N+D) (-1 dBfs, 48kHz SR): -102 dBFS
Passband response (-0.02dB, 48kHz SR): 22 kHz
Passband Ripple (Decimation-LPF, 48kHz SR): +/- 0.005 dB
Stopband Attenuation (Decimation-LPF, 48kHz SR): 100 dB
Crosstalk (1 kHz, 48kHz SR): -110 dBu

Mains Power Supply

Operating voltage for analog audio: +/- 17 V
Operating voltage for digital audio: +12 V, +5 V
BTU (British Thermal Units, typical): 65 BTU/h
BTU (British Thermal Units, max): 110 BTU/h
Mains voltage: 90 – 264 V AC, 50/60 Hz Hz
Power consumption: max. 35 W

Dimensions & Weight

W x H x D: 482 x 44 x 260 mm / 19 x 1.73 x 10.24 inch
Unit weight: 3.05 kg / 6.72 lbs
