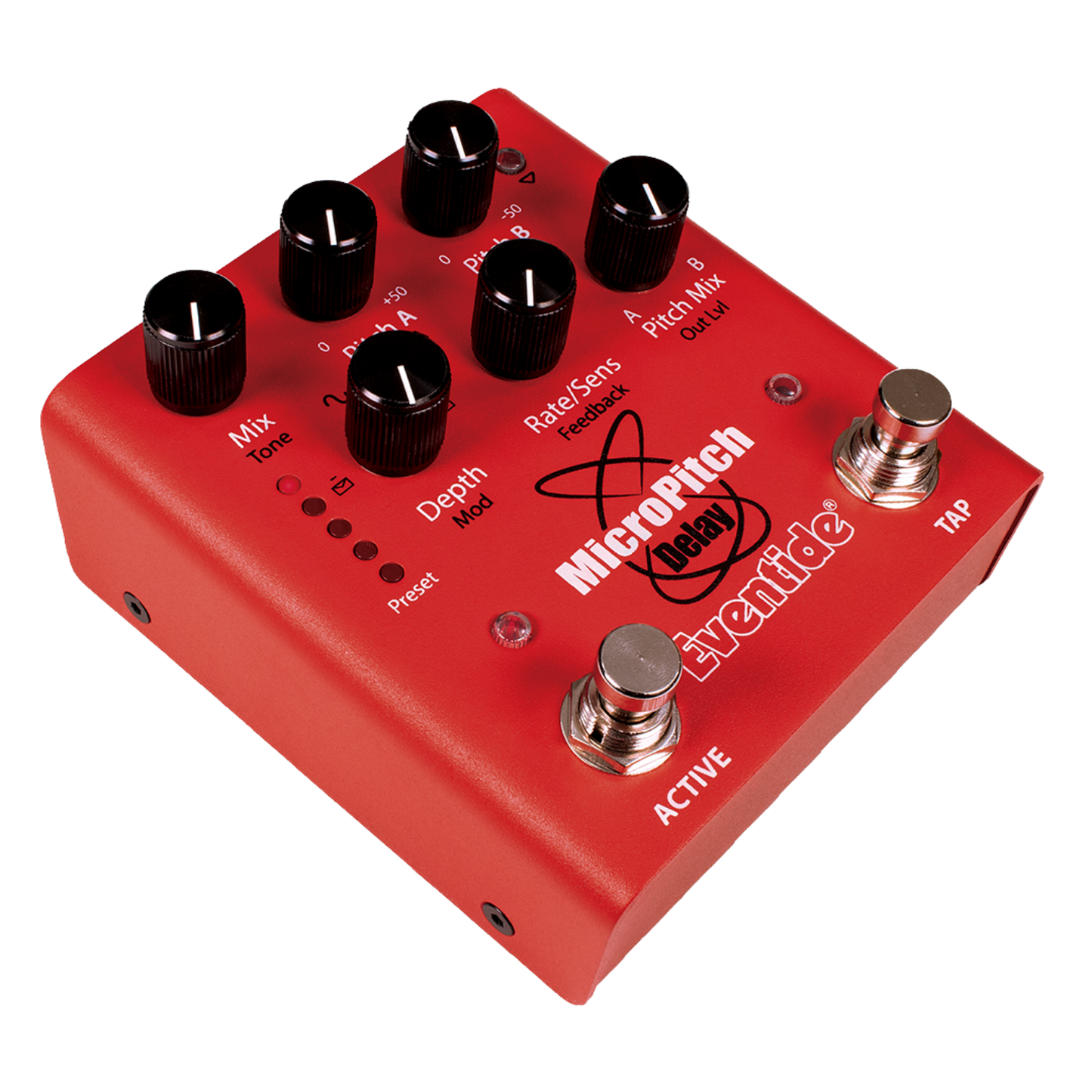

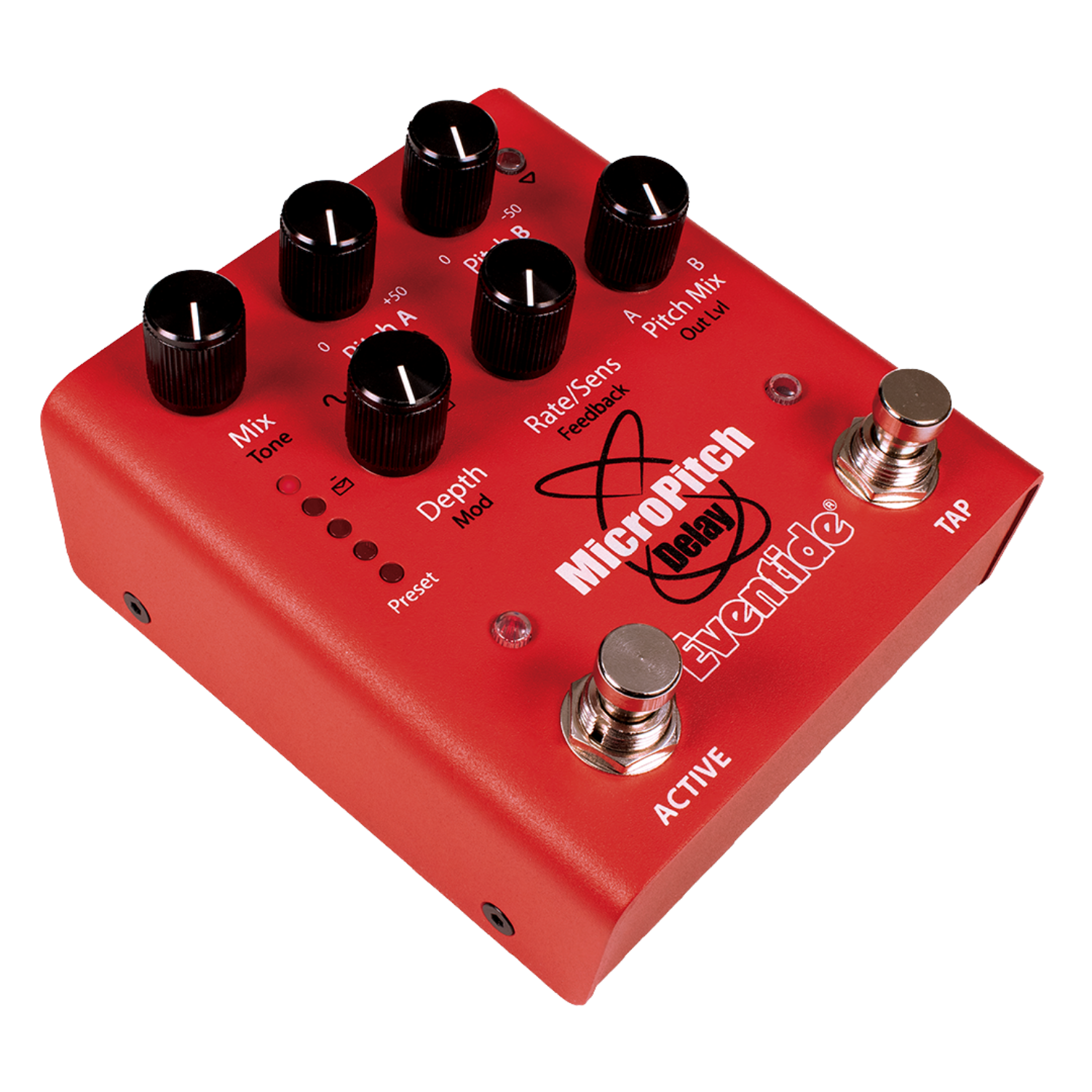

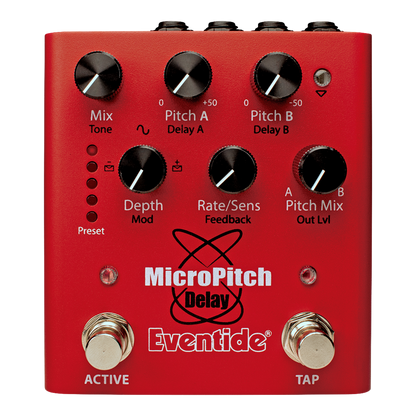

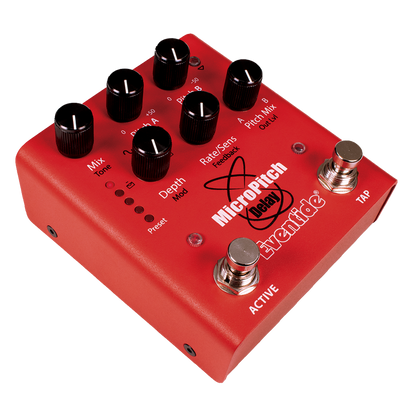

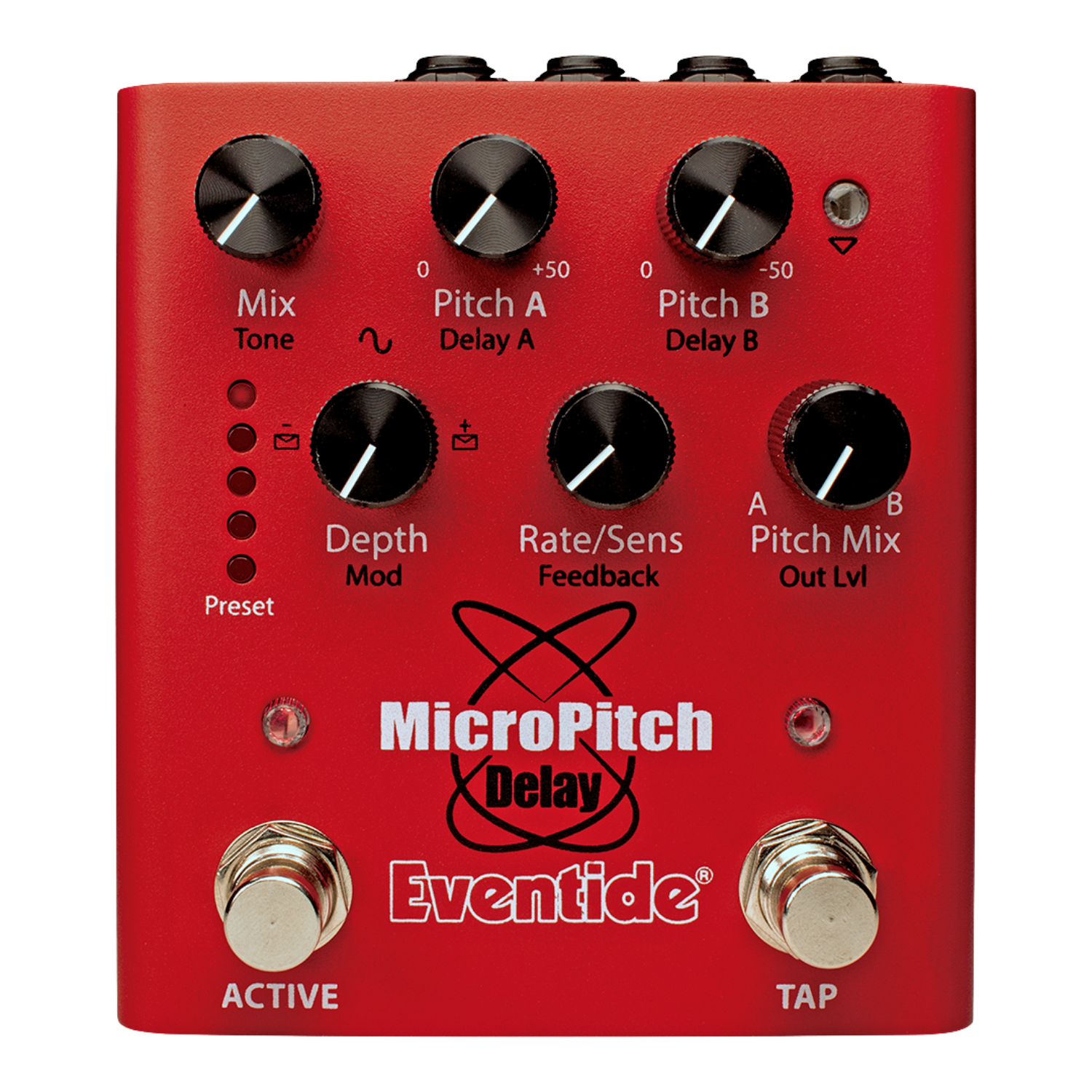

Eventide MicroPitch Delay Pedal
Eventide MicroPitch Delay Pedal
Savor the secret sauce simmered into countless hit records with the MicroPitch Delay effects pedal. By utilizing subtle pitch shifts to create a rich stereo spread, MicroPitch Delay makes anything you cook up sonically delectable. This pedal is the key ingredient for serving up flavorful tones: Instantly harness soaring leads that jump out of the mix, add distinct lushness to a compelling clean passage and get your fill of vibey modulation that’s sure to sweeten any pot with the push of a button.
Sample a bite of our newly baked up Positive and Negative Envelope modulation sources and you’ll be sure to come back for seconds; and major and minor thirds. MicroPitch Delay adds unparalleled dimension to any source; it’s not just a guitar pedal — Use it to thicken vocals, keyboards, drums, strings, brass, winds and more.
Specifications:

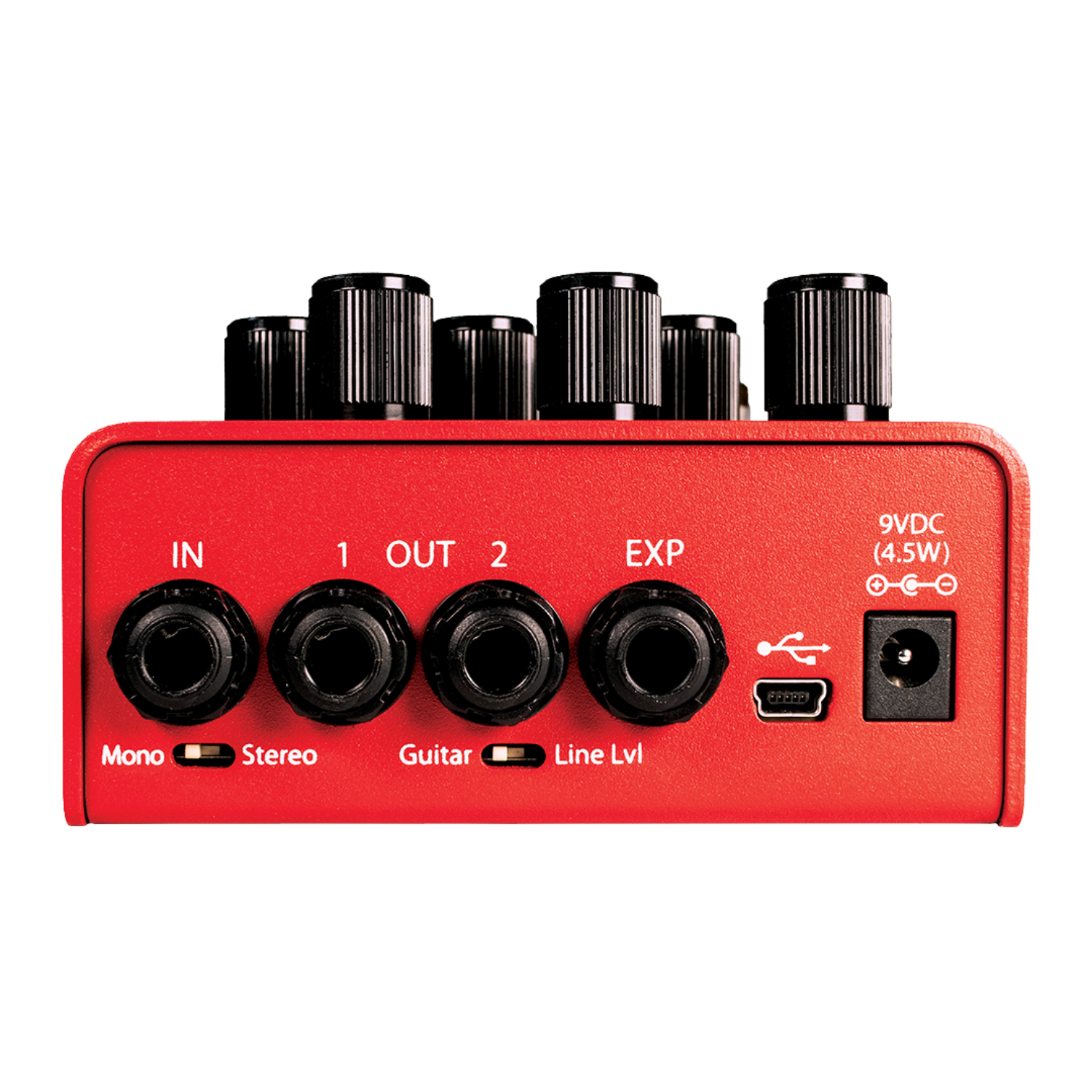

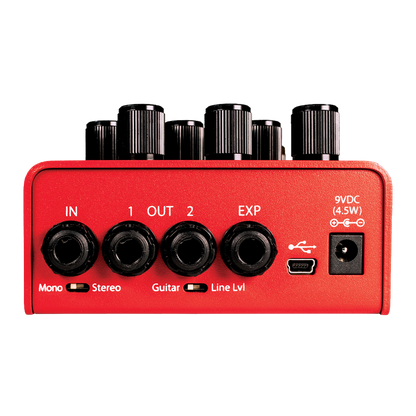

Input 1/4″ TRS / Mono = Tip, Stereo = Tip & Ring
Out 1 1/4″ TS Mono / Mono Output
Out 2 1/4″ TS Mono / Stereo Output
EXP 1/4″ TRS / Expression pedal, Aux Switch or MIDI I/O
Mono/Stereo Switch Sets Input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/Line Level Switch Optimizes internal gain structure
Mini USB Software updates, MIDI I/O
DC Input Jack 5.5mm / 2.1mm plug / Center Negative (-)
Input Impedance 700k ohms Mono, 990k ohms Stereo
Max Input, Guitar +8dBu
Max Input, Line +14dBu
Output Impedance 220 ohms
Recommended Load Impedance 10k ohms
Power 9V DC @ 300mA / Center Negative (-). Includes universal power supply with US, EU, UK, JP, and AU adapters.
Dimensions (Product) 4″ W x 4.25″ D x 1.68″ H / 102 mm x 108 mm x 43 mm
Weight (Product) 1.06 lb / 0.48 kg
