SPL Audio

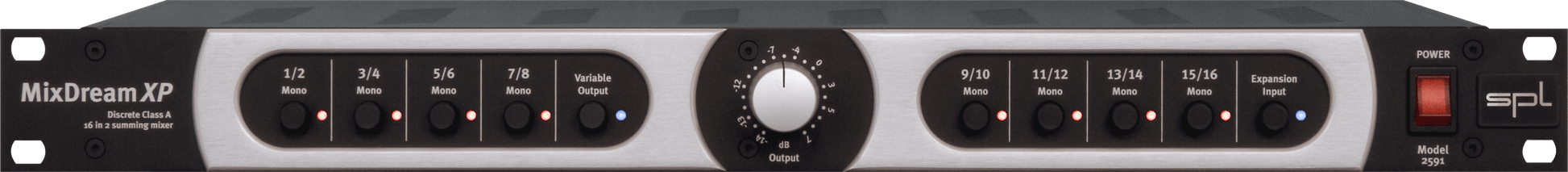

MixDream XP

  • Sale
  • Regular price R 36,900.00

Class-A Summing Mixer

The MixDream XP is intended as a puristic extension for the MixDream. As a stand-alone 16-in-2 summing device with Class A technology, it is in no way inferior to its big brother in terms of sound quality.

Analog Summing

Analog summing with the MixDream XP brings intense depth, precise localisation and impressive spatiality.

Individual instruments mix with smooth transitions.

Mono For All

All channel pairs can be switched mono, so that two signals can be converted by one D/A chip each.

For this purpose, the signals that are placed in the phantom center of the stereo mix (e.g. kick, snare, lead vocal, bass) are panned hard left/right in the DAW.

Variable Output

The Main Output and the Monitor Output can be made controllable by activating the Variable Output. Then both the recording and the monitor level can be freely adjusted between -14 dB and +7 dB.

Expansion Input

If 16 channels are not enough when summing, the expansion input can be used as another stereo input.

The output of another MixDream XP can also be connected here.

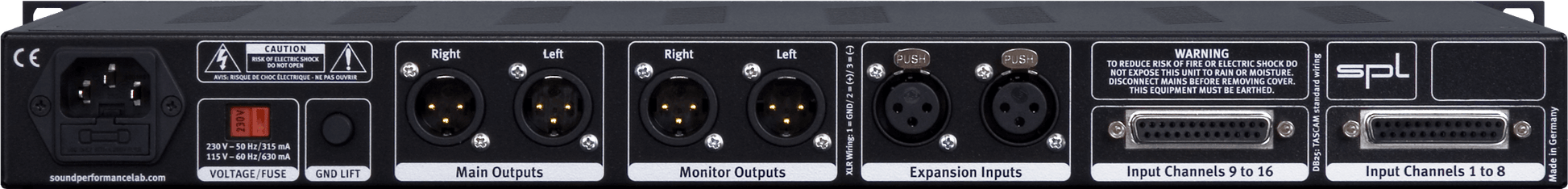

Analog inputs & output; XLR & DB25 (balanced)

Maximum input & output gain
28 dBu
Input impedance
Output impedance
82 Ω
Common mode rejection (1 kHz)
70 dB
Frequency range (-3 dB)
10 Hz – 220 kHz
THD + N (A-weighted, +10 dBu, all channels active)
-104 dBu
Noise (A-weighted, all channels active)
-97 dBu
Crosstalk (1 kHz, +10dBu)
-90 dB
Dynamic range
125 dB

Internal Linear Power Supply with Shielded Toroidal Transformer

Operating voltage for analog audio
+/- 30 V
Operating voltage for relays and LEDs
+12 V

Mains Power Supply

Mains voltage 230 V (selectable)
230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V
T 315 mA
Fuse for 115 V
T 630 mA
Power consumption
max. 36 W

Dimensions & Weight

W x H x D (width x height x depth)
482 x 44 x 237 mm

19 x 1.73 x 9.33 inch
Unit weight
3.55 kg

7.83 lbs
Shipping weight (incl. packaging)
4.9 kg

10.8 lbs

Reference: 0 dBu = 0,775V. All specifications are subject to change without notice.
