Bricasti Designs

Model 7-M

  • Sale
  • Regular price R 58,365.28


Model 7 Mainframe Stereo Reverb Processor

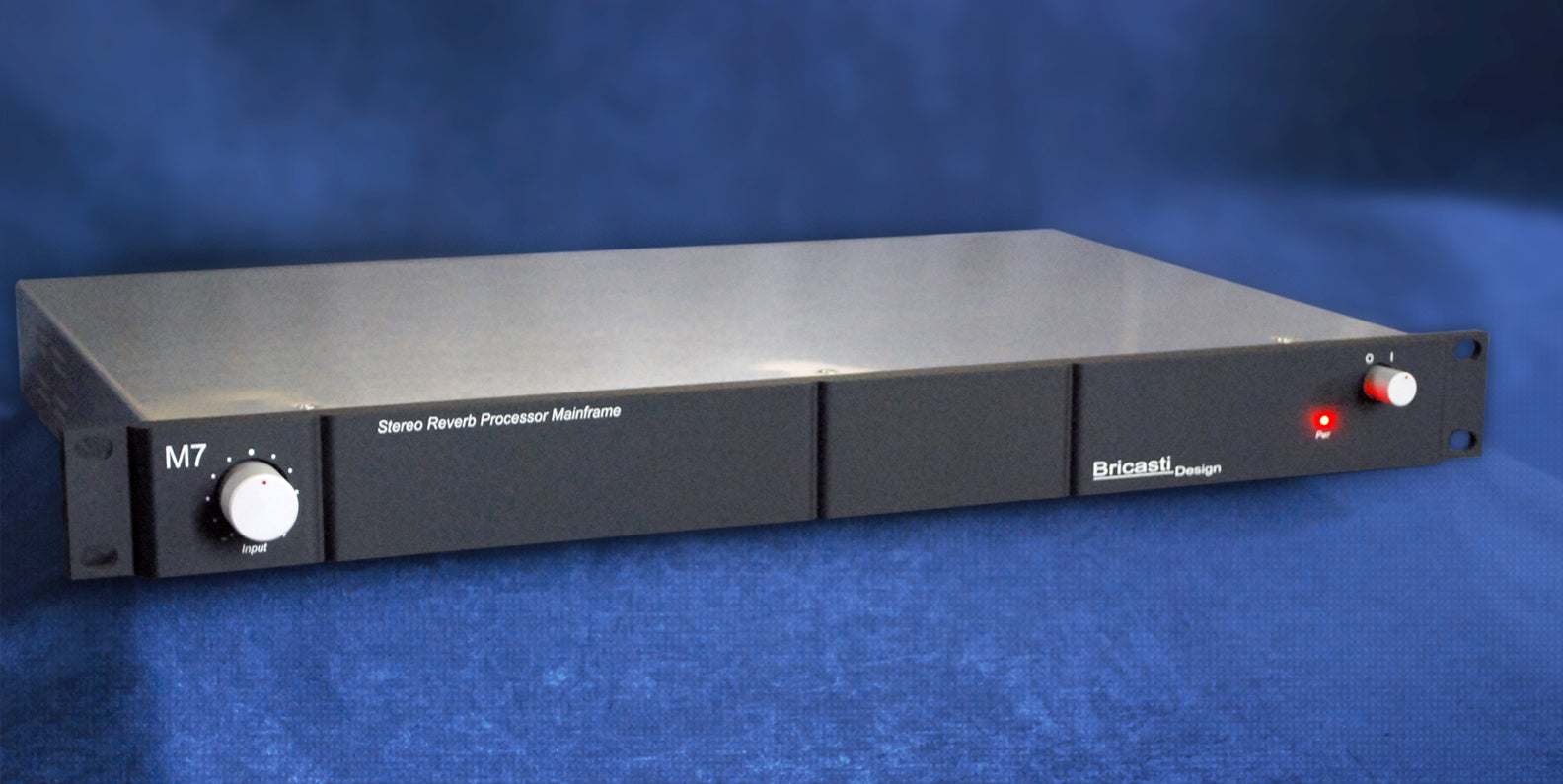

 The new Bricasti Design M7M Reverb Processor Mainframe is an exact duplicate of the M7 Stereo Reverb Processor with reduced front panel controls, and is intended to be used in conjunction with the M10 Remote Console.

As it is necessary to have an M10 for control, the M7M is made available bundled together with the M10 in several different configurations, with one or more M7Ms, and is offered as a stand alone product for customers wishing to add more channels of Bricasti processing to their M10 based setup without duplicating unnecessary user interface controls.

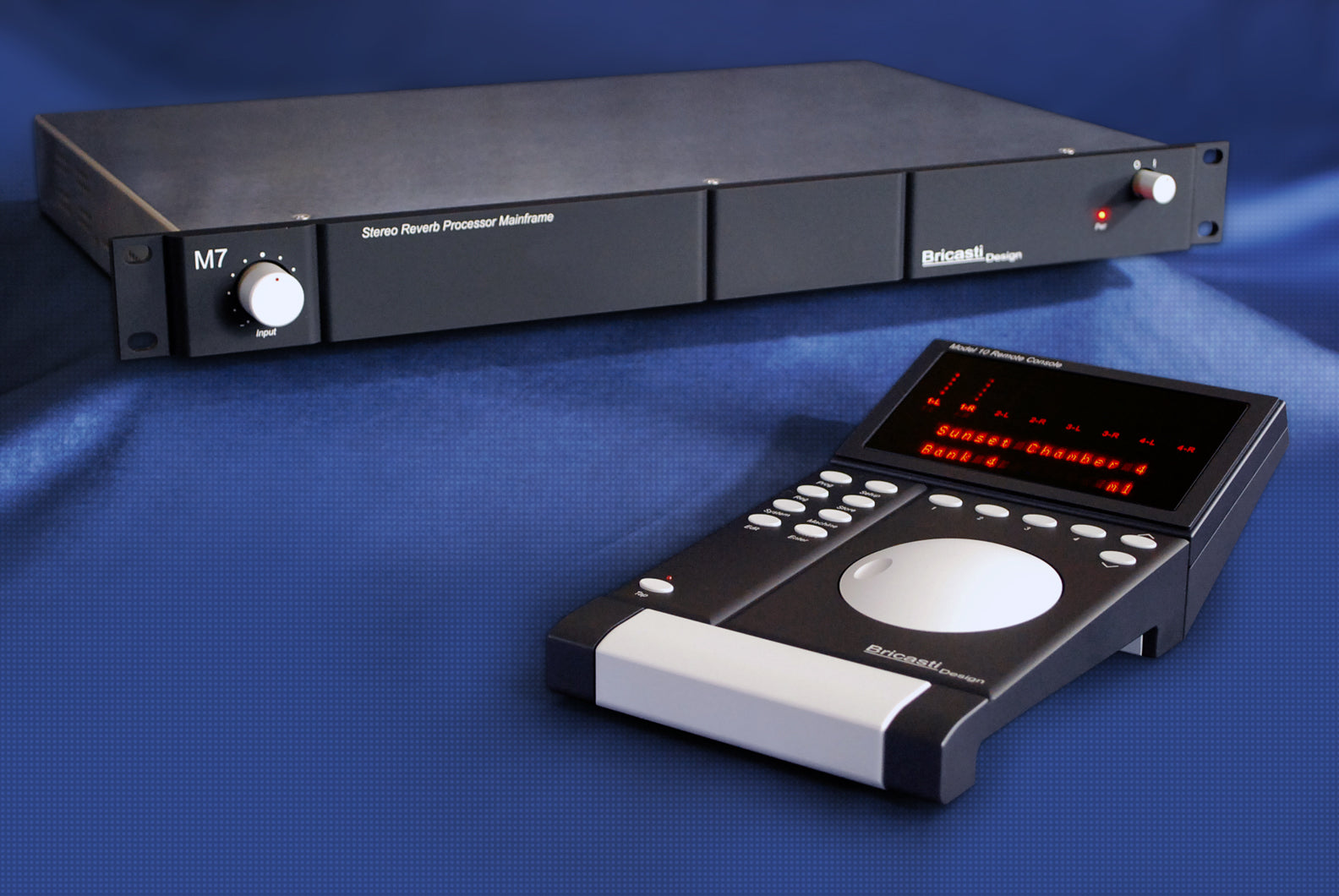

Pictured is our System 1, the M10 with one M7M that can be used as a stand alone product or added to your M7, adding more processing and remote capabilities to your studio.



Specifications

 Digital Section Design Features and Performance

  •  AES 24 Bit Digital I/O
  • AES single wire 192k supported
  • Self-clocking to incoming sample rates 44.1k to 192k
  • 6 State of the art dual core Analog Devices DSPs

 Analog Section Design Features and Performance

  •  < 20 Picoseconds Jitter
  • Input level adjustable in 2 dB steps
  • Balanced XLR analog I/O
  • 24-bit conversion
  • Dual D/A
  • Fully-balanced, DC-coupled analog input and output circuits

 Analog Input A/D

 Analog Input A/D

  • Dynamic Range >116 db, A-Weighted
  • THD+N <.001 %
  • Frequency Response: 10 Hz - 20 kHz ± < 0.05 dB
  • CMRR: > 60 dB @ <= 1 kHz
  • Maximum Input Level: +24 dBu
  • Minimum Input Level for 0 dBFS: +4 dBu

 Analog Output D/A

 Analog Output D/A

  • Dynamic Range: > 116 dB, A-Weighted
  • THD+N: < 0.001%
  • Frequency Response: 10 Hz - 20 kHz ± < 0.05 dB
  • Maximum Output Level: +24 dBu
