ModFactor Modulating Effects Pedal

  • Sale
  • Regular price R 8,052.75


All the standards - Chorus, Flanger, Phaser as well as Rotary, Tremolo, and Vibrato are there. Also included is the unique Undulator effect from the H8000 and a RingMod that lands somewhere between ring modulation and synthesis. The dedicated SLOW/FAST footswitch for ramping the LFO rate comes in handy. LFO rates can also sync to Tap Tempo and MIDI clock


Modulate your Modulator: Two LFOs create rich expressive modulation effects.

100 Presets

Studio Quality Sound

Instant Program Change

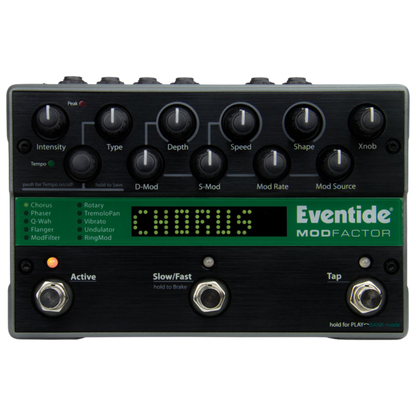

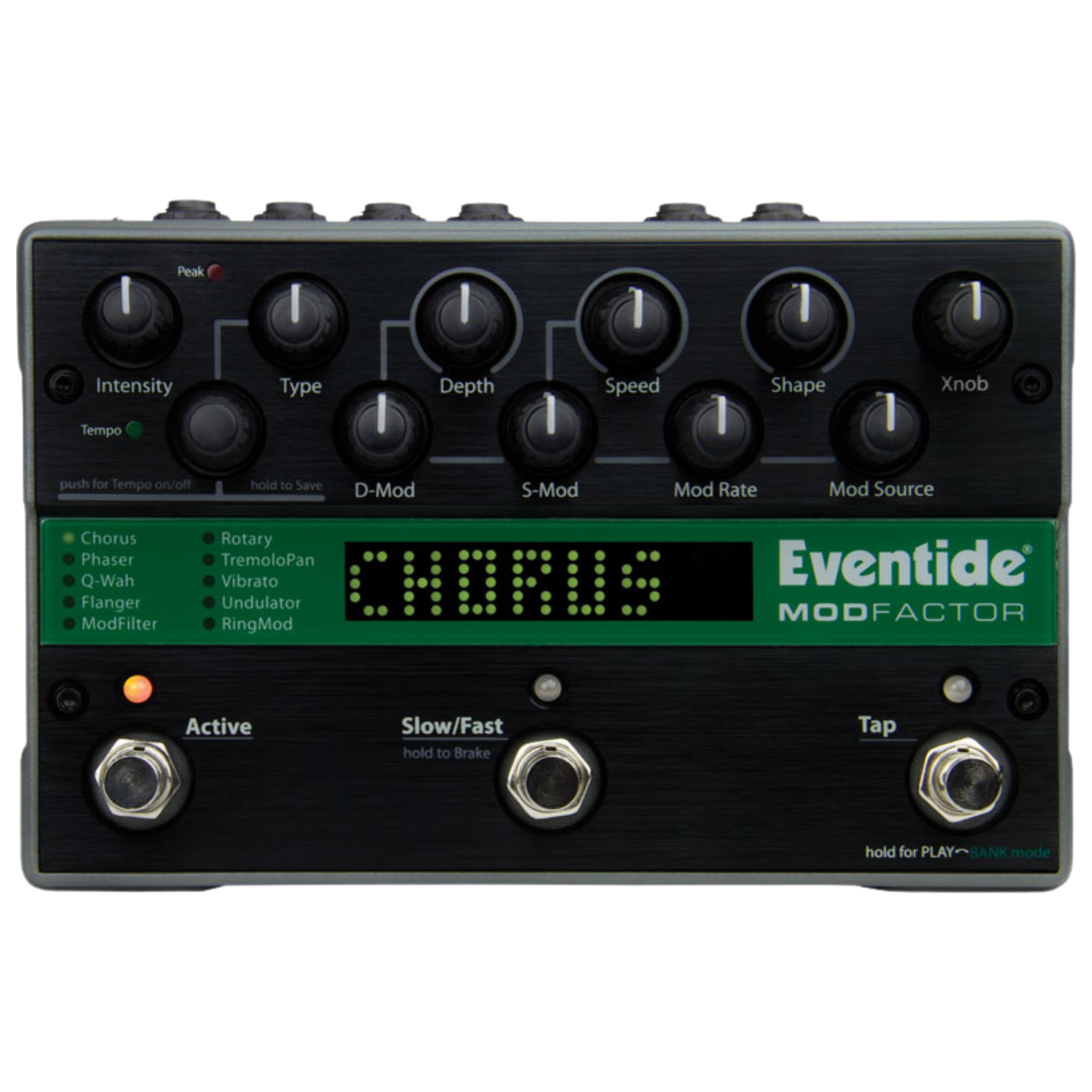

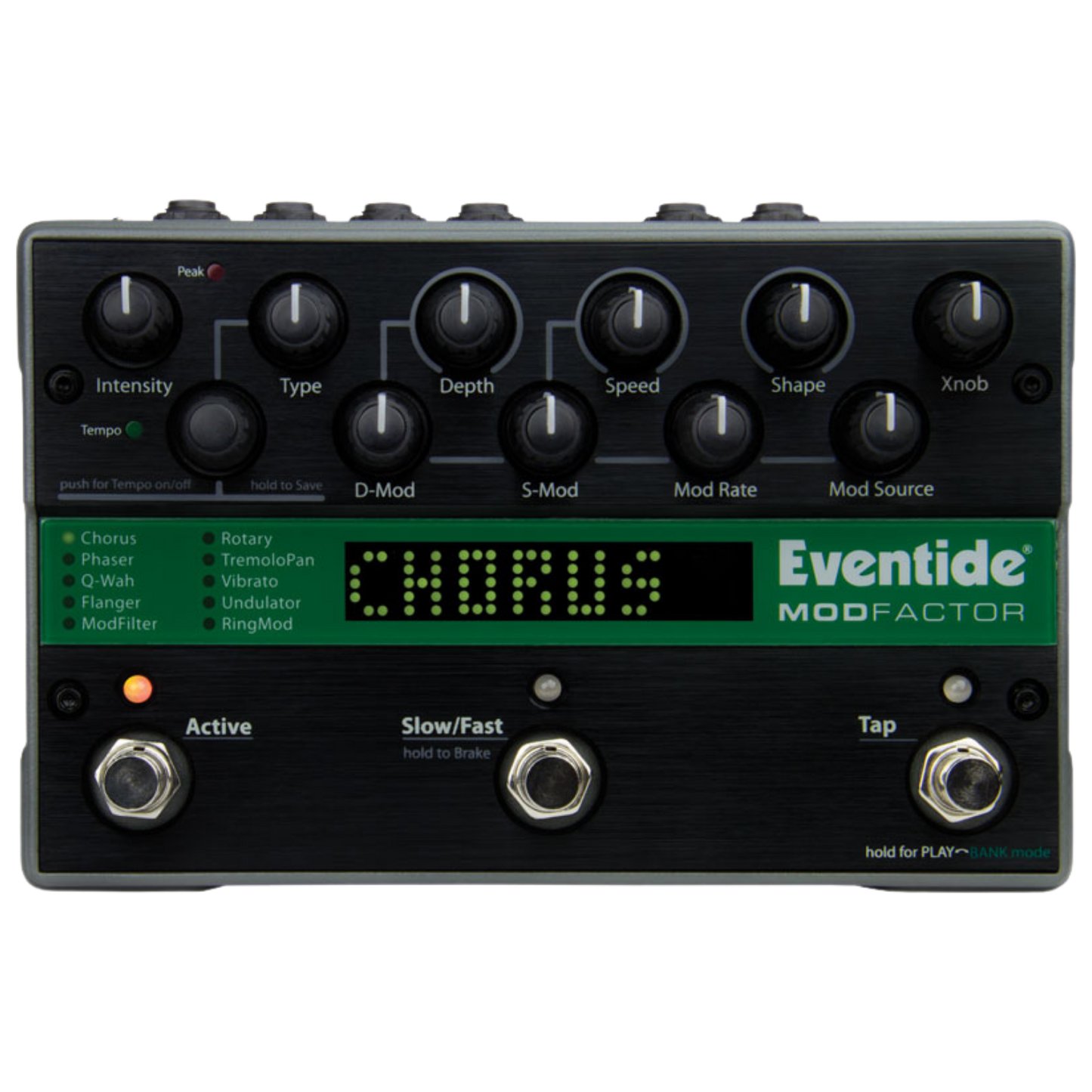

Real-time control with 10 knobs, MIDI or expression pedal

Tap Tempo and MIDI Clock Sync/Generate

True Analog Bypass

Rugged cast metal construction

Metal footswitches for instant Preset access

Mono or Stereo operation

Guitar or Line Level Inputs and Outputs

Signature Chorus and Modulation

ModFactor includes the following Eventide signature stereo or mono effects:


Negative Phaser

Postive Phaser

BiPhase Phaser

Feedback Phaser

PhaseX0 Phaser


Liquid Chorus

Shimmer Chorus

Organic Chorus

Classic Chorus


WahWah Q-Wah

Voc-Wah Q-Wah

Bass Wah

Bass Vocal Wah


Positive Flanger

Negative Flanger

Jet Flanger

Thru Zero Flanger


Lowpass ModFilter

HiPass ModFilter

BandPass ModFilter


Modern Vibrato

Vintage Vibrato

Retro Vibrato


Standard Rotary

Giant Rotary


Bias Tremolo

Opto Tremolo


Pitch Undulator

Feedback Undulator

Ring modulator

Ring (DC) Ringmod

String (AC) Ringmod

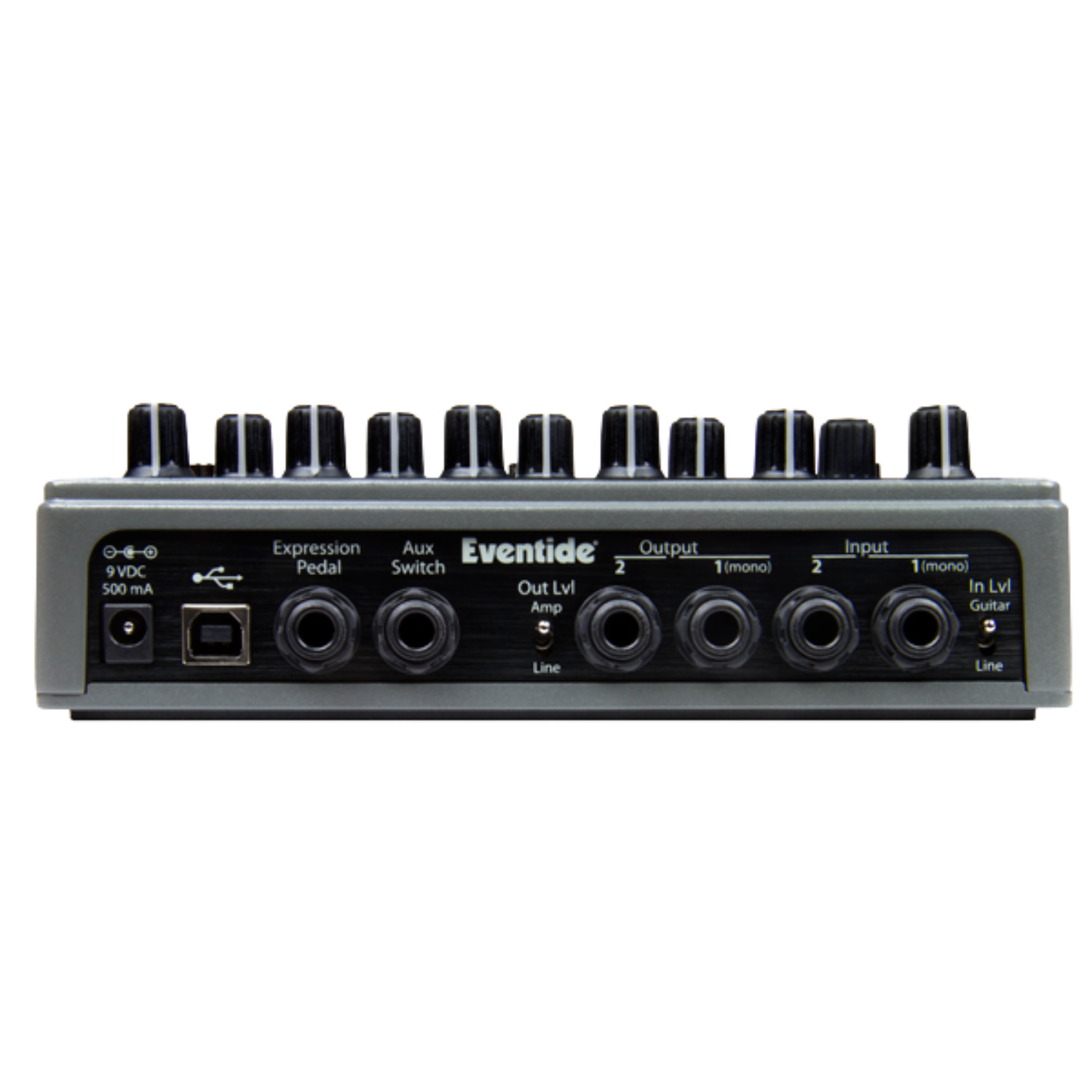

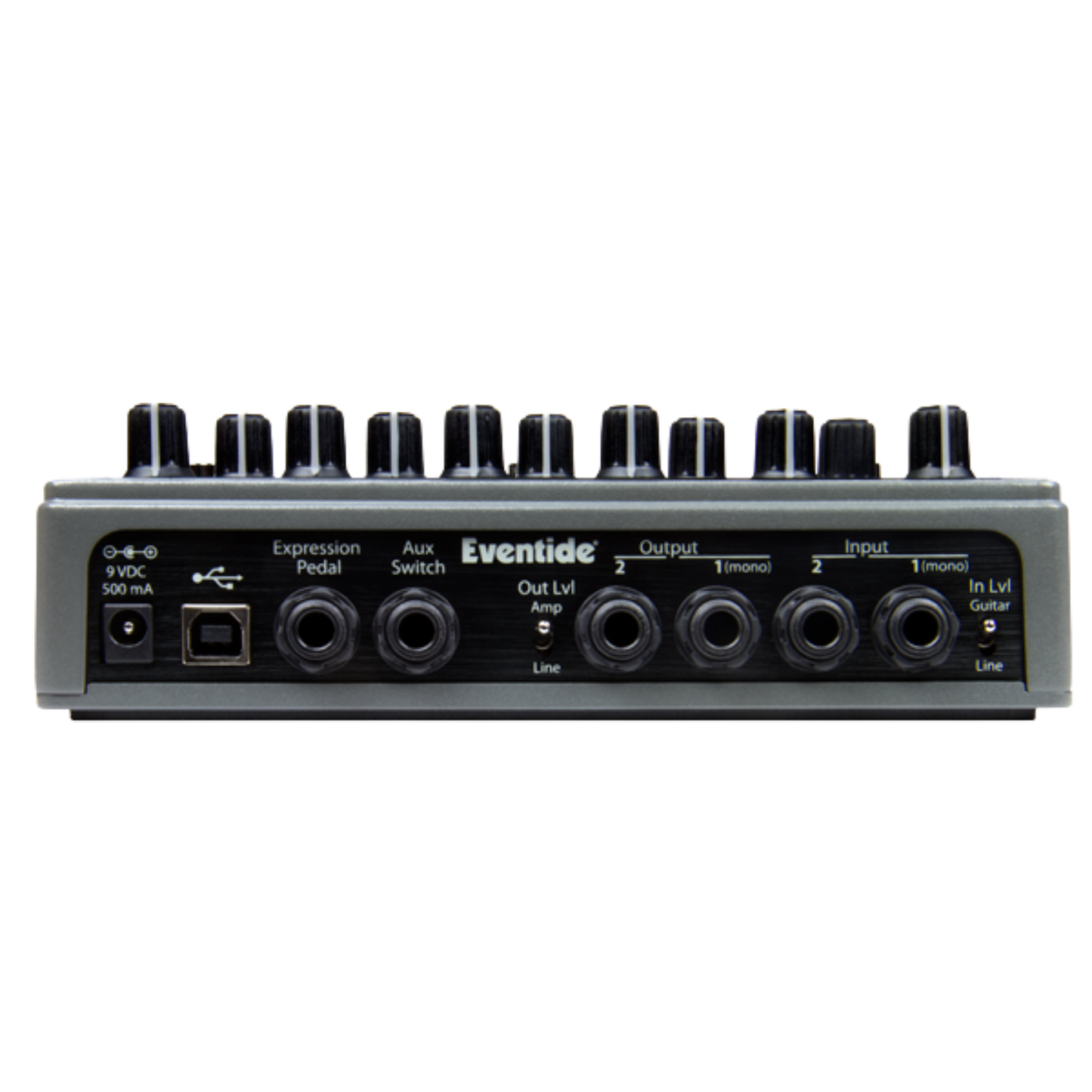

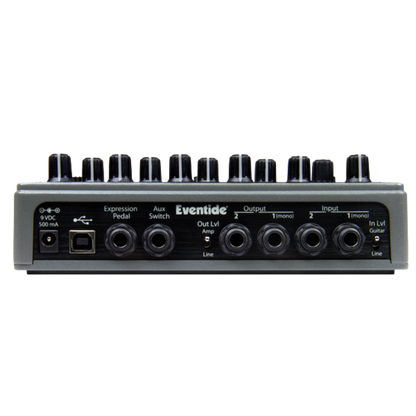

Input 1 (mono)                                              ¼ inch mono phone jack

Input 2                                                            ¼ inch mono phone jack

Output 1 (mono)                                           ¼ inch mono phone jack

Output 2                                                         ¼ inch mono phone jack

Expression Pedal                                          ¼ inch mono phone jack

Aux Switch                                                     ¼ inch stereo phone jack

USB                                                                 Type B Socket. Use 2.0 cables only.

MIDI In                                                           Five pin DIN (Female)

MIDI Out/Thru                                              Five pin DIN (Female)

AC Adapter Jack                                            US Power Supply included

Analog I/O

Input Impedance                                           500K ohms

Output Impedance                                        470 ohms

Recommended Load Impedance                 10K ohms or greater


Power                                                             9VDC, 500mA, Tip hot (+)

Dimensions                                                    English: 4.8" (H) x 7.5" (W) x 2.12" (D)

                                                                       Metric: 122 (H) x 190 (W) x 54 (D) mm

Weight                                                            2.15 lbs, 1kG
