SPL Sound

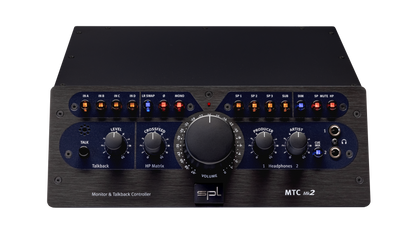

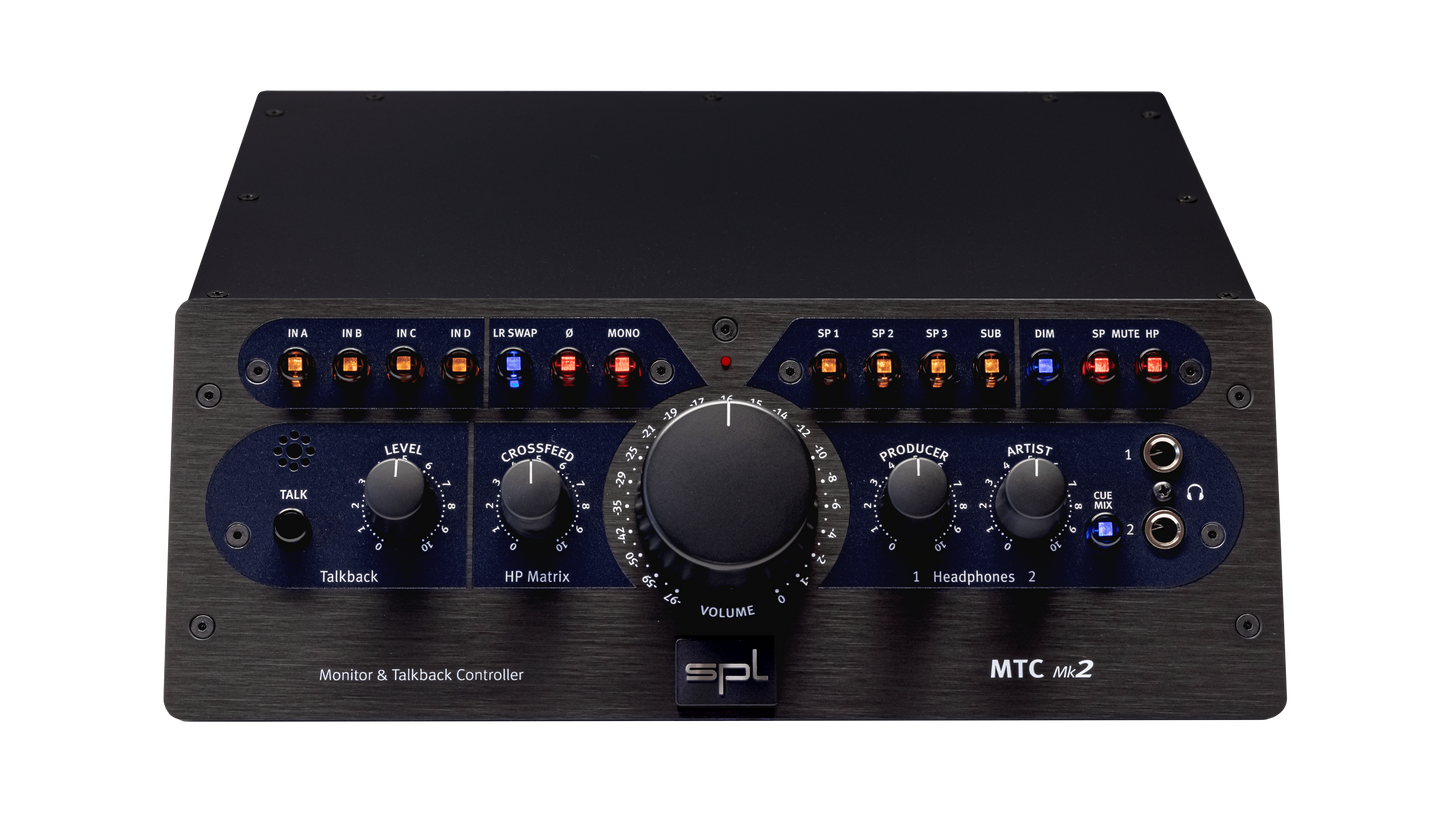

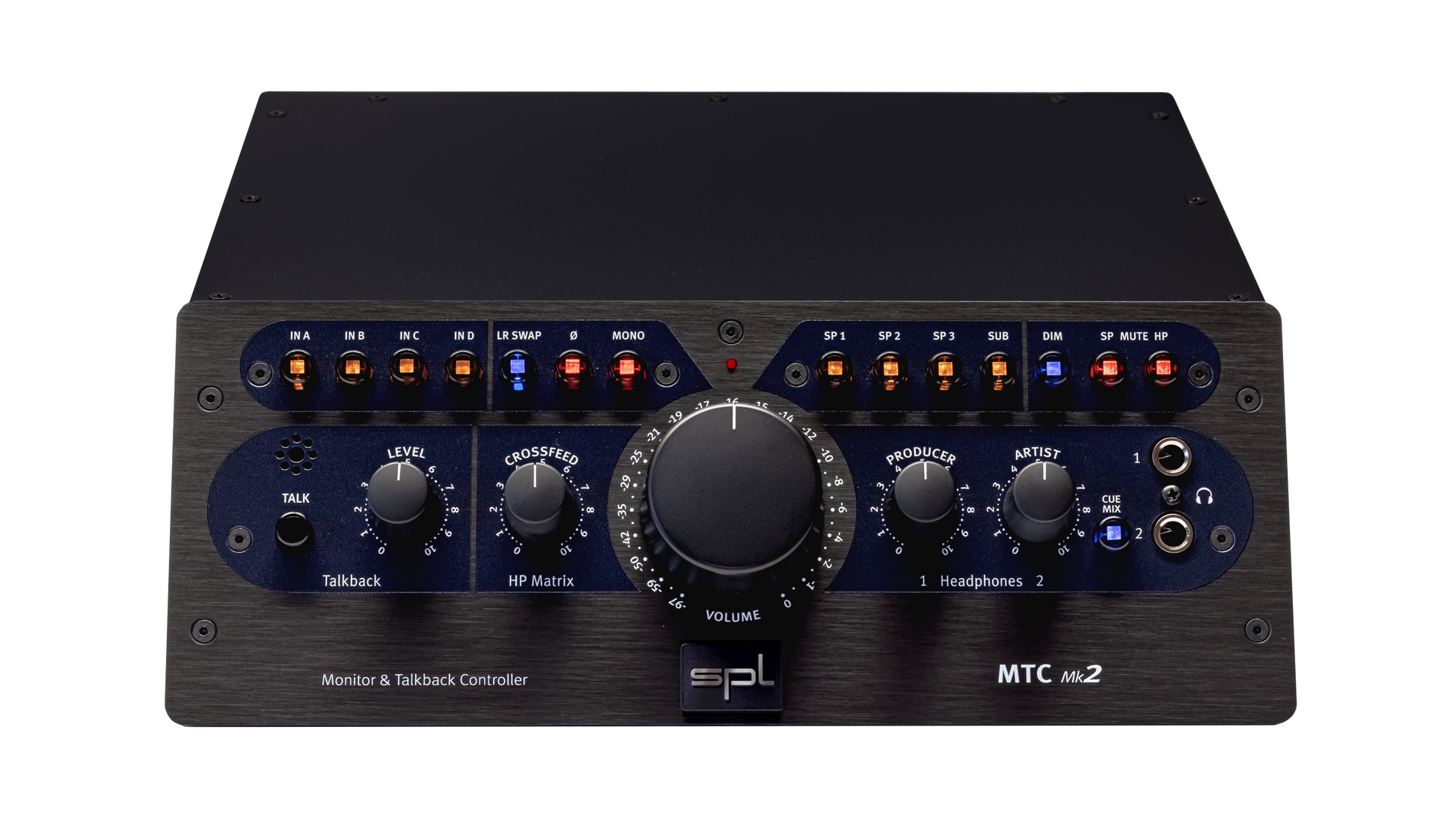

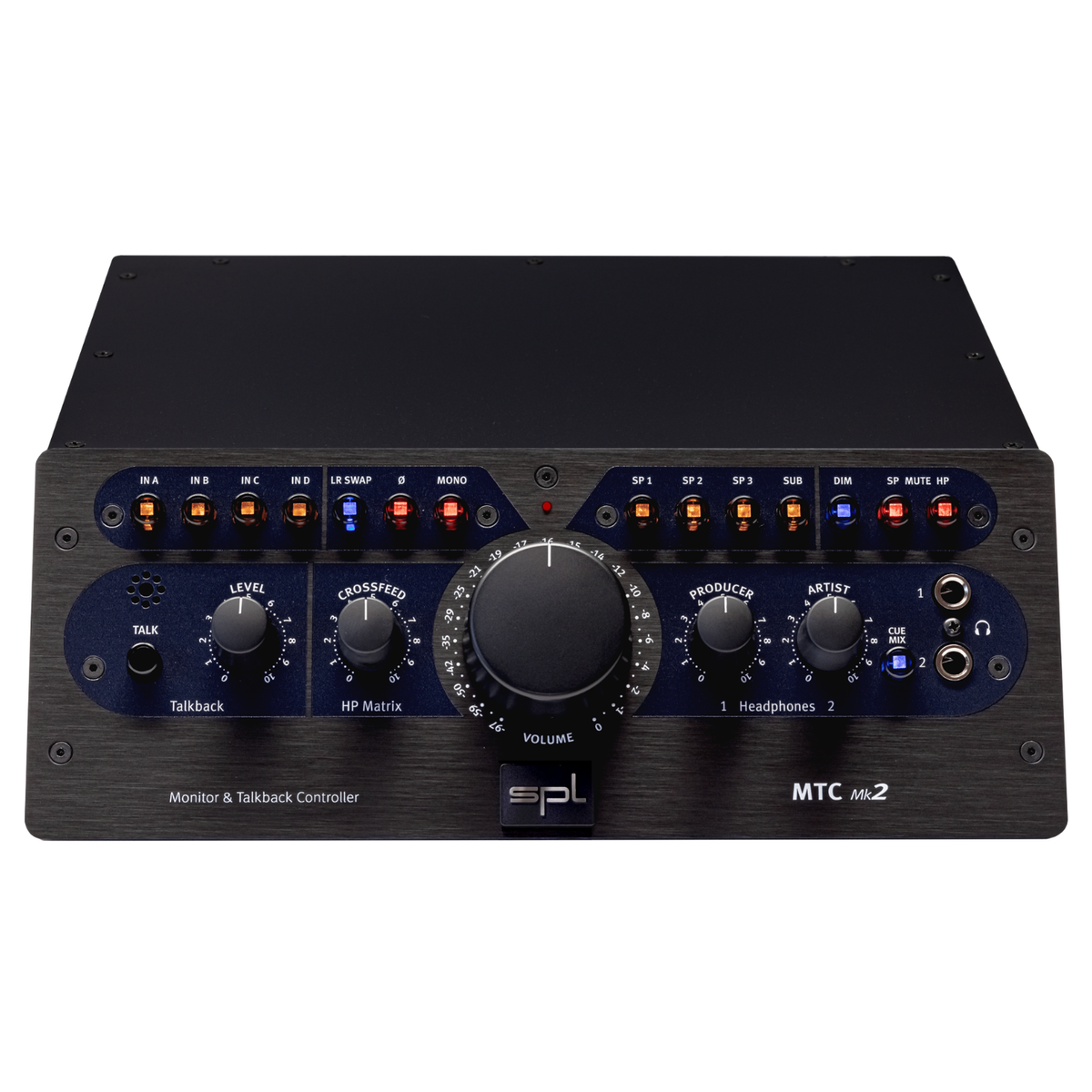

MTC Monitor & Talkback Controller

  • Sale
  • Regular price R 15,680.94


MTC

Stereo Monitor & Talkback Controller

The MTC combines volume level control, source switching and loudspeaker management for stereo monitoring with comfortable talkback and cue mixing functions. A fully analog design dispenses with VCAs, DACs, etc., providing loss-free signal processing. The I/O section includes six rear-panel stereo inputs (four balanced, two unbalanced sources), balanced XLR outputs for three loudspeaker pairs and a slave output.

The organizational focus that such essential services bring, coupled with an extraordinary tonal quality, makes possible an unrivaled convenience in DAW-based monitor management – in all areas of stereo audio production from recording studios over movie and video post production to game/multimedia production.

  • A fully discrete, analog design dispenses with VCAs, DACs, etc., providing loss-free signal processing

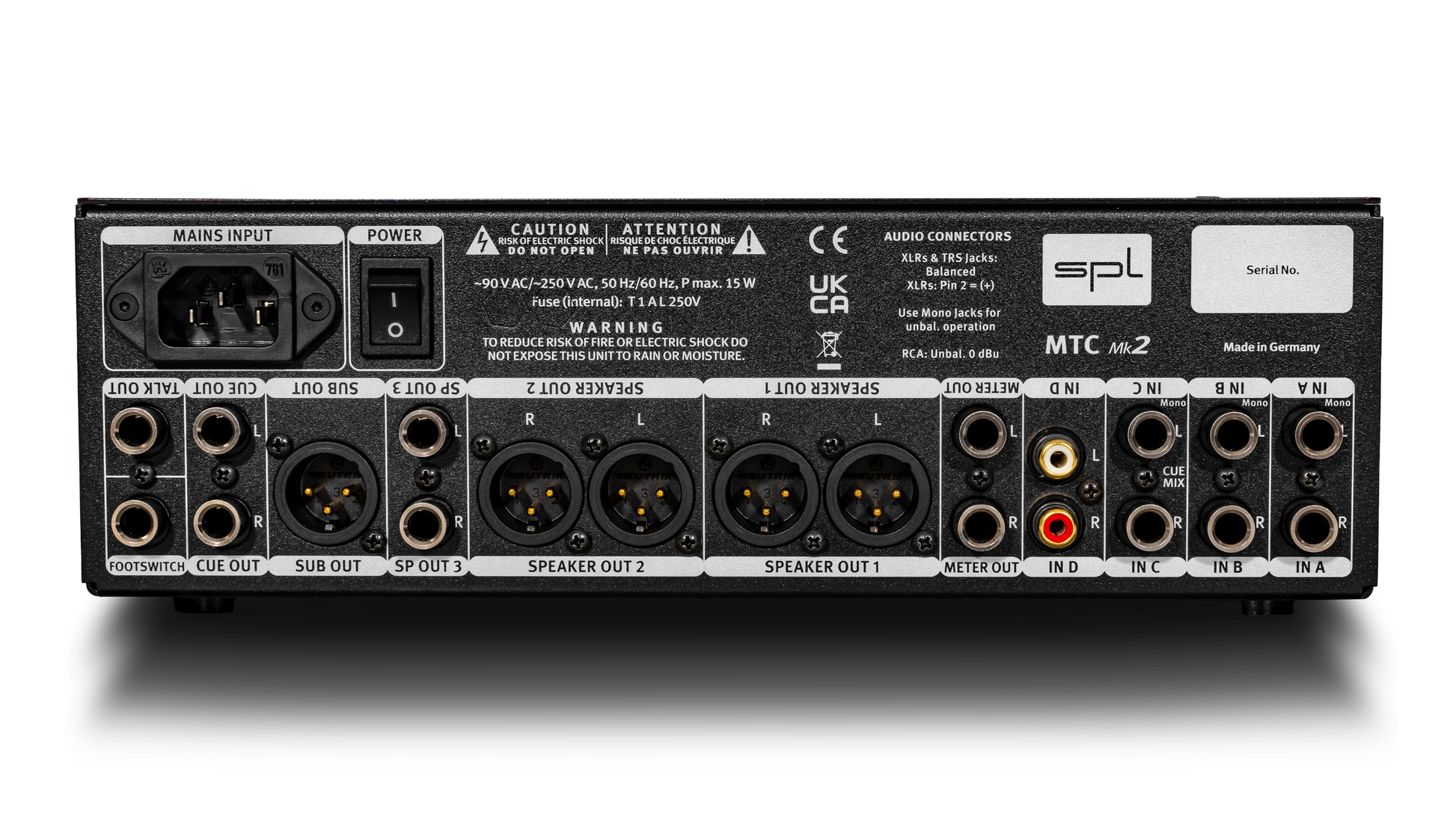

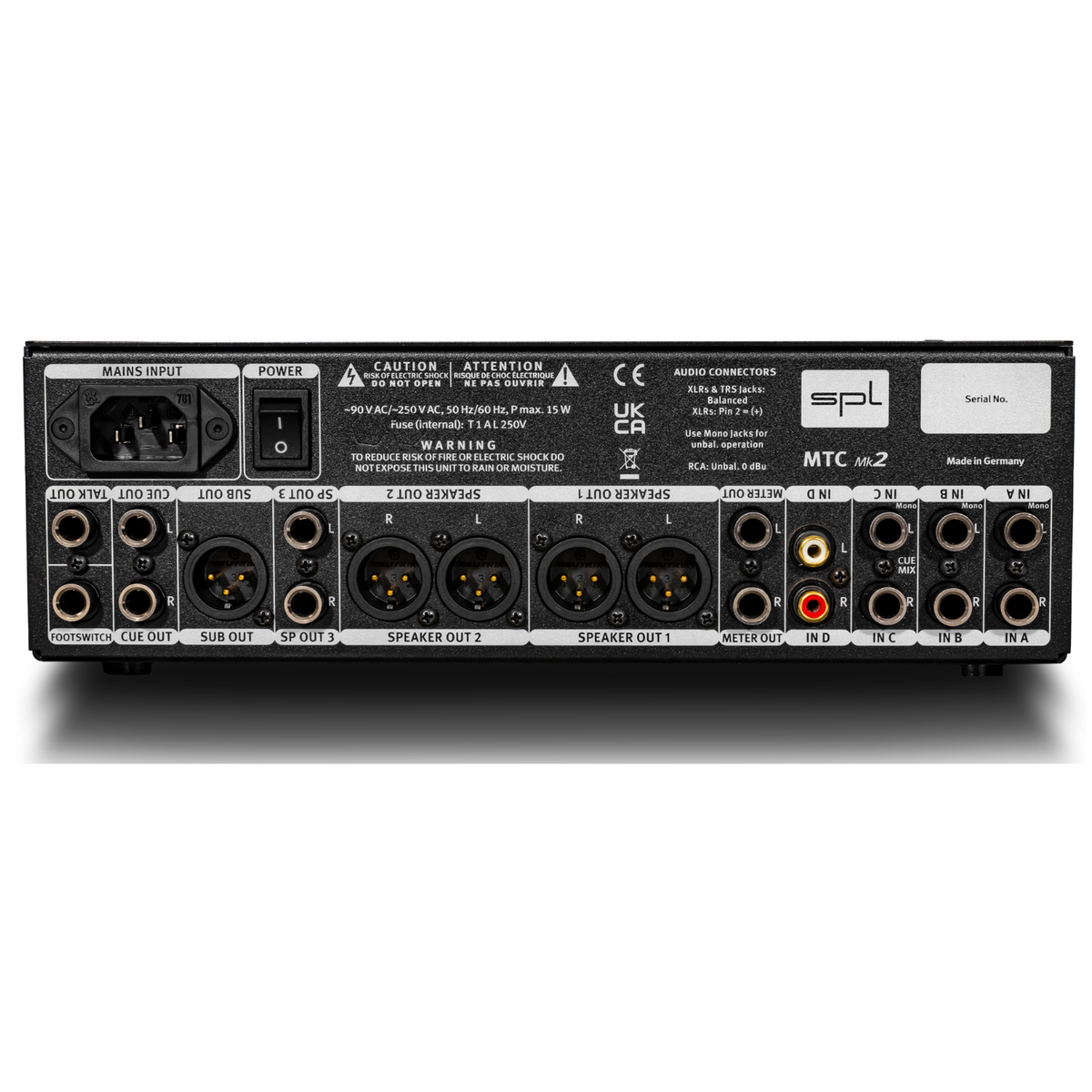

  • Six rear-panel stereo inputs (four balanced and two unbalanced sources), balanced XLR outputs for three loudspeaker pairs, slave output
  • Monitoring: source and loudspeaker selection, mono, dim, mute, switchable headphone output
  • Talkback: built in microphone, separate output, footswitch input
  • Cue-Mix: separate output, musician level, mix level and volume controls
  • SPL‘s custom-made balancing stages for the MTC‘s I/O architecture ensure extended frequency range up to 100 kHz, exceptional dynamic spectrum and excellent common mode rejection
  • The rugged and ergonomic desktop enclosure with slanted front panel harmonizes perfectly with the desktop production environment
  • Made in Germany



Specifications

  • Input Impedance:
  • TRS balanced: 50 kOhm
  • RCA unbalanced: › 10 kOhm
  • Output Impedance:
  • XLR balanced: ‹600 Ohm
  • Frequency Range: 10 Hz - 100 kHz (+/- 3 dB)
  • THD + N: 0,005% (@0dBu)
  • Noise (A-weighted): -89,4dBu
  • Maximum Input Level: +21dBu (balanced, XLR) / +19dBu (unbalanced, RCA)
  • Dynamic Range: 110,4dB (balanced) / 108,4dB (unbalanced)
  • CMRR: ›70dBu (@1kHz)
  • Dimensions: WxHxD: 91x272x220mm; 3.58"x10.7"x8.66"
  • Power Consumption: 10W
  • Weight: 2,3 kg; 5lbs



0dBu = 0.775V. Subject to change without notice.
