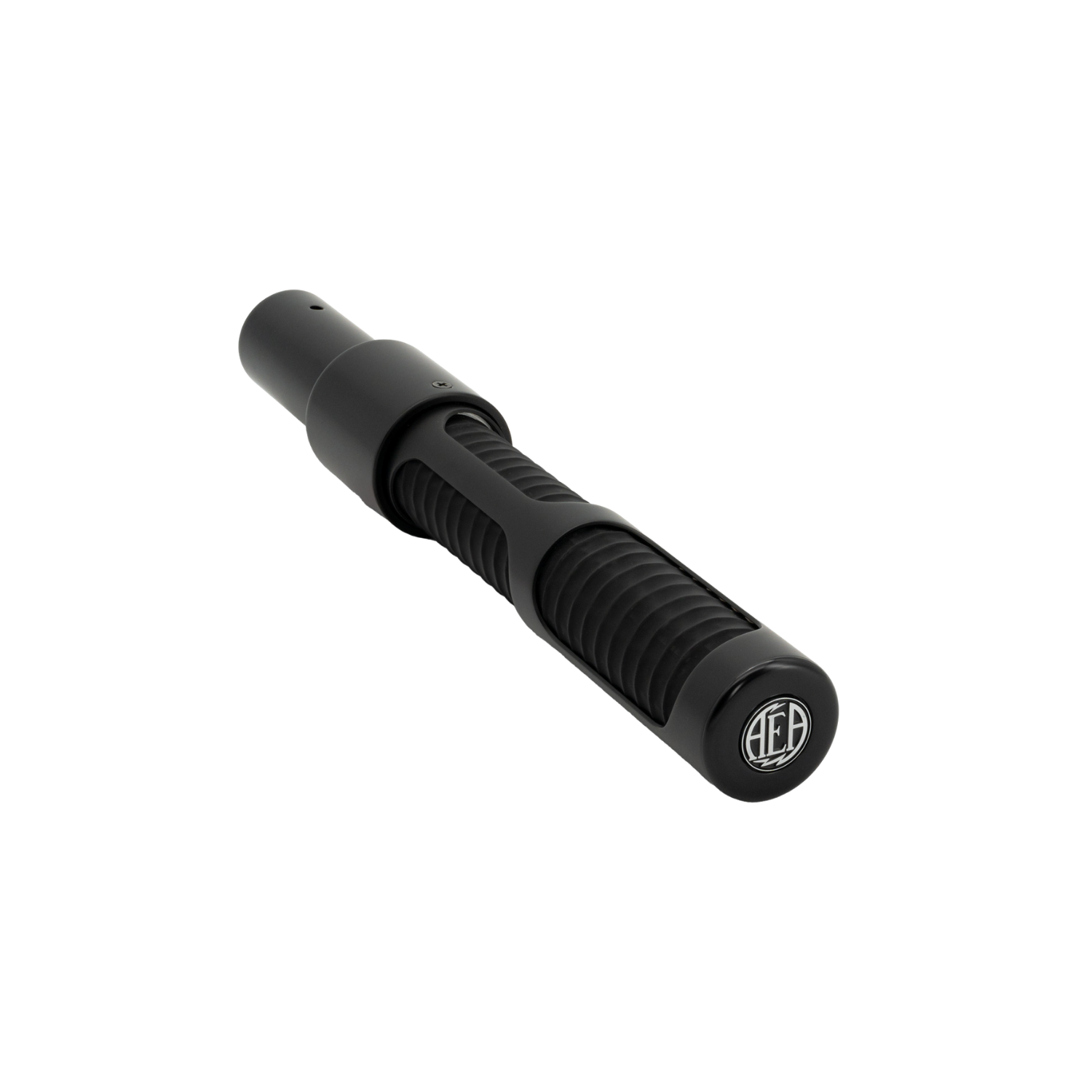

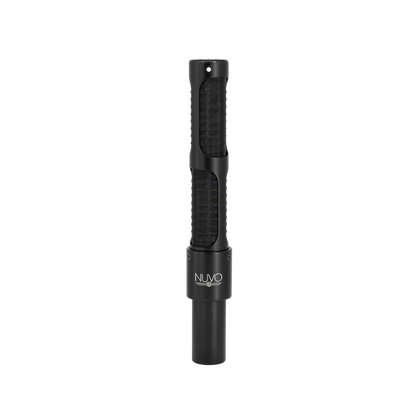

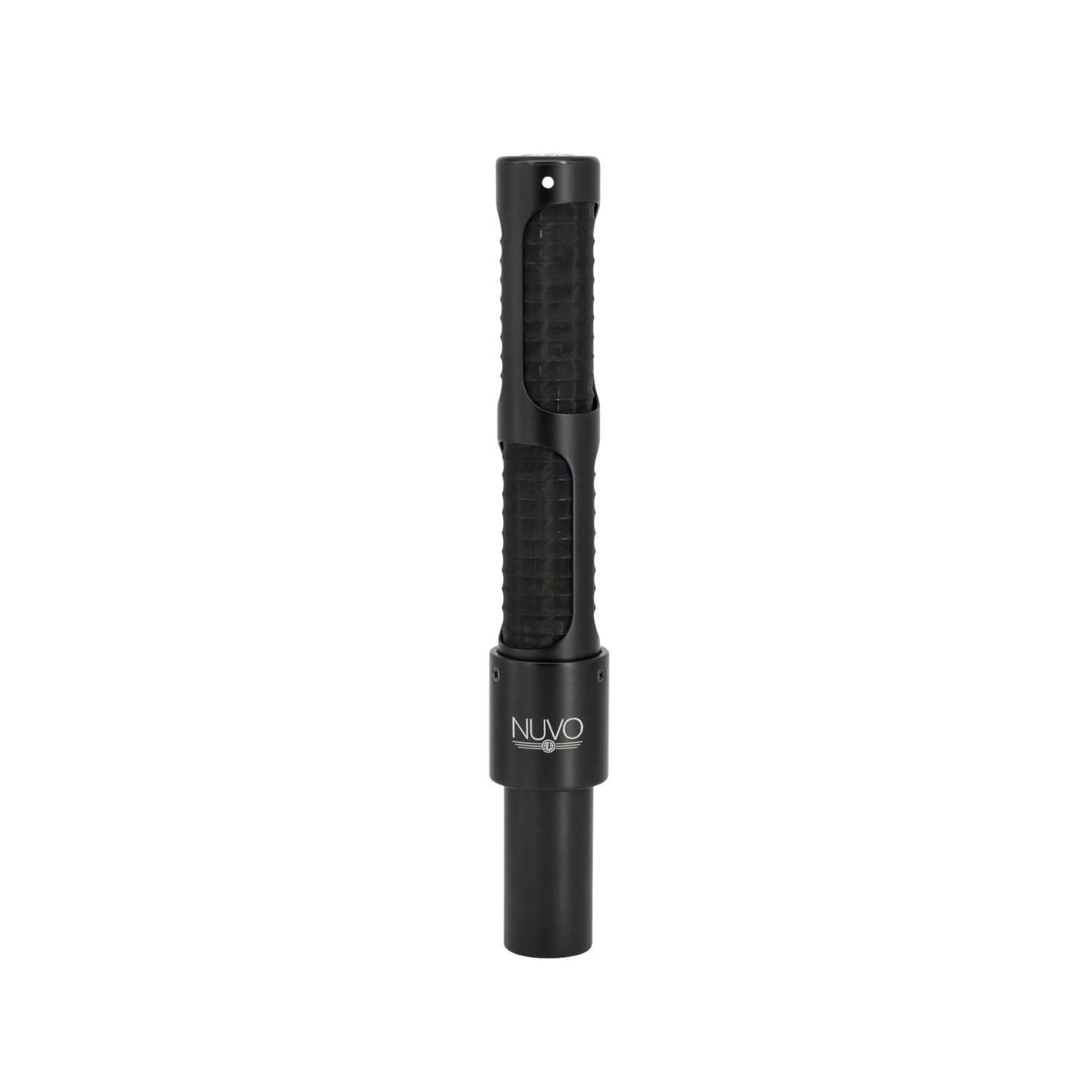

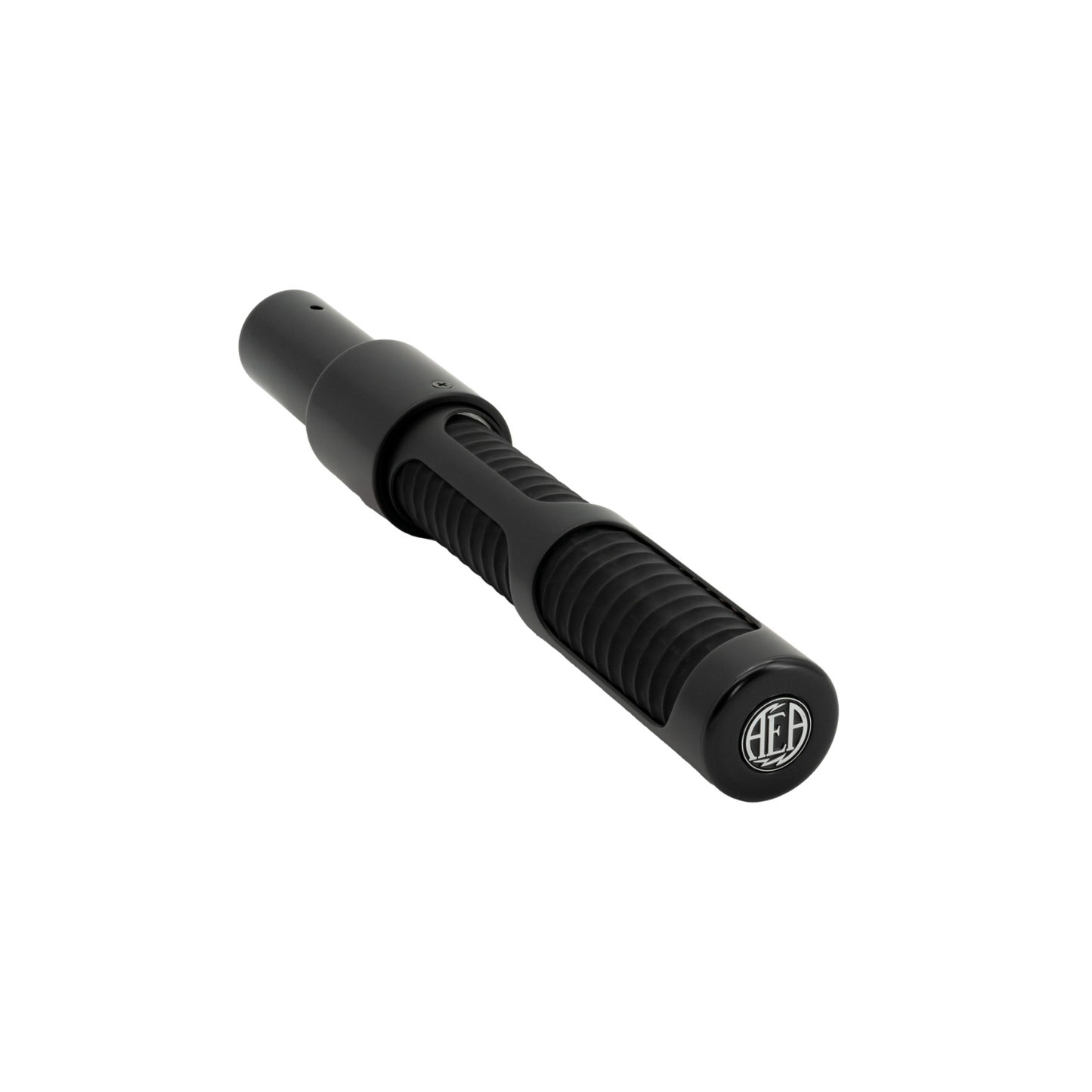

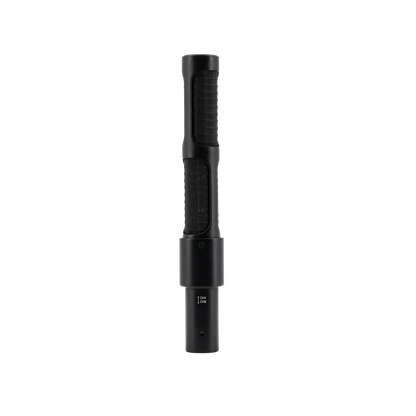

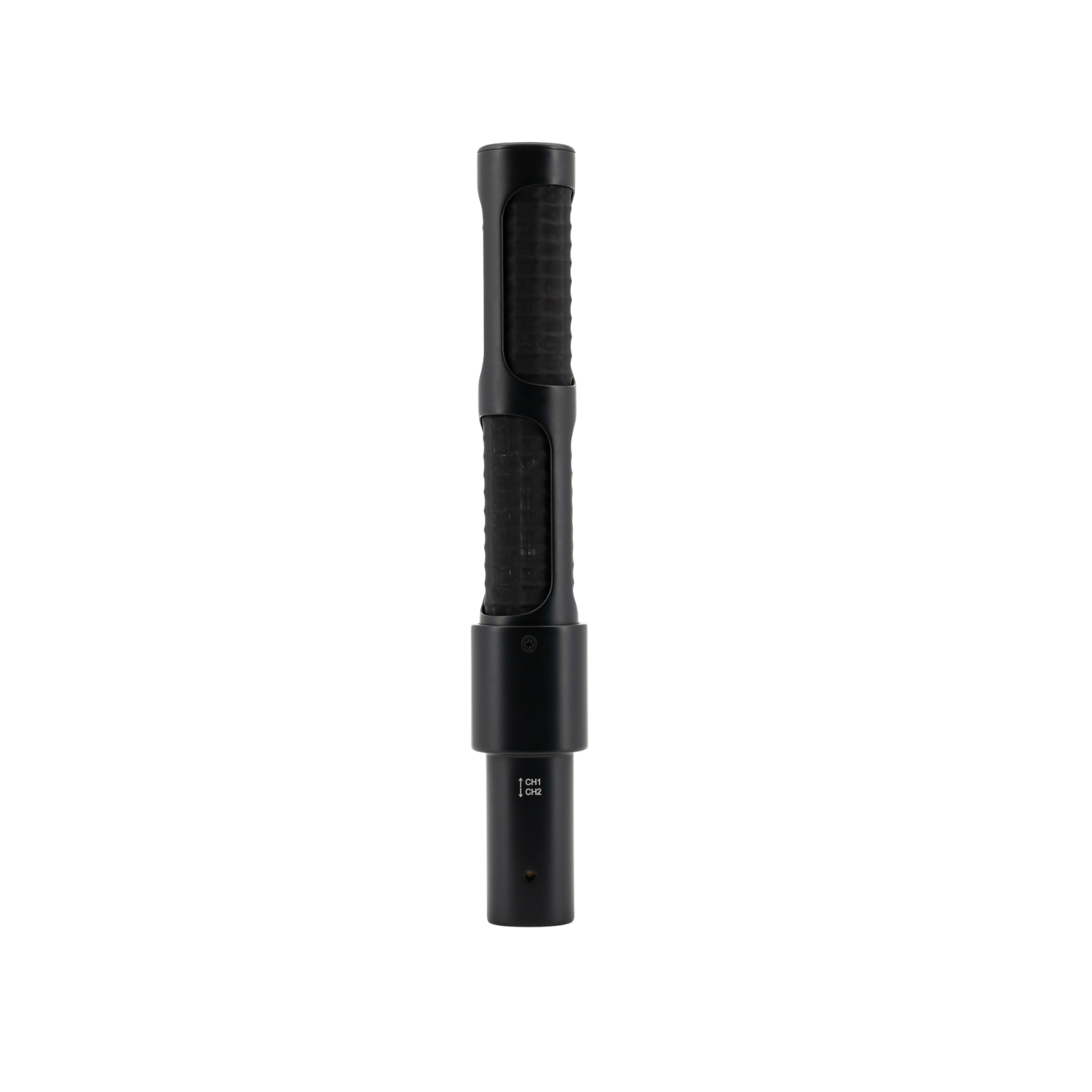

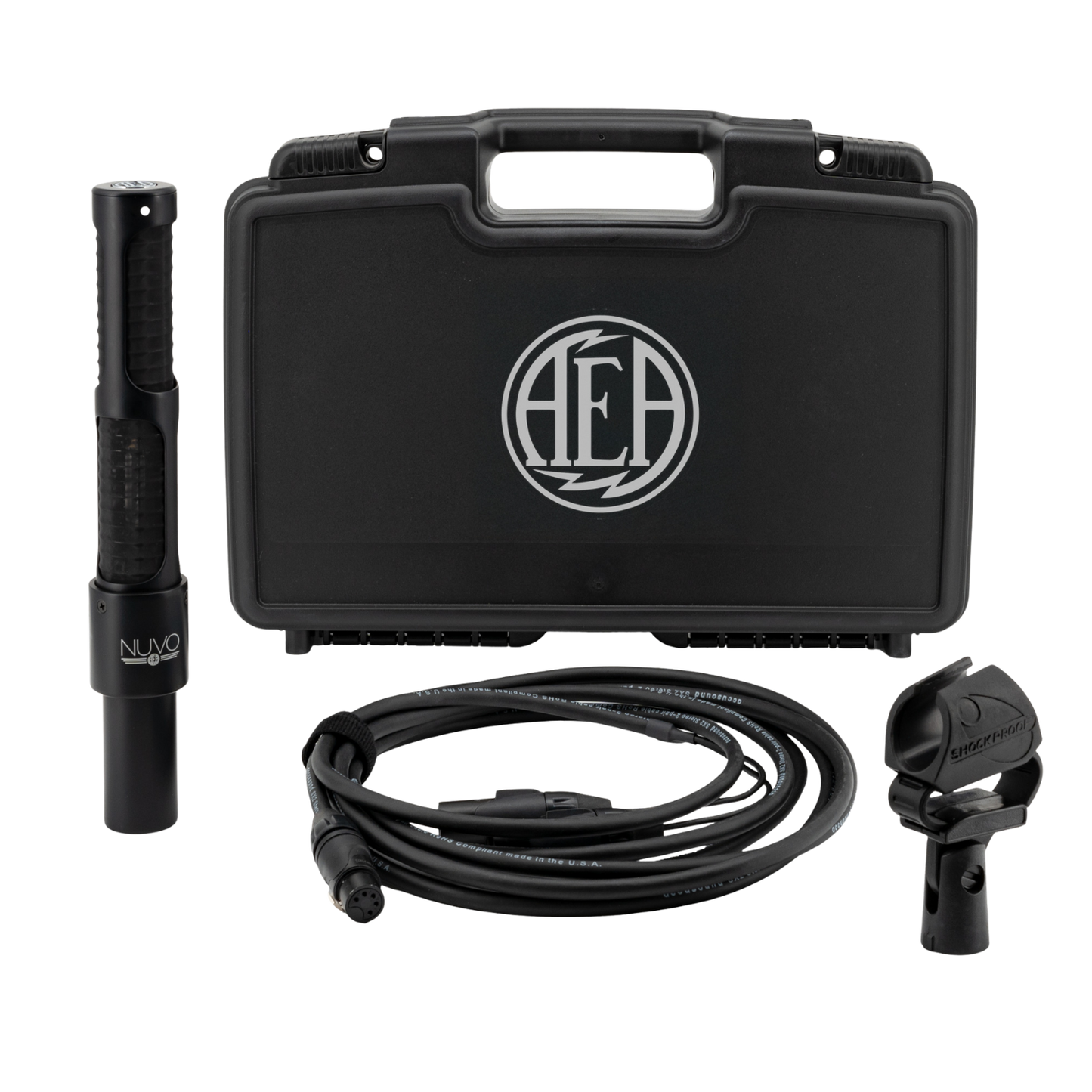

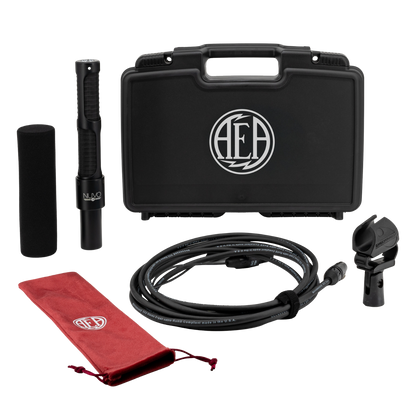

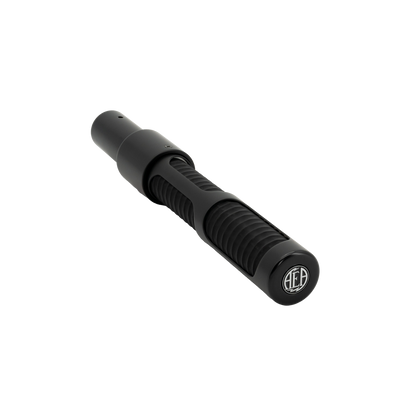

AEA N28 NUVO Stereo Ribbon Mic

The AEA N28 Stereo Ribbon Microphone is a compact active stereo ribbon microphone consisting of two matched bidirectional (or figure-of-8) ribbon transducers in a fixed Blumlein configuration. The N28 offers an effortless way to capture natural stereo, providing an authentic representation of a performance in its environment. Distinguishing itself from other AEA Stereo Ribbon Mics, the N28 is compact, maneuverable, and easy to use, making it ideal for a wide range of applications without the need for a multi-mic setup. Whether for drum overheads, room ambiance, or close-miked stringed instruments, the N28 delivers a phase-coherent, accurate response. Its mid-forward frequency response, tamed proximity effect, and quick transient response make it versatile across various sources. The N28 excels on darker sources and is a practical solution for capturing a stereo image without drawing attention to the mic itself.

Specifications:

Operating Principle: Pressure gradient transducer
Directional Pattern: Two bidirectional in fixed Blumlein pair
Frequency Range: <20 Hz to >20 kHz
Maximum SPL: 135 dB SPL at 1 kHz
Sensitivity: 6.10 mV/Pa (-44.3 dBV)
Output Impedance: 92 Ω broadband
Load Impedance: 1.0 kΩ or greater
Phantom Power: P48 phantom power, 7mA
Polarity: Pin 2 and 4 high for positive pressure at the front of the microphone
Off-Axis Response
Horizontal: Level changes with angle, frequency response is consistent, -35dB null at 90º / 270º
Vertical: Level changes with angle, reduced HF response above and below 0º / 180º, -25 dB null at 90º / 270º
Transducer Element Material: 1.8 μm Aluminum corrugated ribbon
Connector: XLR-5M
