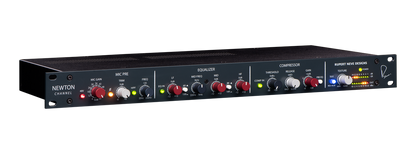

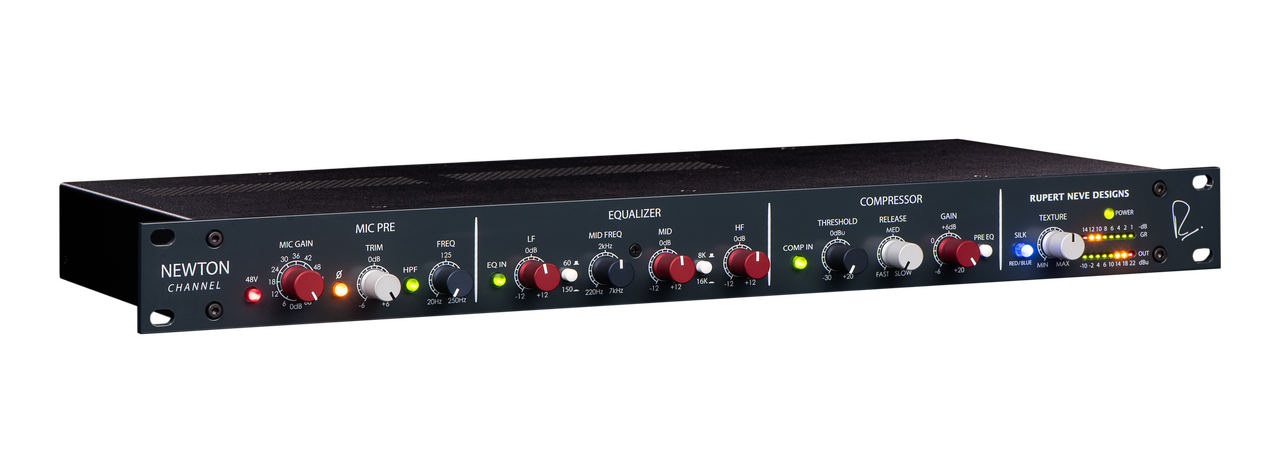

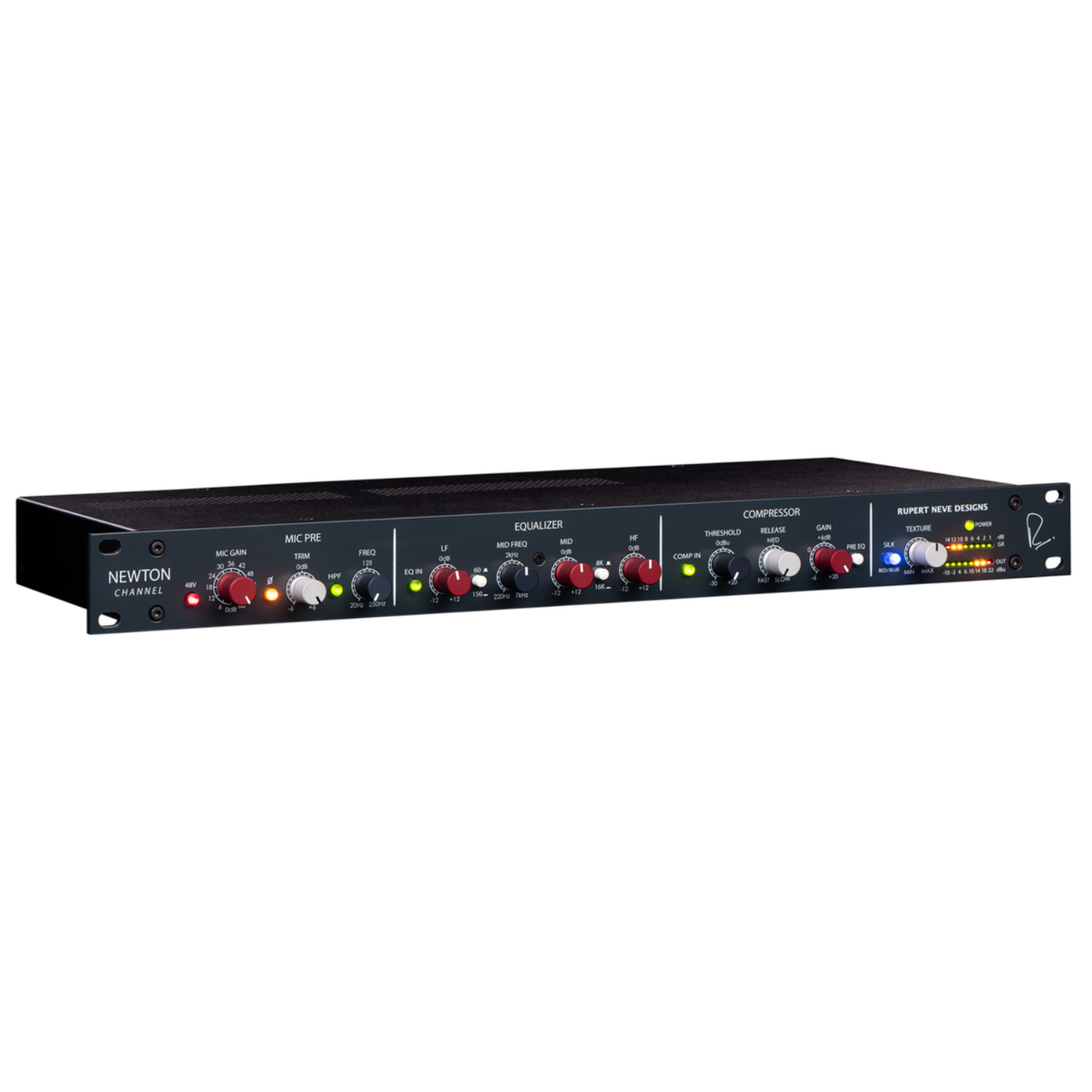

A powerful modern channel strip with an instantly recognizable sound.
The Newton Channel is a powerful modern channel strip born from a legendary sonic lineage. Its intuitive design provides classic sound on demand, with all the instantly-recognizable character, musical tone-shaping abilities, and proven reliability that define a Rupert Neve Designs product. The Newton is equally well-suited for a project studio, large-scale commercial facility or live sound rig.

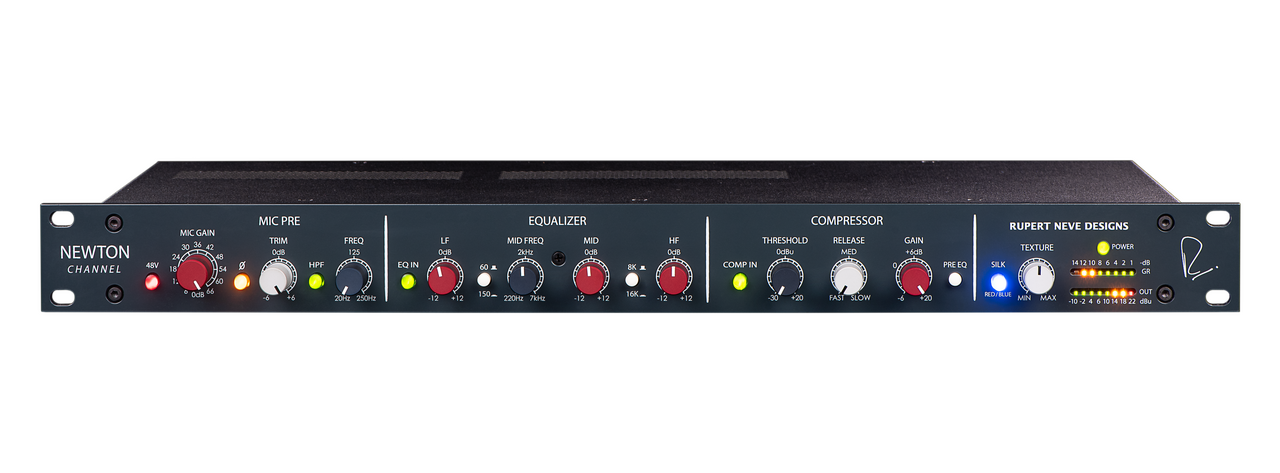

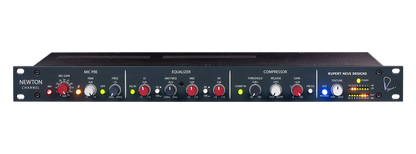

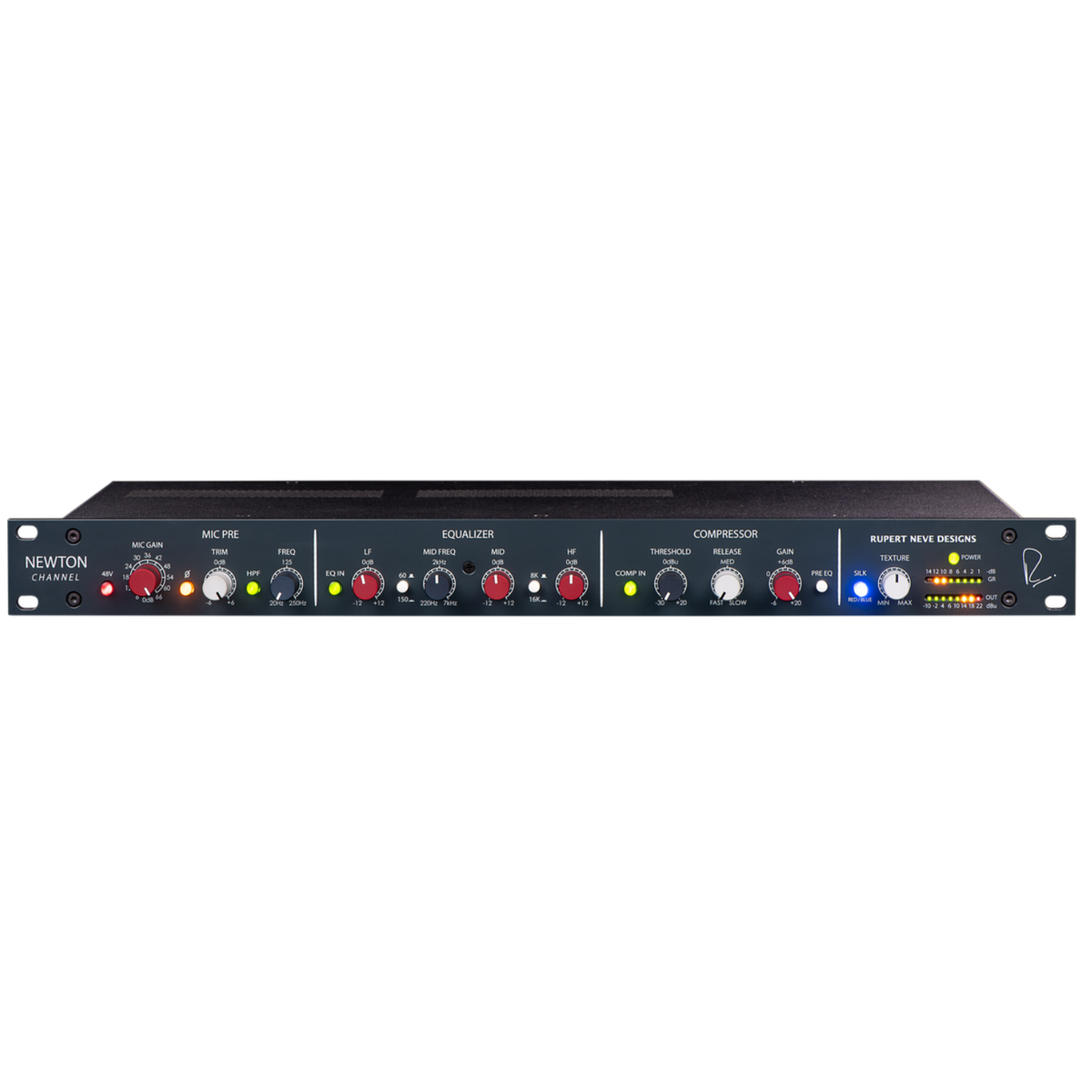

FRONT PANEL FEATURES
Mic Gain
12-position rotary switch that controls the microphone preamp gain in 6dB steps. For line level input signals, set the Mic Gain to the “0dB” position.
48V
Push-button switch that illuminates RED when +48V Phantom Power is engaged.
Ø (Polarity)
Push-button switch that illuminates AMBER when engaged and inverts the phase of the preamp signal.
TRIM
31-detent potentiometer that allows the user to adjust the preamp gain within a range of +/- 6dB.
HPF
Push-button switch that illuminates GREEN when the high pass filter is engaged.
FREQ
31-detent potentiometer that allows the user to adjust the cutoff frequency of the Sallen-Key high pass filter within a range of 20Hz to 250Hz.
EQ IN
Push-button switch that illuminates GREEN when the EQ section is engaged.
LF
31-detent potentiometer that controls the amount of boost or cut for the low frequency shelf within a range of +/- 12dB.
60/150
Push-button switch that selects between the two available low frequency shelf frequencies: 60Hz (OUT) and 150Hz (IN).
MID FREQ
31-detent potentiometer that controls the frequency of the midband peaking EQ within a range of 220Hz to 7kHz.
MID
31-detent potentiometer that controls the amount of boost or cut for the MID FREQ peaking EQ within a range of +/- 12dB.
8K/16K
Push-button switch that selects between the two available high frequency shelf frequencies: 8kHz (OUT) and 16kHz (IN).
HF
31-detent potentiometer that controls the amount of boost or cut for the high frequency shelf within a range of +/- 12dB.
COMP IN
Push-button switch that illuminates GREEN when the compressor section is engaged.
THRESHOLD
31-detent potentiometer that controls the compressor threshold range from +20dBu to -30dBu. When the input signal rises above the set threshold level, compression begins with a soft-knee at a 2:1 ratio.
RELEASE
31-detent potentiometer that controls the compressor release time. The overall timing range available is 50mS (FAST) to 500mS (SLOW). Note: Attack time is fixed at 20mS.
GAIN
31-detent potentiometer that controls the compressor make-up gain within a range of -6dB to +20dB.
PRE EQ
Push-button switch that routes the compressor section ahead of the EQ section when engaged.
SILK
Illuminated push-button switch that toggles through the three available SILK modes: OFF, RED, and BLUE.
TEXTURE
31-detent potentiometer that controls the amount of SILK harmonics added within the transformer output stage when SILK is engaged.
GR and OUT Metering
8-segment LED meters that indicate compressor gain reduction (dB) and output level (dBu).
POWER
LED that illuminates GREEN when the Newton Channel is powered ON.
Note: All measurements typical; all measurements recorded using 25ft. XLR output cables
Input Impedance: 8900 Ohms
Input to Line Output (No Features Engaged, Un-weighted)
Maximum Input Level: +23.6dBu
Noise (Un-weighted)
Line Out (Unity Gain): -102dBu
-6dB Line Out (Unity Gain): -107dBu
Line Out (+30dB Gain): -95dBu
Equivalent Input Noise @ +30dB Gain (EIN): -125dBu
Maximum Output Level @ 1kHz: +23.6dBu
Frequency Response
<10Hz to 30kHz: +/- 0.1dB
<5Hz to 70kHz: +/- 0.25dB
<5Hz to 140kHz: -3dB
THD+N, BW (<10Hz to 22kHz)
0dBu at 1 kHz: 0.0013%
+20dBu at 1 kHz: 0.0007%
Input to Line Output (Equalizer Engaged)
Noise (BW <10Hz to 22kHz): -90dBu
THD+N @ 0dBu (EQ Flat): 0.003%
Input to Line Output (Compressor Engaged)
Noise @ 0dB Make-Up Gain (BW <10Hz to 22kHz): -91dBu
THD+N @ 0dBu (EQ Flat): 0.005%
Compressor Section
Attack Time: 20mS (fixed)
Release Time: Variable; 50mS (Fast) to 500mS (Slow)
PRODUCT DIMENSIONS (W x D x H)
19” (48.3 cm) x 8.125” (20.63 cm) x 1.75” (4.5 cm)
SHIPPING DIMENSIONS (L x W x H)
24” (61 cm) x 13” (33 cm) x 4” (10.2 cm)
SHIPPING WEIGHT
9 lbs. (4.1 kg)
