Elysia

Nvelope 500

  • Sale
  • Regular price R 17,197.89

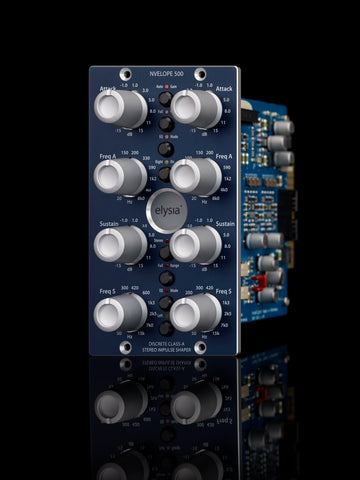

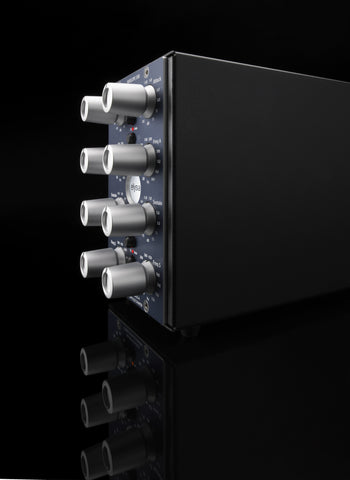

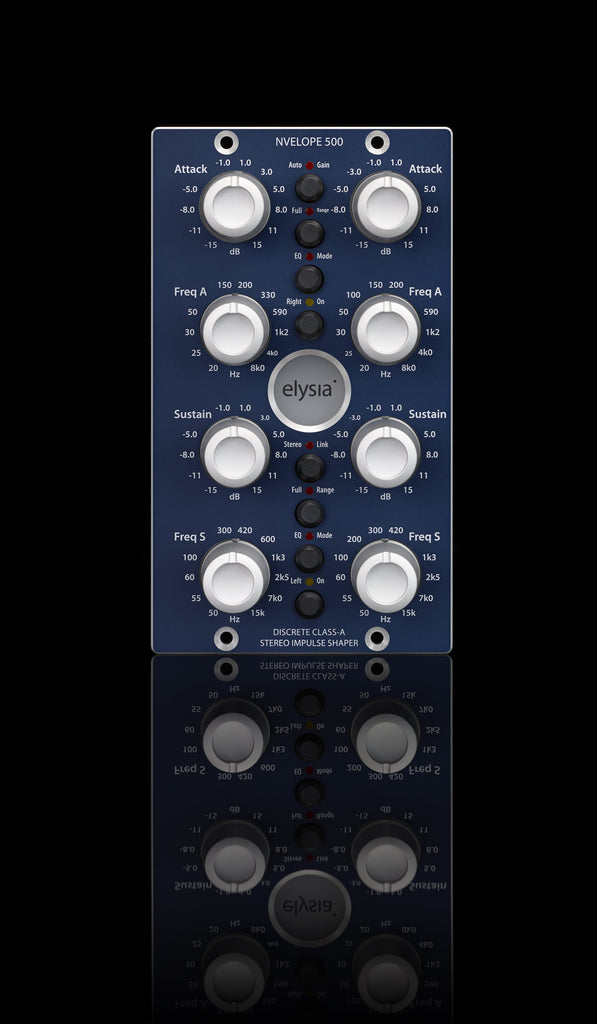

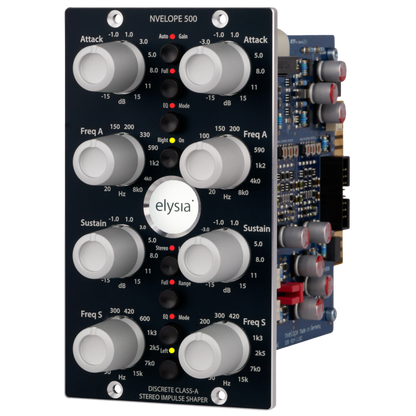

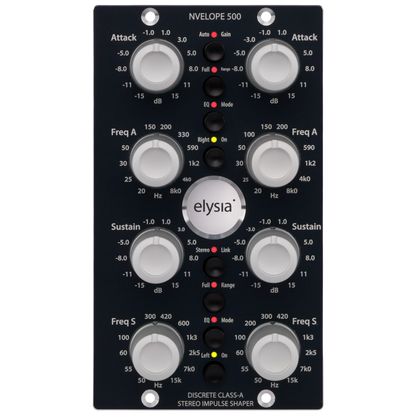

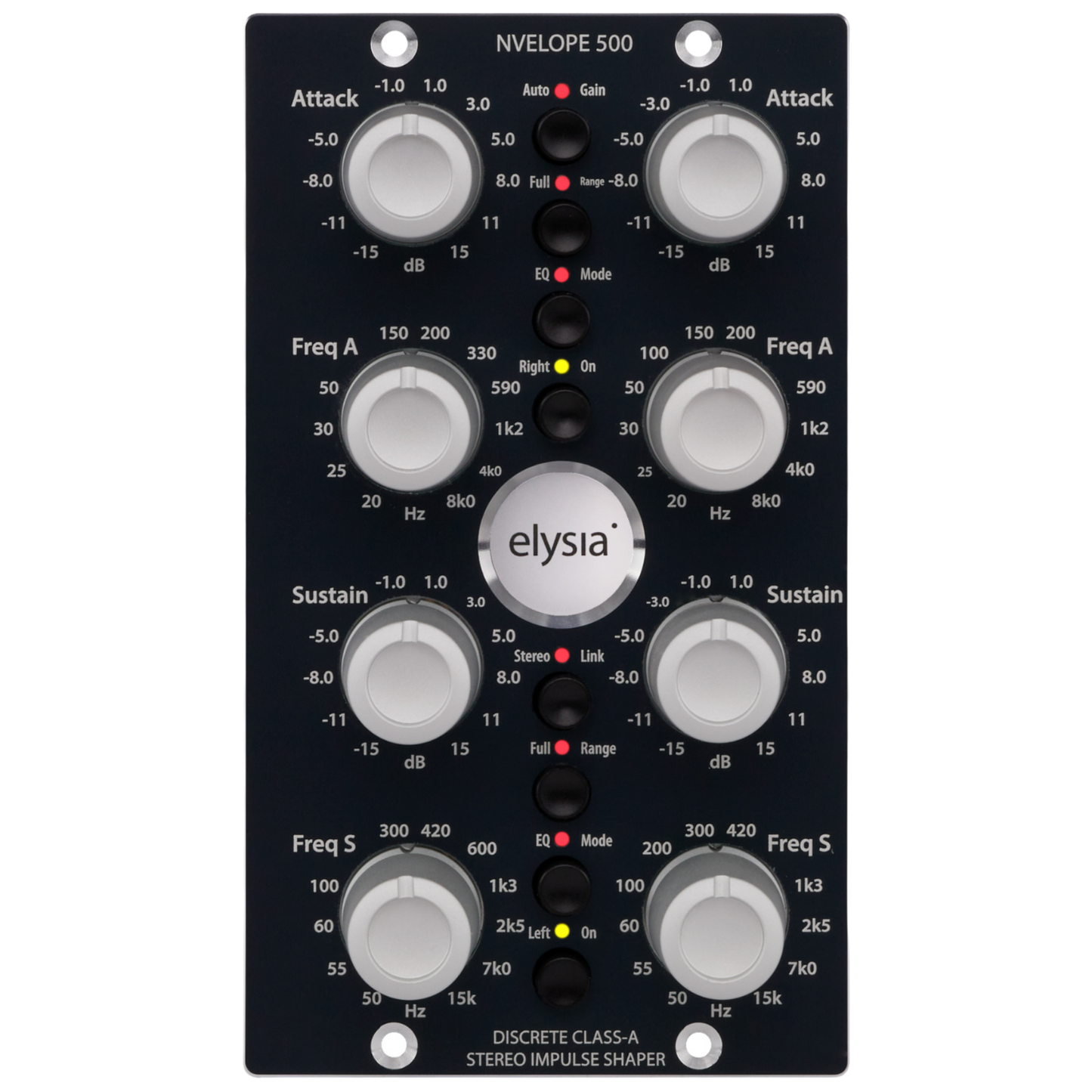

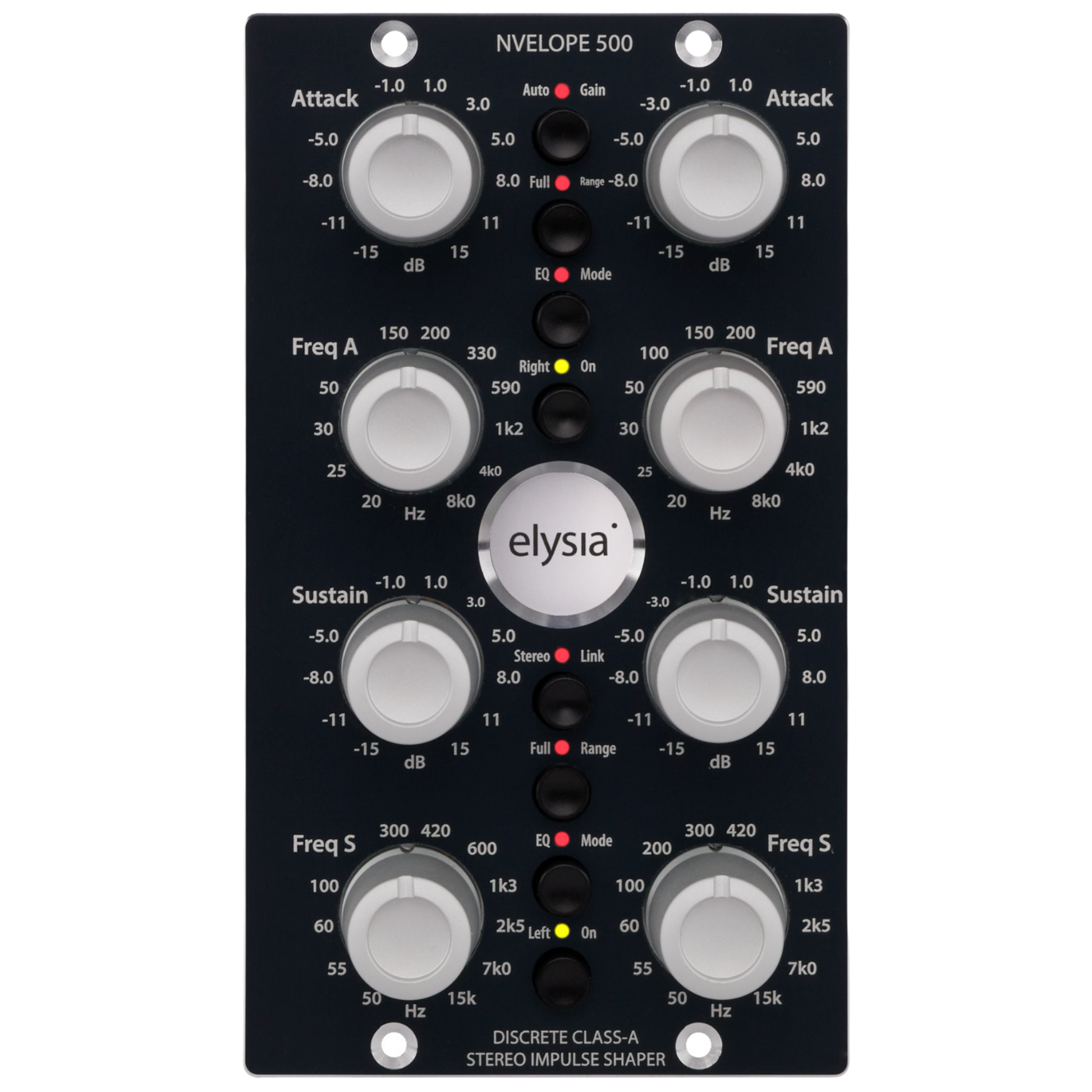

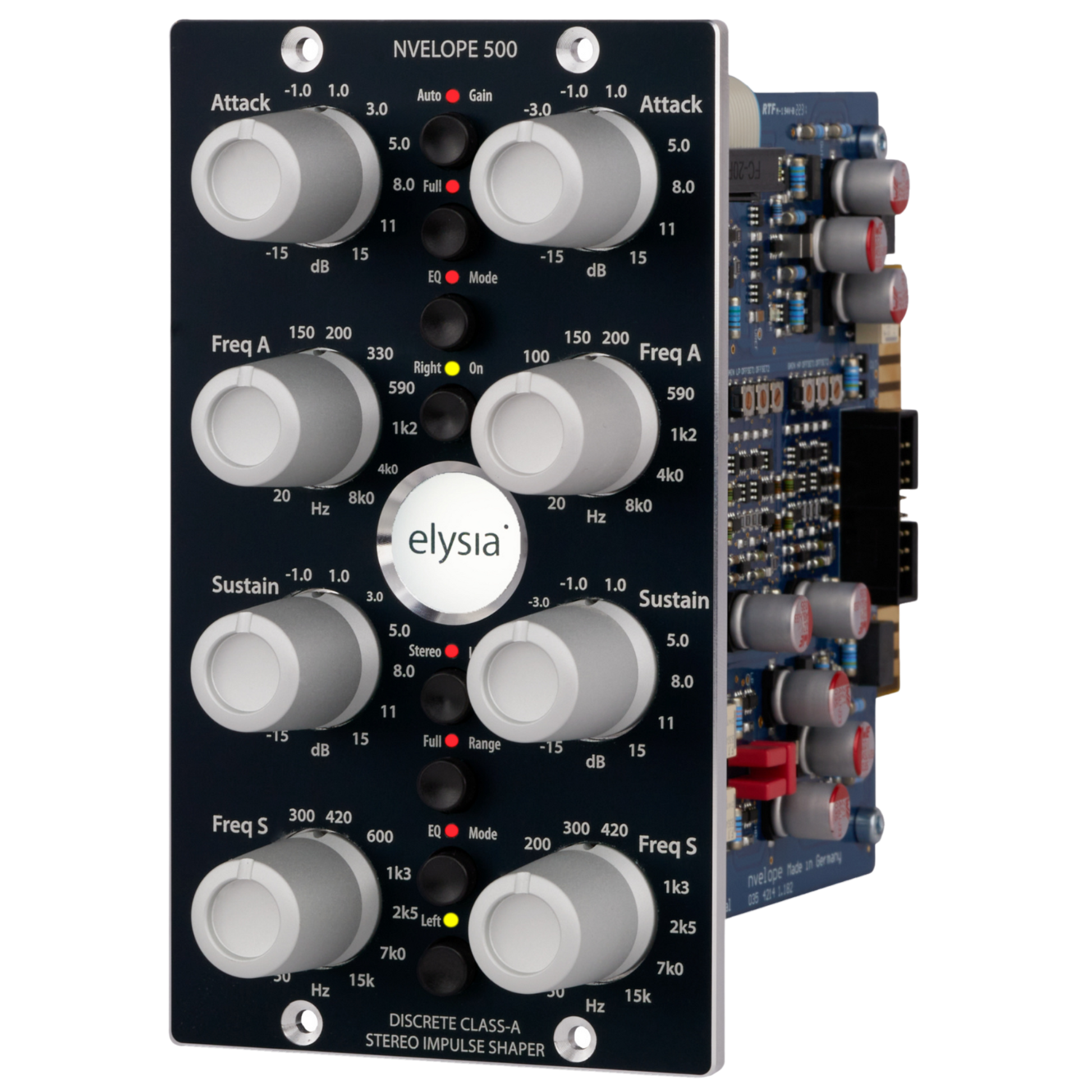

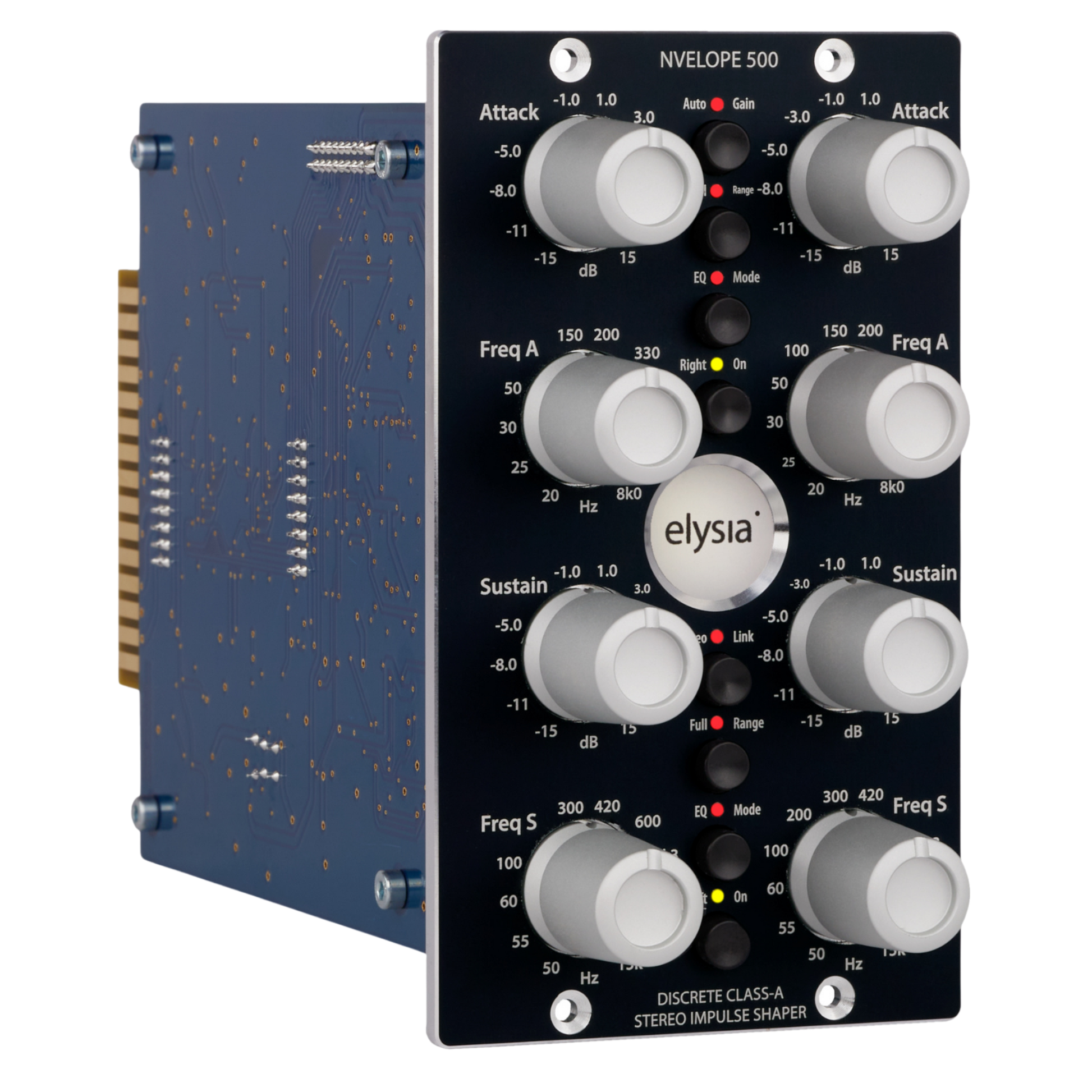

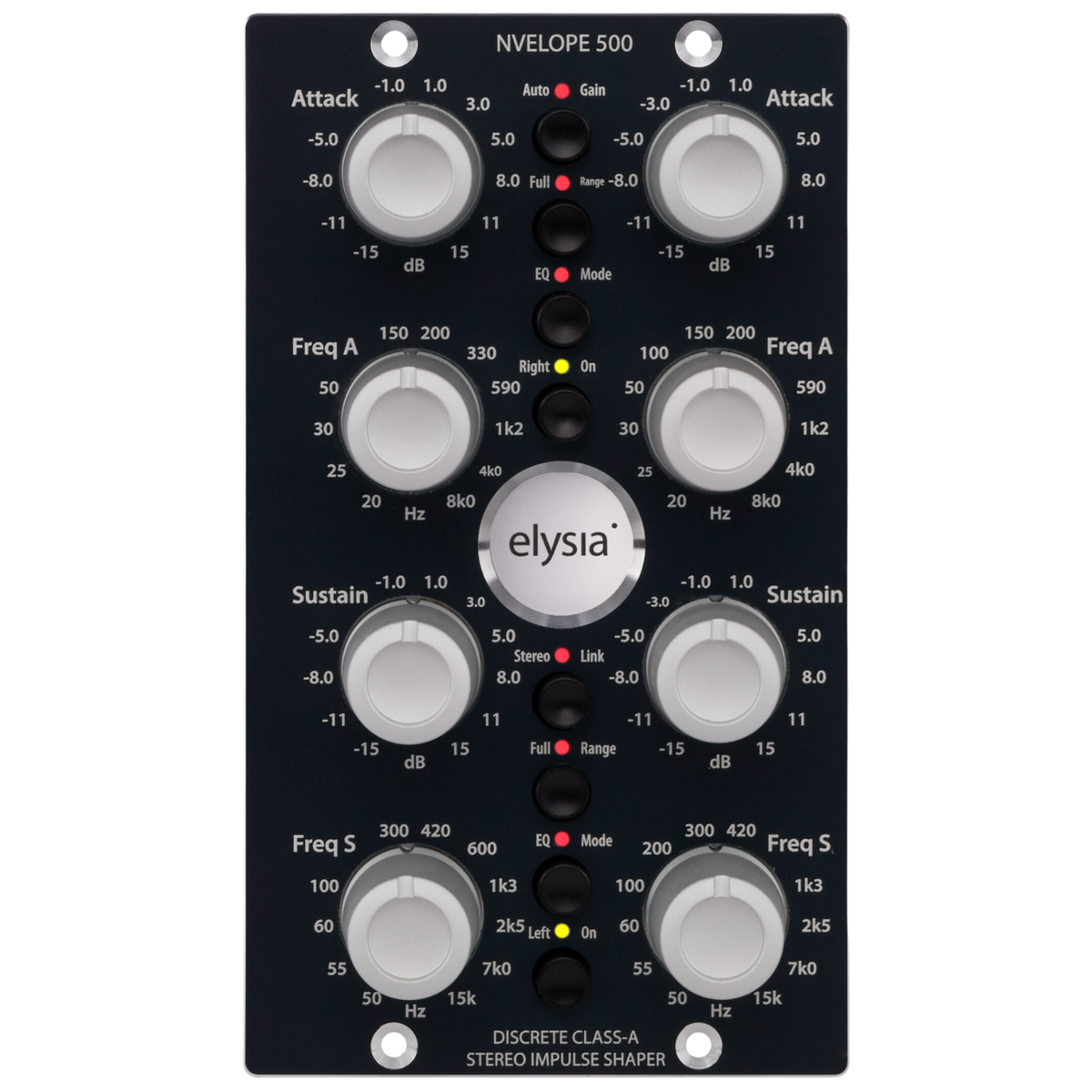

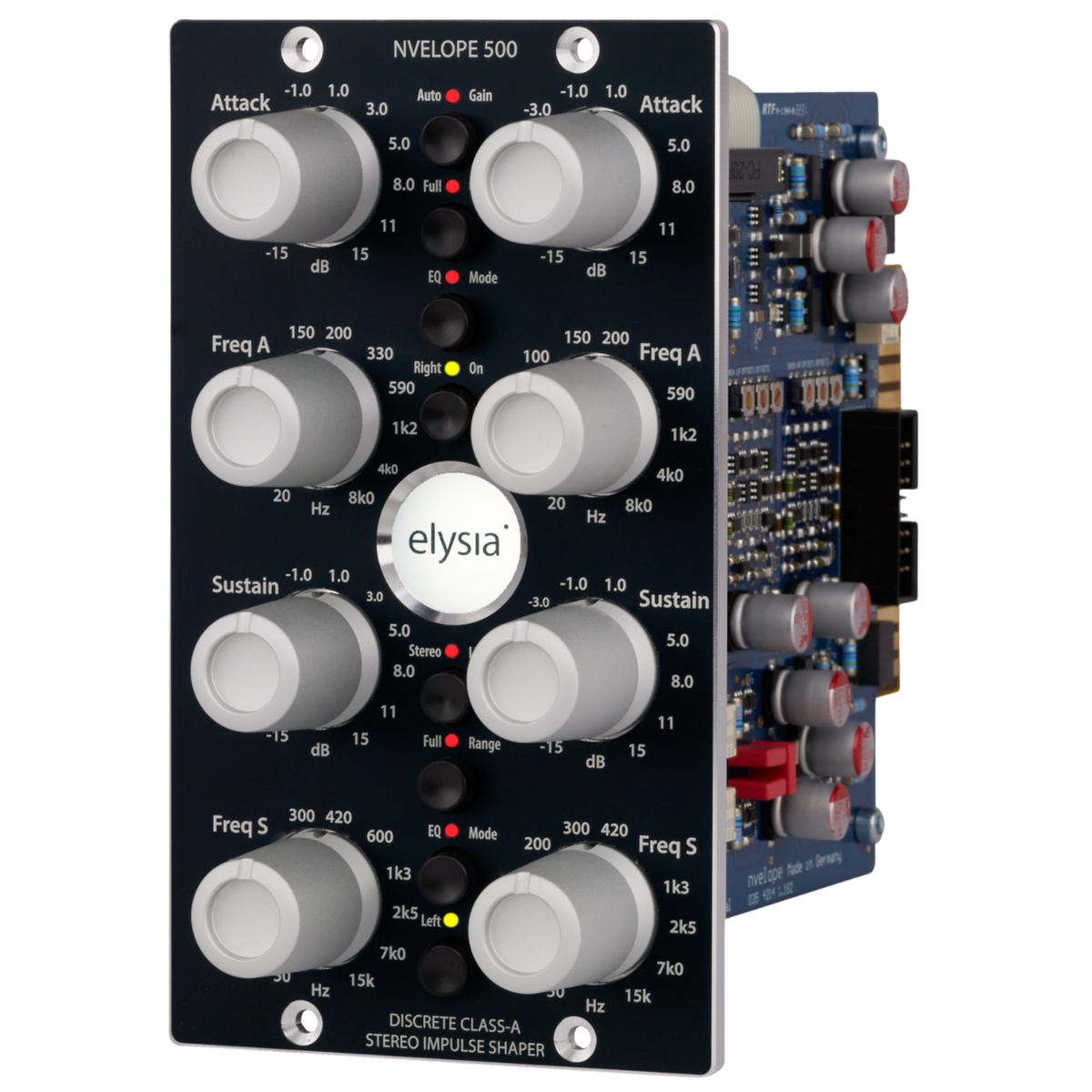

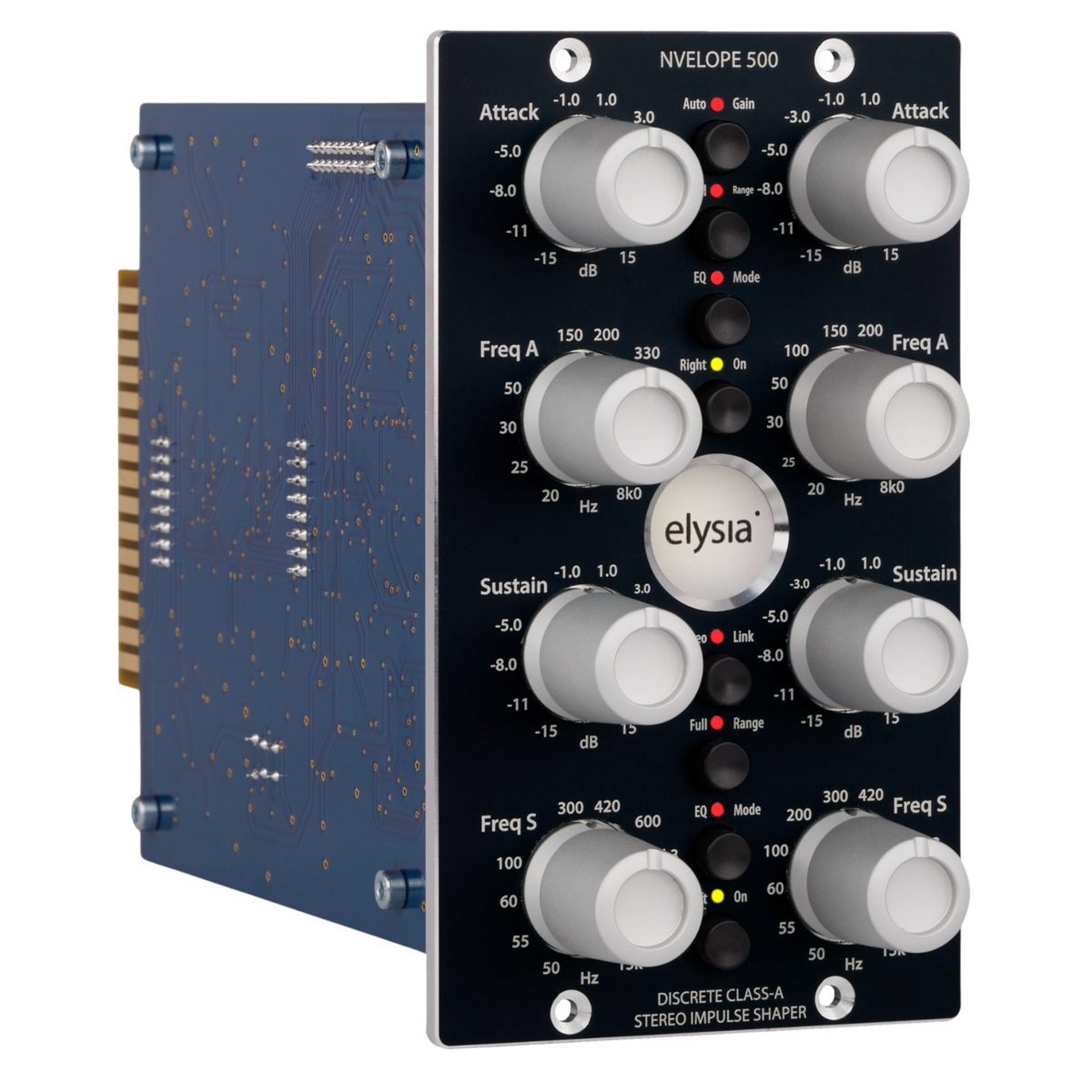

Nvelope 500 – The impulse shaper

The nvelope 500 is a powerful audio processor capable of making subtle or drastic changes to a sound by providing control over its attack and sustain characteristics. This is extremely useful for reshaping all sorts of individual tones, and is a wonderful tool in any mixing situation as well.

The nvelope 500 operates independently of the specific level of a signal, and (unlike with compressors) you do not have to spend a lot of time trying to balance a set of complex controls to quickly get the results you seek.

With its unique Dual Band mode, the nvelope 500 gives you enhanced control over processing, and can easily handle complex program material. Additionally, its dynamics sections can be bypassed, allowing it to function as a flexible high/low shelf EQ...

Features:

  • Discrete Class-A Topology
    Pristine audio quality.
  • Full Range Mode
    Fast & efficient envelope shaping.
  • Dual Band Mode
    Enhanced frequency controls.
  • EQ Mode
    Alternative high/low shelf equalizer.
  • Mixed Mode
    Two different processors at the same time.
  • Stereo Link/Dual Mono
    Flexible channel use and combination.
  • Auto Gain
    Eliminates level peaks and distortion.
  • Made in Germany
    High grade components, solid aluminum knobs.

Specifications:

Frequency response:

 <10 Hz - 400 kHz (-3.0 dB)

THD+N:
@ 0 dBu, 20 Hz - 22 kHz
@ +10 dBu, 20 Hz - 22 kHz

0.006 %
0.01 %

Noise floor A-weighted:
20 Hz - 20 kHz (Full Range, EQ)
20 Hz - 20 kHz (Dual Band)


-90.0 dBu
-87.0 dBu

Dynamic range:
20 Hz - 22 kHz


112 dB

Maximum level:
Input
Output


+21 dBu
+21 dBu

Impedance:
Input
Output


10 kOhm
68 Ohm

Power consumption:
Total
Per slot


200 mA
100 mA





Technical Details:

  • Frequency response: <10 Hz - 400 kHz (-3.0 dB)
  • THD+N @ 0 dBu, 20 Hz - 22 kHz: 0.006 %
  • THD+N @ +10 dBu, 20 Hz - 22 kHz: 0.01 %
  • Noise floor, 20 Hz - 20 kHz (Full Range, EQ): -90.0 dBu
  • Noise floor, 20 Hz - 20 kHz (Dual Band): -87.0 dBu
  • (A-weighted)
  • Dynamic range, 20 Hz - 22 kHz: 112 dB
  • Maximum input level: +21 dBu
  • Maximum output level: +21 dBu
  • Input impedance: 10 kOhm
  • Output impedance: 68 Ohm
