SPL Phonitor 3

SPL Phonitor 3

R 42,395.00 ZAR
R 42,395.00 ZAR
Sale Sold out

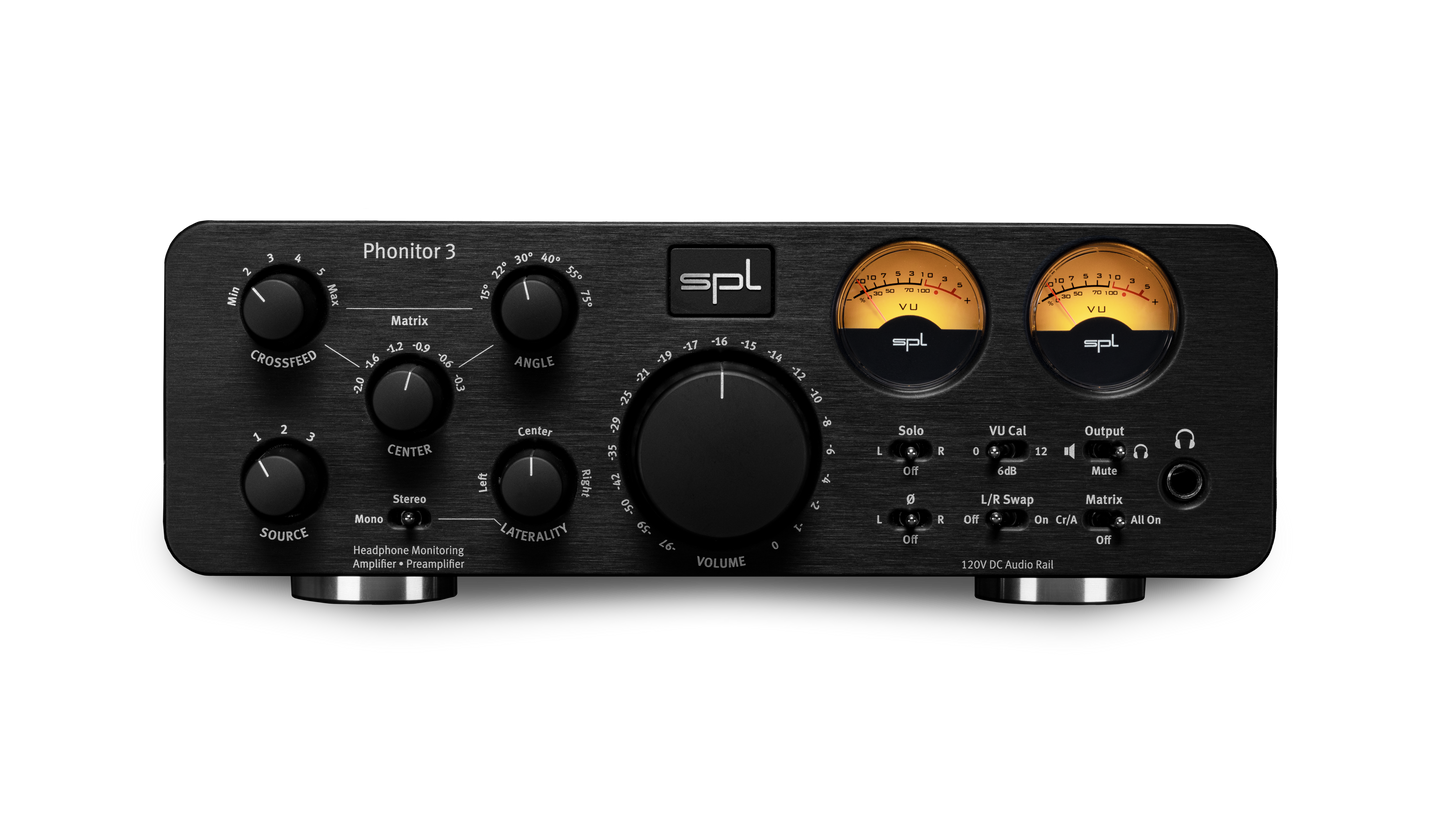

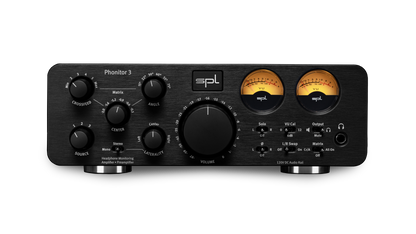

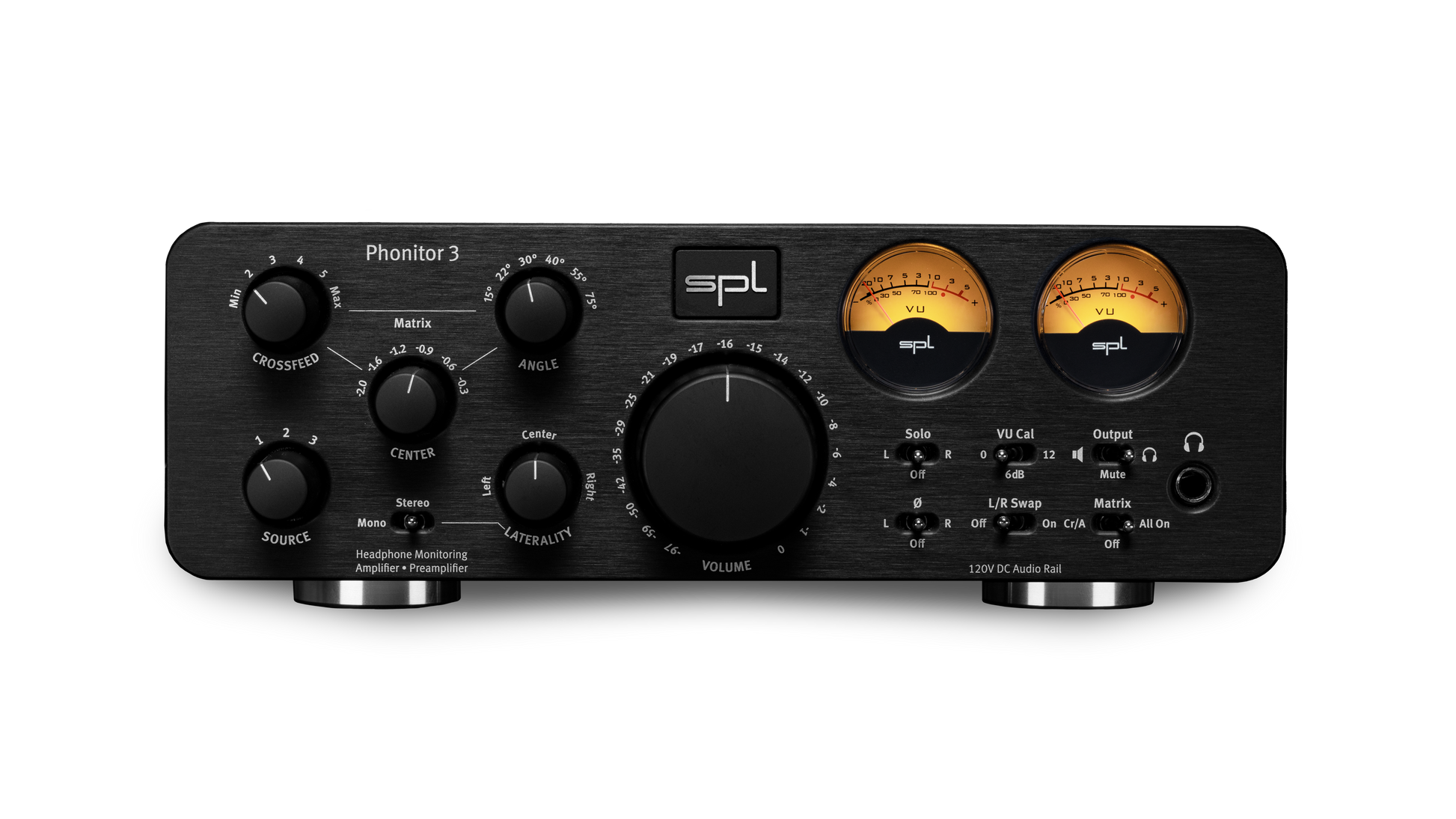

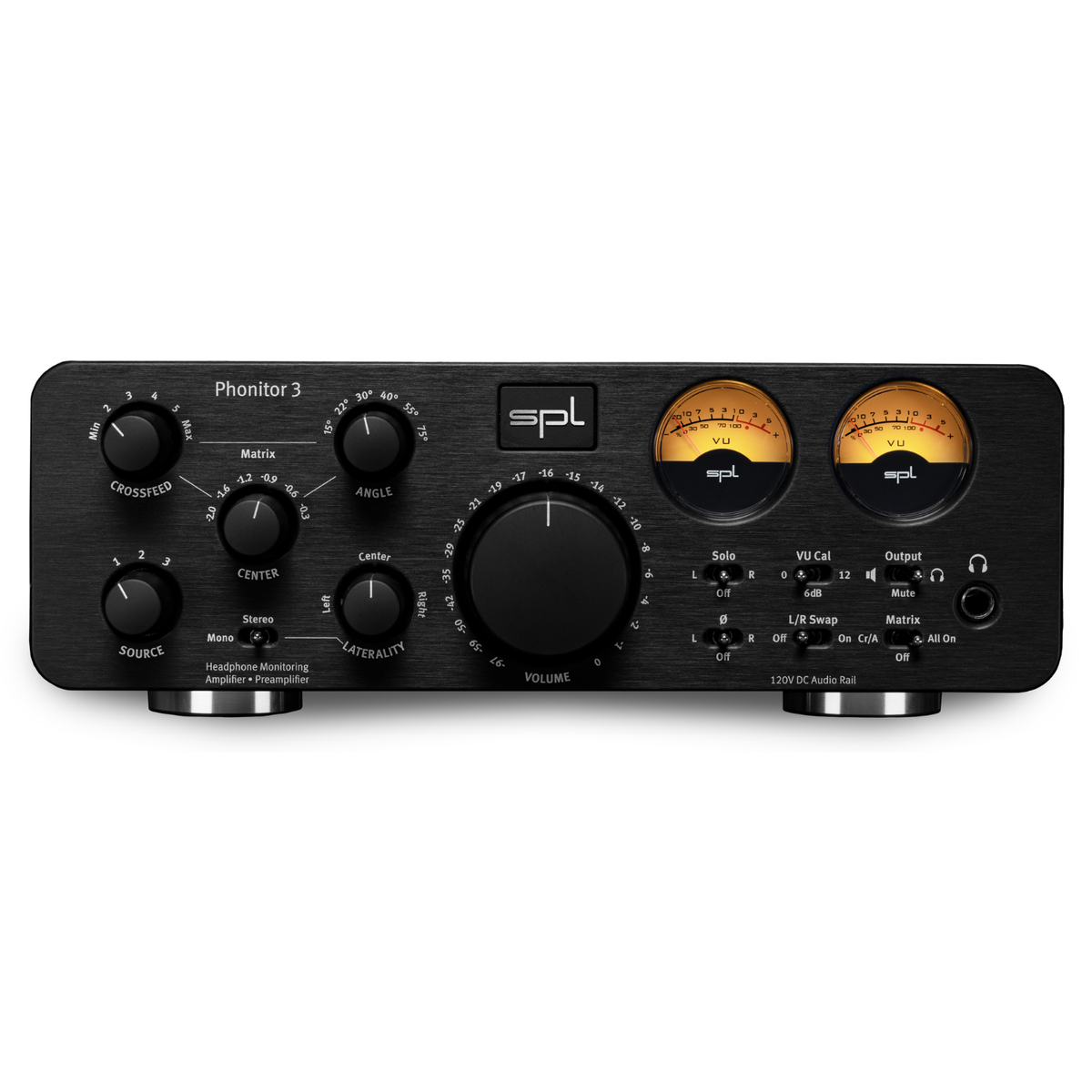

Phonitor 3 is the ultimate headphone amplifier and monitoring controller with 120V technology. It offers the same monitoring quality as the big SPL mastering consoles –
on loudspeakers and headphones.

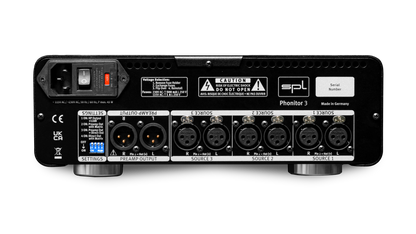

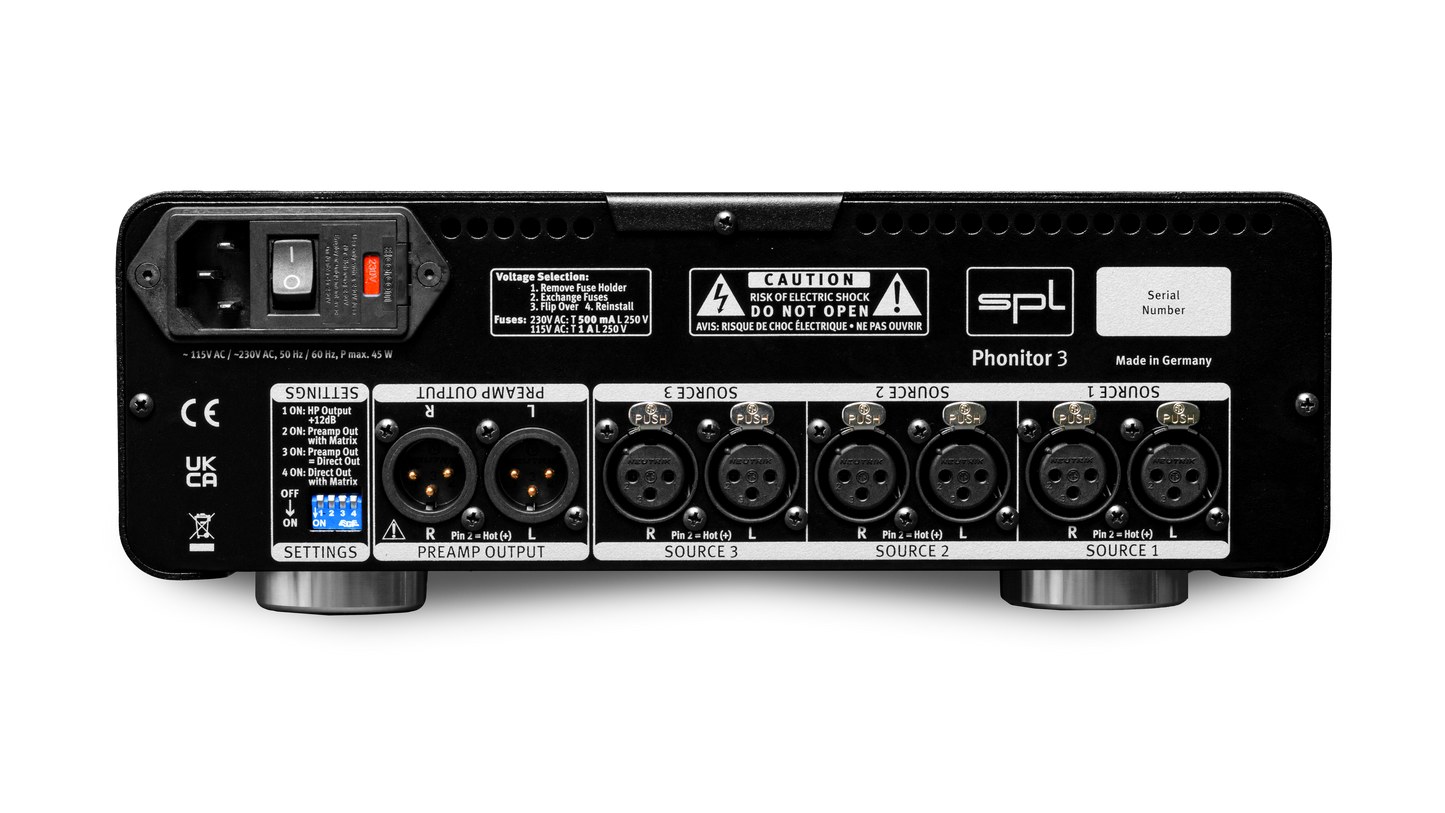

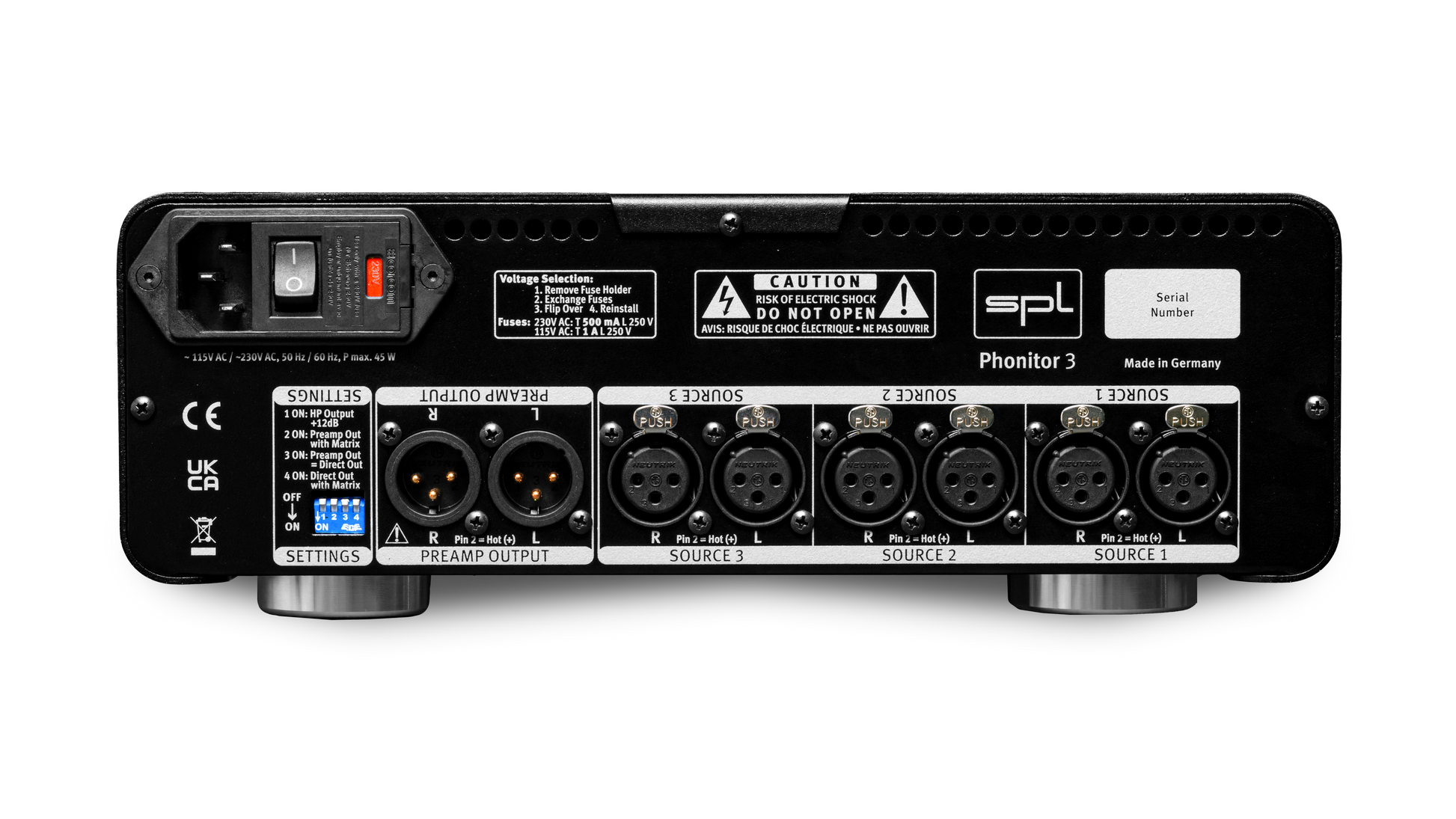

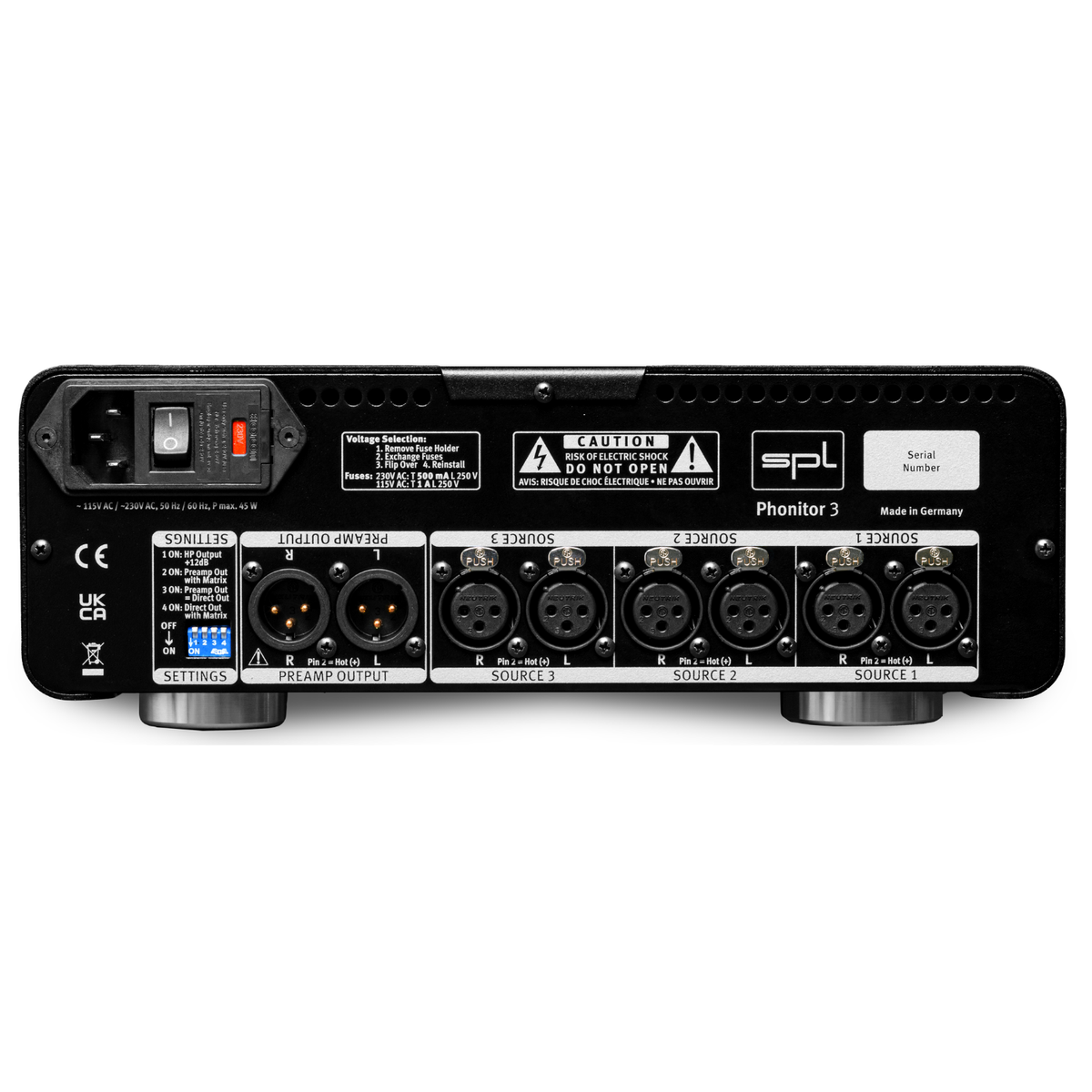

The analog Phonitor Matrix allows mixing and mastering on headphones in the highest quality – with the same spatial perception of the stereo stage as on loudspeakers. Three analog XLR stereo inputs for various sources and a wide range of monitoring options make it the perfect monitor controller for demanding producers and mixing/mastering engineers.

Phonitor 3 can be equipped with the optional Expansion Rack, which is not only a 19″ rack housing, but it also expands the connection possibilities with three additional switchable stereo outputs for active loudspeakers or power amplifiers.

Features:

  • Source selection
  • Phonitor Matrix with Crossfeed, Speaker Angle and Center Level (the latter can be switched off)
  • Mono/Stereo
  • Laterality control
  • Solo L/R
  • Phase inversion for L and R
  • L/R Swap
  • Output switchable to headphones or speakers
  • Mute

Specifications:

Analog inputs & outputs: XLR (balanced)

Maximum input & output gain: 32.5 dBu
Input impedance (XLR): 20 kΩ
Output impedance (XLR): 75 Ω
Common mode rejection ratio (XLR): -82 dB
Frequency range (0 dBu): 10 Hz – 100 kHz
THD +N (1 kHz, 0 dBu): 0.0009 %
Noise (A-weighted): -102 dBu
Crosstalk (1 kHz): -95 dB
Dynamic range: 134.3 dB

Standard Headphones Output: 6.35 mm (1/4") TRS Jack

Wiring: Tip = Left, Ring = Right, Sleeve = GND
Source impedance: 0.18 Ω
Damping factor (40 Ω): 180
Frequency range (0 dBu): 10 Hz – 100 kHz
Crosstalk (1 kHz, 0 dBu): -91 dB
THD + N (1 kHz, 0 dBu): 0.0003 %
Noise (A-weighted): -102 dBu
Output power (1 kHz, 1% THD, 250 Ω): 2 x 5 W
Output power (1 kHz, 1% THD, 32 Ω): 2 x 1 W
Dynamic range: 134.5 dB

Internal Linear Power Supply with Shielded Toroidal Transformer

Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: +12 V

Mains Power Supply

Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 0.5 A
Fuse for 115 V: T 1 A
Power consumption: max. 40 VA

Dimensions & Weight

W x H x D: 278 x 100 x 300 mm / 11 x 4 x 11.81 inch
Unit weight: 4.9 kg / 10.8 lbs
