SPL Phonitor DAC

SPL Phonitor DAC

R 55,020.00 ZAR
R 55,020.00 ZAR
Sale Sold out

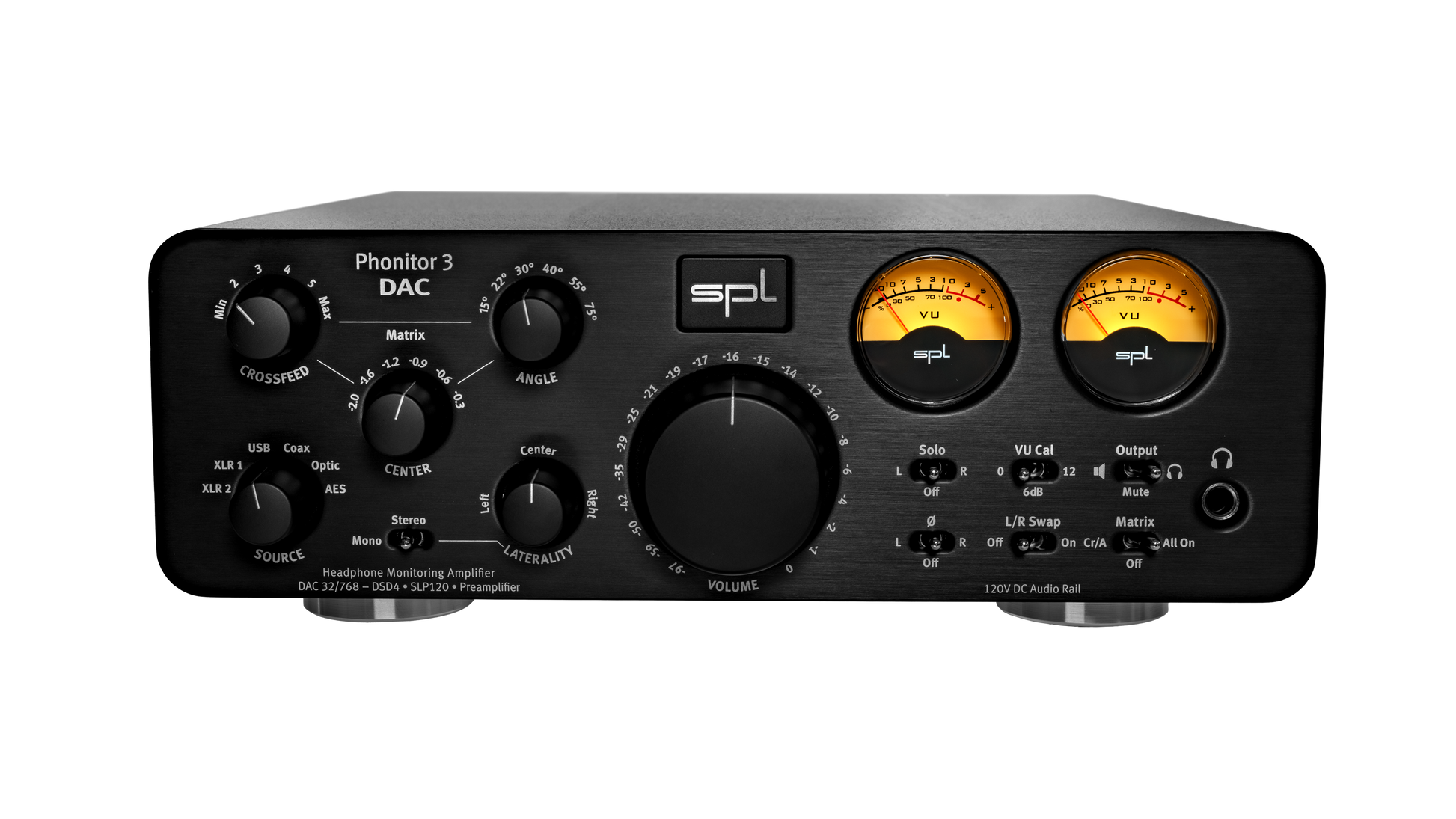

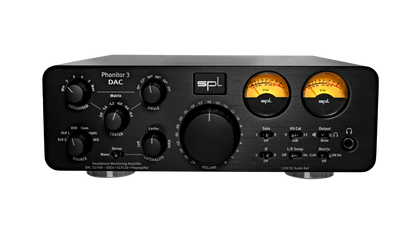

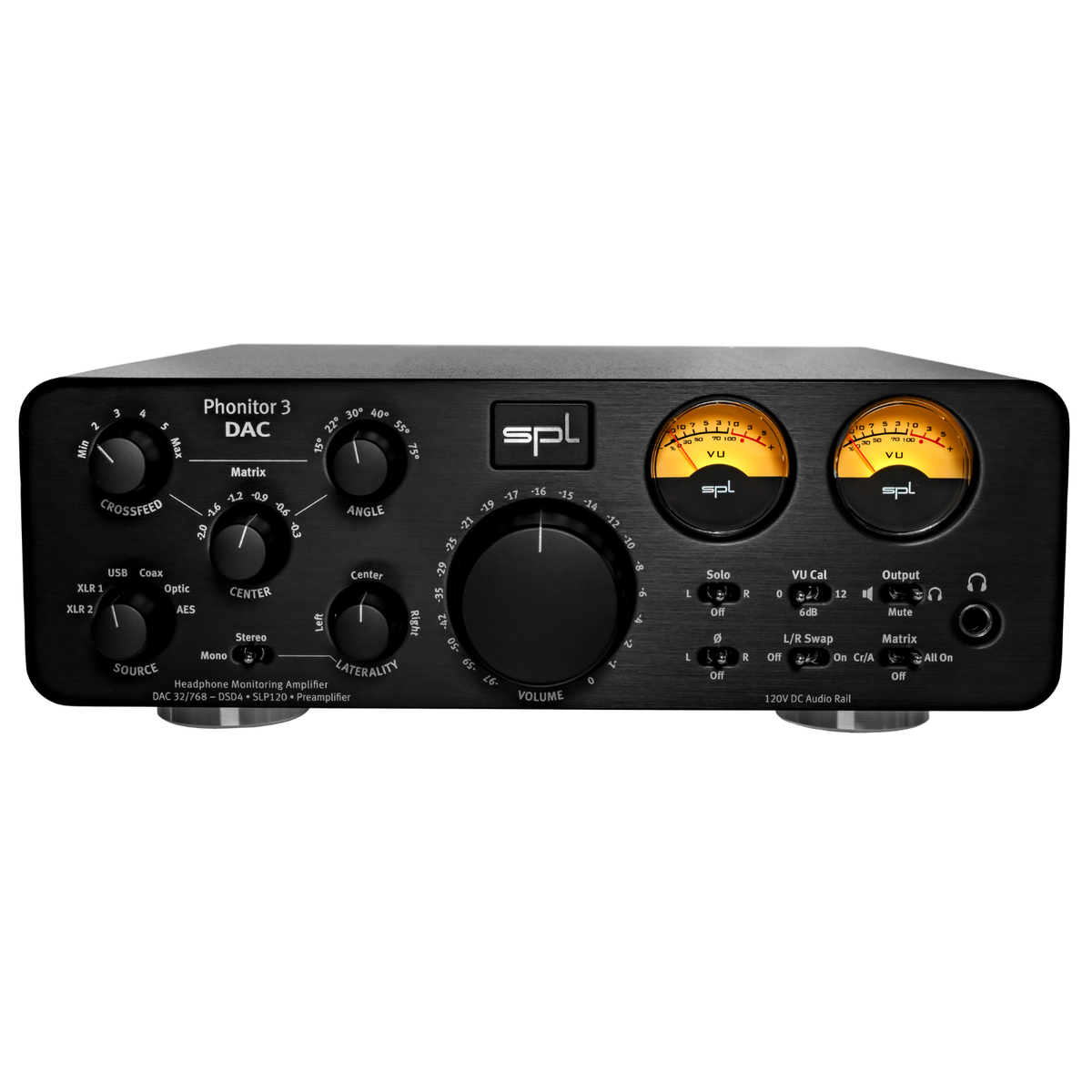

Phonitor 3 DAC is not only the ultimate headphone amplifier and monitoring controller with 120V technology – the integrated DAC makes it the perfect monitoring centerpiece for demanding producers as well as sound and mastering engineers working with digital sources or in the DAW.

Whether if USB, AES/EBU or S/PDIF – the integrated DAC with analog SLP120 converts digital PCM audio signals with a resolution of 32 bit and a sampling rate of up to 768 kHz. It converts DSD signals with a resolution of up to DSD256.

On the analog side, the Phonitor 3 DAC, based on the SPL 120V technology, offers the same monitoring quality as the big SPL mastering consoles – on loudspeakers and headphones. The analog Phonitor Matrix allows mixing and mastering on headphones in the highest quality – with the same spatial perception of the stereo stage as on loudspeakers.

Features:

  • Source selection
  • Phonitor Matrix with Crossfeed, Speaker Angle and Center Level (the latter can be switched off)
  • Mono/Stereo
  • Laterality control
  • Solo L/R
  • Phase inversion for L and R
  • L/R Swap
  • Output switchable to headphones or speakers
  • Mute

Specifications:

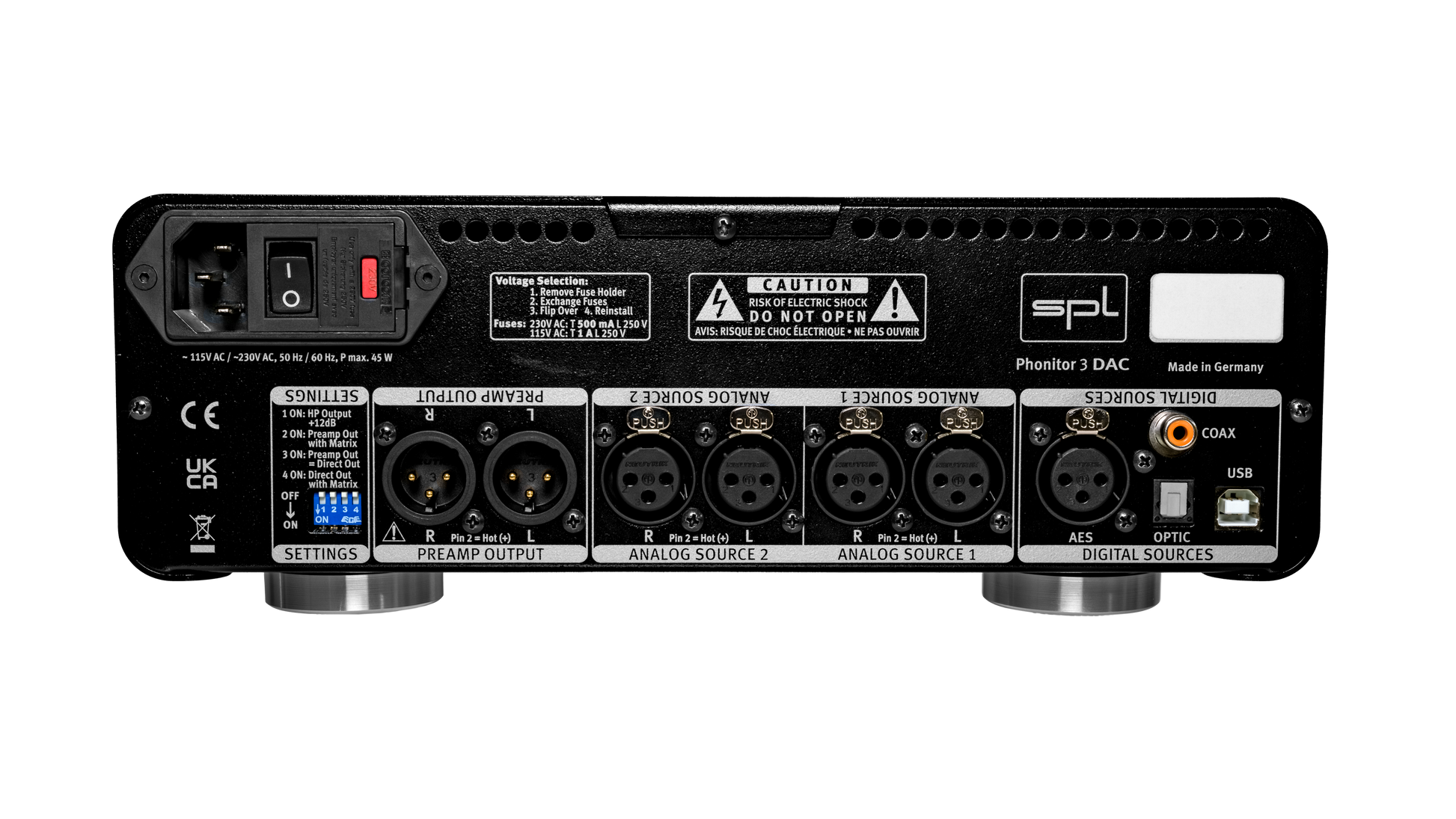

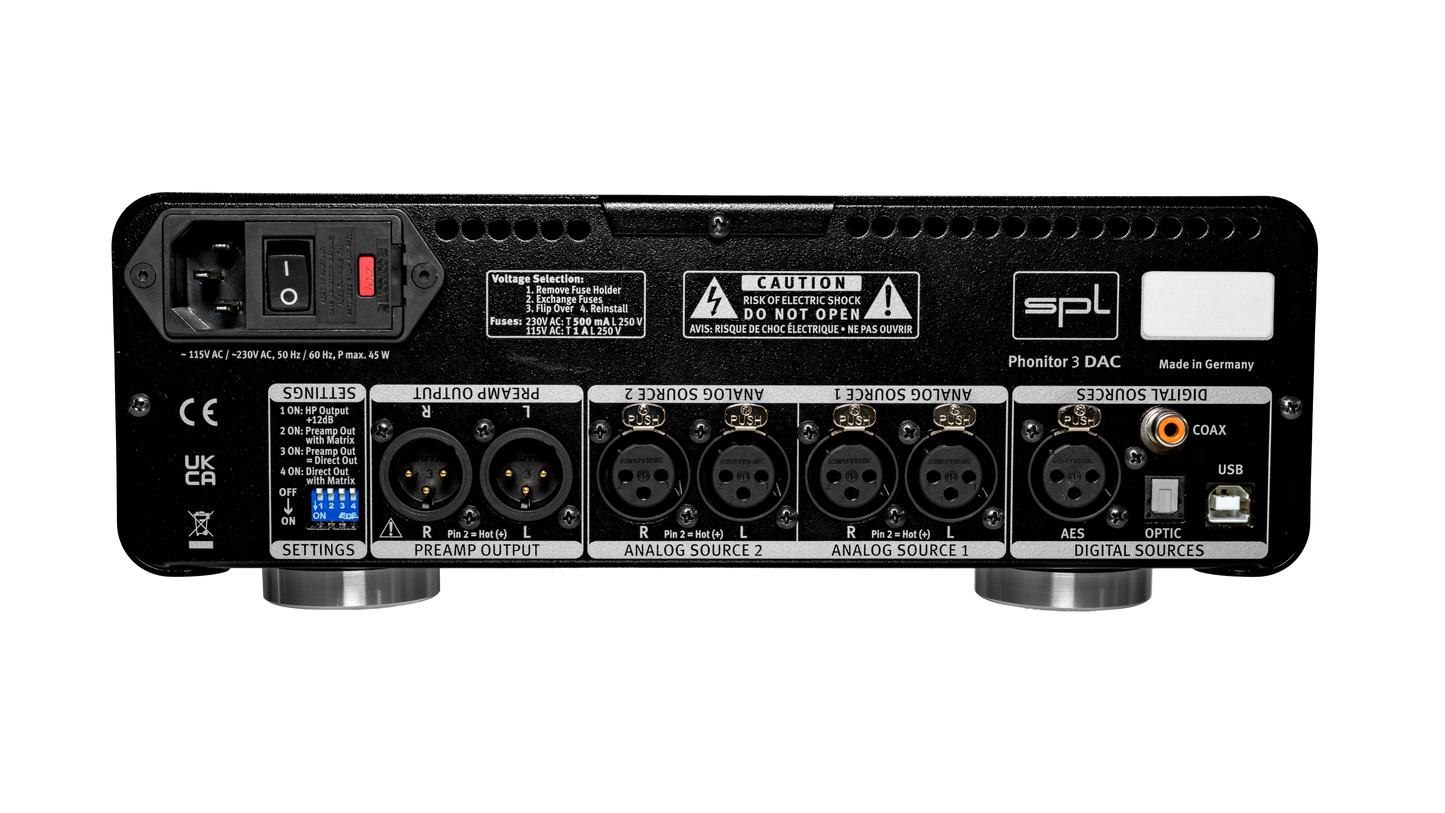

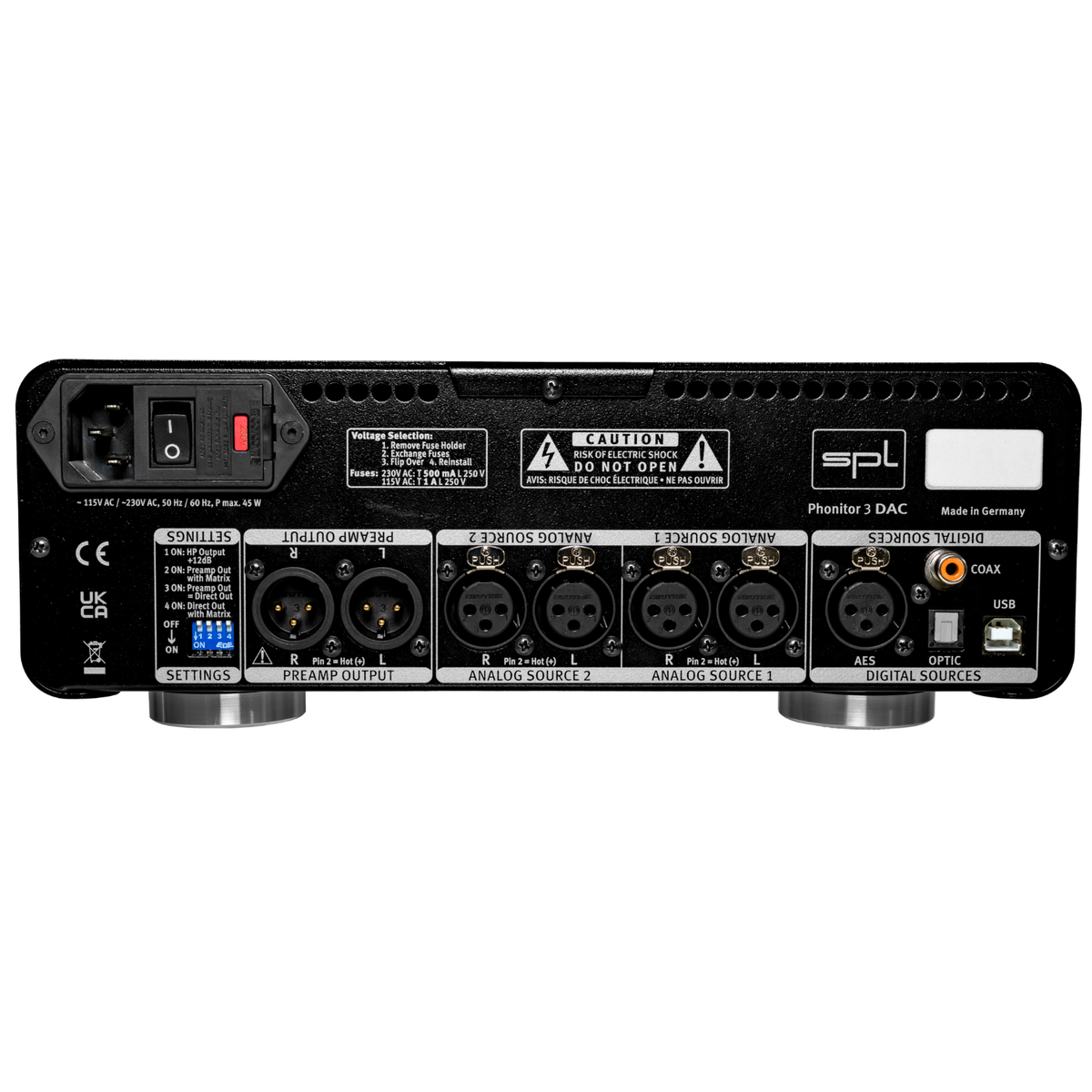

Analog inputs & outputs: XLR (balanced)

Maximum input & output gain: 32.5 dBu
Input impedance (XLR): 20 kΩ
Output impedance (XLR): 75 Ω
Common mode rejection ratio (XLR): -82 dB
Frequency range (0 dBu): 10 Hz – 100 kHz
THD +N (1 kHz, 0 dBu): 0.0009 %
Noise (A-weighted): -102 dBu
Crosstalk (1 kHz): -95 dB
Dynamic range: 134.3 dB

Digital Inputs: DAC768v2

AES/EBU (XLR), PCM sample rates: 44.1/48/88.2/96/176.4/192 kHz
Coaxial SPDIF (Cinch), PCM sample rates: 44.1/48/88,2/96/176.4/192 kHz
Optisch SPDIF (Toslink F06) sample rates: 44.1/48/88.2/96/mit Glasfaser < 1m: 176.4/192 kHz
USB (B), PCM sample rates: 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
USB (B), DSD over PCM (DoP), sample rates: 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
0 dBFS calibrated to: 15 dBu

Standard Headphones Output: 6.35 mm (1/4") TRS Jack

Wiring: Tip = Left, Ring = Right, Sleeve = GND
Source impedance: 0.18 Ω
Damping factor (40 Ω): 180
Frequency range (0 dBu): 10 Hz – 100 kHz
Crosstalk (1 kHz, 0 dBu): -91 dB
THD + N (1 kHz, 0 dBu): 0.0003 %
Noise (A-weighted): -102 dBu
Output power (1 kHz, 1% THD, 250 Ω): 2 x 5 W
Output power (1 kHz, 1% THD, 32 Ω): 2 x 1 W
Dynamic range: 134.5 dB

Internal Linear Power Supply with Shielded Toroidal Transformer

Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: +12 V

Mains Power Supply

Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 0.5 A
Fuse for 115 V: T 1 A
Power consumption: max. 40 VA

Dimensions & Weight

W x H x D: 278 x 100 x 300 mm / 11 x 4 x 11.81 inch
Unit weight: 4.9 kg / 10.8 lbs
