SPL Pre One

SPL Pre One

R 16,070.00 ZAR
R 16,070.00 ZAR
Sale Sold out

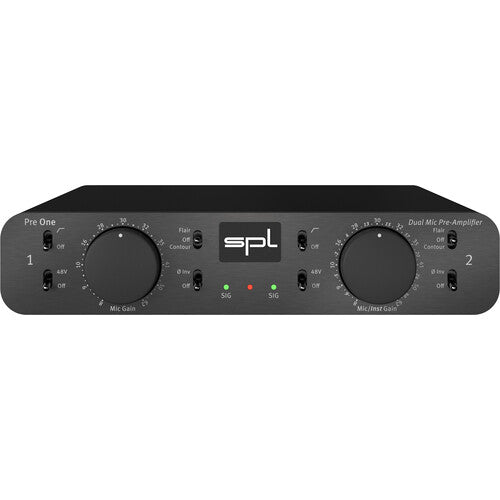

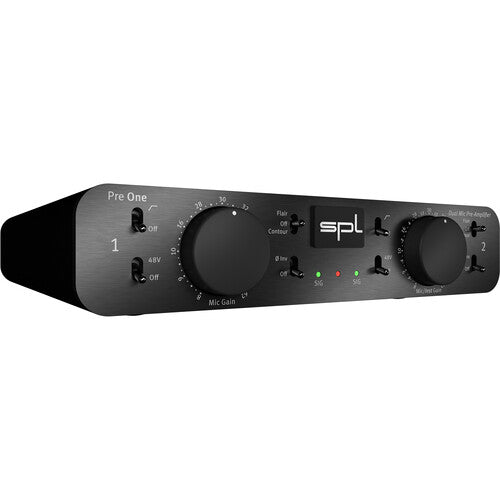

Pre One is equipped with two preamplifiers. These have a discrete design and they are tuned for an open and transparent sound characteristic. In addition to the microphone input, the second preamplifier also features a Hi-Z instrument input – so instruments like electric guitars, for example, can benefit from the sound of the Pre One.

In terms of technology and sound, the preamps have the same characteristics
as those in the SPL Channel One Mk3!

The gain control can be used to adjust the preamplifcation. The control range ranges between +8 dB and +62 dB – so even really demanding microphones can unfold their full potential! (The green signal LED indicates that a signal is present.)

Specifications:

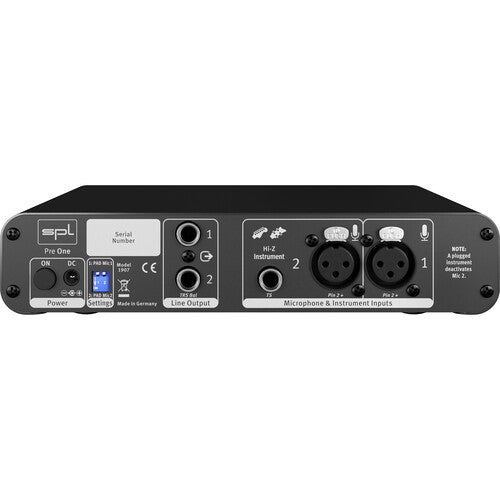

Analog inputs & outputs; XLR & Jack (balanced)

Maximum Input level (Mic, Gain +8 dB): +13.5 dBu
Maximum Input level (Instrument, Gain -6 dB): +23.5 dBu
Input impedance (Mic): 10 kΩ
Input impedance (Inst): 1.1 MΩ
Output impedance: 75 Ω
Frequency range (30 dB Gain): 10 Hz–200 kHz
THD+N (Mic, 30 dB Gain): 0.0028 %
THD+N (Mic, 50 dB Gain): 0.014 %
THD+N (Mic, 62 dB Gain): 0.017 %
THD+N (Instrument, 0 dB Gain): 0.0039 %
Equivalent Input Noise (EIN): 126 dBu
Dynamic range: 117 dB
Noise (Mic, A-weighted, 150 Ω load, 30 dB Gain): -95 dBu
Noise (Mic, A-weighted, 150 Ω load, 50 dB Gain): -77 dBu
Noise (Mic, A-weighted, 150 Ω load, 62 dB Gain): -68 dBu
(CMMR) Common mode rejection Mic Input: >75 dB

Internal Power Supply

Operating voltage for analog audio: +/- 17 V
Operating voltage for relays and LEDs: +12 V
Phantom power: +48 V
Power consumption: 7,0 VA VA

External Power Supply

AC/DC switching adapter: Mean Well GE18/12-SC
DC plug: Innen-Pin 2,1mm (+); Außen-Ring 5,5mm (-)
Input: 100 - 240 V AC; 50 - 60 Hz; 0.7 A
Output: 12 V DC; 1.5 A

Dimensions & Weight

W x H x D: 210 x 49.6 x 220 mm / 8.23 x 1.95 x 8.66 inch
Unit weight: 1.45 kg / 3.2 lbs
