JDK Audio

R20

  • Sale
  • Regular price R 22,892.54


R20

2 Channel Mic Pre

The JDK Audio R20 is a dual channel, high quality microphone preamp, designed from the ground up by API's design team to offer a versatile high quality input for microphones as well as instruments.

Each channel features both a mic and an instrument input, with switched phantom power, phase, and pad. Metering is traditional analog VU.

Features:

  • Dual Mic Preamplifiers with 54 dB of gain
  • Custom analog VU meters for monitoring output level
  • Front panel, high-impedance instrument input with 45 dB of gain
  • Peak indicator
  • Pad switch attenuates the microphone signal by 20 dB, or the instrument signal by 10 dB
  • Switchable 48v Phantom power
  • Low distortion, low noise circuitry
  • Fully balanced output, both 1/4" and XLR

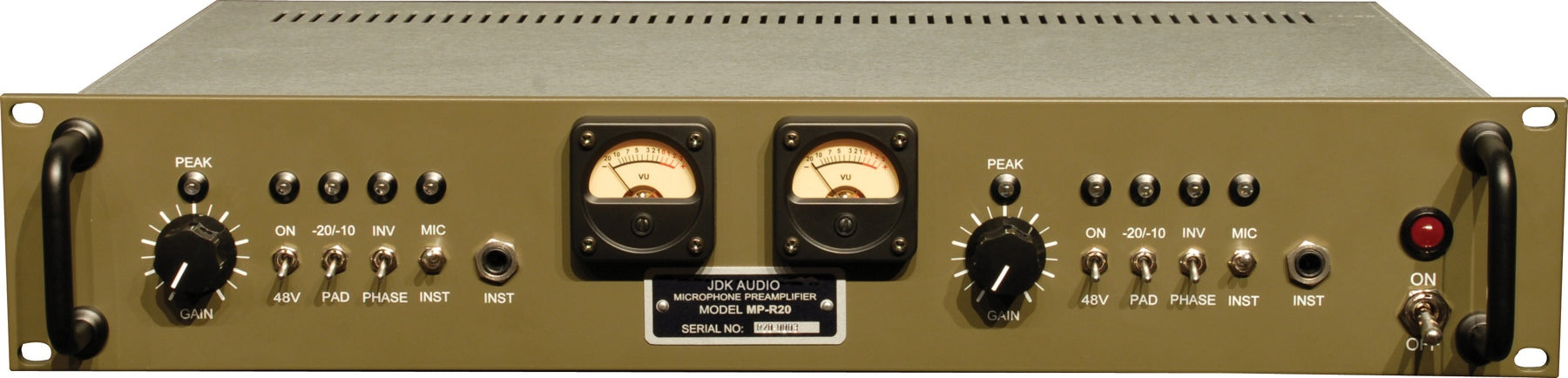

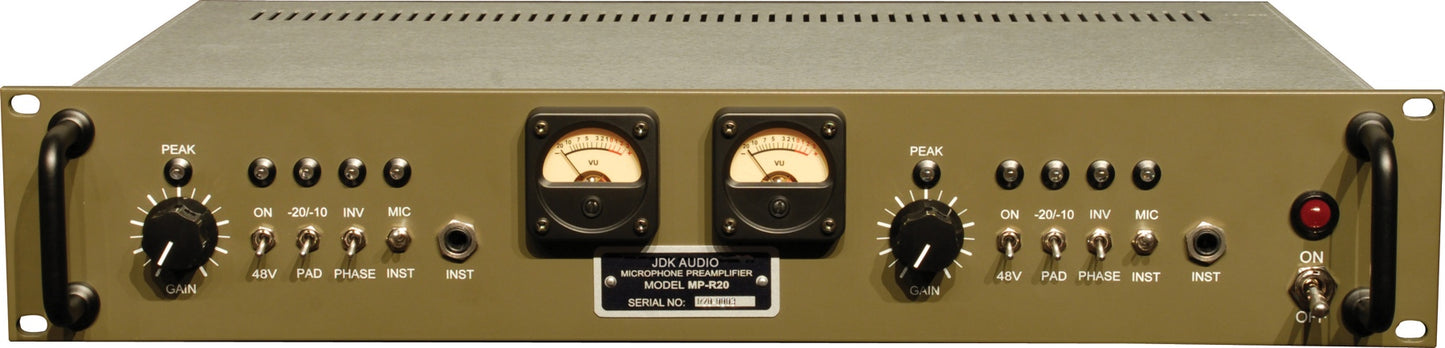

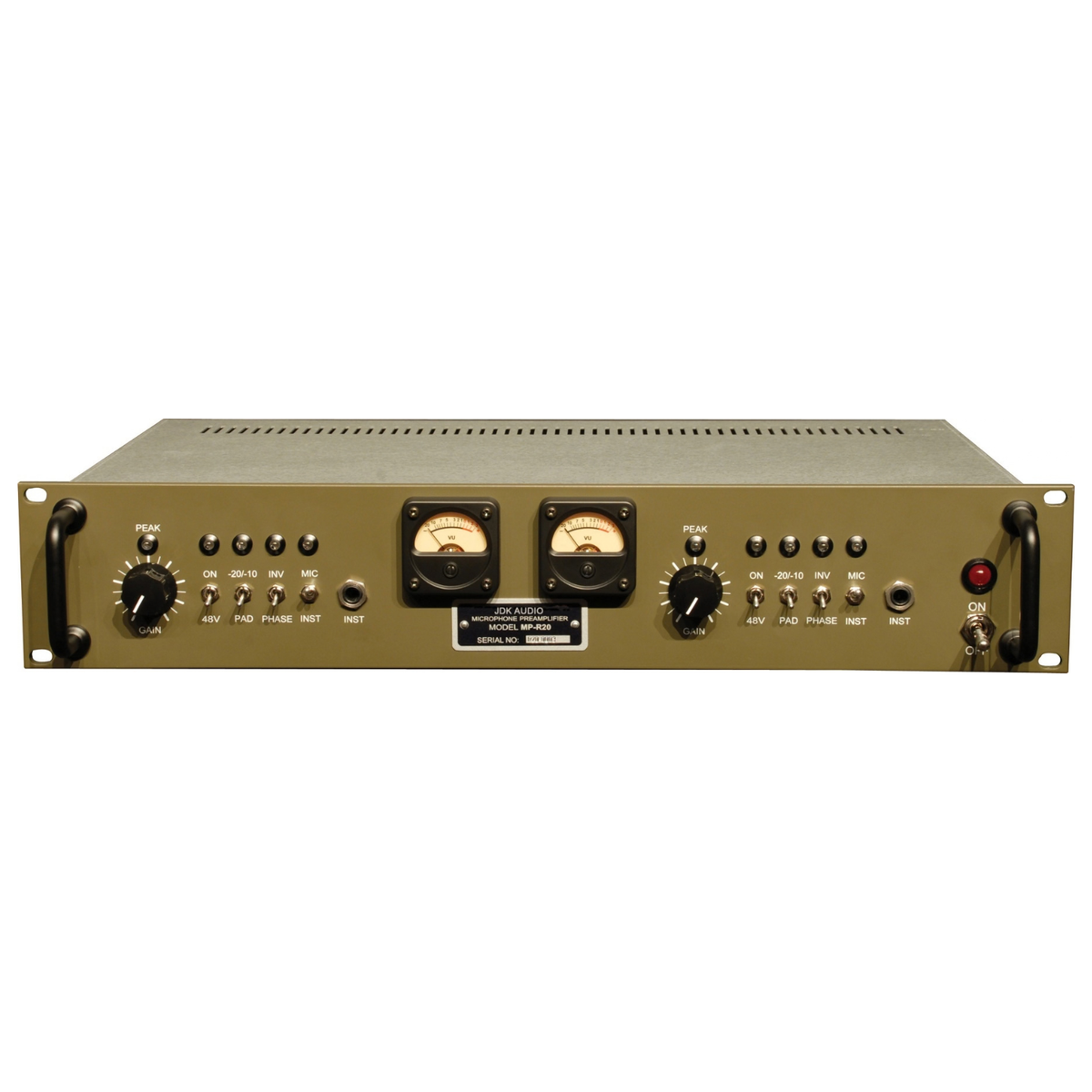

The MP-R20 provides 2 channels of premium analog microphone pre-amplification designed to provide a low noise, solid front end for all audio applications. Meticulously detailed and solidly constructed, the R20 features custom analog VU meters and hands-on analog control of the gain level. Individual toggle switches control the selection of 48v, polarity, pad and a mic/instrument switch.



Specifications

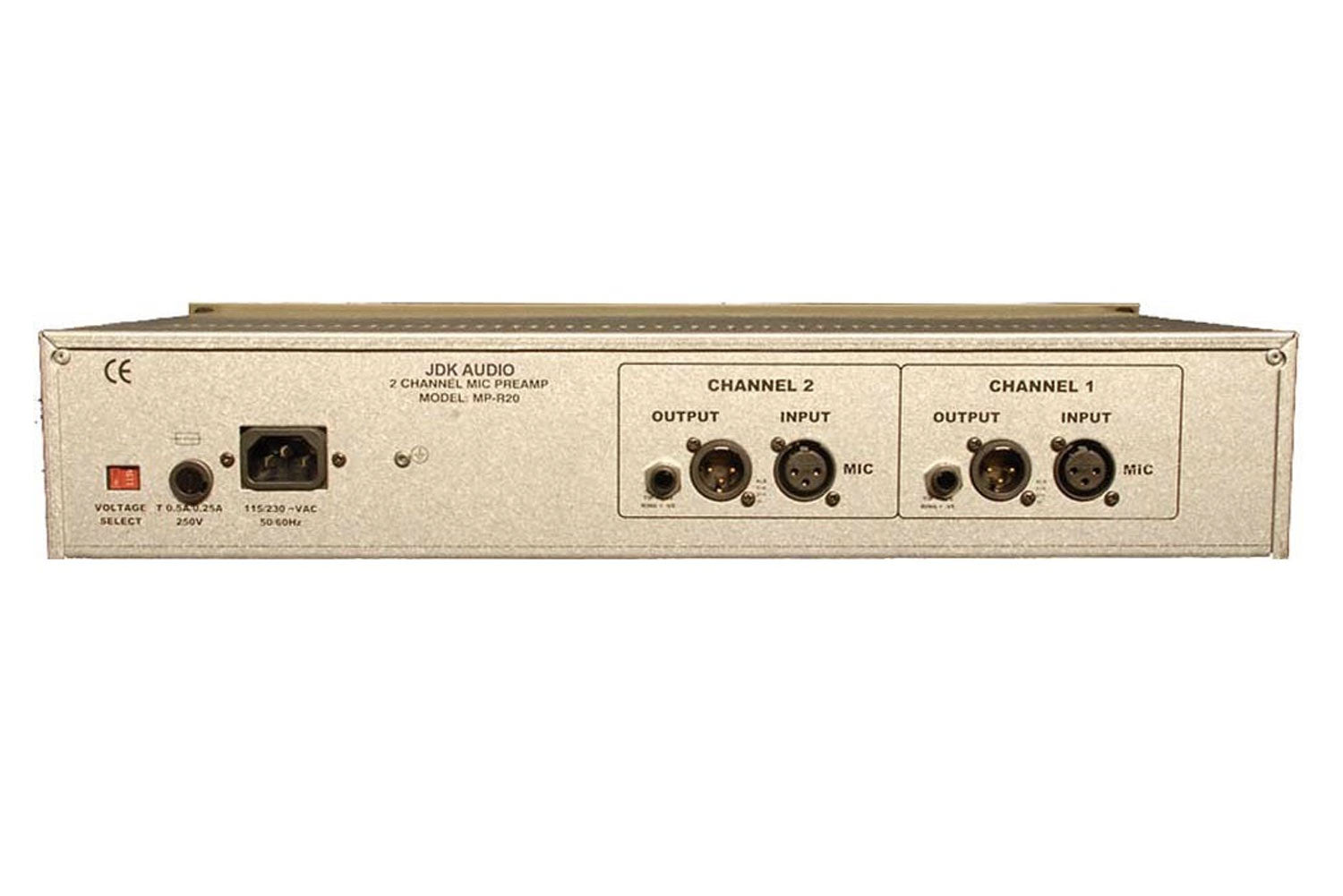

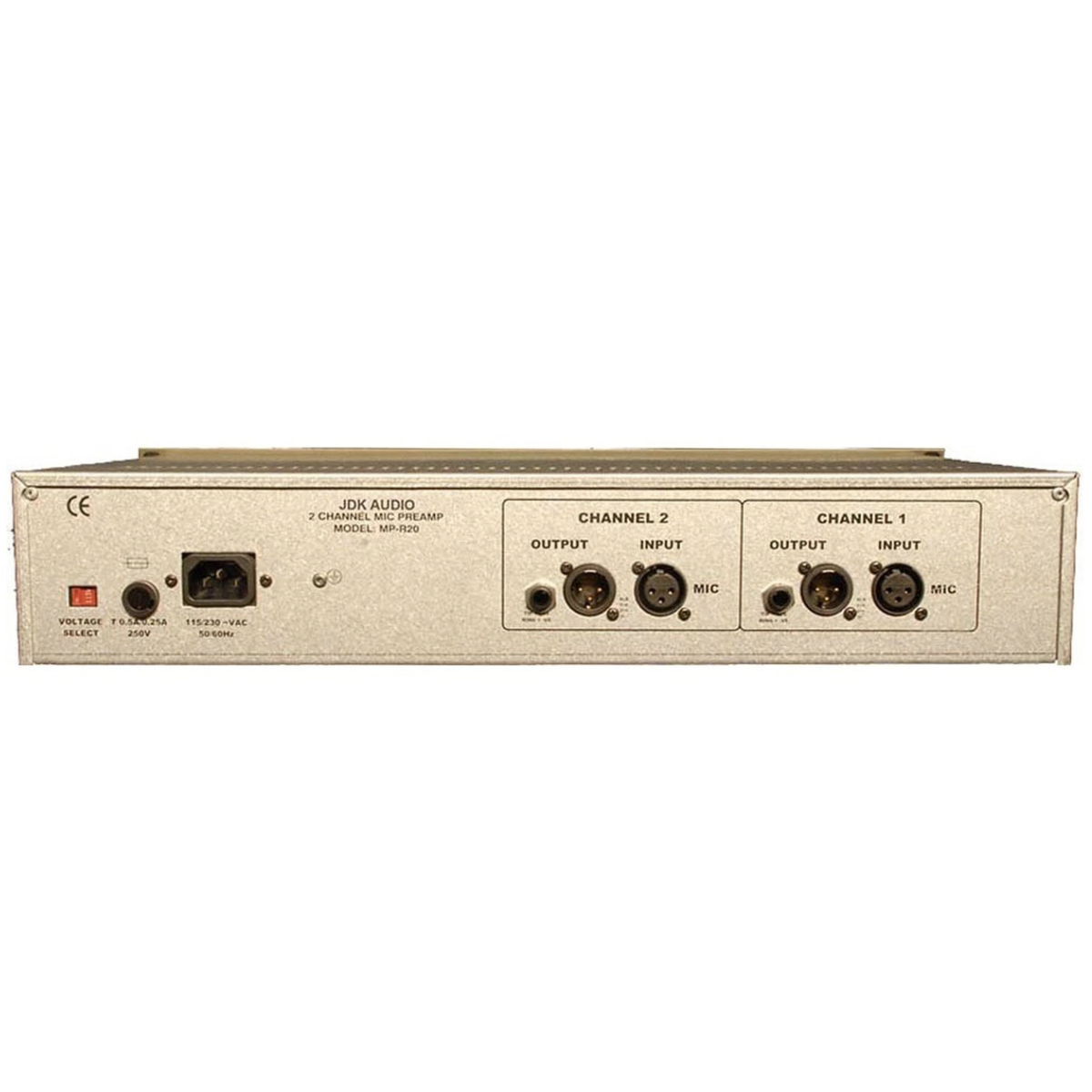

  • Inputs: Balanced XLR Mic jack (rear), Un-Balanced 1/4" Instrument jack (front)
  • Outputs: Balanced XLR and 1/4" parallel jacks
  • Power Consumption, Quiescent: .66 Watts

Microphone Input

  • Max Gain: +55 dB (no pad), +36 dB (w/pad)
  • Min Gain: +9 dB (no pad), -10 dB (w/pad)
  • Pot Gain Range: 46 dB
  • Pad: -20 dB
  • Input Impedance: 6.8K Ohms
  • Bandwidth: +/- 0.5 dB, 20 Hz - 50 kHz
  • THD+N @ 1 kHz, +4 dBu: 0.013%
  • Maximum Level: +20 dBu
  • Signal-to-Noise Ratio: -90 dB

Instrument Input

  • Max Gain:  +31 dB (no pad), +21 dB (w/pad)
  • Min Gain: +10 dB (no pad), 0 dB (w/pad)
  • Pot Gain Range: 21 dB
  • Pad: -10 dB
  • Input Impedance: 500K Ohms
  • Bandwidth: +/- 0.5 dB, 20 Hz - 20 kHz
  • THD+N @ 1 kHz, +4 dBu: 0.002%
  • Maximum Level: +20 dBu
  • Signal-to-Noise Ratio: -80 dB
  • Current: 65 mA, 7.3 VoltAmps

Dimensions

  • Fits: 2U EIA 19" Rack
  • Size: 19" X 3.5" X 12" Deep
  • Size (Boxed for Shipping): 21" X 9" X 15"
  • Actual Weight: 11.93 lbs
  • Shipping Weight: 15.39 lbs
