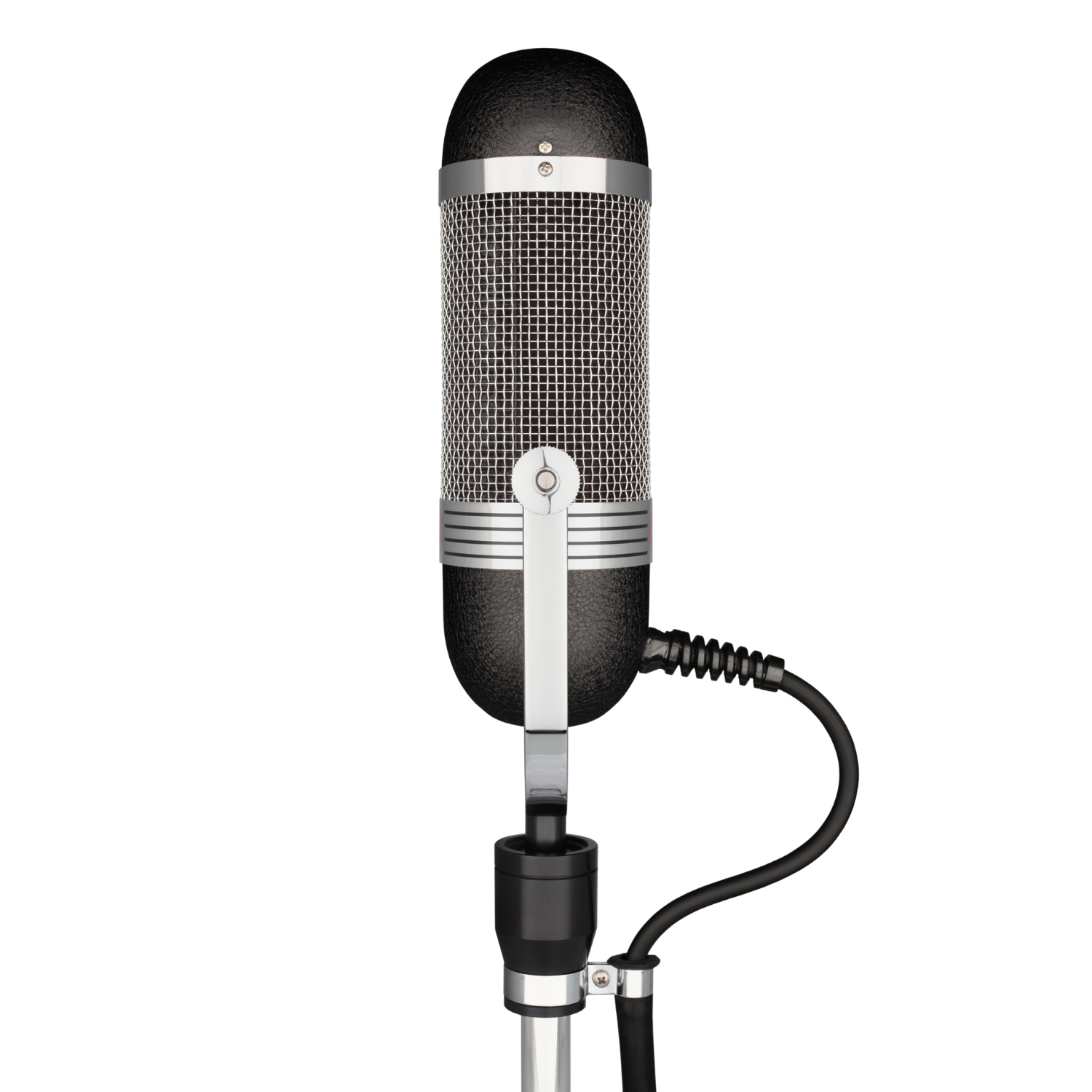

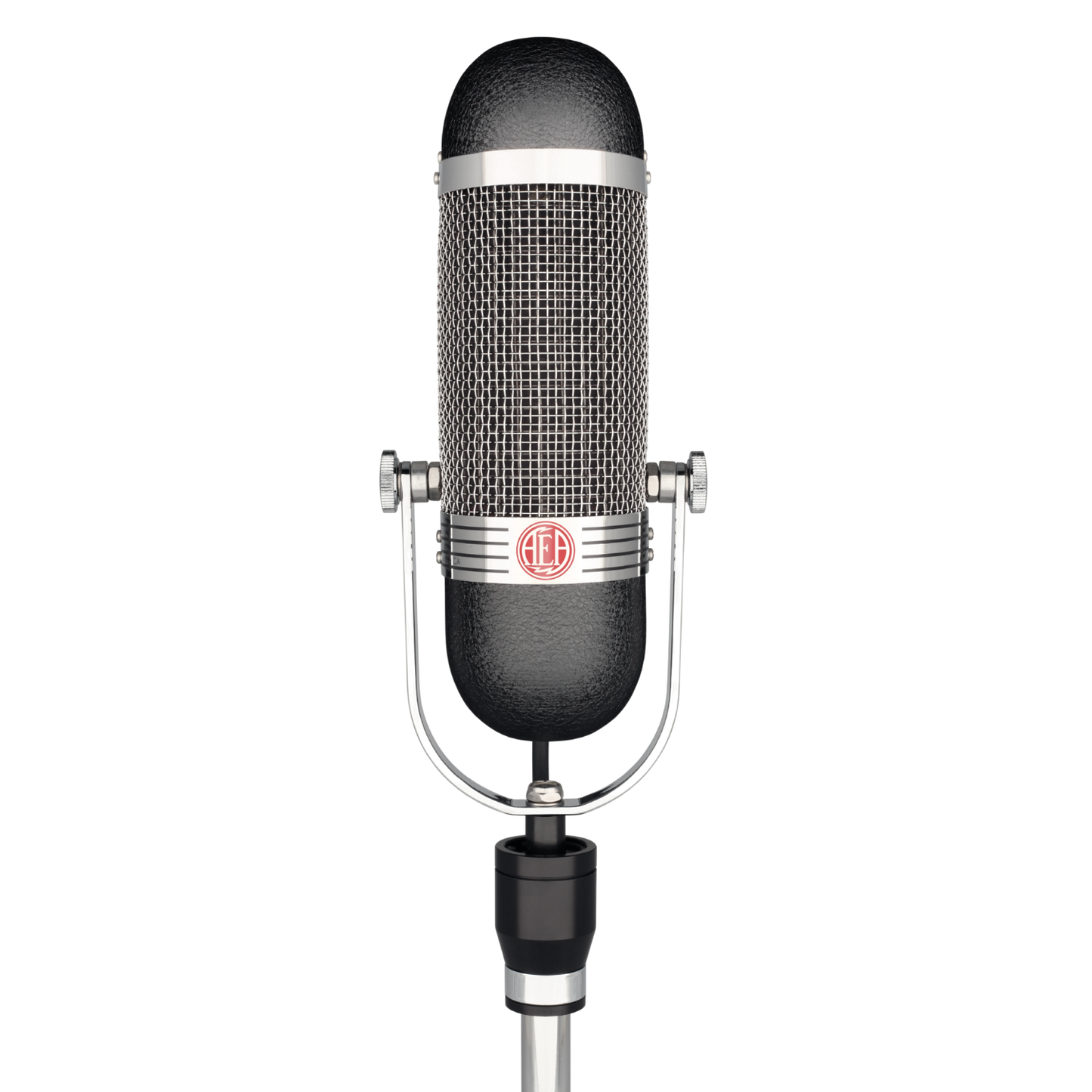

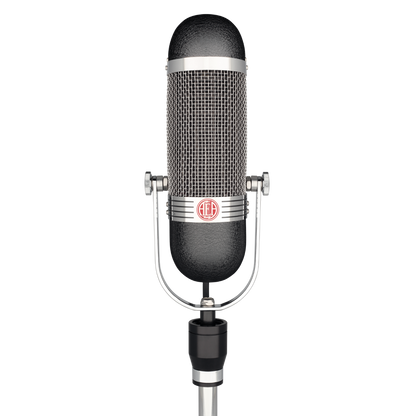

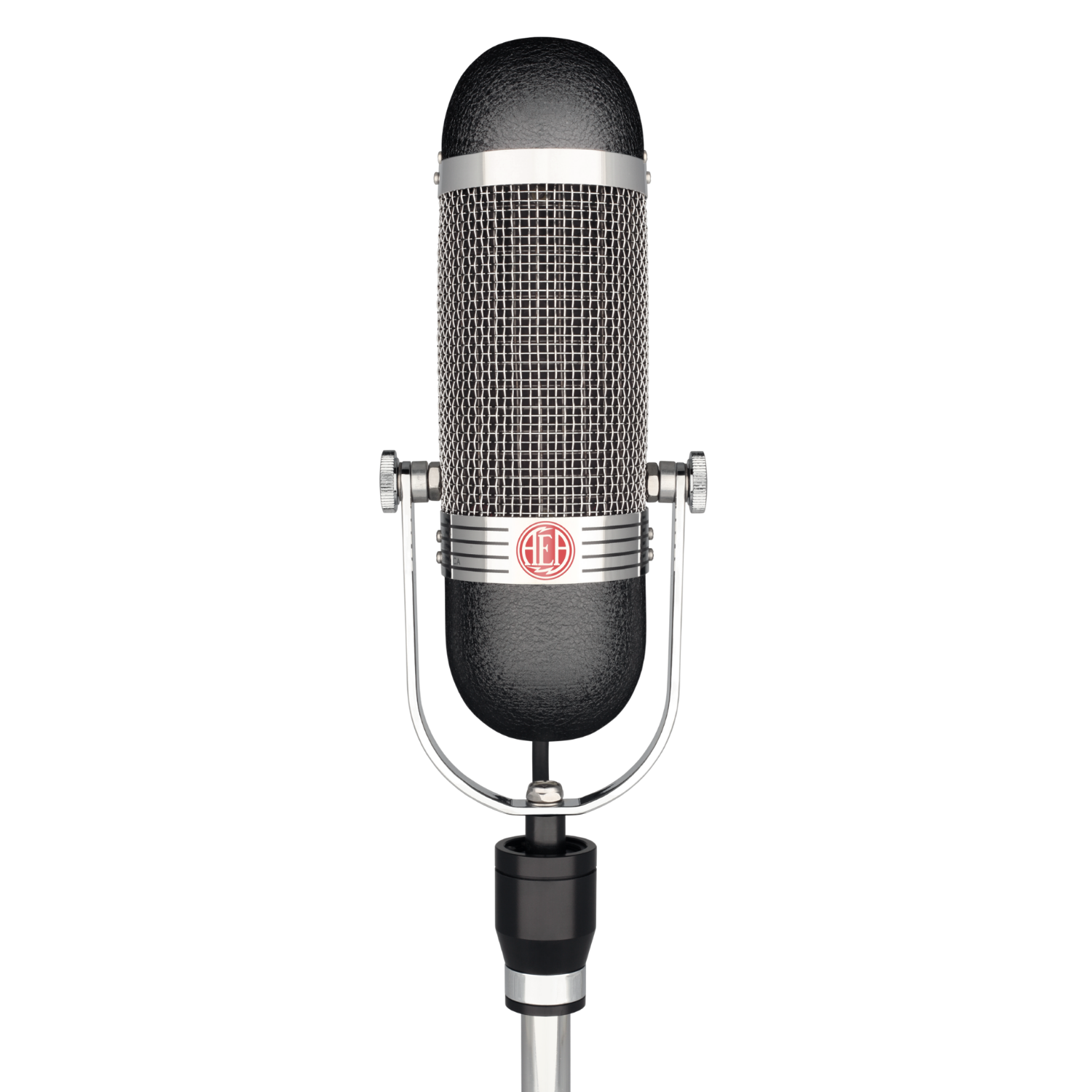

AEA R84 Passive Ribbon Microphone

The R84 series quickly endears itself to engineers and musicians due to its remarkably expansive frequency range, complete with sweeping highs and booming lows.

The R84 series’ balanced and manageable proximity effect bolsters the low-end of vocals, drums, and brass, from just feet away. A ribbon mic as multi-purpose, lightweight, and maneuverable as the R84 is well-suited for both close-range and ambient mic applications.

Specifications

• Operating Principle: Pressure gradient microphone
• Directional Pattern: Bidirectional (Figure-of-8)
• Frequency Range: 20 Hz to 20 kHz
• Maximum SPL: 165+ dBSPL (1% third harmonic > 1 kHz)
• Output Sensitivity: 2.5 mV/Pa (-52 dBv/Pa) into unloaded circuit
• Output Impedance: 270 Ω nominal
• Recommended Load Impedance: 1.2 kΩ or greater
• Powering: Not required or recommended
• Polarity: Pin 2 high for positive pressure on front of microphone.
• Connector: XLR-3M wired to a 3 m captive cable

Off Axis Response:

• Polar Pattern: Native bi-directional pattern
• Horizontal: Level changes with angle, frequency response is consistent, –35 dB null at 90° / 270°
• Vertical: Level changes with angle, reduced HF response above and below 0° / 180° axis, –35 dB null at 90° / 270°

Transducer element:

• Ribbon Thickness: 1.8 μ (0.0000018 m) of pure aluminum
• Ribbon Width: 0.185” (4.7 mm)
• Ribbon Length: 2.35” (59.7 mm)

Accessories:

• Included: Custom storage / shipping case, manual
• Optional: Any length cable, inquire for price and delivery.
• Limited Warranty: One year parts and labor, shipping not included. Three year extended warranty if the product is registered.
• Weight with Cable: 3 pounds (1.36 kg)
• Height: 11.6” (29.5 cm)
• Width: 3.9” (9.9 cm)
• Depth: 2.5” (6.4 cm)
