Eventide

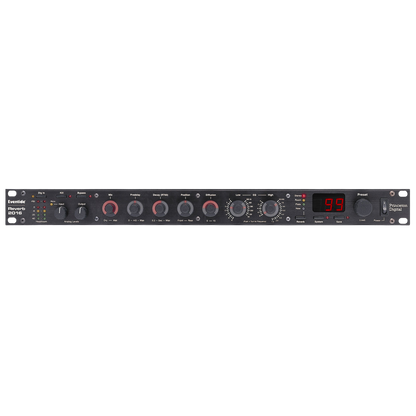

Reverb 2016 24-bit Stereo Reverb Processor

  • Sale
  • Regular price R 33,425.73


Reverb 2016

The Reverb 2016 recreates the legendary reverb algorithms of Eventide's SP2016

Every aspect of the original effects have been duplicated, including every detail of the user parameters.

The Reverb 2016 is built for reverb, it's not a multi-effects box. It was designed from the perspective that reverb is used almost always and warrants a dedicated box with an optimal user interface.

Recreating the original reverbs is the bread and butter of the Reverb 2016, it also features new and enhanced versions of the originals. These new reverbs have the same basic structure of the originals but with more complex early reflections, higher density, and finer control of the parameters. The new reverbs represent the natural evolution of the development work that maxed out the array processing power of the SP2016.

Features

Stereo Room, Room Reverb and High Density Plate

Store up to 99 user presets.

High performance 24 bit DSP, 24 bit analog audio I/O, digital I/O and MIDI interface.

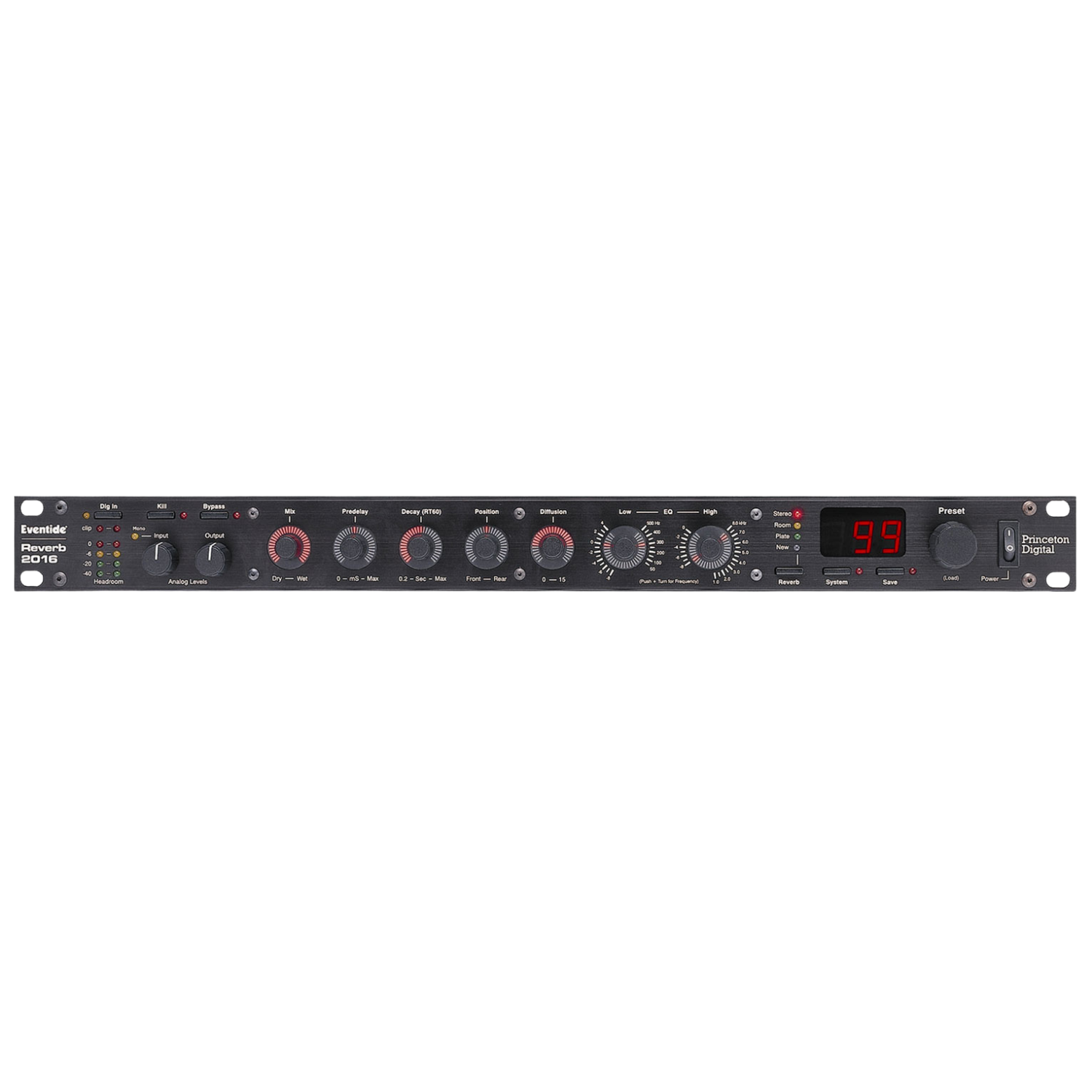

The Reverb 2016 UI is extremely easy-to-use featuring dedicated controls for each of the effect's parameters.

The controls and display are intuitive. The UI is optimized for the studio and for live performance.

Specifications

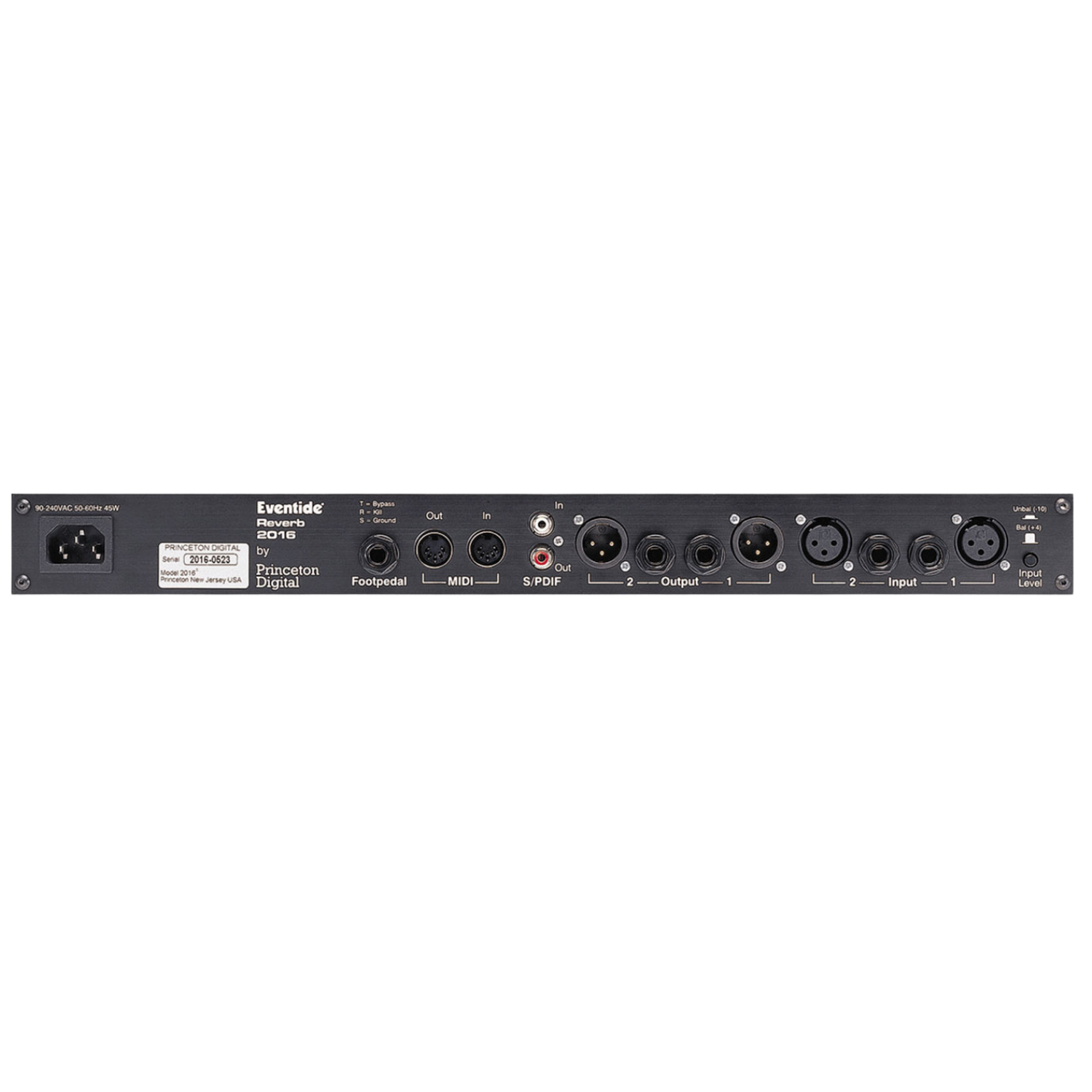

Digital Input/Output

Digital Input                                       Digital S/PDIF Input

Sample Rate: 44.1kHz - 48kHz (downsampled to 40kHz)
Connector: Coaxial, RCA type

                                                          Digital Input is selected via front panel switch.

Digital Output                                    Digital S/PDIF output

Sample Rate: 44.1kHz or 48kHz with ext clock
Connector: Coaxial, RCA type
Digital output is always active at 44.1 kHz when not using digital input

Audio Input

Connectors                                        1/4" T/R/S phone jacks (2)

                                                           XLR 3-wire balanced (2)

Impedance                                         +4dB/Bal switch position: 100kOhm

                                                           -10dB/Unbal switch position: 50K Ohms

Levels                                                 +4dB/Bal switch position:

                                                           2dBu min for full scale

                                                           +20dBu max

                                                            -10dB/Unbal switch position:

                                                            -14dBu min for full scale

                                                             +8dBu max

Audio Output

Connectors                                        1/4" T/R/S phone jacks (2)

                                                           XLR 3-wire balanced (2)

Impedance                                         125 Ohms, each side, balanced

Levels                                                 +18dBm max, full scale, balanced/unbalanced

General Audio



Frequency Response                                    Dry 20Hz-20kHz, +/-1dB

                                                                      Wet 20Hz-16kHz, +-1dB

Dynamic Range                                 >90dB

                                                           20 Hz - 20 kHz, Non A-weighted

Sample Rate                                       40.0 kHz

Conversion                                        24 Bits A/D, 24 Bits D/A

Environment                                      Operating temperature: 32° to 104°F (0° to 40°C)

                                                          Storage: –20° to 170°F (-30 to 75°C)

                                                          Relative humidity: 95% non-condensing

Throughput delay                             Less than 2 ms.

THD                                                    <=0.05%, 20Hz-20kHz

Crosstalk                                            <=45db below full scale



Physical

Dimensions                                        Width 19"

                                                           Depth 6"

Height                                                 1.75"

Weight                                                9.5 pounds
