ATC Pro

SCM12P Pro Passive

  • Sale
  • Regular price R 27,201.89




SCM12P Pro Passive

As an all-new design, the ATC Loudspeakers SCM12 Pro's acclaimed performance at a lower price point without compromising component quality and achieves this in a more compact, installation-friendly footprint ideally suited to near-field monitoring as well as multi-channel music and post-production applications.

Though the SCM12 Pro is the most affordable model in the professional range of loudspeakers, the monitor makes use of the ATC’s celebrated drive units for both the mid/bass and tweeter, both being meticulously hand built at the UK facility.

The tweeter is a 25mm/one-inch soft-dome designed around ATC’s unique dual-suspension technology. Unlike conventional tweeters, this precision part employs two suspensions, offering far greater control of the voice coil and dome motion — especially at higher sound pressure levels. The result is an extended high-frequency response with much greater clarity and definition due to the reduction in disturbing an-harmonic distortion. Listener fatigue is also greatly reduced, resulting in users being able to work for longer periods with greater accuracy.

At the lower end of the frequency spectrum, mid/bass reproduction is handled by ATC’s 150mm/six-inch proprietary CLD drive unit. Using a 45mm/1.75-inch diameter voice coil, and employing an FEA (Finite Element Analysis) optimised high-energy symmetric gap motor system, the driver is capable of tremendous dynamic range with minimal power compression. Cone construction is courtesy of another proprietary ATC technology that represents another advance in driver performance — namely, Constrained Layer Damping (CLD), a process that uses multiple laminated fabric cones to form a stiff, light, and tremendously well-damped structure. Speaking acoustically, this construction creates a smoother on- and off-axis frequency response and also a reduction in distortion leading to a more lifelike reproduction of source material. Meaningfully, judgements and decisions can be made more quickly, more accurately, and for longer periods of time by busy working audio professionals.

Put it another way: by employing exceptional drive units, the passive crossover can, by design, use the minimum number of components in a simple, second-order implementation. Indeed, the capacitors are all 250Vdc metalized polypropylene and all the are air-cored types for minimal signal distortion. Additionally, all of the inductors are wound in house with very high-purity copper while large-gauge wire is used for the bass components to minimize signal losses.

Looking beyond the release of the superb-sounding SCM12 Pro, an install-specific sibling, the SCM12i, will be available as of Q1 2017. This model will feature threaded mounting points to mate with widely-available wall and ceiling brackets from K&M and Adaptive Technologies to simplify installation — incredibly useful in complex multichannel systems, such as those required by Auro 3-D, Dolby ATMOS, or DTS:X.

Discerning audio professionals always appreciate that exceptional passive monitors require exceptional amplification; as far as the SCM12 Pro is concerned, the best possible results will be achieved when it is partnered with ATC’s own range of stereo power amplifiers. As such, the 150 W per-channel P1 Pro dual-mono power amplifier is the perfect partner — both in terms of power output and its outstanding resolution, resulting from technology originally developed for ATC’s high-end active monitoring systems. So customers can comfortably make the upgrade to an all-ATC monitoring and amplification system, an attractive package price will be offered for purchasing the two products simultaneously.

Simple, well-engineered products almost always trump feature-rich, cost-engineered alternatives, and ATC’s SCM12 Pro has been duly designed with that philosophy very much intact. Its neutral fidelity makes it a very versatile proposition, one which — when backed up with the company’s industry-leading six-year warranty — makes for a high-value, longterm investment for anyone looking to upgrade their monitoring system. So now is the time to consider EQ’ing, balancing, and editing faster, with more consistent results and reduced listening fatigue using the latest nearfield monitoring marvel from ATC.

Specifications

  • Drivers: HF ATC 1˝/25mm dual suspension Soft Dome (SH25-76 6 Ohm)
  • LF ATC 6˝/150mm Constrained Layer Damping (CLD) (SB50-150CLD 8 Ohm)
  • Amplitude Linearity: 80Hz – 16kHz (+/-2dB)
  • Cut Off Frequencies: 56Hz – 22kHz (-6dB freestanding)
  • Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
  • Maximum Continuous SPL: 108dB (per pair @ 1m)
  • Crossover Frequency: 2.2kHz
  • Recommended Power Amplifier: 75 to 300 Watts
  • Nominal Impedance: 8 Ohm

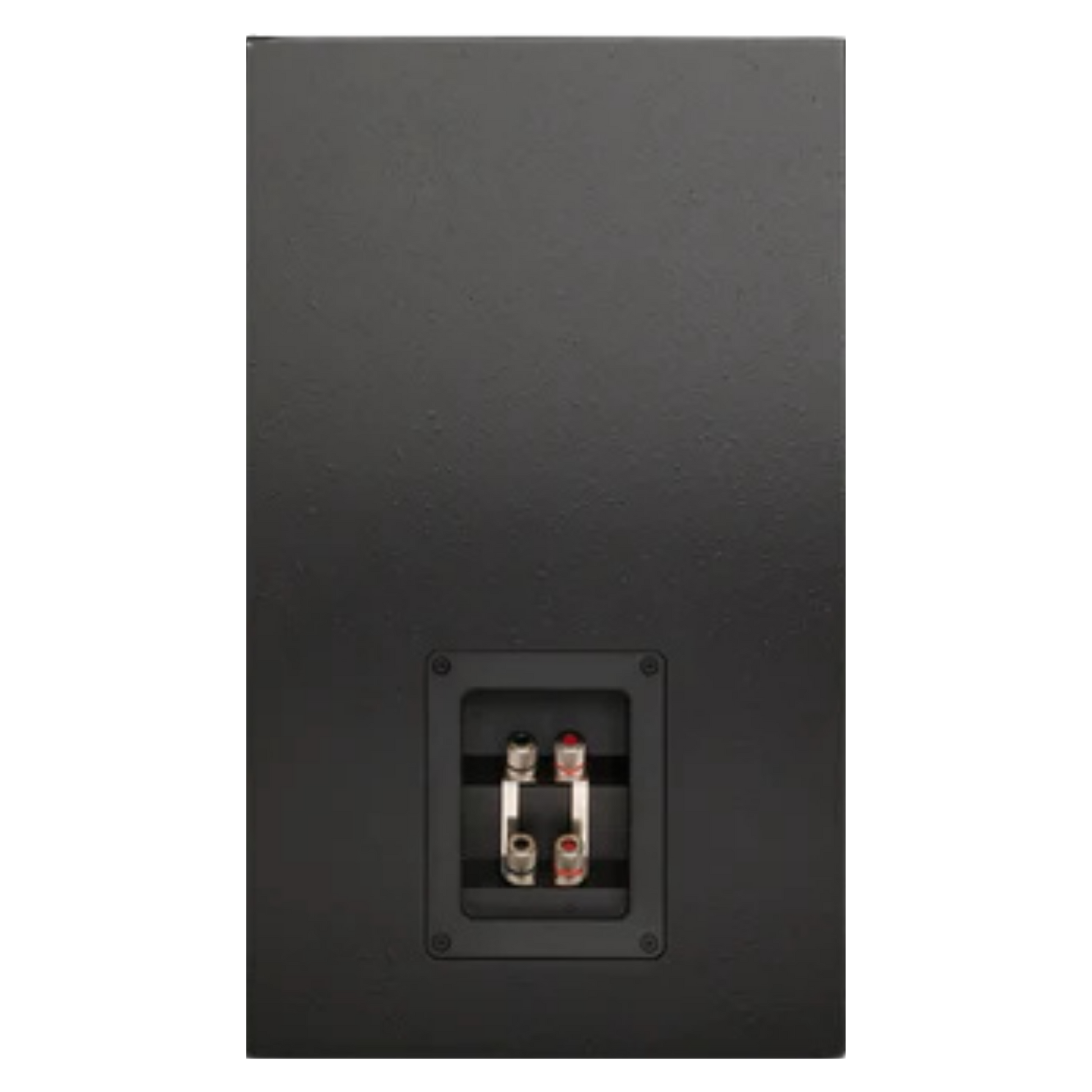

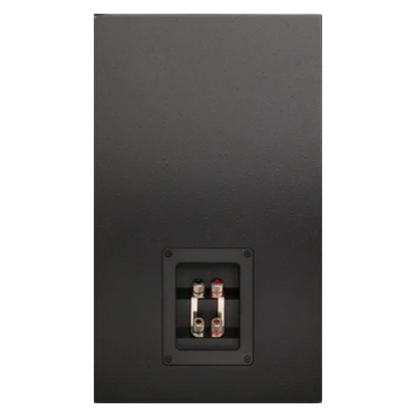

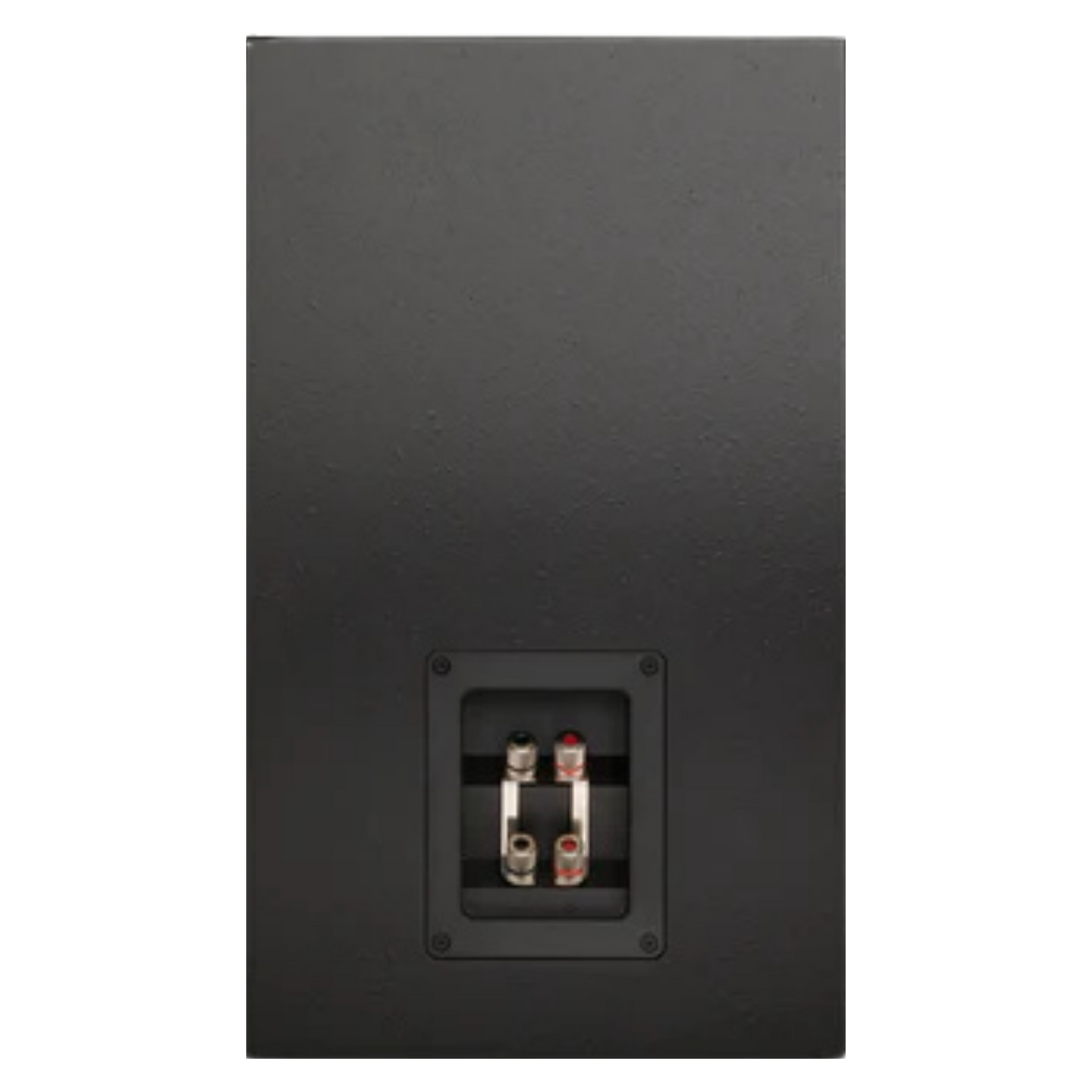

  • Connectors: Binding Posts/4mm Plugs, bi-wire
  • Cabinet Dimensions (HxWxD): 400x238x235mm/15.7˝x9.4˝x9.3˝
  • Weight: 11kg/24lbs (per cabinet)
