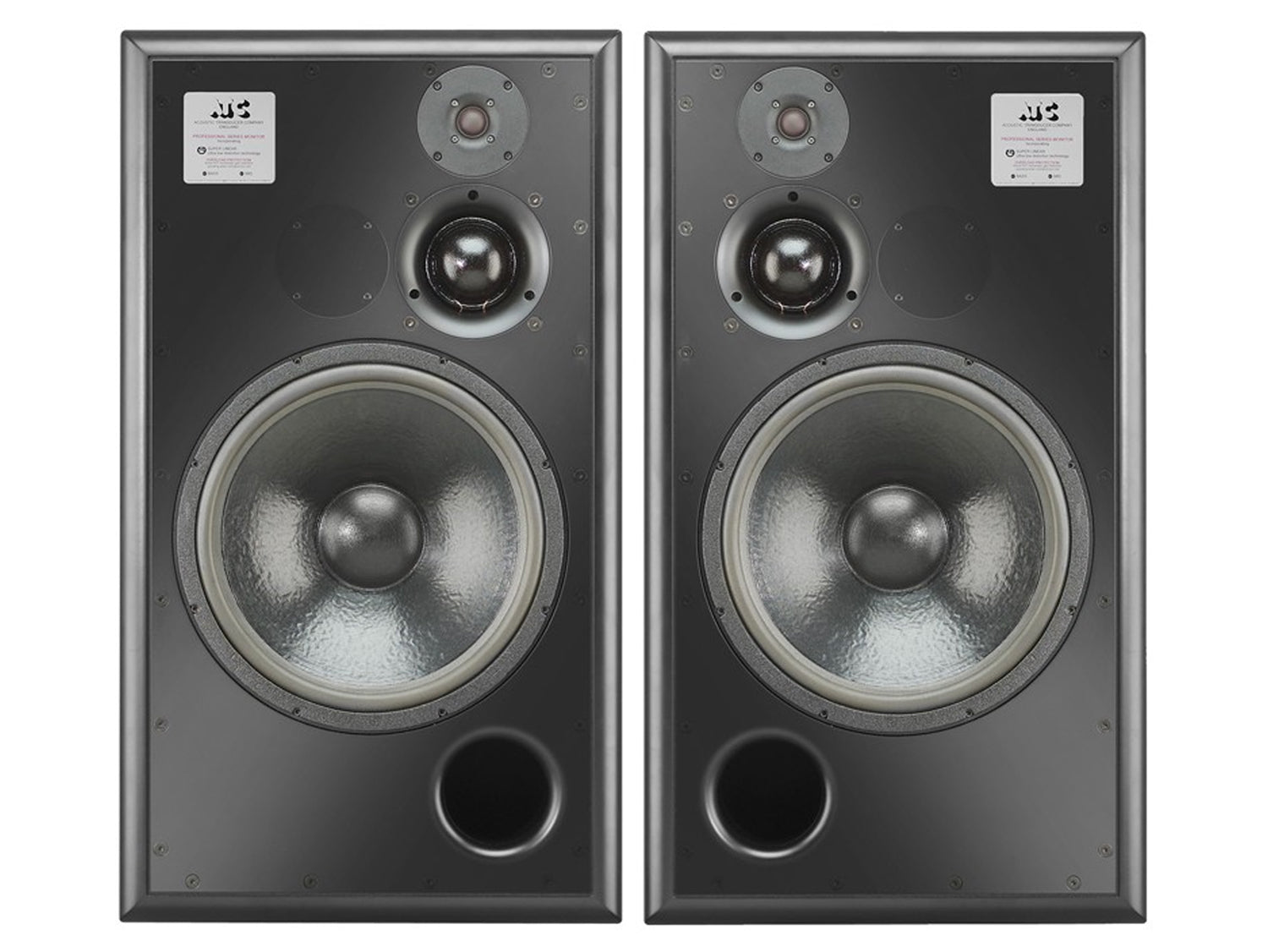

SCM150ASL Pro
The ATC SCM150ASL Pro is a further development of the SCM100ASL Pro, substituting a larger 375mm Super Linear bass driver, and increasing the enclosure size to 150 liters. The result is extended bass, greater headroom, and even more dynamic range.
Specifications
- Drivers: HF 1″/25mm, Mid 3″/75mm, LF 15″/375mm
- Amplitude Linearity (±2dB): 60Hz-17kHz
- Cut-off Frequencies (-6dB, free-standing): 25Hz, 22kHz
- Horizontal Dispersion: ±80°, Coherent
- Vertical Dispersion: ±10°, Coherent
- Max. Continuous SPL (1 metre): 117dB
- Crossover Frequencies: 380Hz, 3.5kHz
- Input Connectors: Male XLR
- Input Sensitivity: 1V
- Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
- Input Impedance: Balanced > 10kΩ
- Amplifier Output: Bass 200W, Mid 100W, High 50W
- Filters: Even Order Critically Damped
- Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
- Front Panel Indicators: Power On indicator, Gain Reduction warning
- LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
- Dimensions (HxWxD): 884 x 498 x 568mm (34.8˝ x 19.6˝ x 25.5˝) Depth with amplifier at rear adds 3˝
- Weight: 75kg / 165lbs
