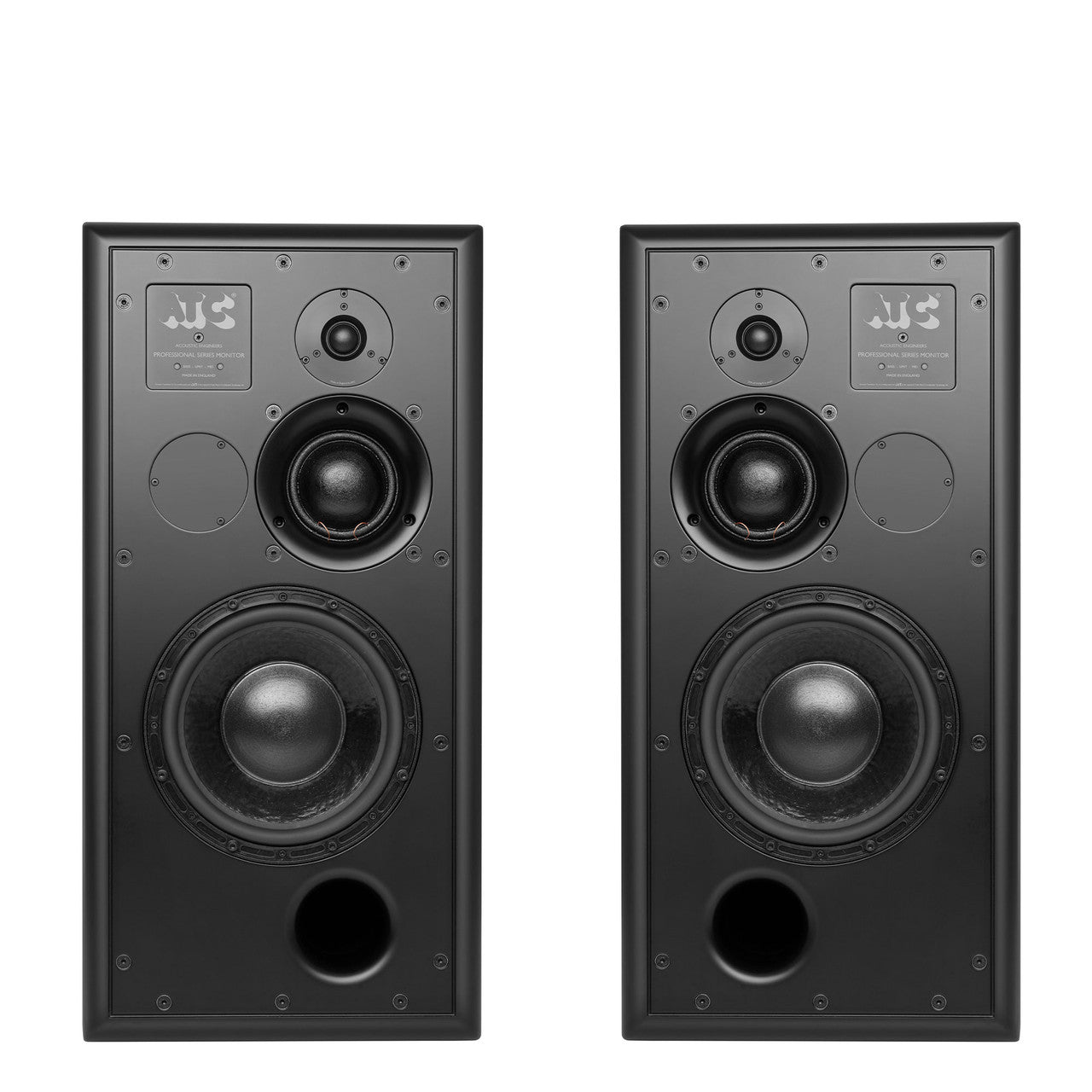

SCM50ASL Pro (With Grills or Without)
The ATC SCM50ASL Pro is an active three-way system suitable for reference monitoring in medium sized rooms. The active design ensures optimum matching of six MOS-FET amp blocks to the drivers, providing plenty of transient headroom and maximum SPLs of up to 112dB, and an LF contour control provides five bass boost settings and a flat reference response.
Specifications
- Drivers: HF 1″/25mm, Mid 3″/75mm, LF 9″/234mm
- Amplitude Linearity (±2dB): 70Hz-17kHz
- Cut-off Frequencies (-6dB, free-standing): 38Hz, 22kHz
- Horizontal Dispersion: ±80°, Coherent
- Vertical Dispersion: ±10°, Coherent
- Max. Continuous SPL (1 metre): 112dB
- Crossover Frequencies: 380Hz, 3.5kHz
- Input Connectors: Male XLR
- Input Sensitivity: 1V
- Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
- Input Impedance: Balanced > 10kΩ
- Amplifier Output: Bass 200W, Mid 100W, High 50W Filters : Even Order Critically Damped
- Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
- Front Panel Indicators: Power On indicator, Gain Reduction warning
- LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
- Dimensions (HxWxD): 716 x 351 x 400mm (28.2˝ x 13.8˝ x 18.8˝) Depth with amplifier at rear adds 3˝
- Weight: 49kg / 107.8lbs
