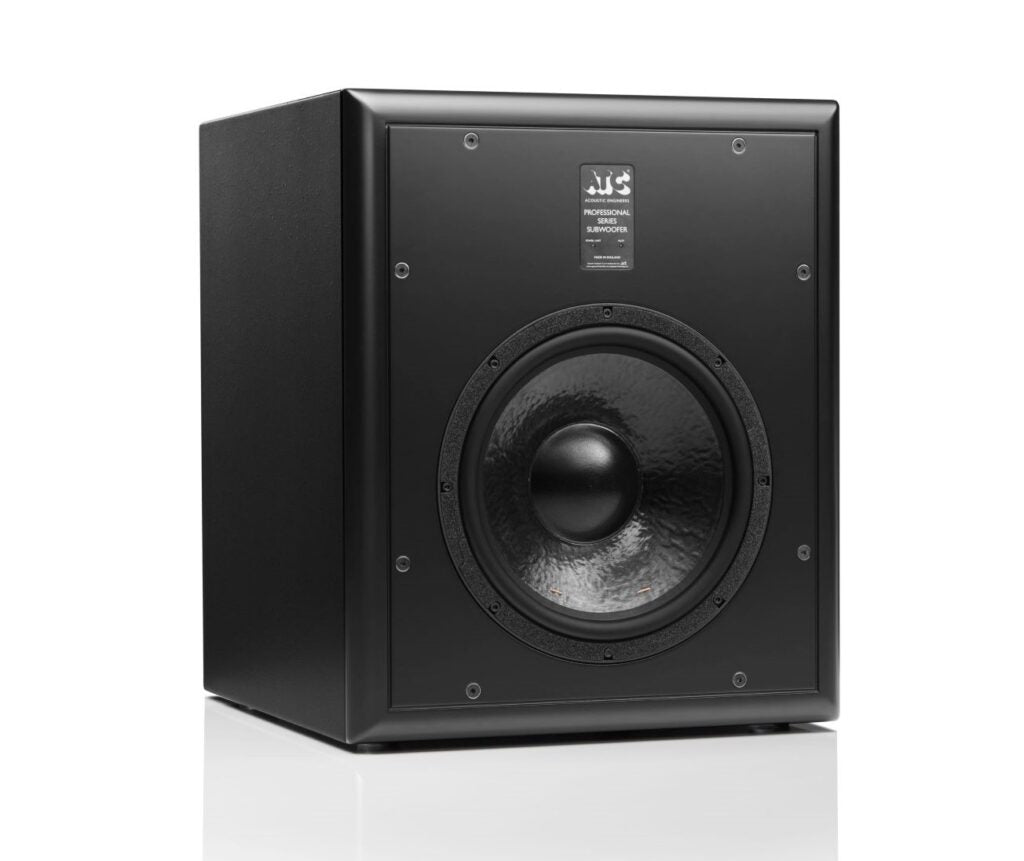

The ATC SCS70 Pro is a 12”/300mm active subwoofer, designed to deliver the exceptional levels of performance required by audio and music professionals and integral to partnering with ATCs range of active monitors. It’s performance and features make it ideally suited to stereo, multi-channel surround and immersive audio formats such as Dolby Atmos.
Specifications:
ACOUSTIC SPECIFICATIONS
Drive Unit - Bass: 1 x SS75-314SC 8Ω
Low Frequency Cut-of f: 22Hz (-6dB, half space, low pass filter @ 80Hz)
Low Pass Filters: 50Hz, 65Hz, 80Hz, 320Hz. (-6dB, 4th order Linkwitz Riley)
MaxSPL: 110dB continuous, 116dB peak (IEC Weighted Pink Noise, @ 1m, half space, low pass filter @ 80Hz)
Sensitivity: +4dBu ref 88dBC (single input driven, @ 1m, Gain +6dB, Level 0dB, pink noise, low pass filter @ 80Hz)
ELECTRONIC SPECIFICATIONS
Amplifier type: Grounded Source MOSFET based Class A-B, convection cooled
Output Power: 300W into 8Ω
THD+N: <0.003%/-90dB, at 100Hz, 300W into 8Ω over 90kHz bandwidth

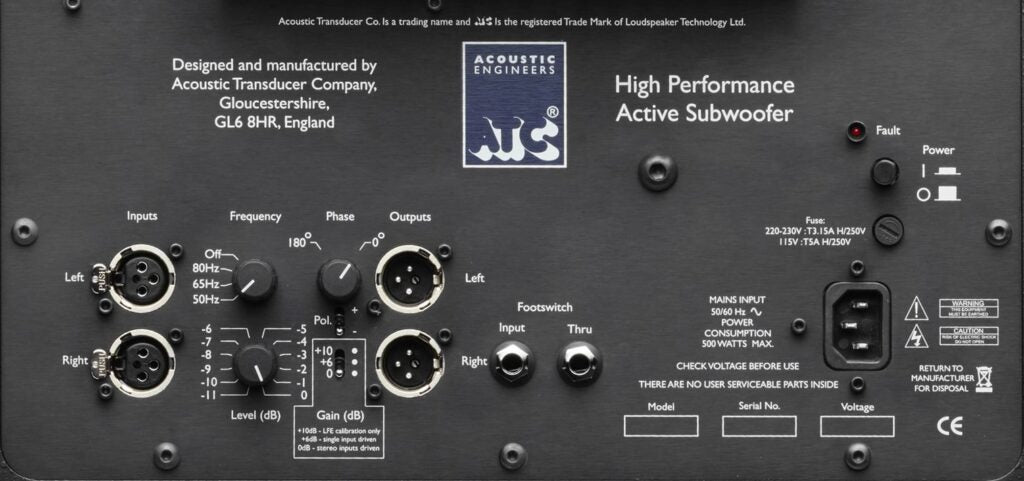

Balanced Inputs: 2 x Rear Panel Mounted Female XLR, pin 2 hot
Balanced Outputs: 2 x Rear Panel Mounted Male XLR, pin 2 hot
Frequency Response: <2Hz (-3dB) - 320Hz (-6dB, set by panel -controlled LP filter)
Gain Control: 0 , +6dB, +10dB
Level Control: 0dB -11dB in 1dB steps. Total range 21dB with use of Gain switch
Phase Control: 0 -180° ref. Input
Polarity Control: In-phase/Out-of-phase ref. Input
Power Consumption: Idle 8W/14VA. 1/8th Power 170W/230VA. Full Power 500W/600VA
Additional: Mute via 1/4”/ 6 .35mm Jack socket , controlled via latching footswitch (supplied separately)
