Elysia

Skulpter 500 Micophone Preamp

  • Sale
  • Regular price R 15,182.21

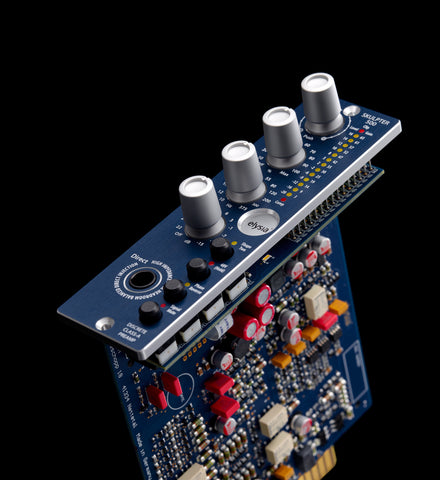

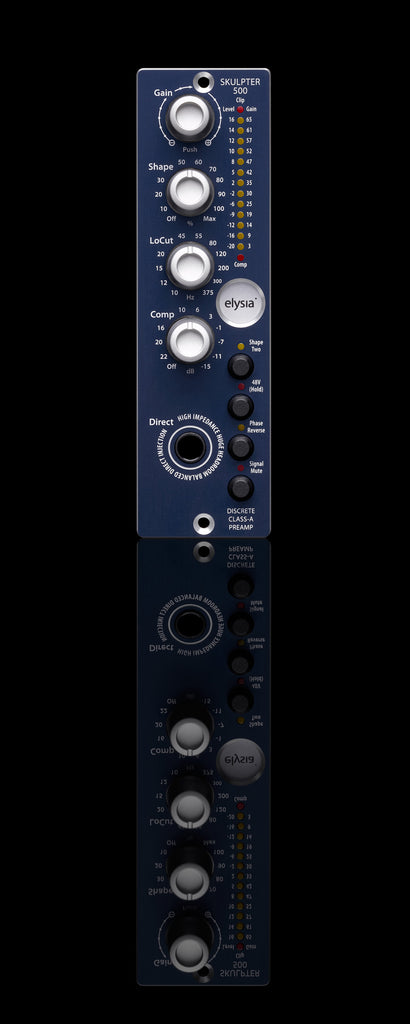

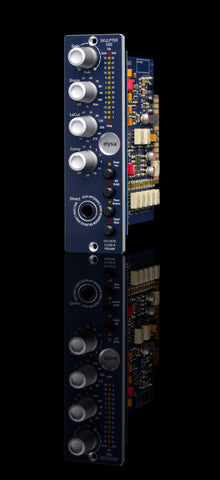

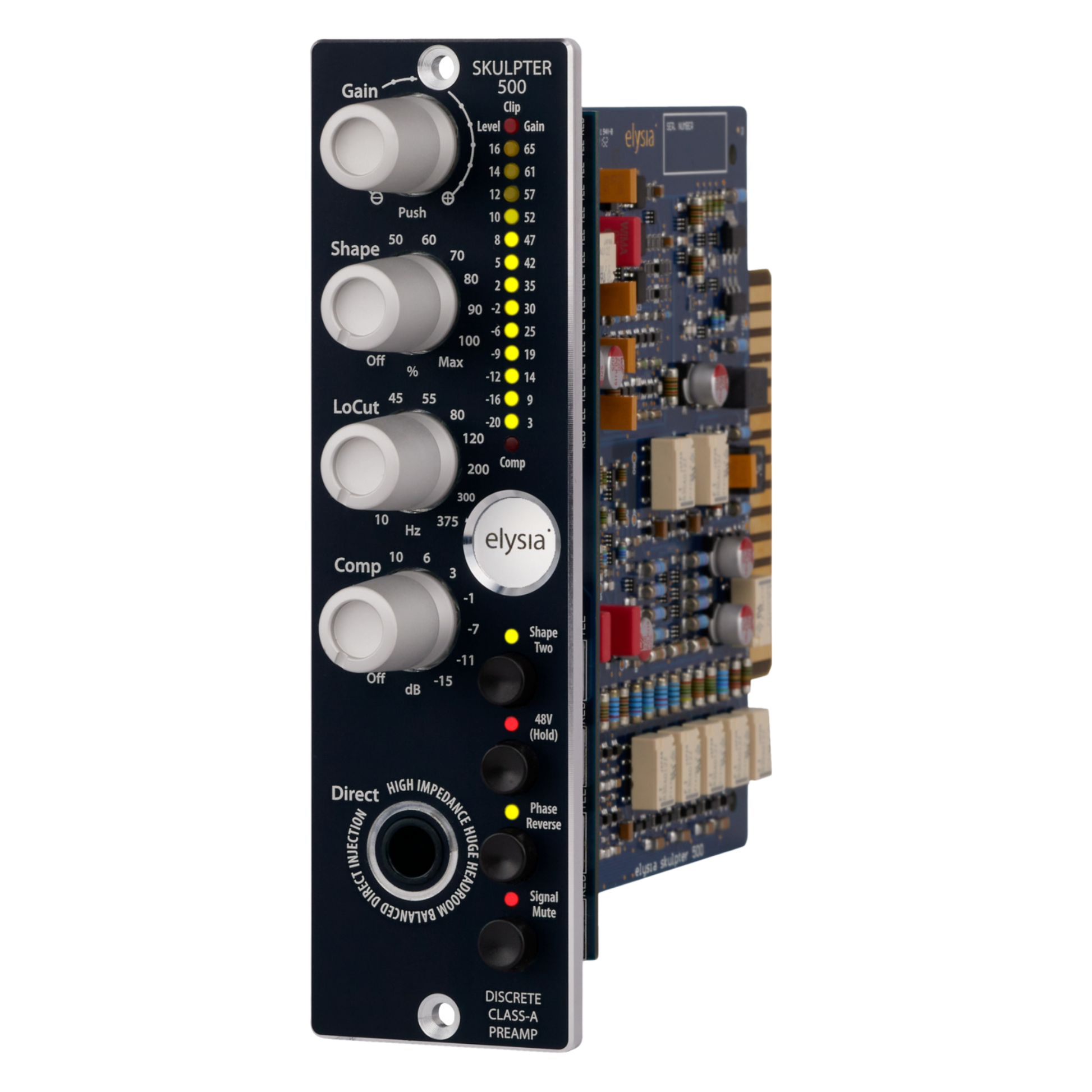

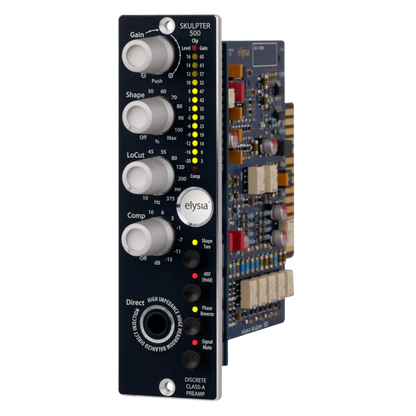

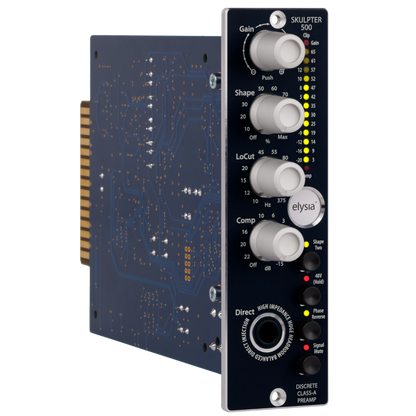

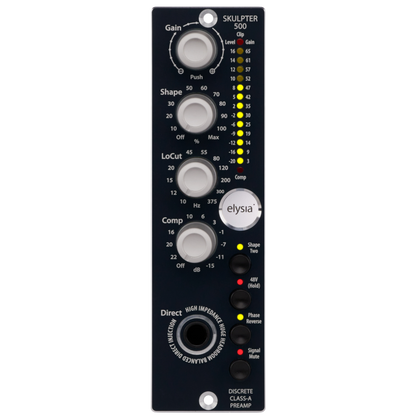

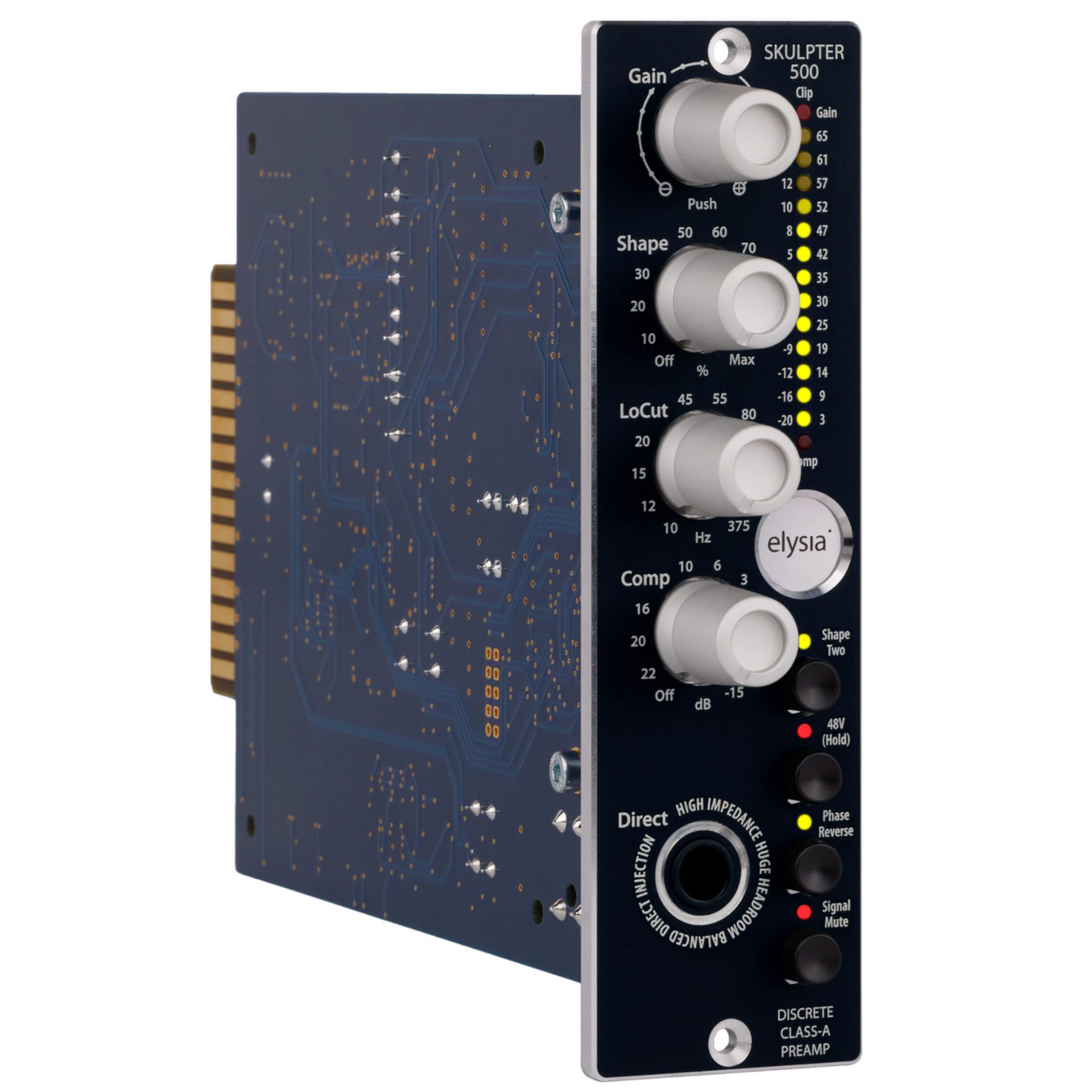

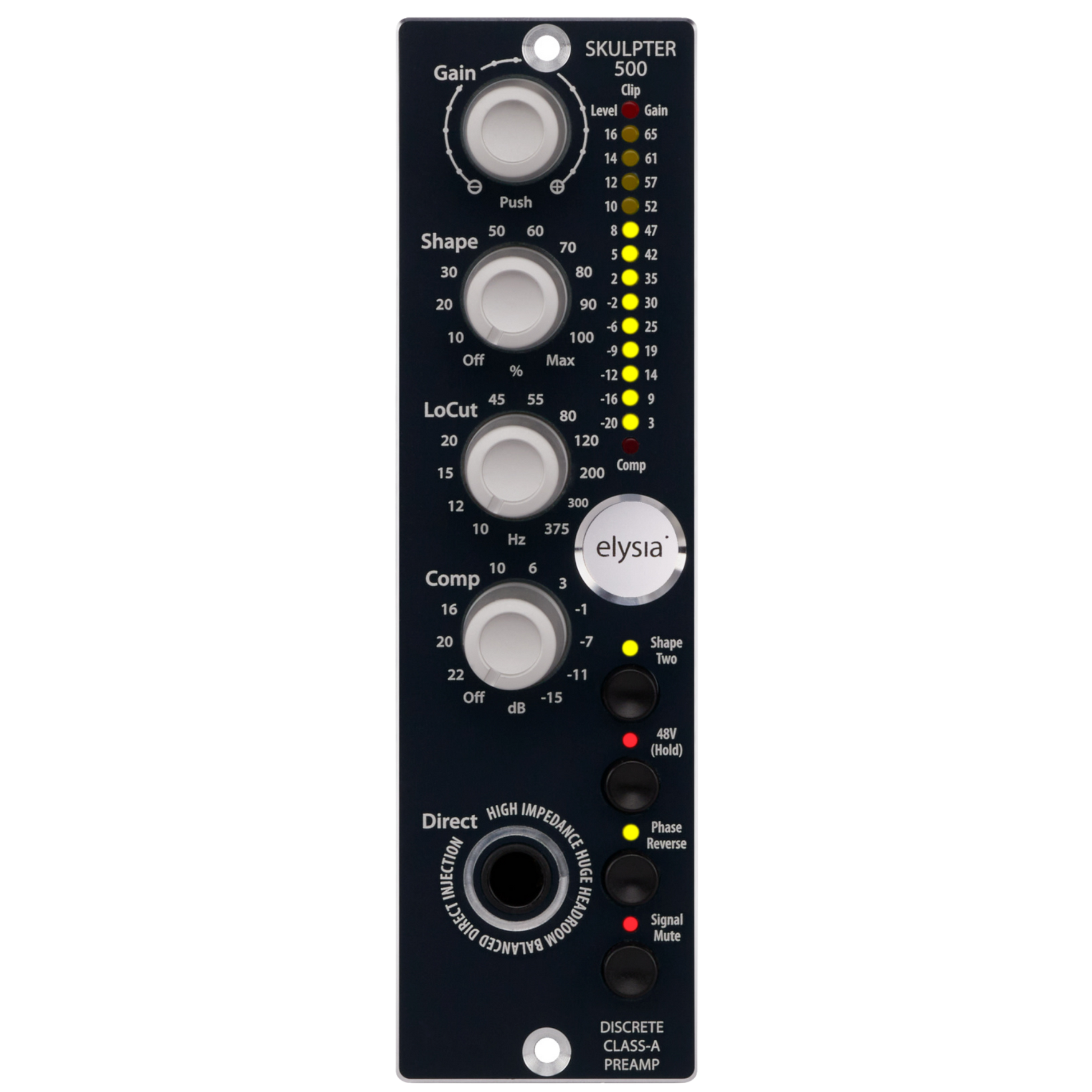

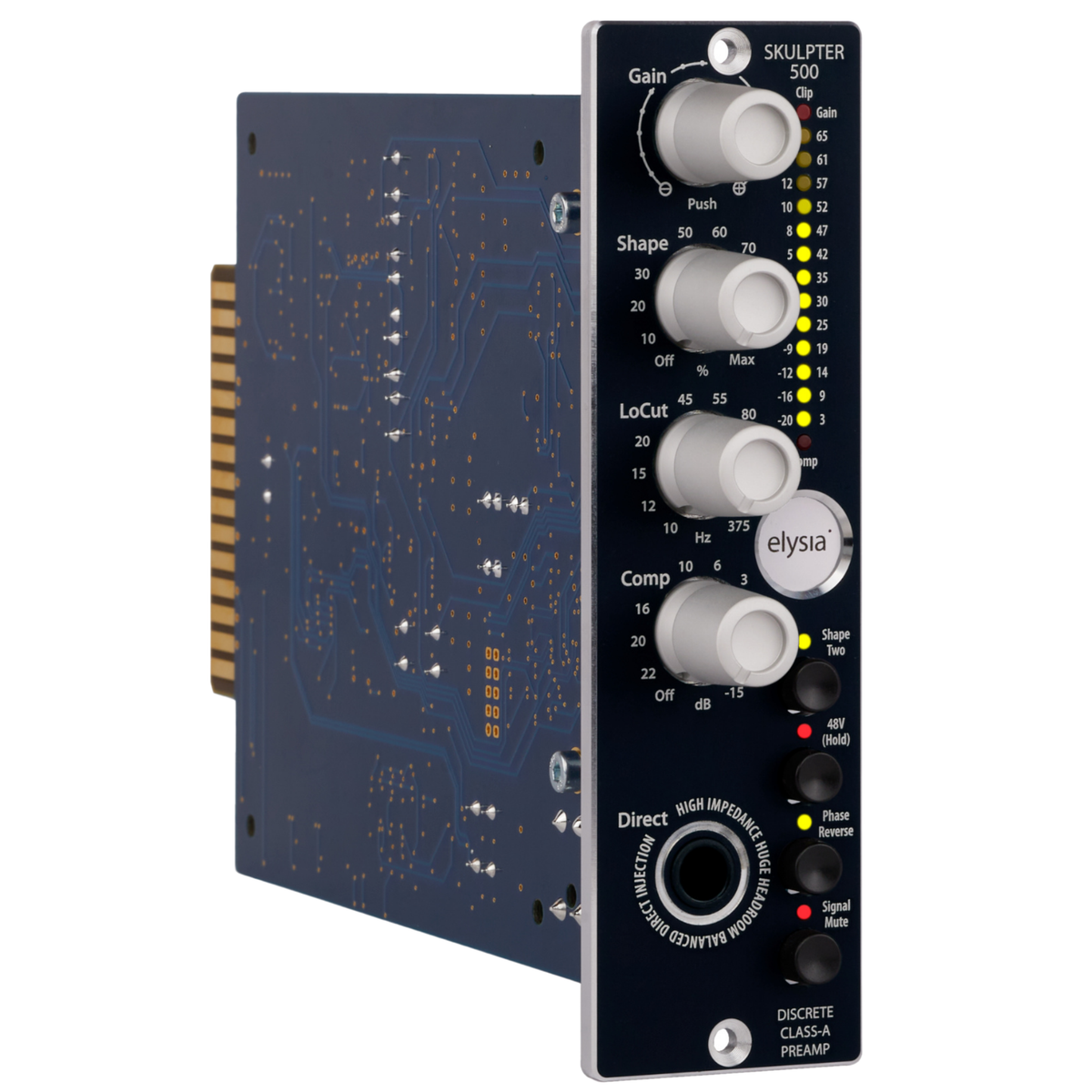

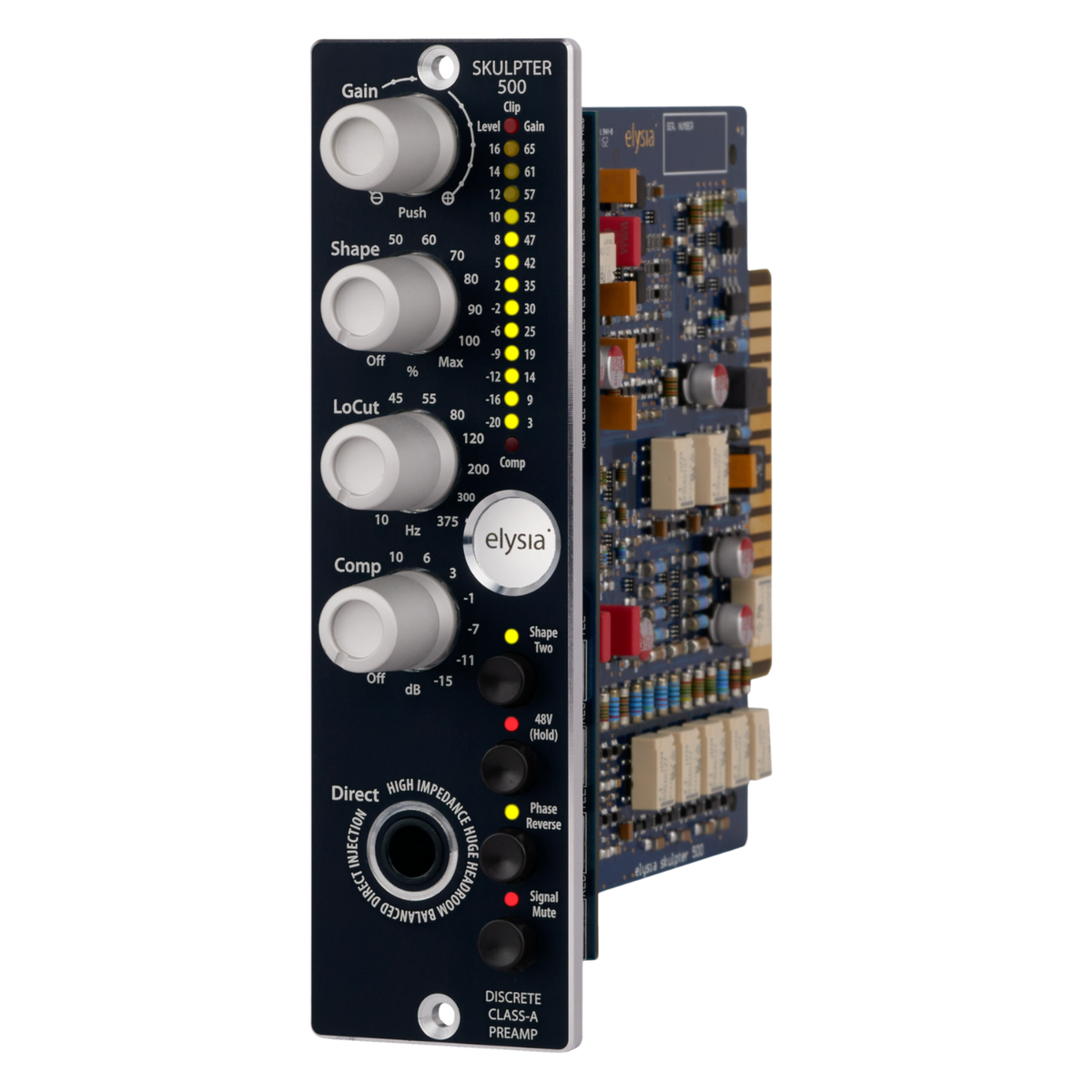

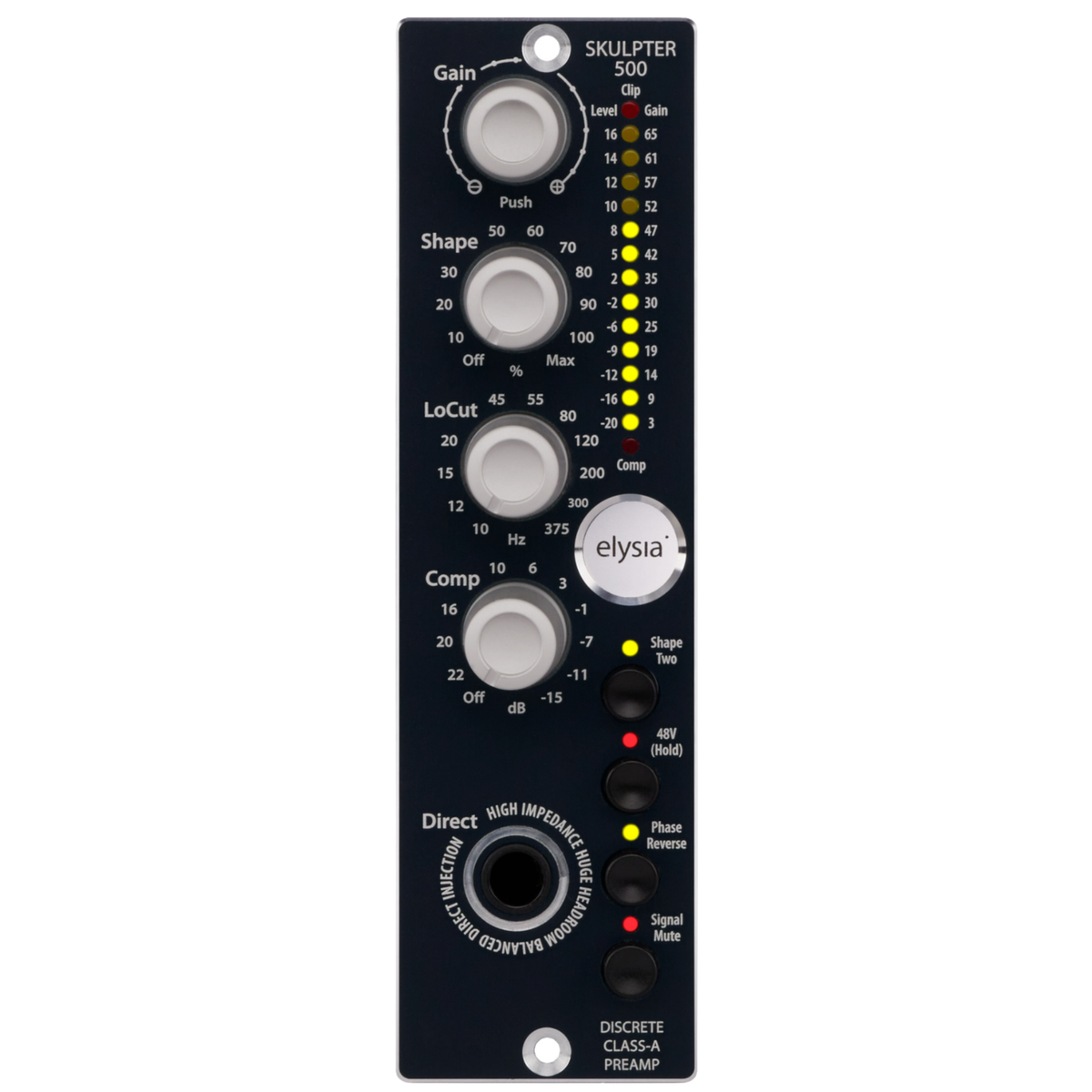

Skulpter 500 – The Sound Shape Preamp

The skulpter 500 is the ultimate recording front end. Its audiophile preamp is based on single resistors controlling a fully discrete Class-A amplifier capable of complementing any microphone with a remarkably true and natural sound. If additional mojo is needed, two variable saturation/filter stages and an intelligent onboard compressor make voices and instruments sound like a finished record right from the start.

Whether clean or colored, the sonic bliss does not stop at your mic locker. The skulpter 500 provides a balanced DI input with significant headroom, so just about any signal coming from guitars, basses, synths and effects will benefit greatly from the skulpter 500’s pristine amplification and versatile processing qualities.

Way more than just a preamp, the skulpter 500 is a complete recording solution – everything you’ll ever need in front of your DAW.

FEATURES:



  • 100% Discrete Class-A Topology
    Pristine audio path and signal processing.
  • Audiophile Gain Staging
    Natural and incredibly detailed sound.
  • Dual Sound Shaper
    Mojo machine with filters and harmonics.
  • Intelligent Onboard Dynamics
    Smart controlled musical compression.
  • Variable Low Cut Filter
    Flexible low frequency clean up.
  • Balanced DI
    Instrument input with massive headroom.
  • Multifunction Meter
    Level, gain, compression and clipping.
  • Stepped Controllers
    Exact and repeatable settings.



Specifications:

Total gain range:

3 - 65 dB in 1.5/2 dB steps

Frequency response:
@ 3 dB gain
@ 29 dB gain


10 Hz - 170 kHz (-3 dB)
10 Hz - 170 kHz (-3 dB)

THD+N:
@ +6 dBu out level, 3 dB gain, 20 Hz - 22k Hz
@ +6 dBu out level, 29 dB gain, 20 Hz - 22 kHz


0.007%
0.007%

Noise floor:
@ 3 dB gain, 20 Hz - 20 kHz (A-weighted)
@ 29 dB gain, 20 Hz - 20 kHz (A-weighted)


-97 dBu
-93 dBu

Common Mode Rejection Ratio:
@ +6 dBu out level, 29 dBu gain, 1 kHz
@ +6 dBu out level, 29 dBu gain, 10 kHz


87 dB
69 dB

Maximum level:
Mic Input
DI Input
Output


19 dBu
19 dBu
21 dBu

Impedance:
Mic Input
DI Input
Output


13.6 kohm
1 megohm
62 ohm

Power Consumption:
Total


116 mA
