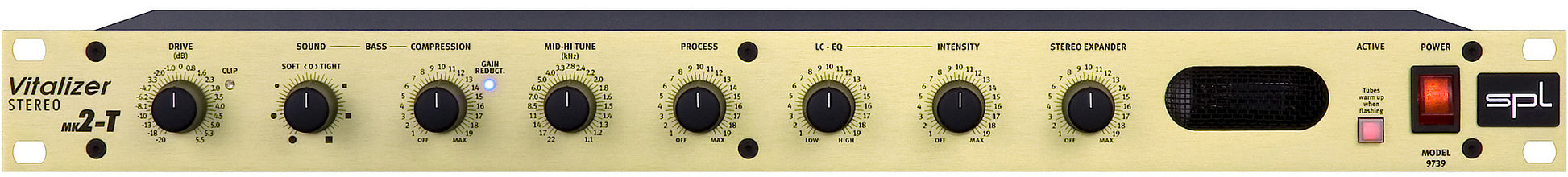

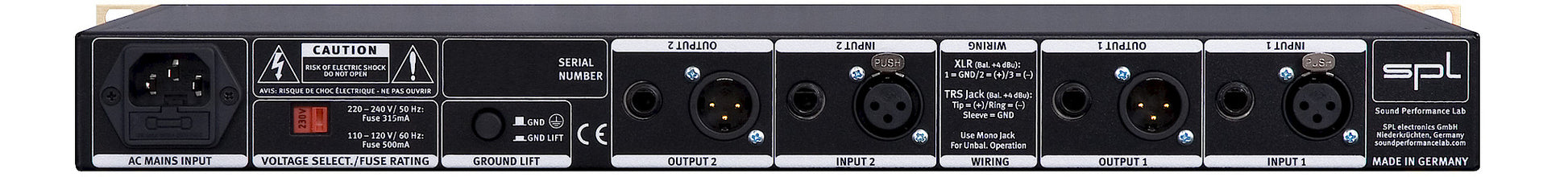

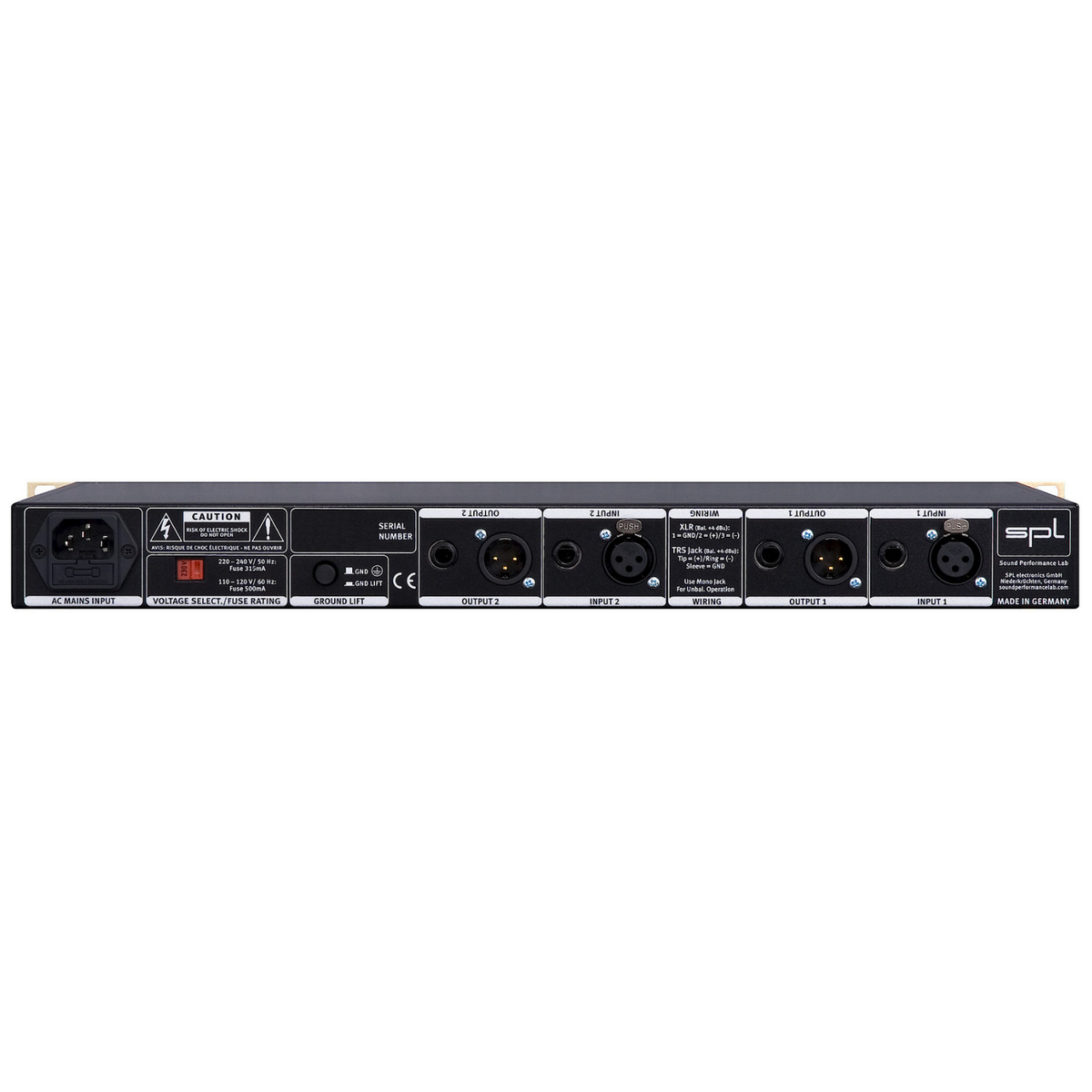

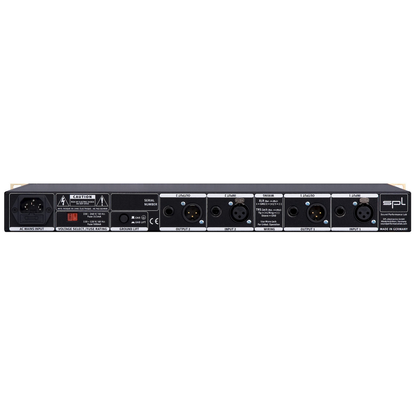

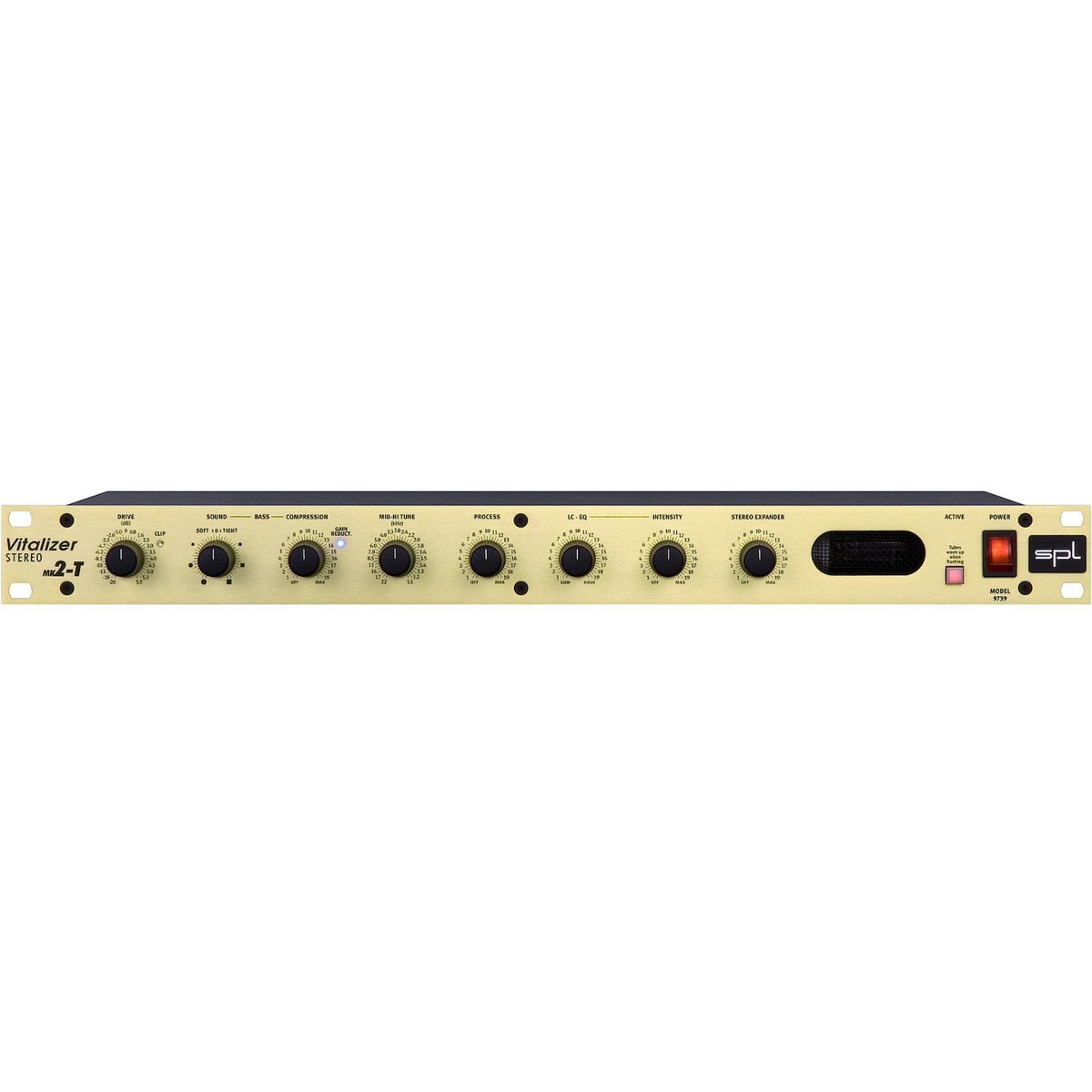

Stereo Vitalizer Mk2-T
Program Equalizer
Also and especially with this tube version of the patented Vitalizer® filter network you can effortlessly achieve an objective improvement while optimizing your sound.
Your ears are in control and you have the ability to make any production or recording sound better instantly: more detail, more transparency, more loudness and, if needed, also a compelling low-end foundation.
Regardless of whether you process a single channel or a sum of channels, the Vitalizer® takes your sound to a professional level.
- Disarmingly ease of use, intuitive operation by ear
- Ideal for stereo sources
- Connection to master or subgroup inserts
- Excellent noise specs
- Soft and tight bass colors
- Bass compressor
- Mid, high, & harmonics processing
- Variable input level
- Stereo expander
- Hard bypass relay (power fail safety)
- Balanced I/Os over XLR and TRS sockets
- Made in Germany
Specifications
Input & Output
- Instrumentation amplifier, electronically balanced (differential), transformerless
- Nominal input level: +6 dB
- Input impedance: = 22 kOhms
- Output impedance: < 600 Ohms
- Max. input level: +20 dBu
- Max. output level: +20 dBu
- Minimum load ohms: 600 Ohms
- Relay Hard Bypass
Measurements
- Frequency response: 20 Hz - 100 kHz (100 kHz = -3 dB)
- CCMR (common mode rejection): >86 dBu at 1 kHz
- THD & N: 0,001855% at 1 kHz
- S/N CCIR 468-3: -85 dBu
- S/N A-weightened: -99 dBu
Power Supply
- Toroidal transformer: 15 VA
- Fuse: 315 mA (230 V/50 Hz); 630mA (115 V/60 Hz)
- Ground-Lift switch
- Voltage selector
- Power Fail Safety
Dimensions & Weight
- Standard EIA 19"/2U
- 482x88x237mm (BxHxT)
- 19"x3.46"x9,33" (WxHxD)
- Weight: 3.4 kg; 7.5lbs
0 dBu = 0.775 V. Subject to change without notice.
