SPL Audio

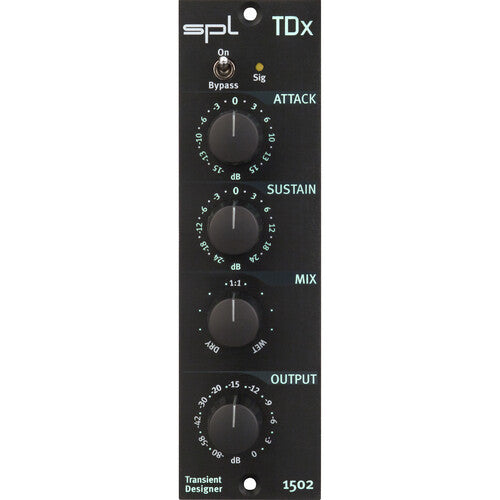

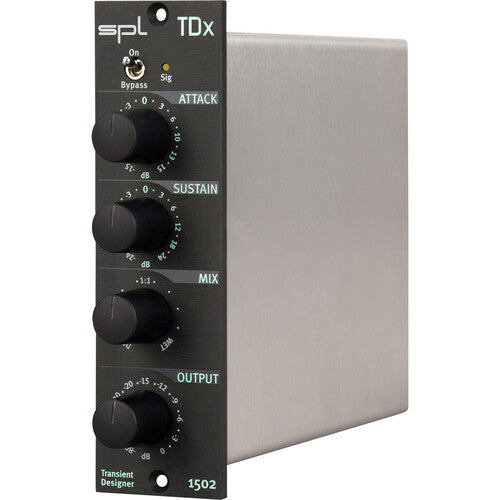

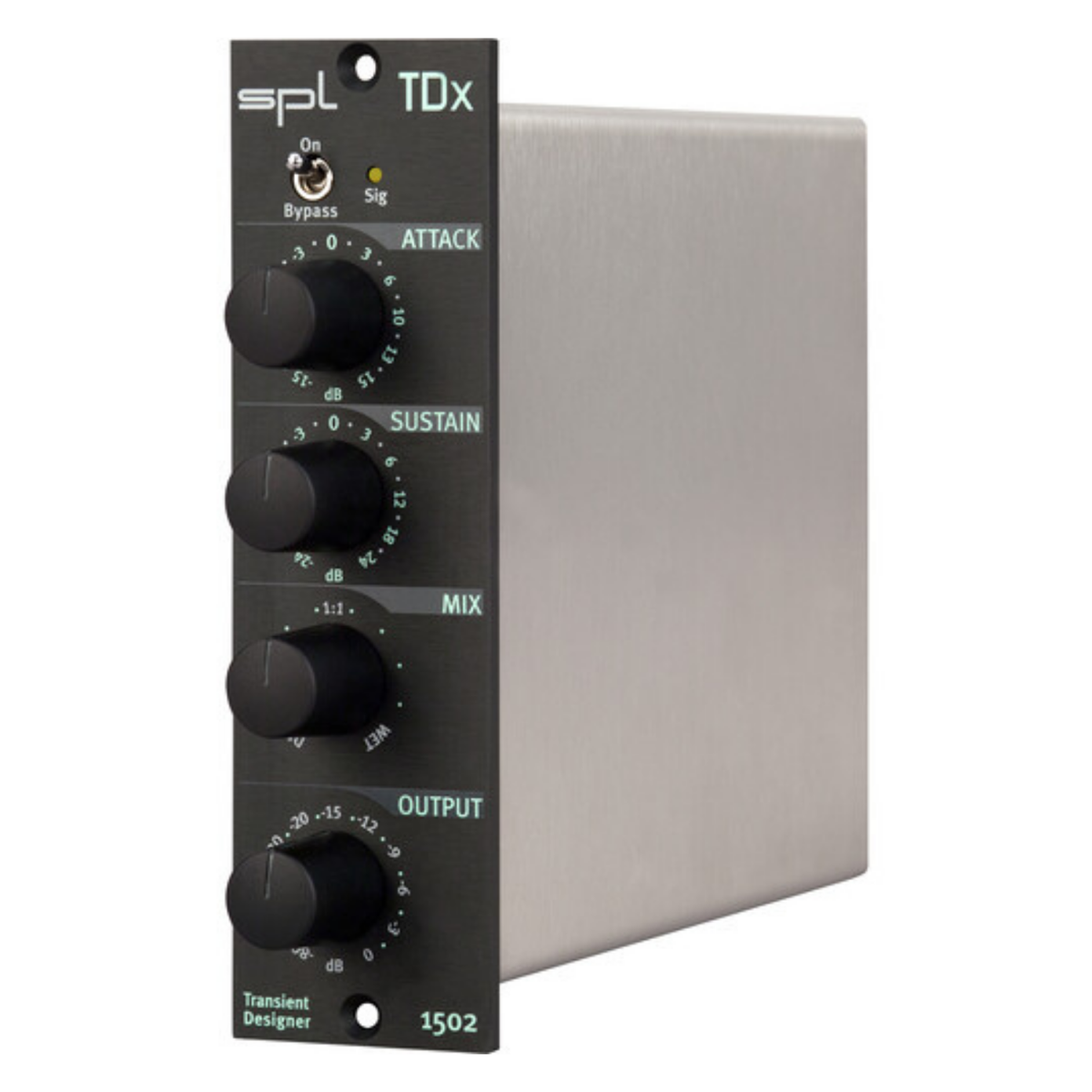

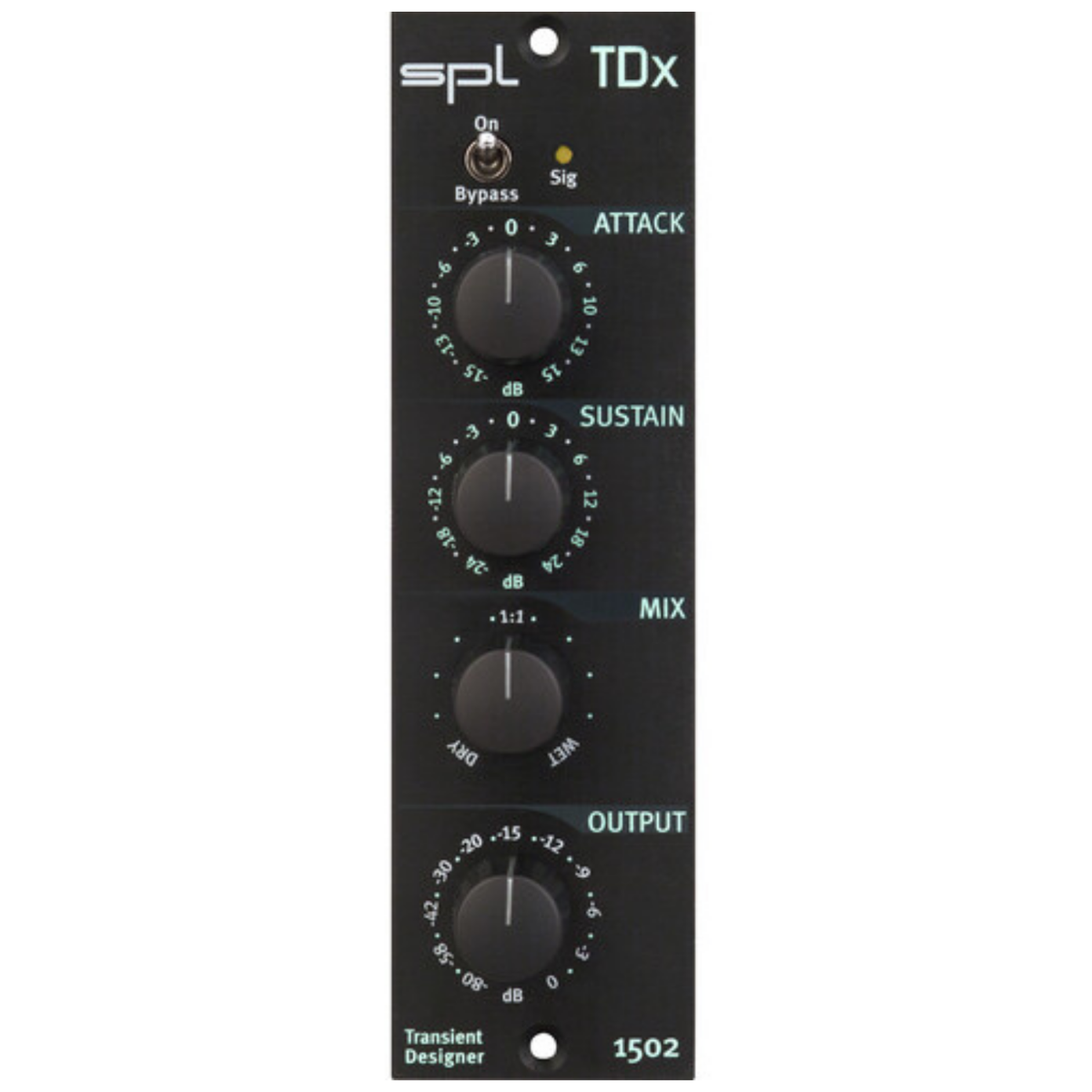

TDx Transient Designer 500 series

  • Sale
  • Regular price R 10,235.00


TDx

Transient Designer 500 Series module

  • Extended original Transient Designer circuitry
  • NEW: Parallel MIX control - blend between "Wet" and "Dry"
  • ATTACK: amplify or attenuate attacks
  • SUSTAIN: Prolong or shorten sustain
  • Differential Envelope Technology (DET)
  • Output level control
  • ON/Bypass switch
  • Signal LED
  • Single-Slot 500 series rack module
  • Made in Germany



Specifications

Input:

  • Balanced
  • Impedance: 20kOhm
  • Max. Input level: +22 dBu

Output:

  • Balanced
  • Impedance : 150 Ohm
  • Max. Output Level: +22 dBu

Frequency Range: 10Hz -100kHz

Noise: -93 dBu (A-weighted)

Dynamic Range: 116 dB

CMRR: > -80 dBu

(at 1 kHz, 0 dBu input level, unity gain)

THD: 0,03%

(at 0 dBu input level, unity gain)

Housing: Single Slot 500er-Serie rack modul

Weight: 0,65 kg /1.43 lbs



0dBu = 0,775V. Specifications subject to change without notice.
