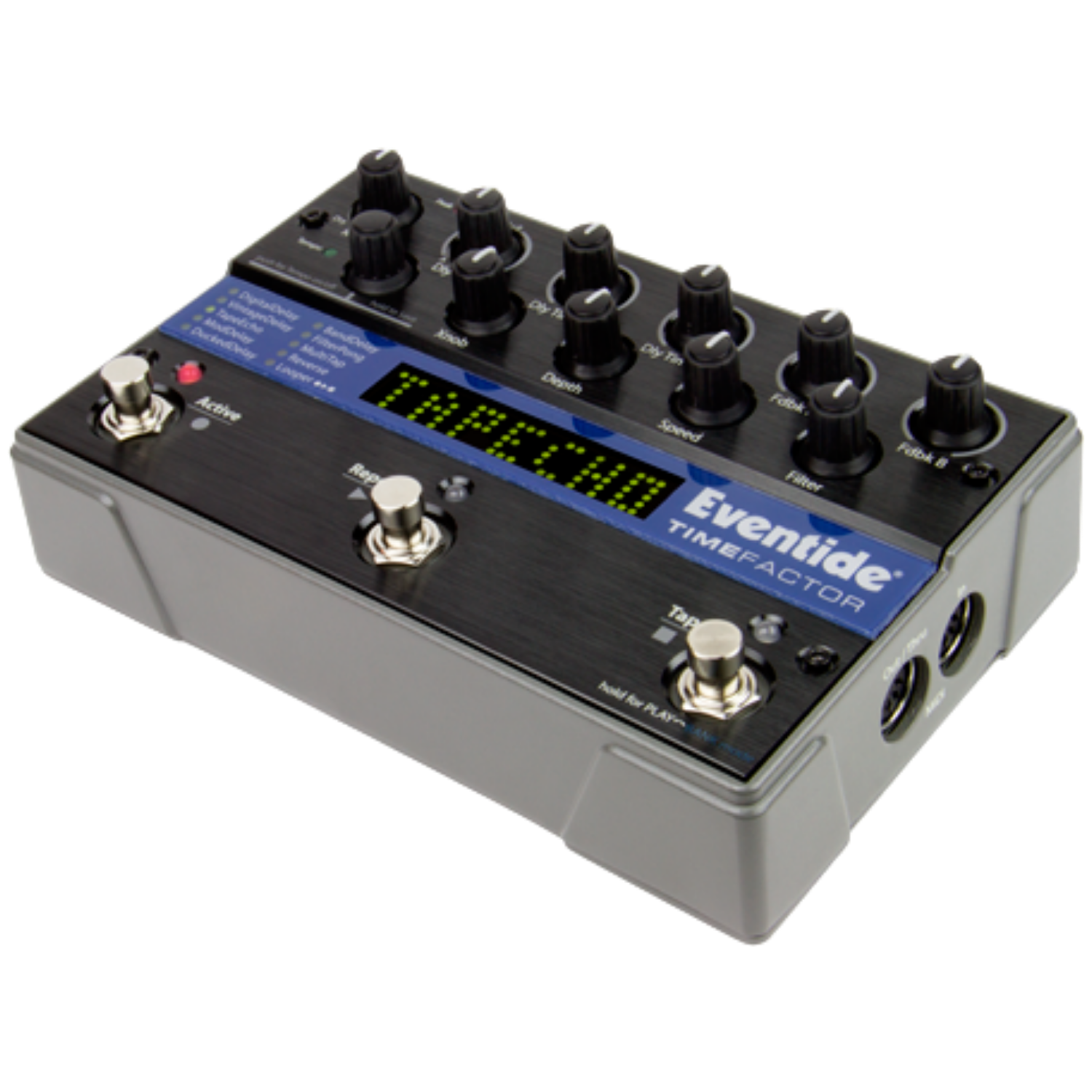

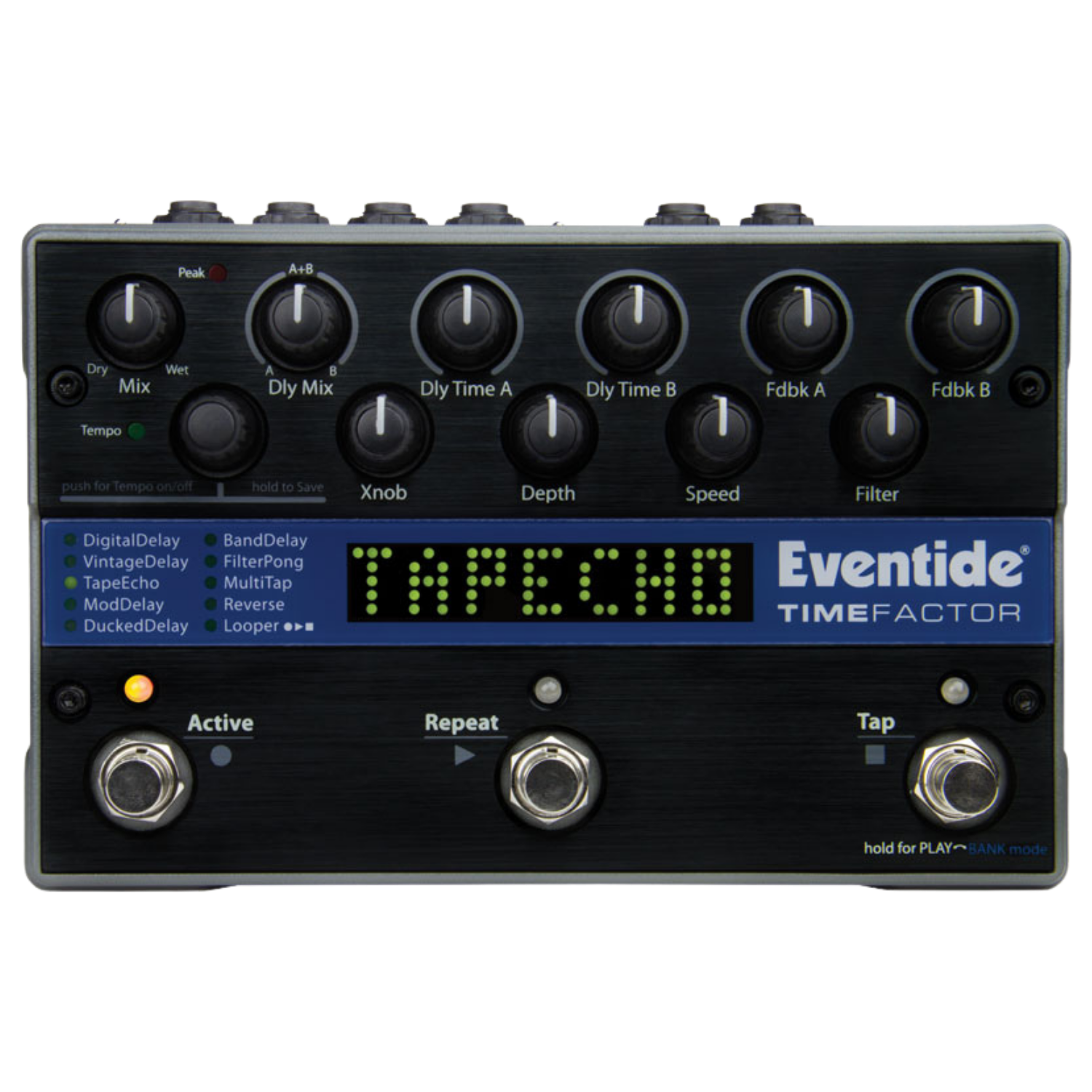

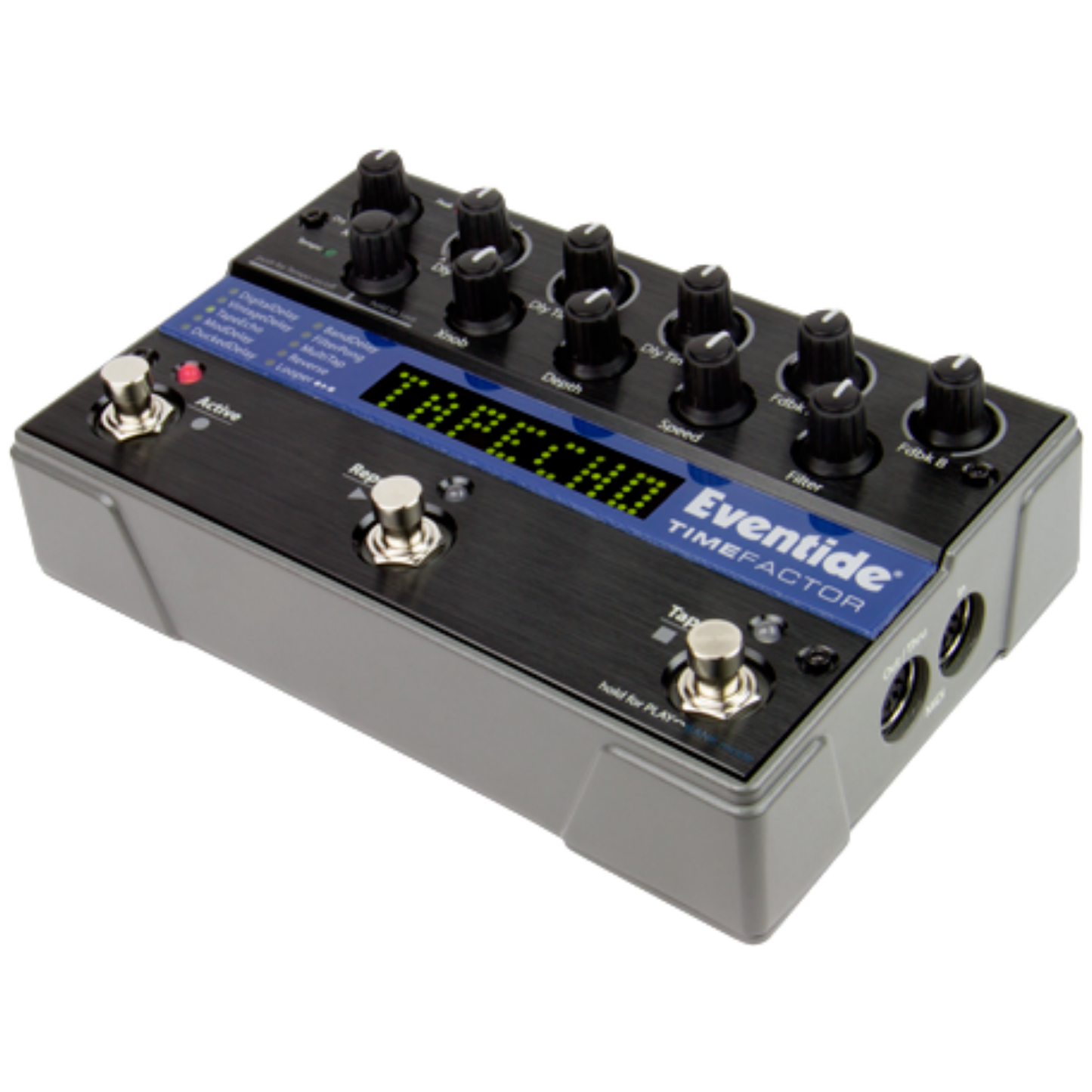

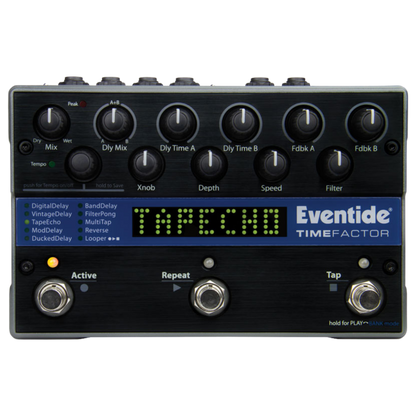

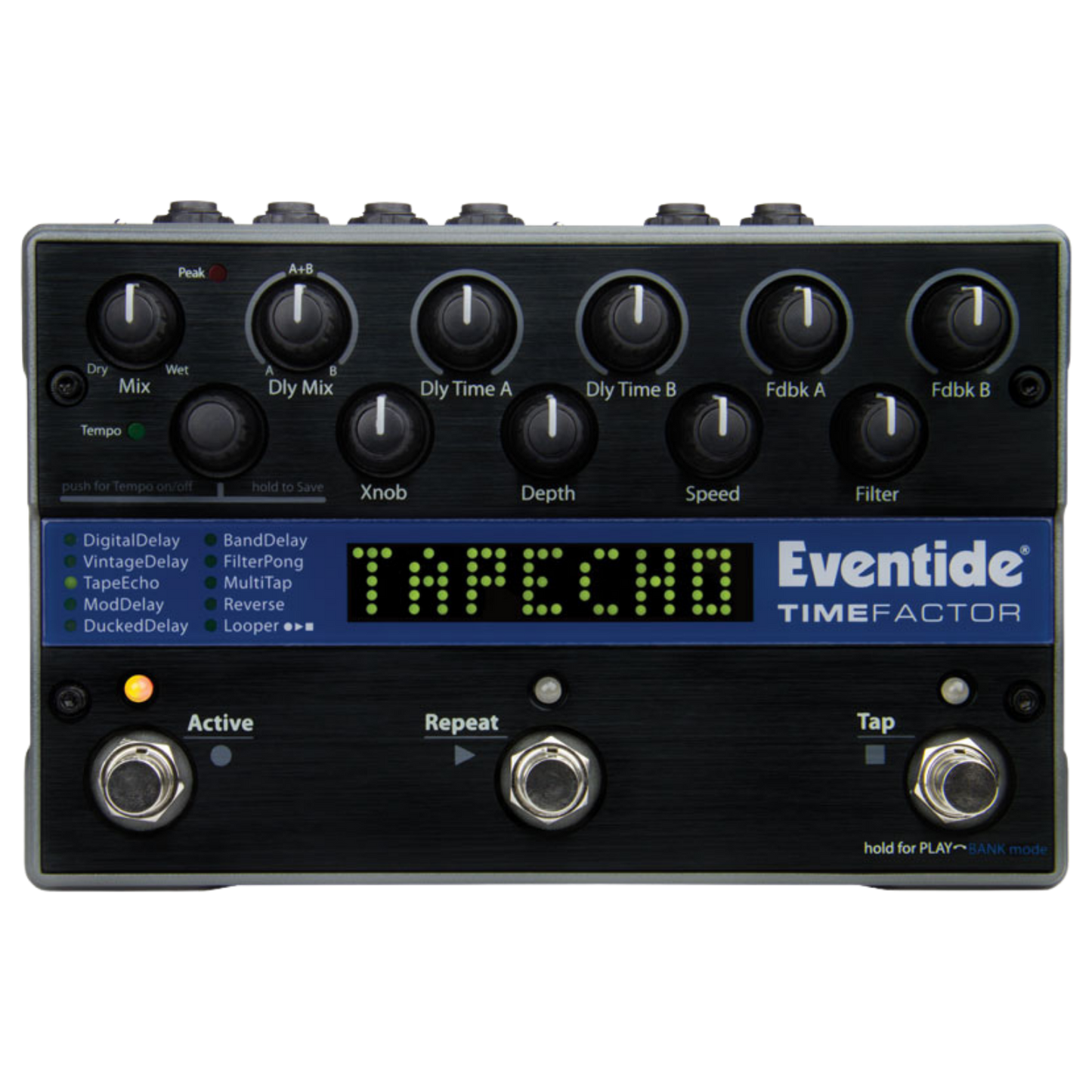

Eventide

TimeFactor Delay Pedal

  • Sale
  • Regular price R 7,456.25


TimeFactor

Nine dual delays with dedicated mix, delay time, and feedback controls for the two independent A and B delay lines. Delay types include Multitap, Reverse, Mod, Tape, Ducked, and AutoPan. Each Dual Delay effect can operate in stereo or dual mono or straight mono.  Each of the delays can have its own tempo subdivision for creative rhythmic echoes. TimeFactor also includes a LOOPER with variable speed and loop head/tail editing.

Features

All the delays in TimeFactor include LFO, Filter, and a unique Xknob control, as well as Infinite Repeat footswitch.

  • 100 presets
  • Studio quality sound
  • Instant Program Change
  • Real-time control with 10 knobs, MIDI or expression pedal
  • Tap Tempo and MIDI Clock Sync/Generate
  • True Analog Bypass
  • Rugged cast metal construction
  • Metal footswitches for instant Preset access
  • Mono or Stereo operation
  • Guitar or Line Level Inputs and Outputs

Dual Delay Effects

TimeFactor comes with 10 Stereo or Mono Delay Effects

  • Digital Delay
  • Vintage Delay
  • Tape Echo
  • Mod Delay
  • Ducked Delay
  • Band Delay
  • Filter Pong
  • MultiTap
  • Reverse
  • Looper

Specifications

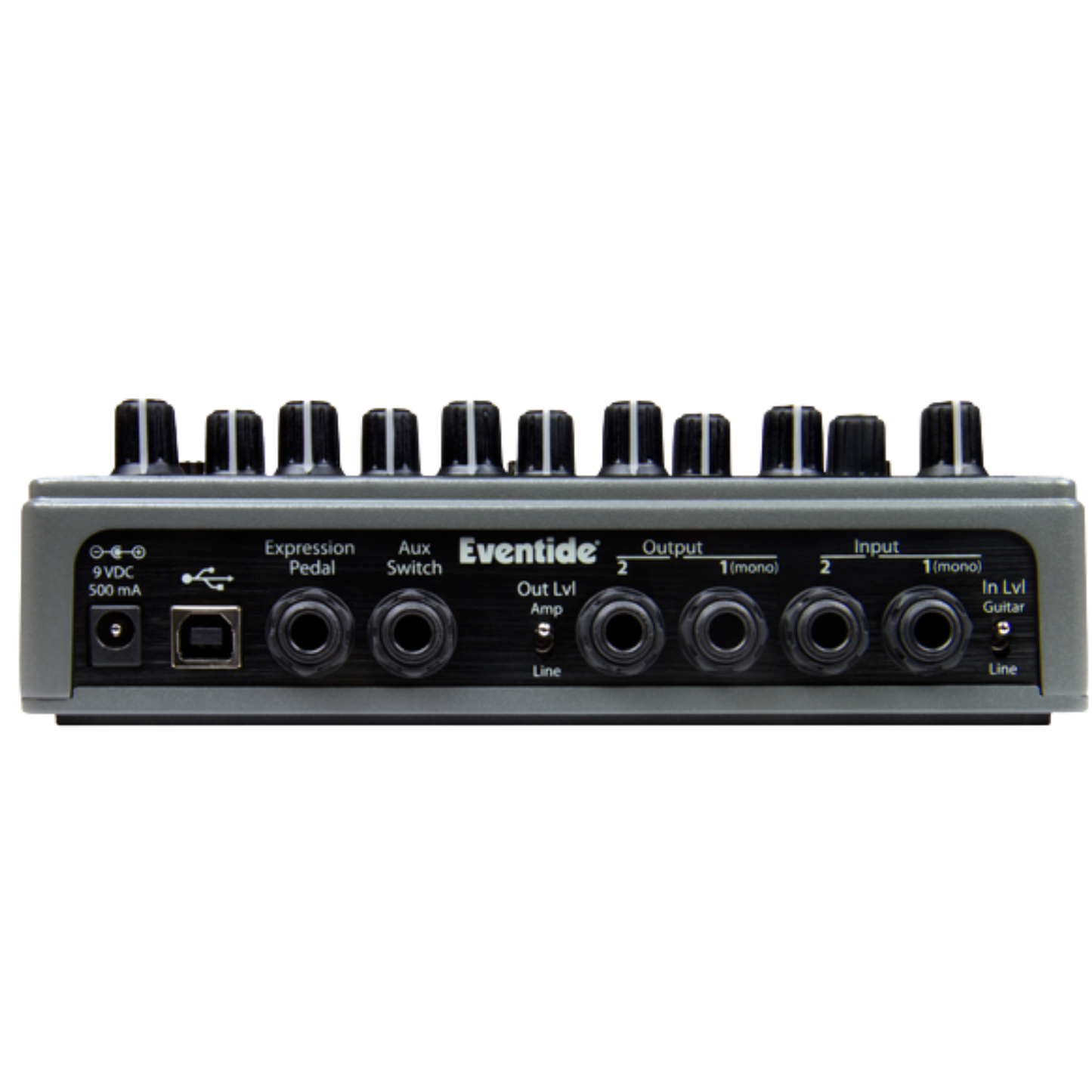

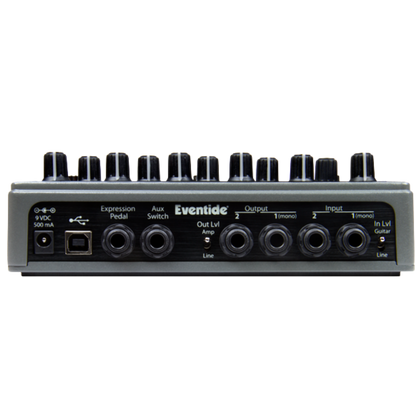

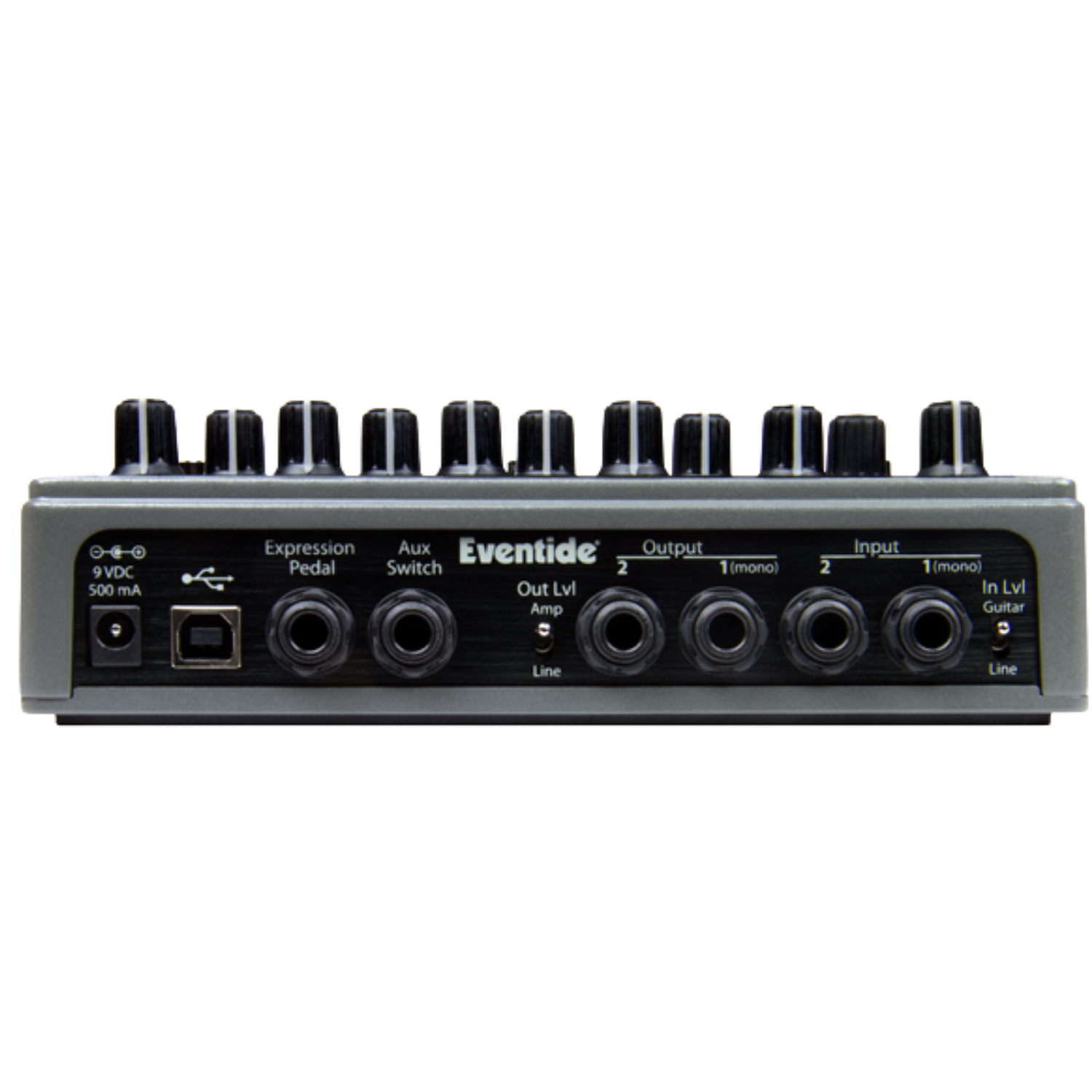

Connectors



  • Input 1 (mono): ¼ inch mono phone jack
  • Input 2: ¼ inch mono phone jack
  • Output 1 (mono): ¼ inch mono phone jack
  • Output 2: ¼ inch mono phone jack
  • Expression Pedal: ¼ inch mono phone jack
  • Aux Switch: ¼ inch stereo phone jack
  • USB: Type B Socket. Use 2.0 cables only.
  • MIDI In: Five pin DIN (Female)
  • MIDI Out/Thru: Five pin DIN (Female)
  • AC Adapter Jack: US Power Supply included



Analog Input/Output



  • Input Impedance: 500K ohms
  • Output Impedance: 470 ohms
  • Recommended Load Impedance: 10K ohms or greater

Physical

  • Power: 9VDC, 500mA, Tip hot (+)
  • Dimensions English: 4.8" (H) x 7.5" (W) x 2.12" (D)
  • Metric: 122 (H) x 190 (W) x 54 (D) mm
  • Weight: 2.15 lbs, 1kG
