SPL Audio

Transient Designer 4

  • Sale
  • Regular price R 28,141.00

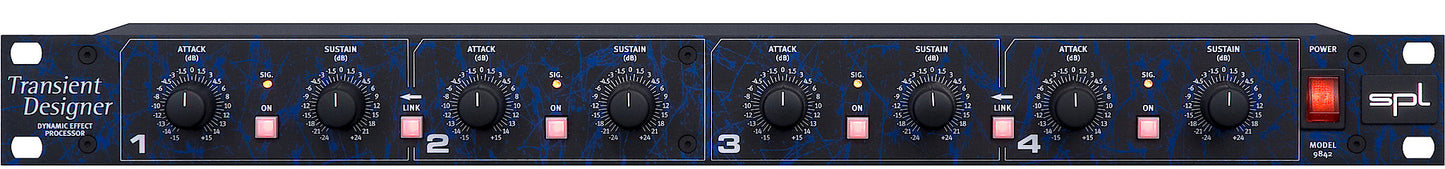

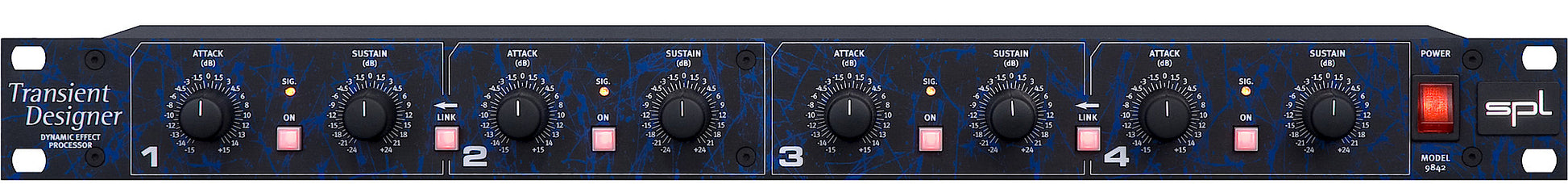

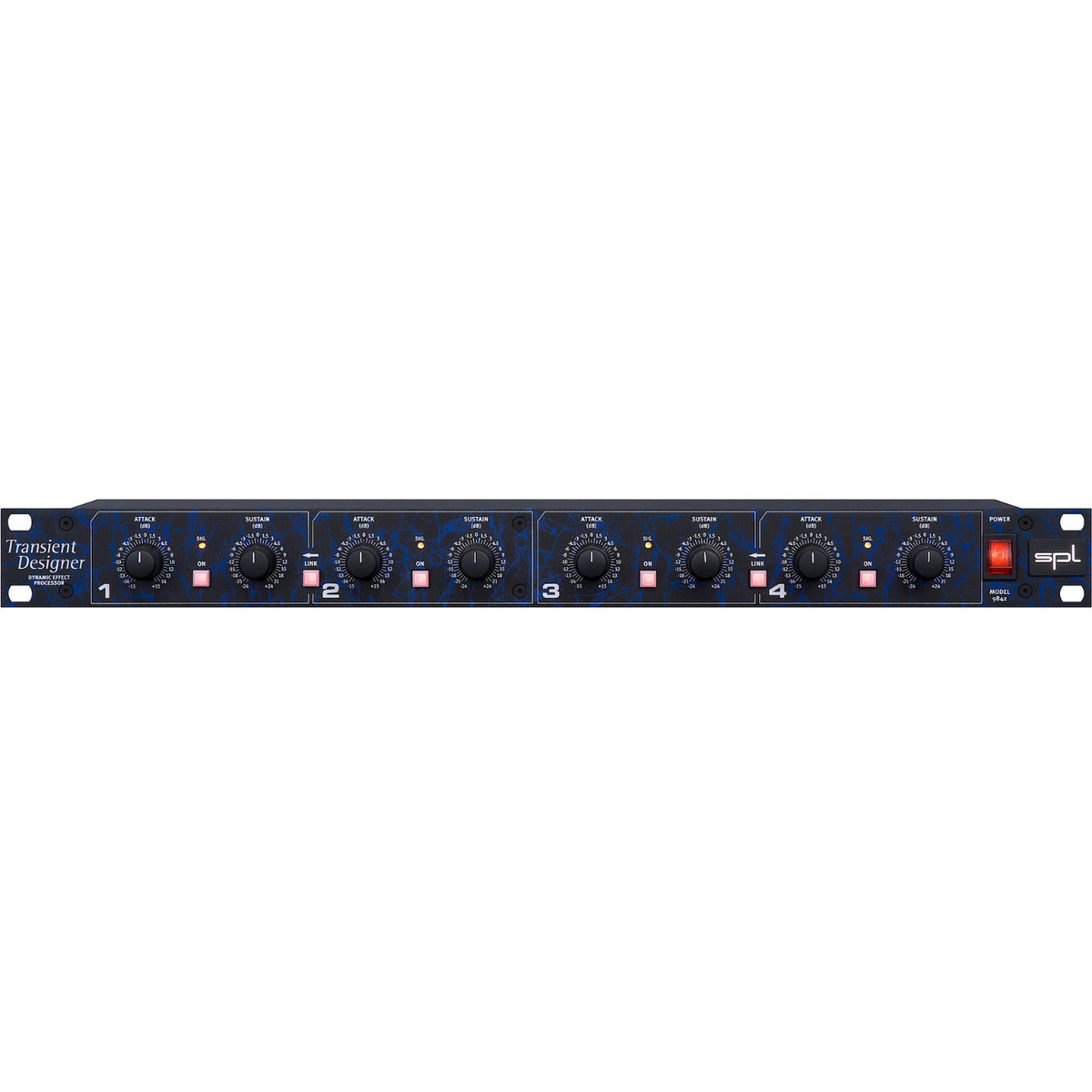

Transient Designer 4

The Original.

The Transient Designer has changed my working life.“
Ryan Hewitt
(Red Hot Chili Peppers/Stadium Arcadium, 4 Grammys)

The Transient Designer is a whole new dynamic tool. It allows you to re-shape the transient response and the envelope curve of any audio signal with just knobs: Attack & Sustain.

With no effort you can accelerate or slow down attack and prolong or shorten sustain portions of all kinds of percussive signals, such as bass drum, snares, toms, congas, etc. Let them jump into your face or flatten them with a turn of a single knob. Booming toms for example are dried up in seconds — it’s almost like being able to change the amount of drum damping after the recording. Your idea of a kick drum sound is a kick drum in the words best sense? Just dial it in

  • The attack of a bass drum or a loop can be emphasized with a single control to increase the punch and the penetration in the mix
  • Sustain of a snare or room-sound can be shortened very musically to clean up the mix for more transparency
  • Acoustic or electronic instruments become "in the face" sounds or can be smoothened with lower attacks
  • De-verb capability! Less Sustain shortens reverb flags of any sound (more elegant than gates do)
  • New panorama effects based on different dynamic effects per channel – try this with loops for example
  • Amplify or reduce the picking sound of an acoustic guitar
  • Hold the sound of the strings longer
  • Actuate the piano pedal “electronically”
  • Turn down the slap bass a notch or give it even more attack



Specifications

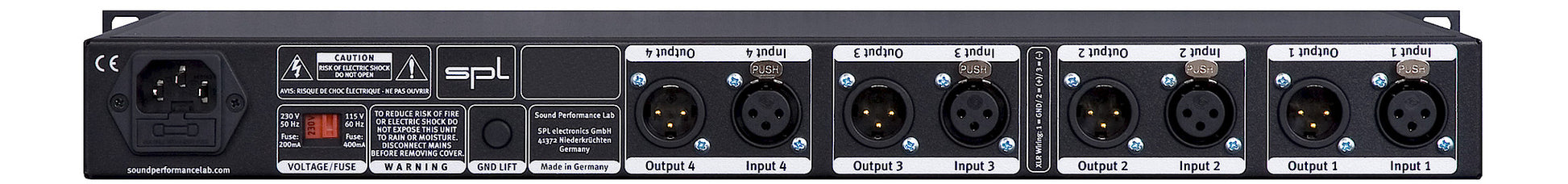

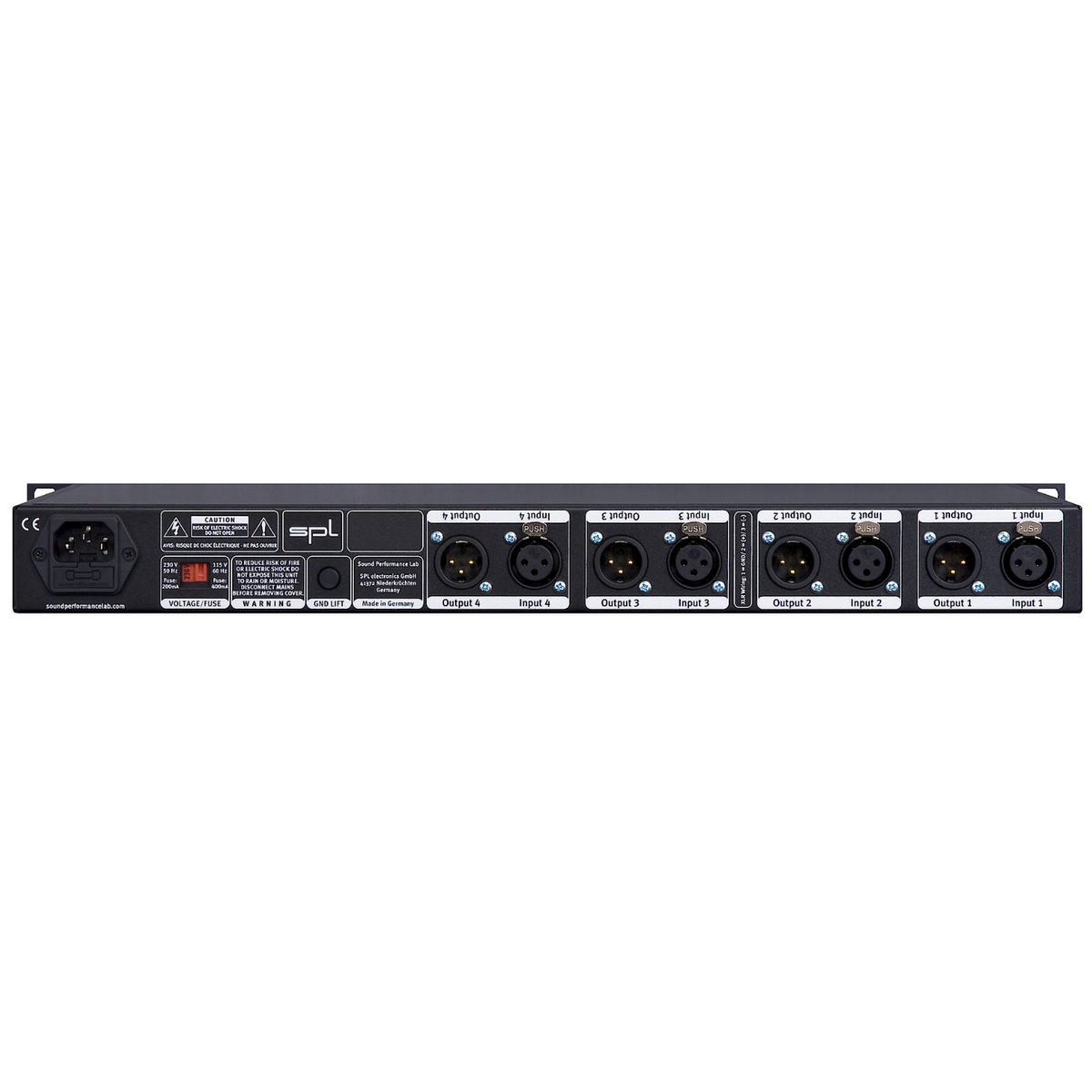

 Input & Output

  • Instrumentation amplifier, electronically balanced (differential), transformerless
  • Nominal input level: +6dB
  • Input impedance: = 22kOhms
  • Output impedance: < 600Ohms
  • Max. input level : +24dBu
  • Max. output level: +22,4dBu
  • Minimum load ohms: 600Ohms
  • Relay Hard Bypass
  • Power Fail Safety

Measurements

  • Frequency response: 20 Hz - 100 kHz
    (100 kHz = -3 dB)
  • CCMR (common mode rejection): - 80dBu @1kHz
  • THD & N: 0,004% @1kHz
  • S/N CCIR 468-3: -89dBu
  • S/N A-weighted: -105dBu

Power Supply

  • Toroidal transformer: 15VA
  • Fuse: 315mA
  • Ground-Lift switch
  • Voltage selector

Dimensions & Weight

  • WxHxD: 482 x 44 x 237mm; 19" x 1.73" x 9.33"
  • Weight: 3,4kg; 7.5lbs

0dBu = 0.775V. Subject to change without notice.
