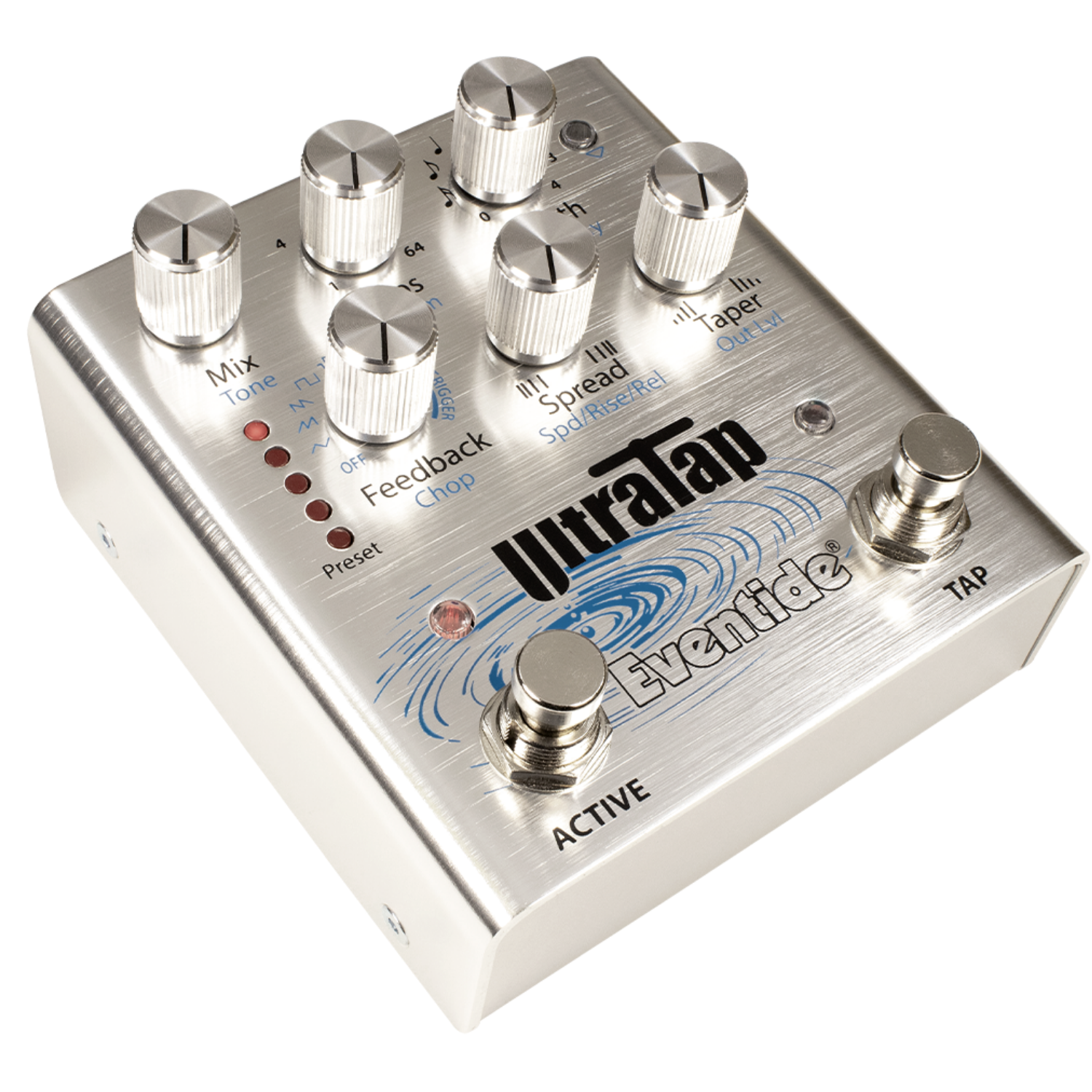

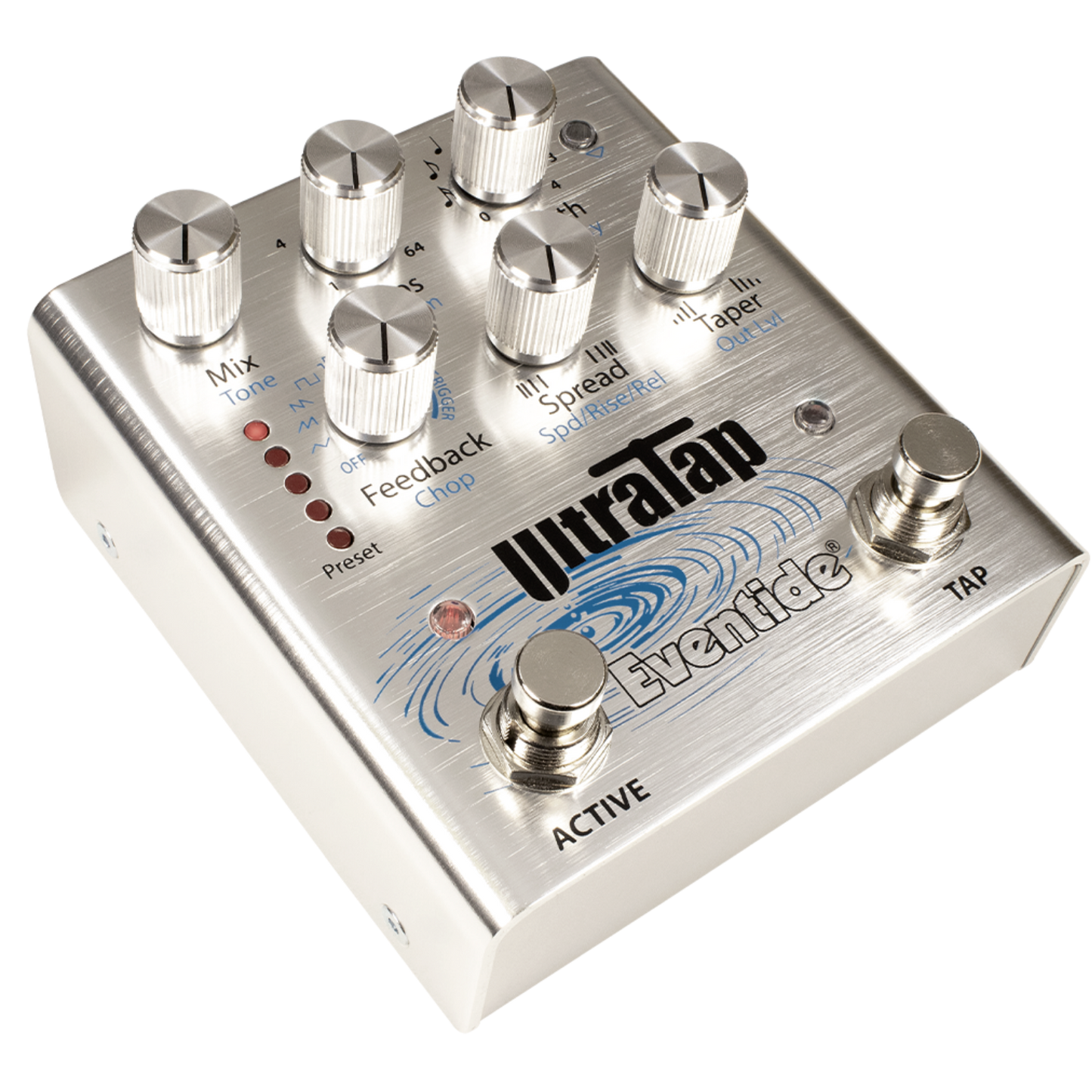

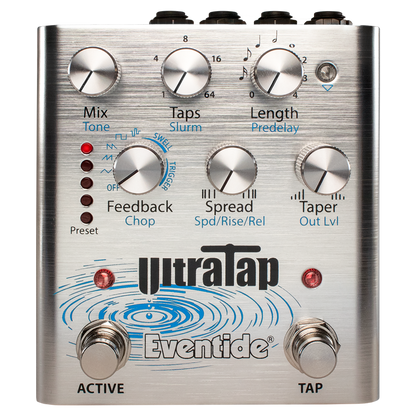

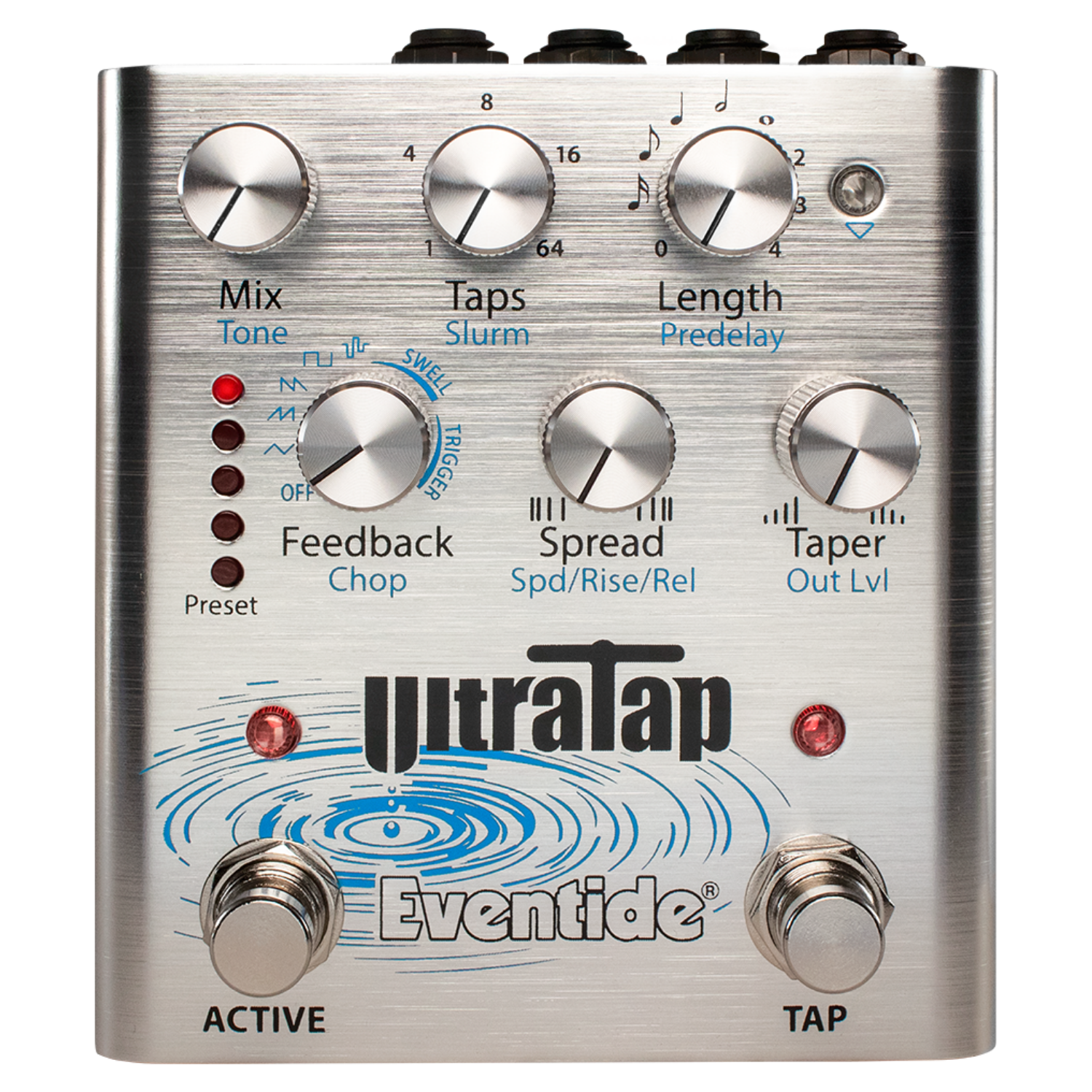

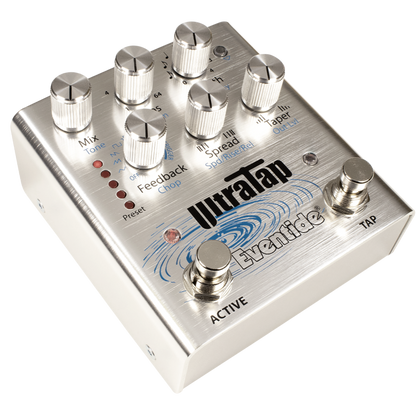

Eventide UltraTap Pedal
Eventide UltraTap Pedal
UltraTap is a unique multi-tap delay effects pedal perfect for staccato leads, swelling chords, and other evolving effects — everything from reversed reverbs to the sound of ripping it up in the Grand Canyon! Think of UltraTap as the mother of all Echoplexes and you won’t be too far off. That’s basically how it operates but with the flexibility to add as many ‘tape heads’ as you want and expressively control their positions and levels.
UltraTap’s controls make possible new and unexpected effects. The controls that you would expect in a multi-tap delay pedal — Number of Taps, Delay and Feedback — are just the basics. Controls for Spread, Slurm, and Chop open up a new world of possibilities.
Specifications:

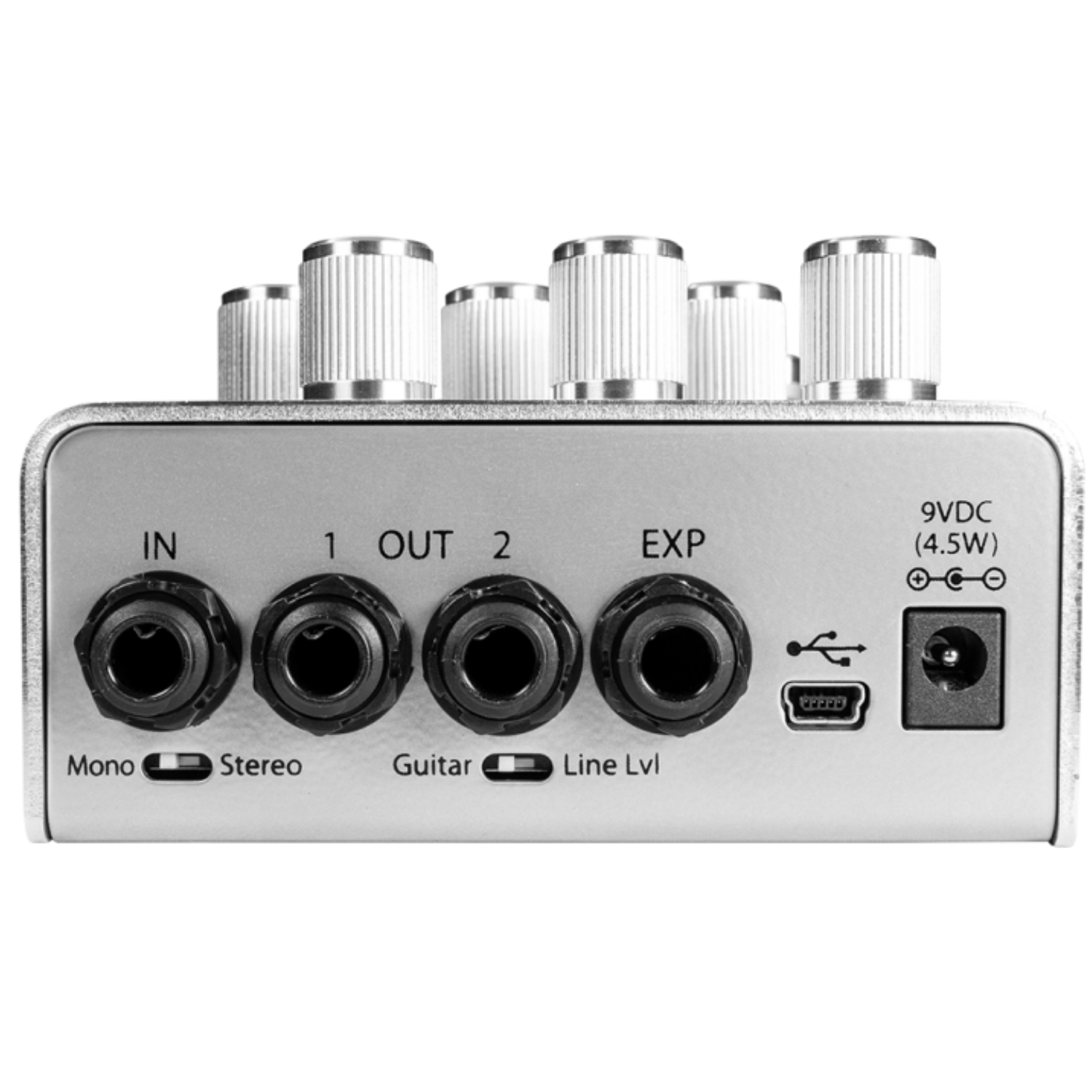

Input 1/4″ TRS / Mono = Tip, Stereo = Tip & Ring
Out 1 1/4″ TS Mono / Mono Output
Out 2 1/4″ TS Mono / Stereo Output
EXP 1/4″ TRS / Expression pedal, Aux Switch or MIDI I/O
Mono/Stereo Switch Sets Input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/Line Level Switch Optimizes internal gain structure
Mini USB Software updates, MIDI I/O
DC Input Jack 5.5mm / 2.1mm plug / Center Negative (-)
Input Impedance 700k ohms Mono, 990k ohms Stereo
Max Input, Guitar +8dBu
Max Input, Line +14dBu
Output Impedance 220 ohms
Recommended Load Impedance 10k ohms
Power 9V DC @ 300mA / Center Negative (-). Includes universal power supply with US, EU, UK, JP, and AU adapters.
Dimensions (Product) 4″ W x 4.25″ D x 1.68″ H / 102 mm x 108 mm x 43 mm
Weight (Product) 1.06 lb / 0.48 kg
