Xfilter Equalizer

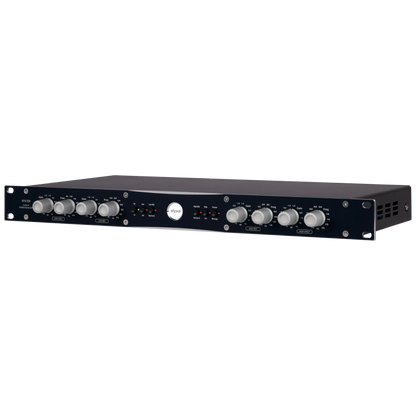

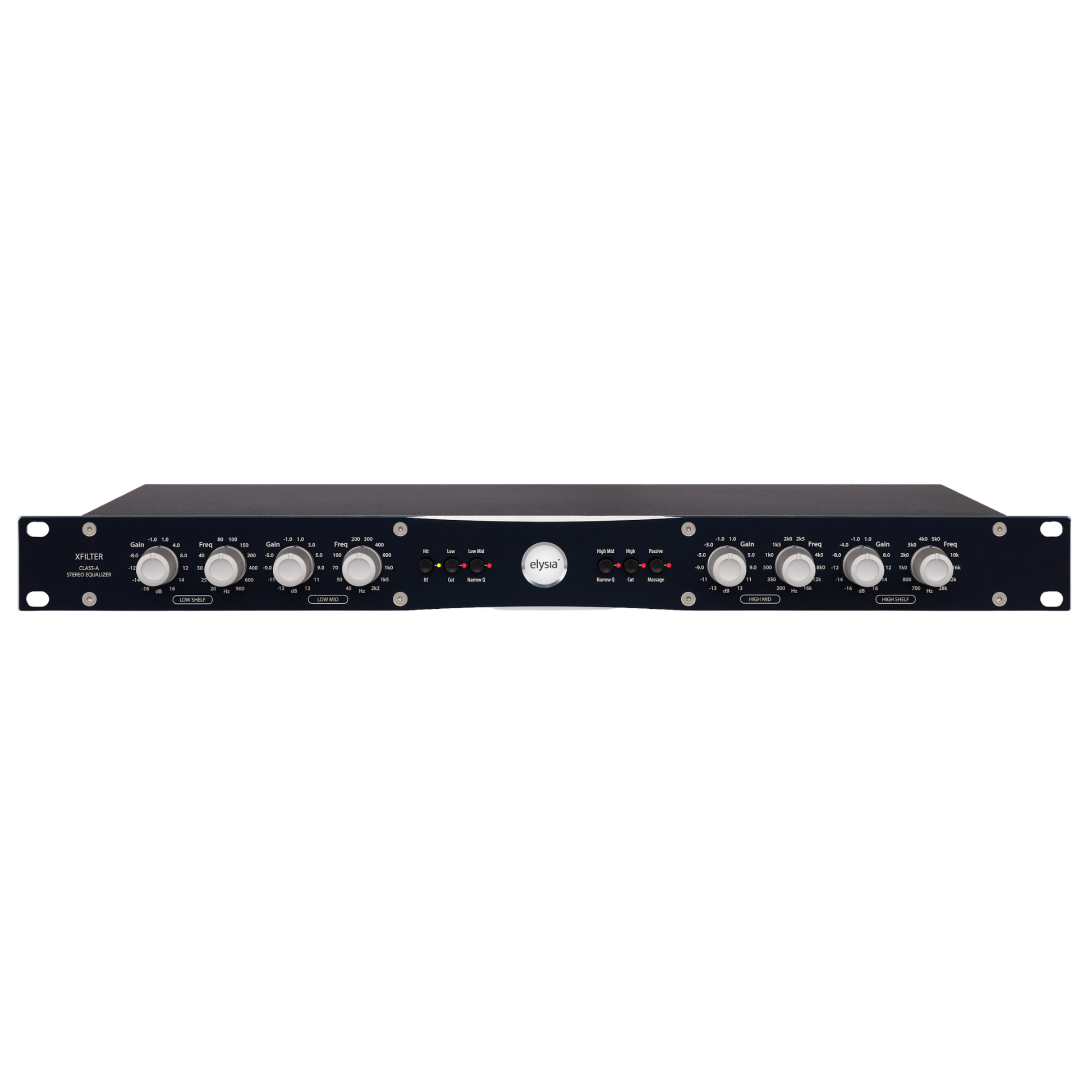

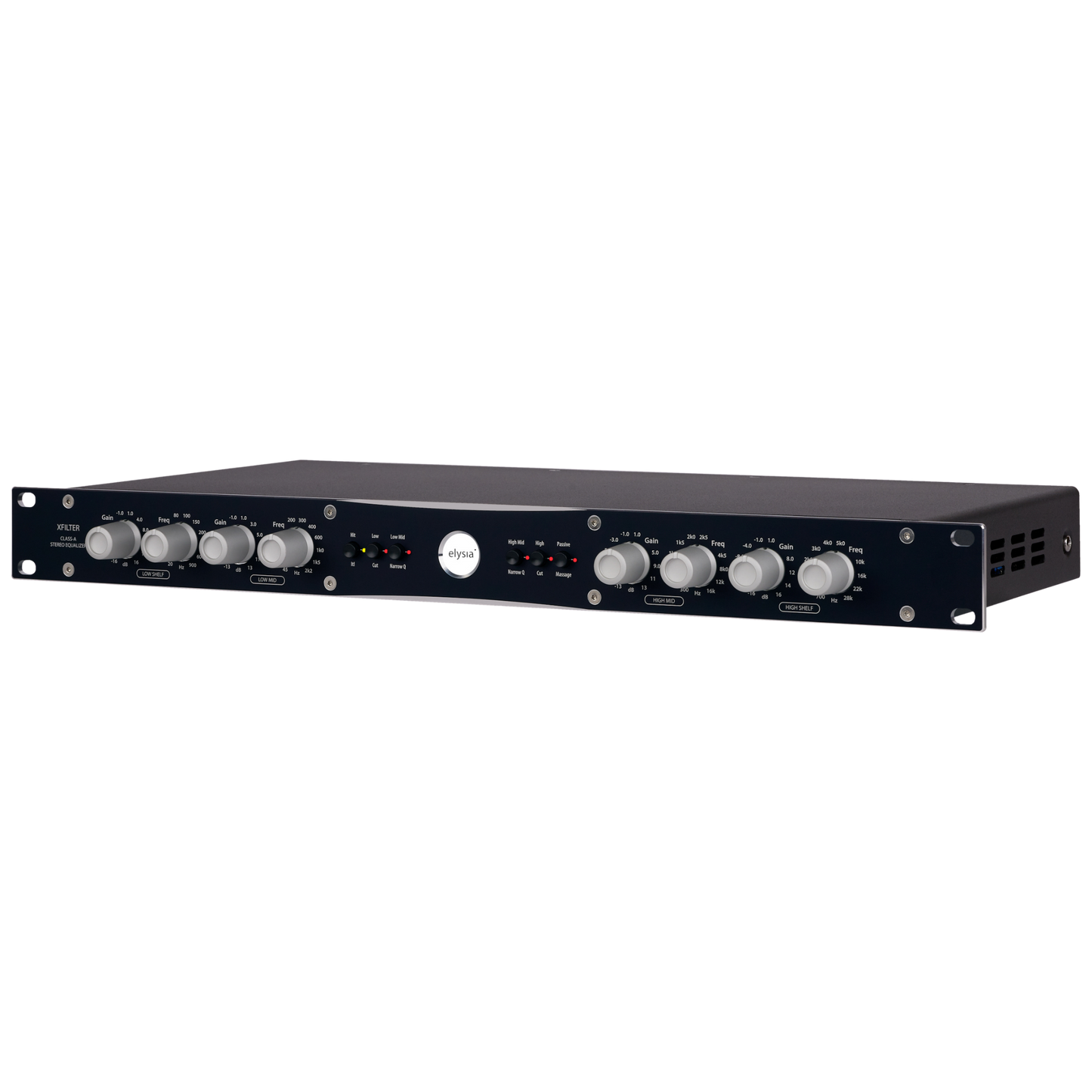

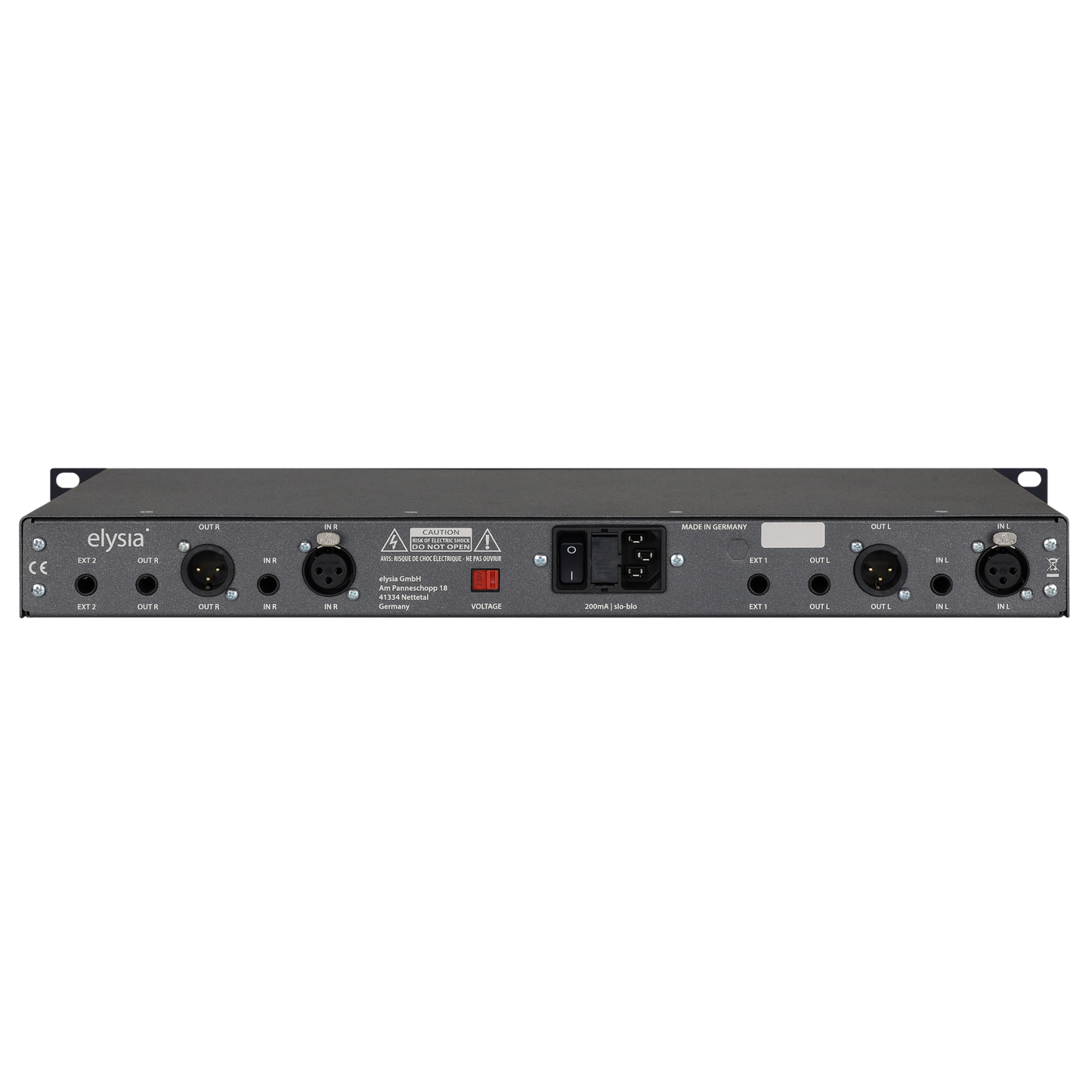

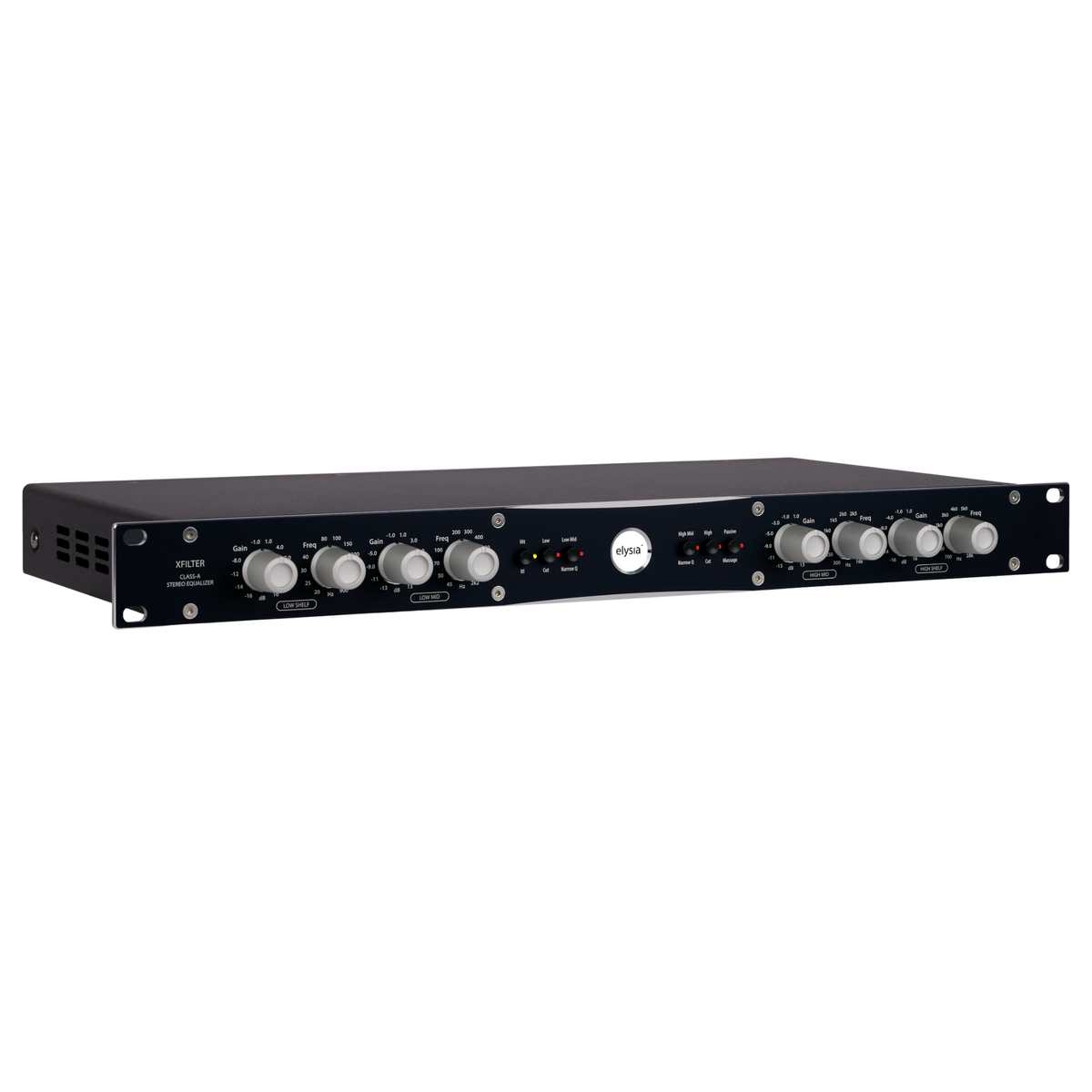

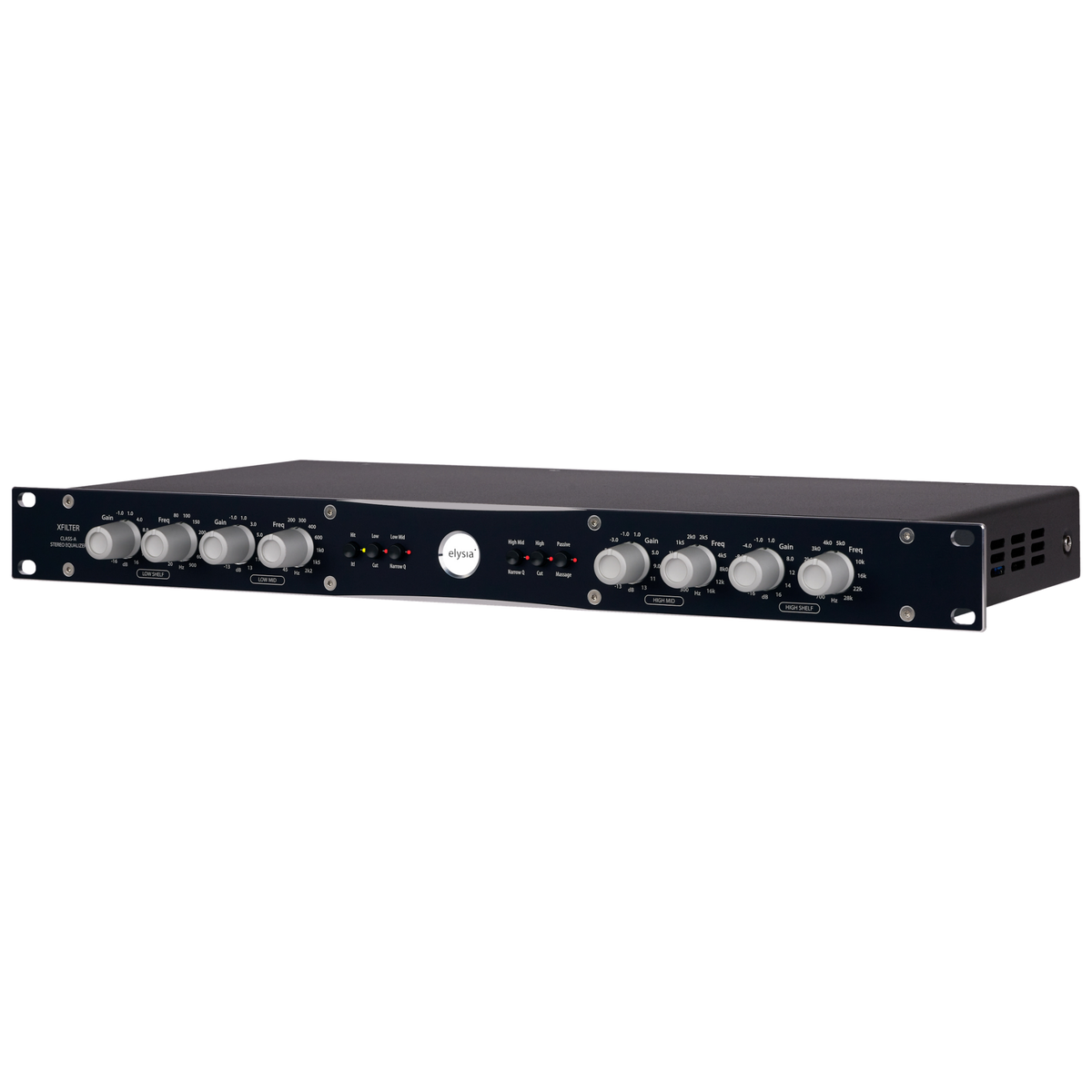

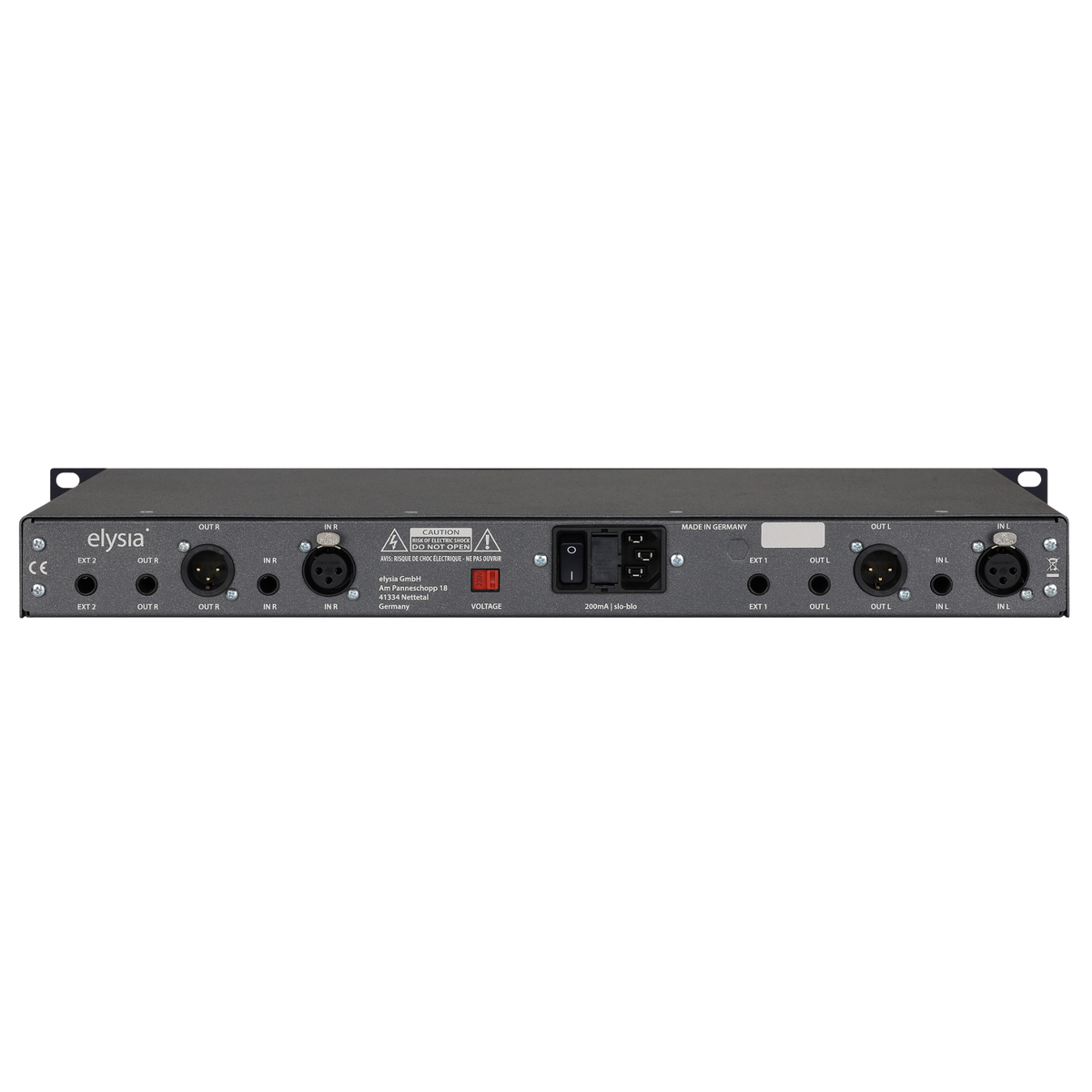

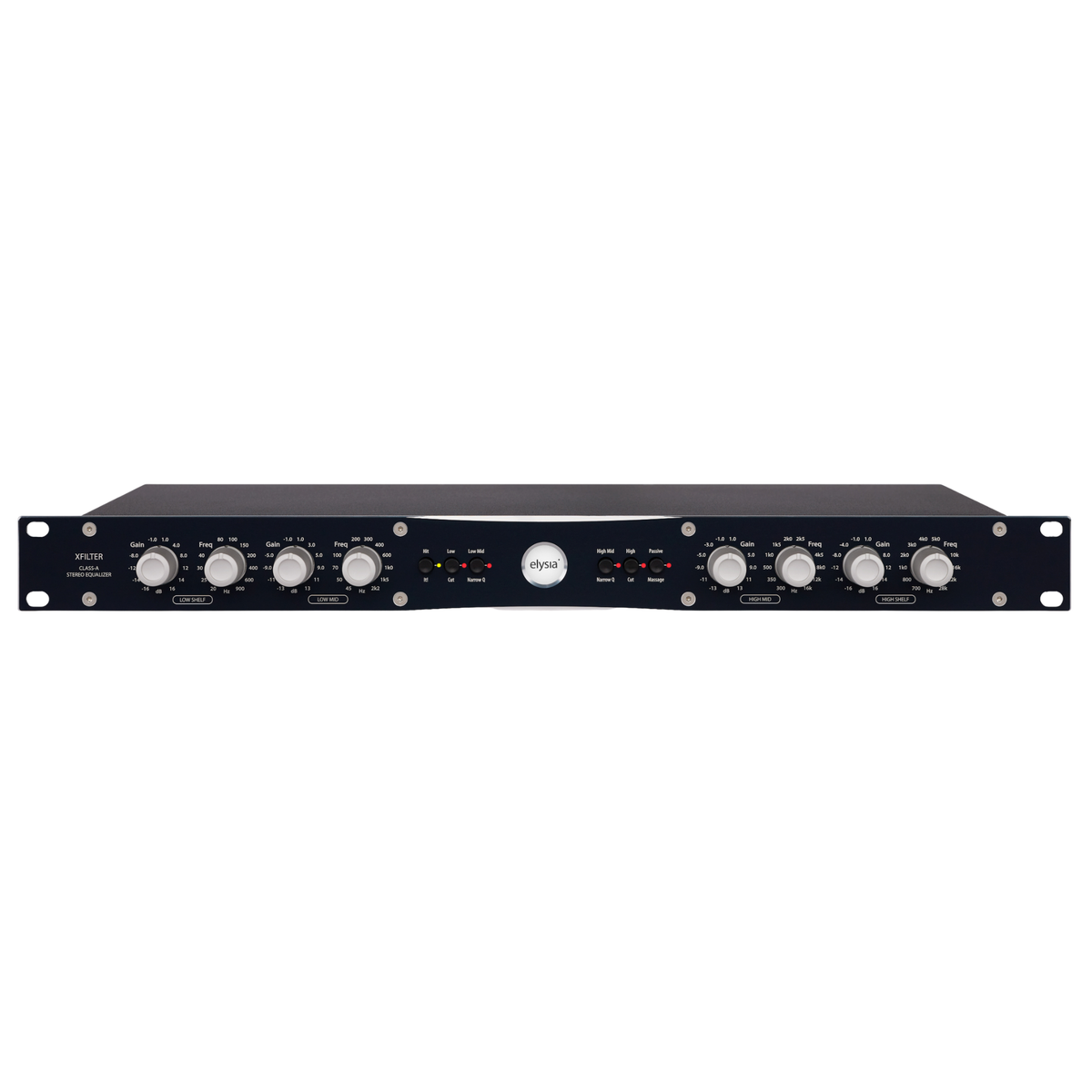

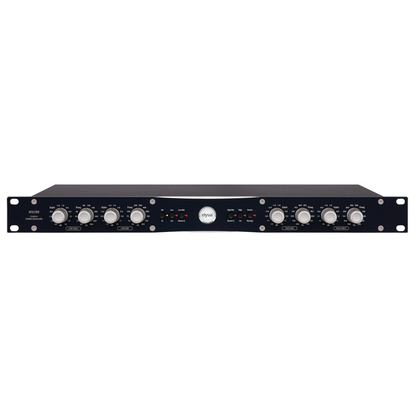

Xfilter – The Universal Equalizer

The xfilter is a true linked stereo equalizer with the heart and soul of our flagship EQ, the museq. It gives you the expensive sound of an all class-A equalizer in a surprisingly affordable package, with a precise stereo image based on computer-selected, stepped pots and low tolerance film caps.

This EQ is serious about flexibility. It offers high and low shelf bands which can be switched into high and low cut filters with resonance, two mid peak filters with wide and narrow Q, plus additional passive LC stages with shielded coils for a glorious top end.

With its exceptionally open sound, straight transient projection and solid punch, the xfilter is the perfect match for your xpressor – or any other piece of delicious outboard gear!

FEATURES:

100% Class-A Topology

Discrete input, output and mix stages plus the complete audio path running in constant class-A mode are the basis for an exceptionally transparent, wide and open sounding EQ.

True Stereo Operation

As one of the few exceptions in the market, the xfilter processes both of its channels with just one set of controllers – a true stereo linked EQ.

Resonance High & Low Cut Filters

The shelving filters can be switched into high and low cut filters with an additional resonance peak. Not ordinary, but extremely useful.

Switchable Filter Quality

The quality of the peak filters can be switched from a wide to a narrow Q factor which remains independent from the setting of the gain controller.

Additional Passive High-Band

The beautiful sheen only passive filters can deliver... the xfilter has it all. An additional LC filter with shielded coils gives you the 'Passive Massage'.

Stepped Controllers

All potentiometers on the xfilter have 41 steps, which is a great help for recalling your previous sessions fast and precisely.

Computer-Selected Potentiometers

Every single dual and quad layer pot we buy is measured with custom computer routines, and only the good ones go into production.

Special Low Tolerance Capacitors

The special series of film caps used for the xfilter performs twice as good as the industry standard in terms of component tolerance.

Ground Layer Shield

One of the four layers of both PCBs is a full copper plane which helps to reduce interference's caused by electric fields.
