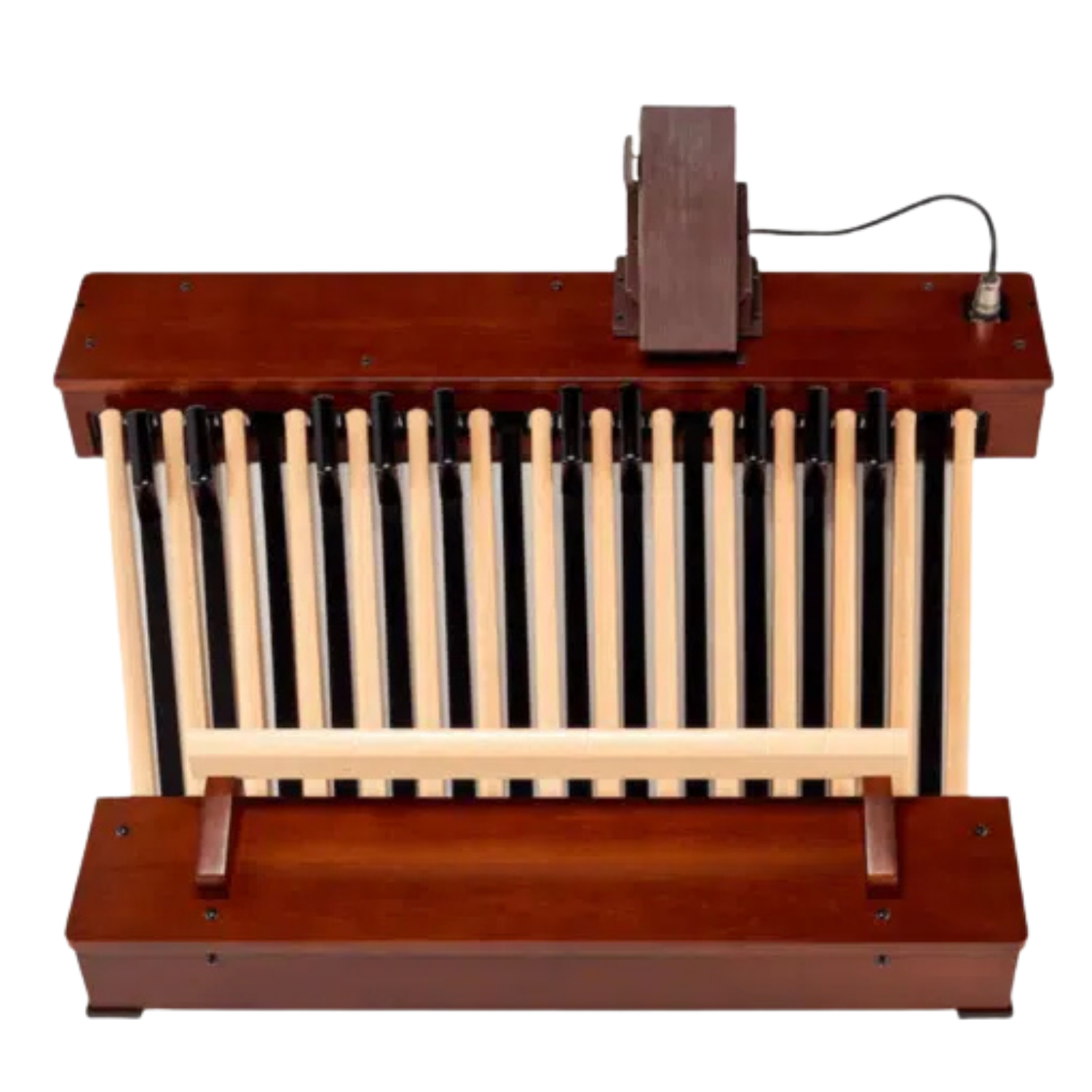

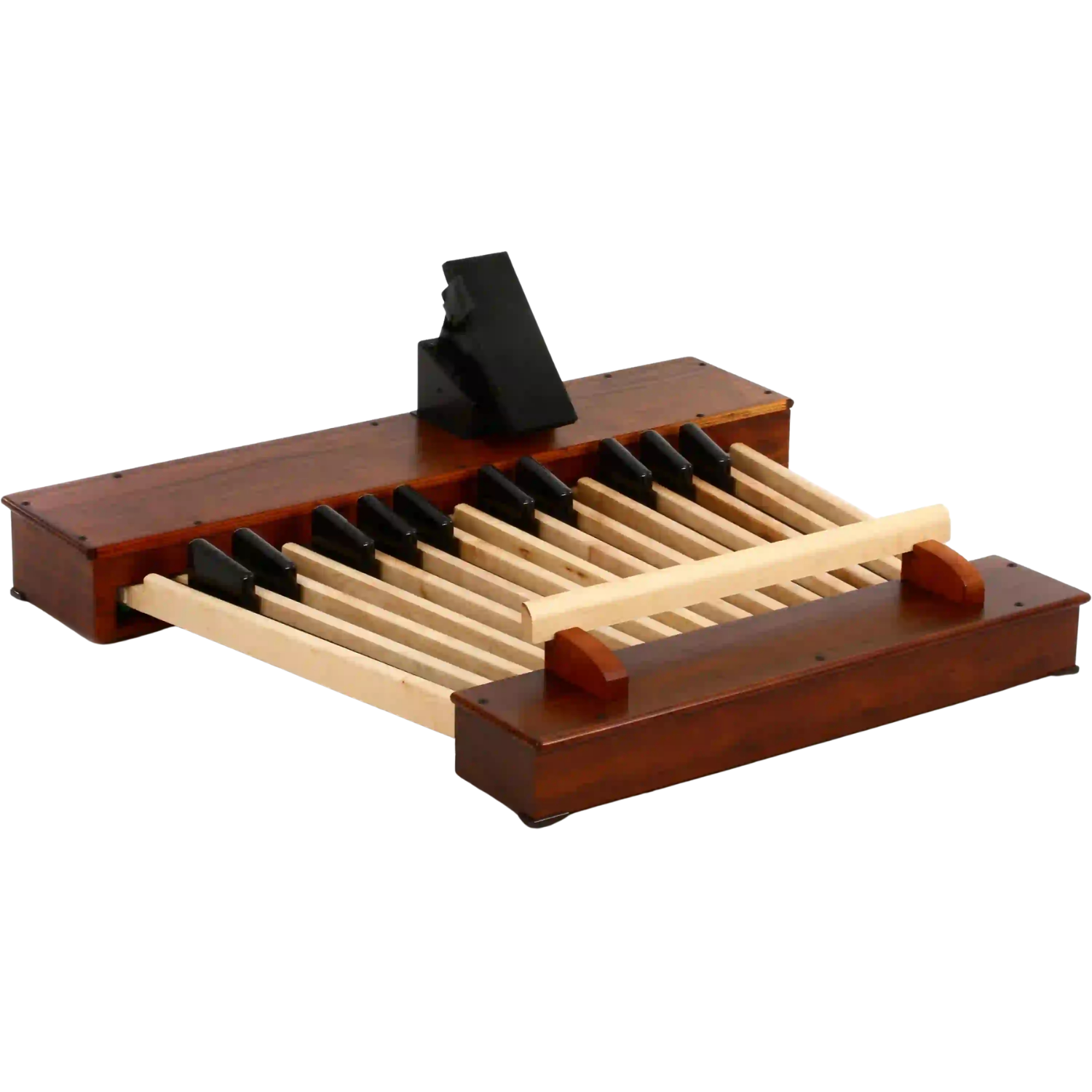

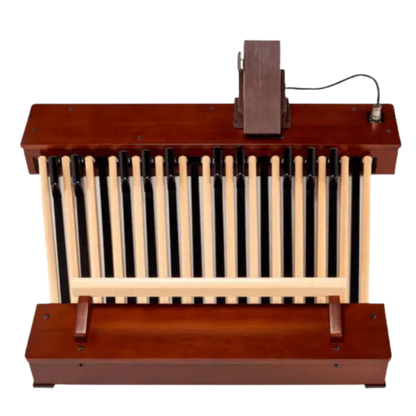

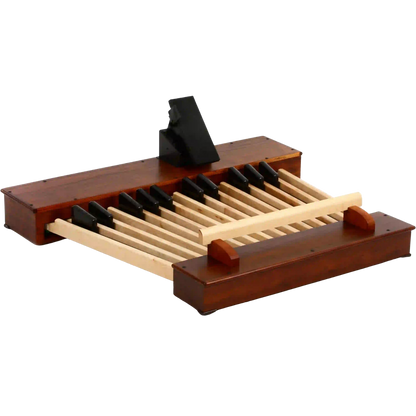

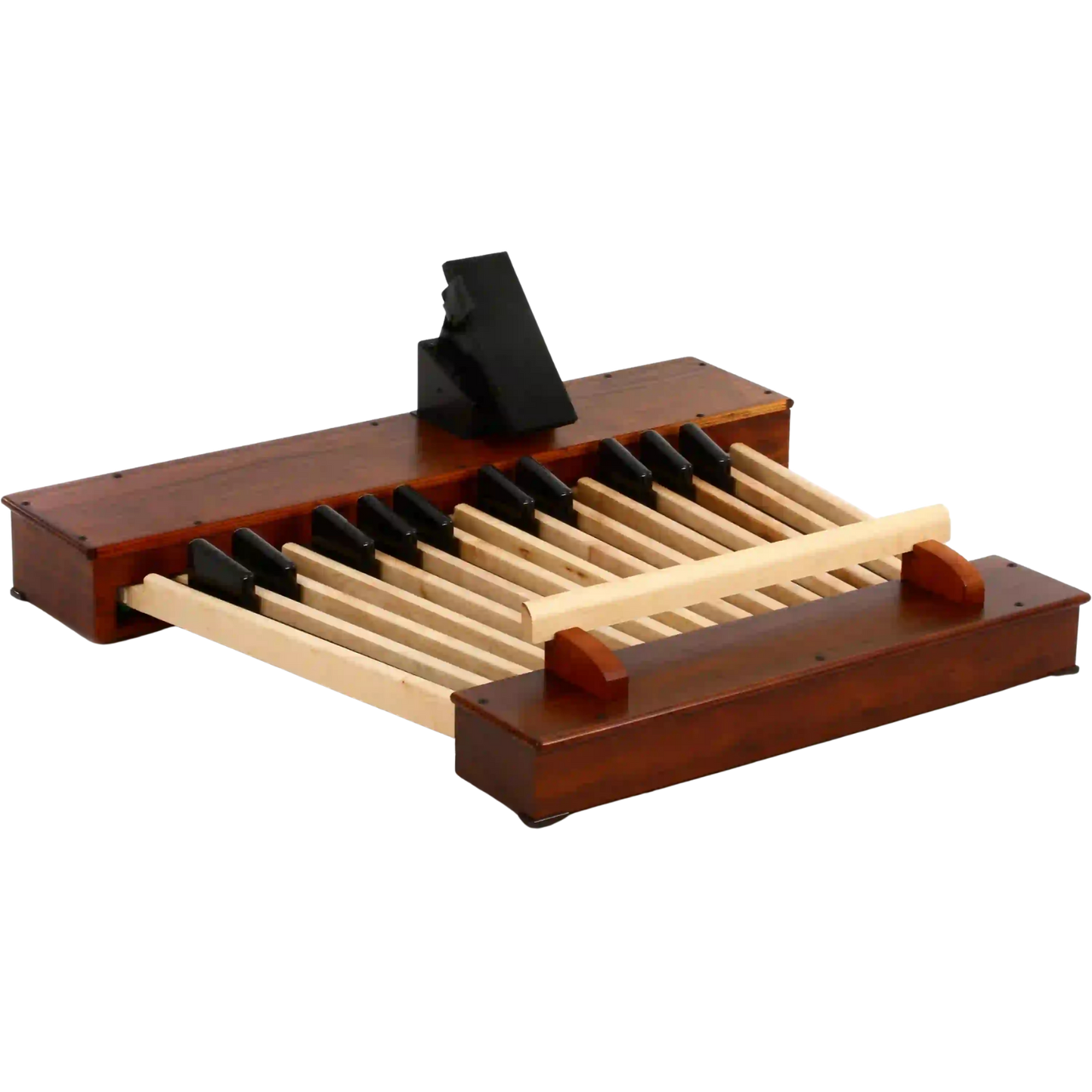

This 25 note Pedal Clavier is the same style found on classic B-3, C-3 or A-100 models, but suitable only for the Hammond XK-5, XK-5 System, and A-3 Organs. This Clavier uses Hammond’s proprietary “H-Bus” connectors. The XPK-250W has a red walnut finish to match the XK-5, XK System and A-3 cabinetry. An EXP-100f expression pedal is integrated into the Clavier.
Specifications:
KEYBOARD
25 Notes
CONTROL
Expression Pedal, Foot Switch
CONNECTORS
M-BUS, MIDI OUT,
FOOT SW, EXPRESSION,
DC IN
DIMENSIONS
Pedalboard and Expression Pedal
105(W)× 93(D)× 35(H) cm
41"(W)x 37"(D) x 14"(H)
Only Pedalboard
105(W) × 90(D) × 20(H) cm
41"(W) x 35"(D) x 8"(H)
WEIGHT
Pedalboard and Expression Pedal
25 kg 55 lbs
Only Expression Pedal
2.3 kg 5 lbs
POWER SUPPLY
DC 10-15V 0.1A (AC adaptor)
DC 5V 0.1A ([]]-BUS)
ACCESSORIES
H-BUS cable (2.5m)
Knob Bolt
Retaining Washer
