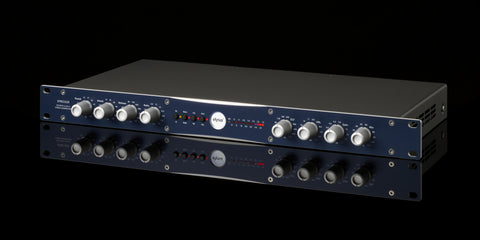

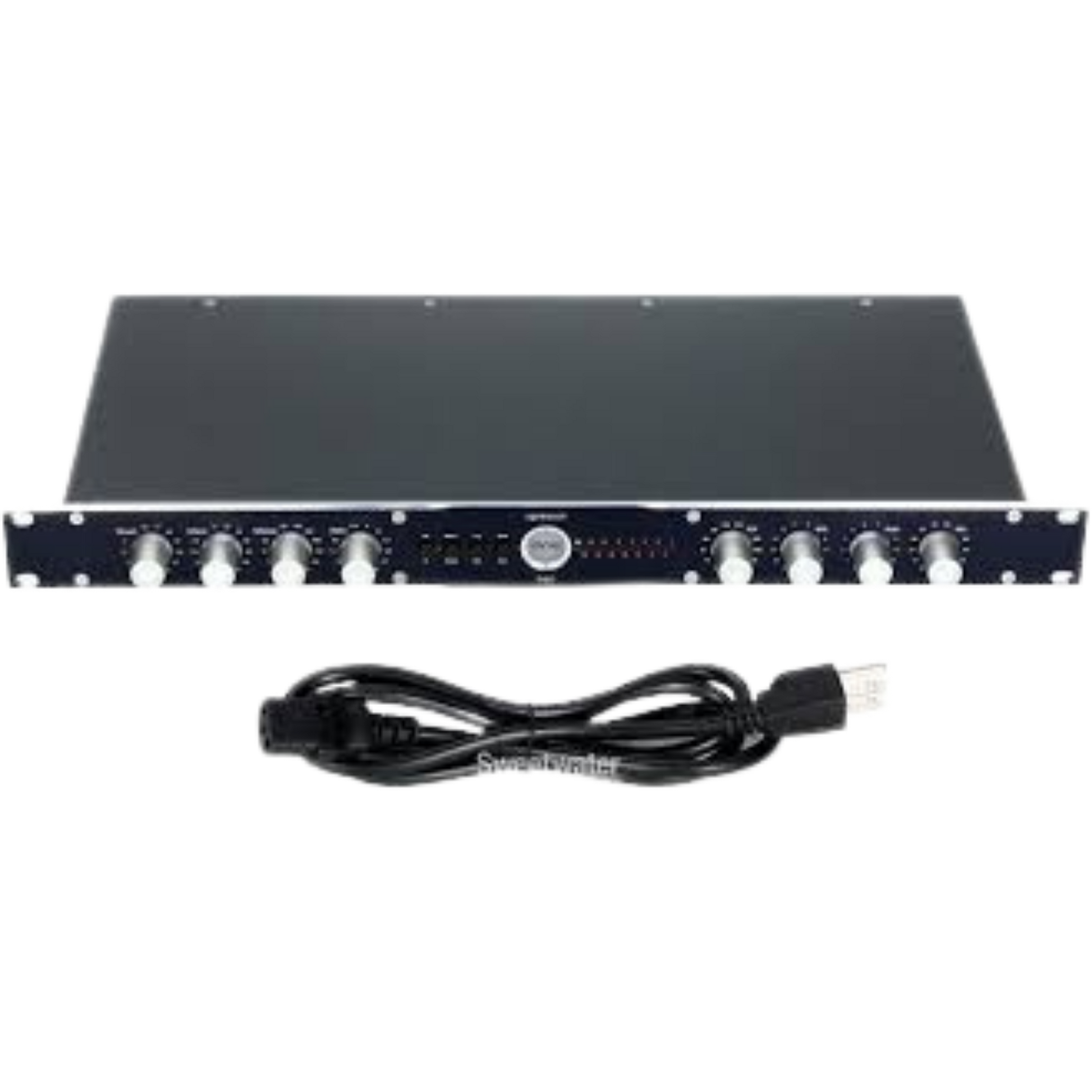

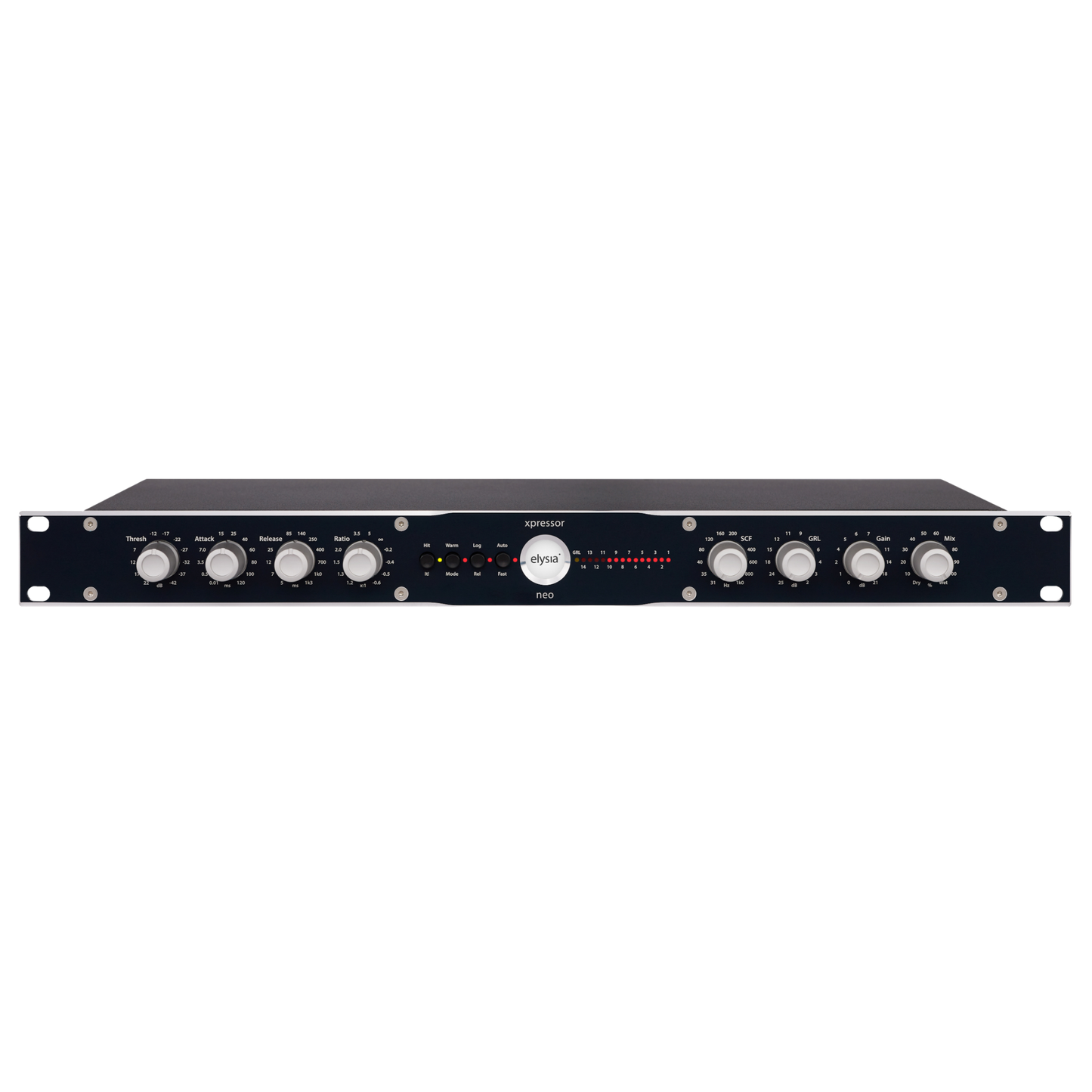

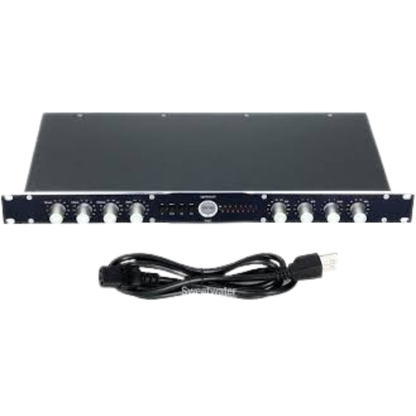

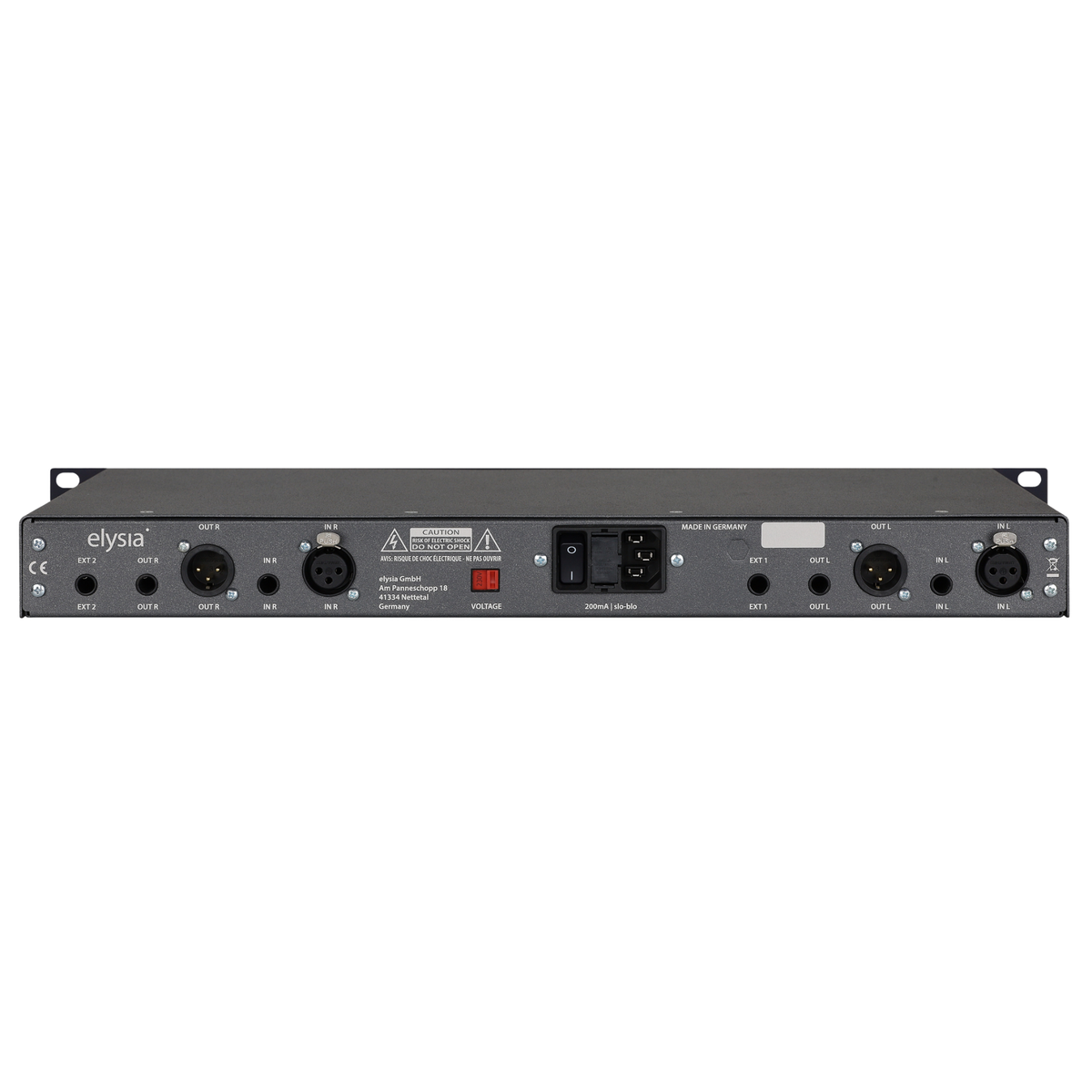

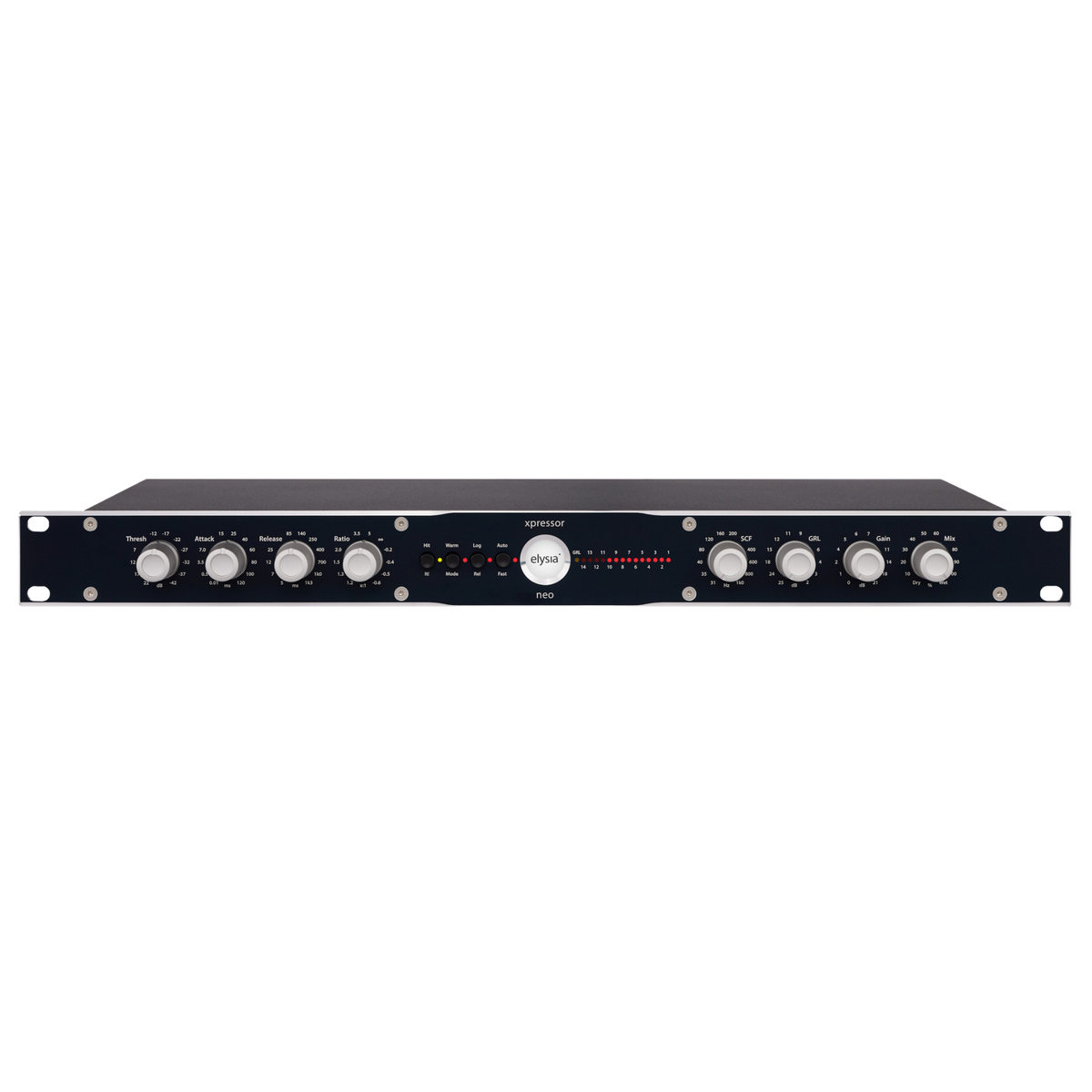

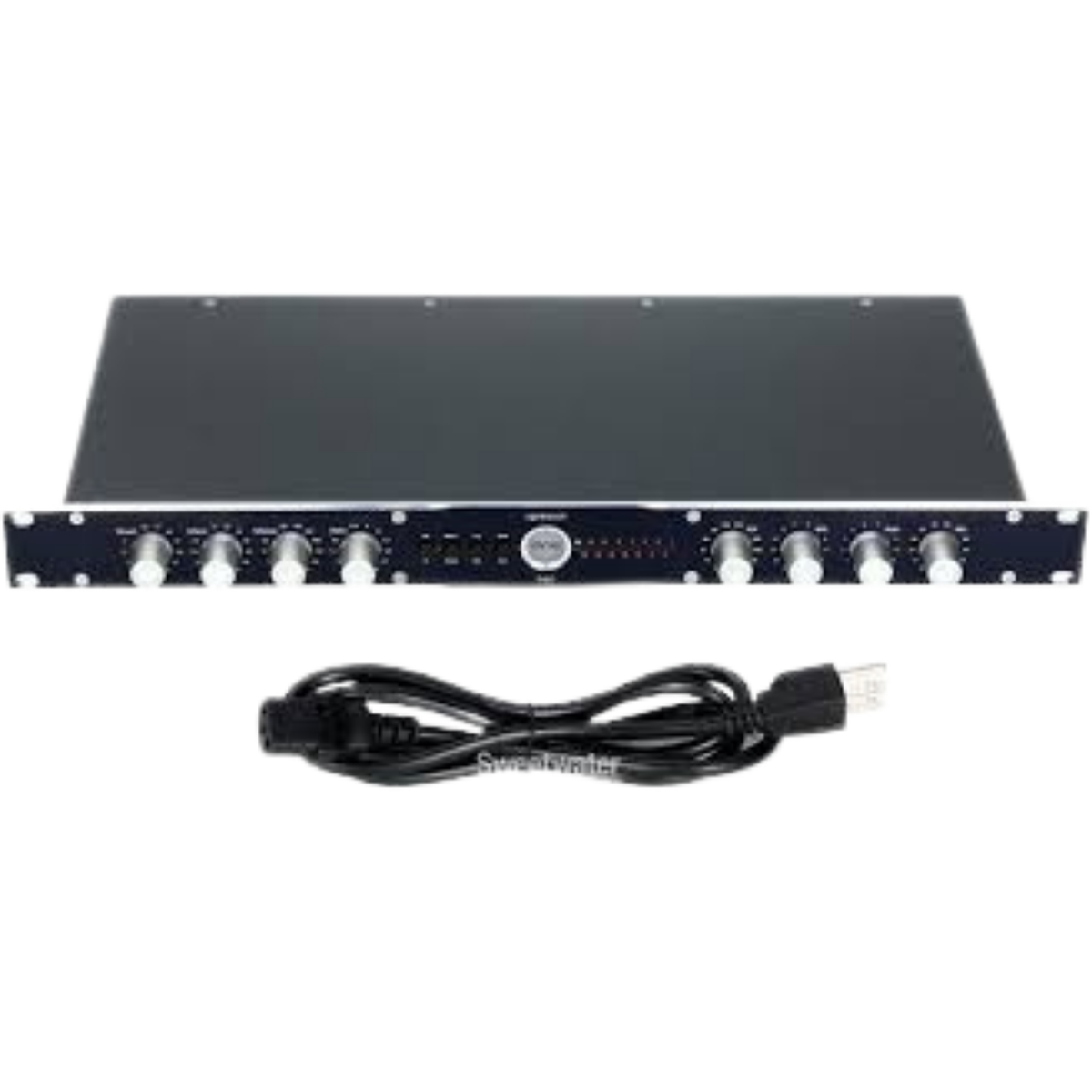

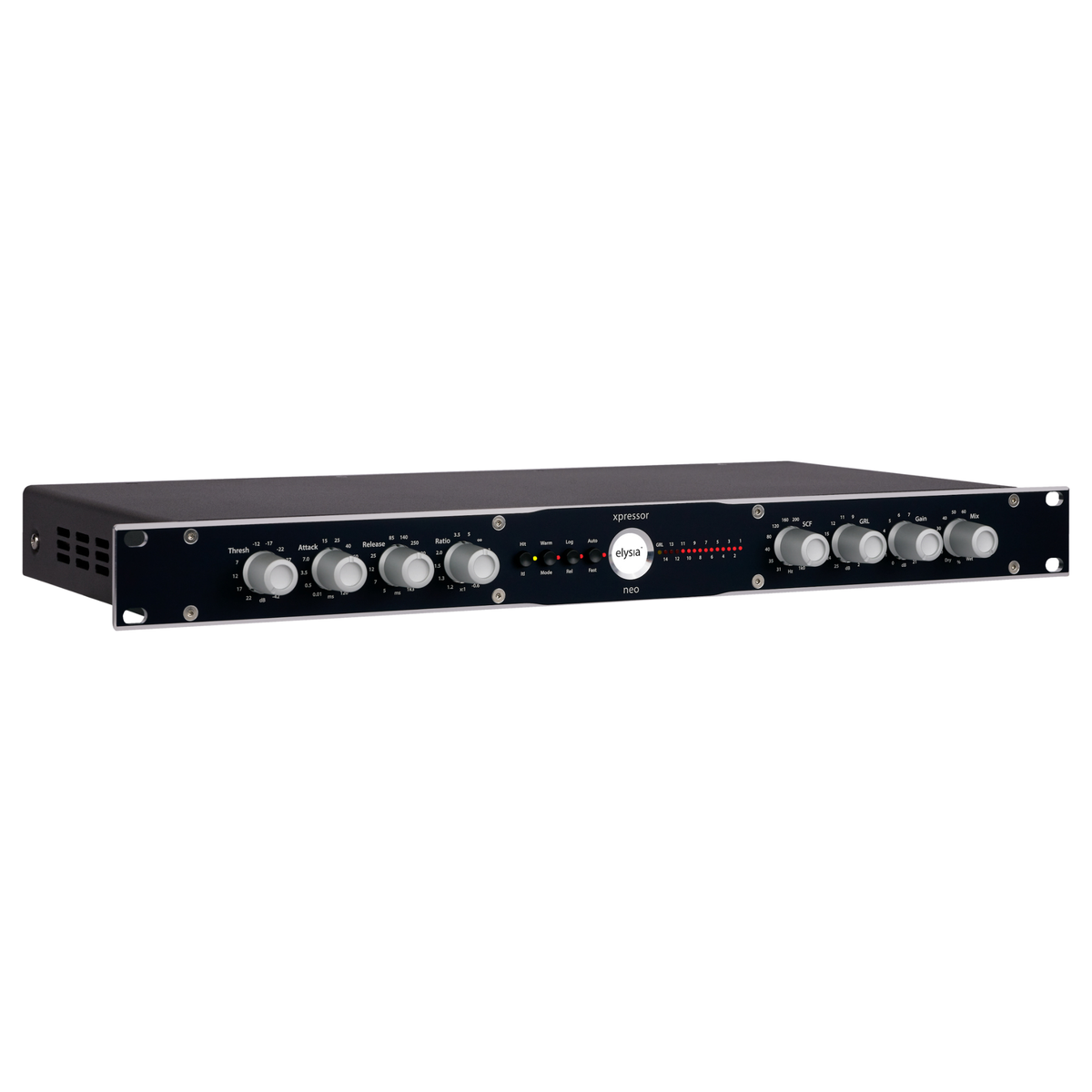

Xpressor Compressor

You're looking for a stereo compressor. You want pristine sound and can't accept compromise in terms of signal quality. You don't want a one trick pony, but a flexible machine that covers all the standards and then some. And ruining yourself in order to get it is not really an option...

You're looking for the xpressor. Its discrete audio path running in constant class-A mode combines a clear and open sound with a good lot of punch. The clearly laid out functions get you going straight away, while the extended features let you treat dynamics like never before.

Stereo buss compression, processing single signals, approaching dynamics in creative ways – the xpressor shines in many different applications. And should you take your equipment on the road, you'll certainly enjoy the rigid full aluminum enclosure cutting weight into half.

FEATURES:

  • Discrete Class-A Topology
    Pristine audio quality.
  • Auto Fast Attack
    Perfect attack in any situation.
  • Switchable Release Characteristic
    Smooth or crisp – the choice is yours.
  • Warm Mode
    Transparency? Saturation? Both!
  • Bulletproof Lightweight
    Aluminum housing, panel and knobs.
  • Parallel Compression
    Mixing direct and compressed signals.
  • Sidechain Filter
    Frequency selective compression.
  • Sidechain Send & Return
    External compression access.
  • Gain Reduction Limiter
    Ultimate control on the compression process.
  • Made in Germany
    Outstanding component and build quality.



SPECIFICATIONS:

Frequency response:

<10 Hz - 400 kHz (-3.0 dB)

THD+N:
@ 0 dBu, 20 Hz - 22 kHz, Mix 0 %
@ 0 dBu, 20 Hz - 22 kHz, Mix 100 %
@ +10 dBu, 20 Hz - 22 kHz, Mix 0 %
@ +10 dBu, 20 Hz - 22 kHz, Mix 100 %


0.002 %
0.006 %
0.003 %
0.056 %

Noise floor:
20 Hz - 20 kHz (A-weighted)


-94 dBu

Dynamic range:
20 Hz - 22 kHz


115 dB

Maximum level:
Input
Output


+21 dBu
+21 dBu

Impedance:
Input
Output


10 kOhm
68 Ohm





























































Technical Details





Frequency response:                                                      <10 Hz - 400 kHz (-3.0 dB)



THD+N @ 0 dBu, 20 Hz - 22 kHz, Mix 0 %:        0.002 %

THD+N @ 0 dBu, 20 Hz - 22 kHz, Mix 100 %:        0.006 %

THD+N @ +10 dBu, 20 Hz - 22 kHz, Mix 0 %:        0.003 %

THD+N @ +10 dBu, 20 Hz - 22 kHz, Mix 100 %:             0.056 %



Noise floor, 20 Hz - 20 kHz (A-weighted):                            -94.0 dBu



Dynamic range, 20 Hz - 22 kHz:                                  115 dB



Maximum input level:                                                    +21 dBu



Maximum output level:                                                  +21 dBu



Input impedance:                                                            10 kOhm



Output impedance:                                                         68 Ohm
